CN1J2TT13R0F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CN1J2TT13R0F

CN1J2TT13R0F: DescriptionArray/Network Resistor, Isolated, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, CHIP; CategoryPassive components The resistor; File Size55KB，2 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric View All

CN1J2TT13R0F Overview

Array/Network Resistor, Isolated, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, CHIP

CN1J2TT13R0F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2049697630
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Component power consumption	0.063 W
The first element resistor	13 Ω
JESD-609 code	e3
Manufacturer's serial number	CN
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	2
Number of terminals	4
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE, PAPER
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
surface mount	YES
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

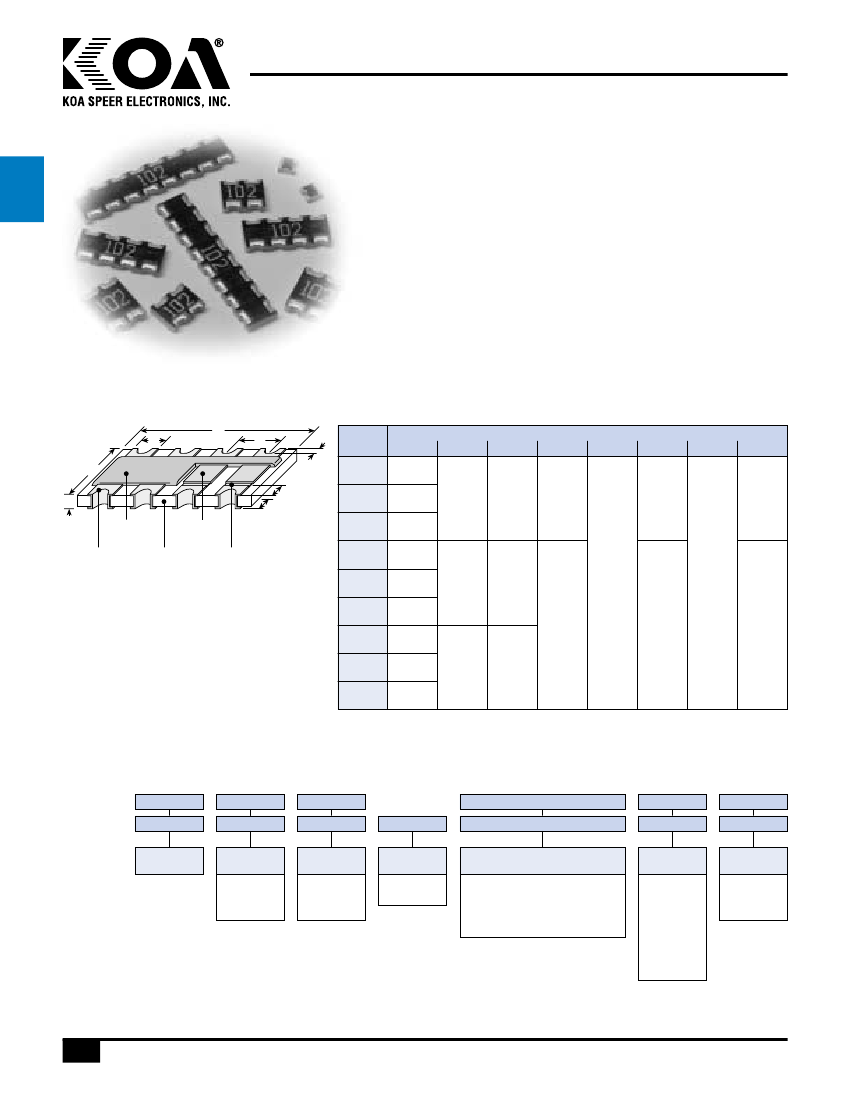

concave termination with square corners

resistor array

features

•

Manufactured to type RK73 standards

Less board space than individual chips

Isolated resistor elements

Marking: Marked with resistance value

resistor

arrays

dimensions and construction

Protective

Coating

Electrode

Resistive

Film

Inner

Electrode

Size

Code

1J2

1J4

1J8

2A2

2A4

2A8

2B2

2B4

2B8

.063±.006

(1.6±0.15)

.126±.008 .063±.006 .012±.006 .016±.006

(3.2±0.2) (1.6±0.15) (0.3±0.15) (0.4±0.15)

.252±.008

(6.4±0.2)

0.1±.008

(2.54±0.2)

0.2±.008 .079±.008 .016±.008

(5.08±0.2) (2.0±0.2) (0.4±0.2)

0.4±.008

(10.16±0.2)

0.1±.008

(2.54±0.2)

0.2±.008 .126±.008 .020±.012

(5.08±0.2) (3.2±0.2) (0.5±0.3)

0.4±.008

(10.16±0.2)

.022±.006

(0.55±0.15)

.024±.004

(0.6±0.1)

.031

(0.8)

.006

(0.15)

.050

(1.27)

.020±.006

(0.5±0.15)

.031

(0.8)

Dimensions

inches

(mm)

p (ref.)

Ceramic

Substrate

ordering information

Old Part #

New Part #

Type

Size

Elements

Termination

Material

L: SnPb

T: Sn

Packaging

TE: 7" embossed plastic

TD: 7" paper tape

TED: 10" embossed plastic

TDD: 10" paper tape

101

Nominal

Resistance

2 significant

figures + 1

multiplier for

±2 & ±5%

3 significant

figures + 1

multiplier

for ±1%

Tolerance

F: ±1%

G: ±2%

J: ±5%

For further information on packaging,

please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.
