1689789: DescriptionD-sub standard connectors VS25STDsub25MPT0.5 25p male insert; CategoryThe connector The connector; File Size61KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1689789 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1689789	-	-	View	Buy Now

1689789 Overview

D-sub standard connectors VS25STDsub25MPT0.5 25p male insert

1689789 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/pi/products/1689954

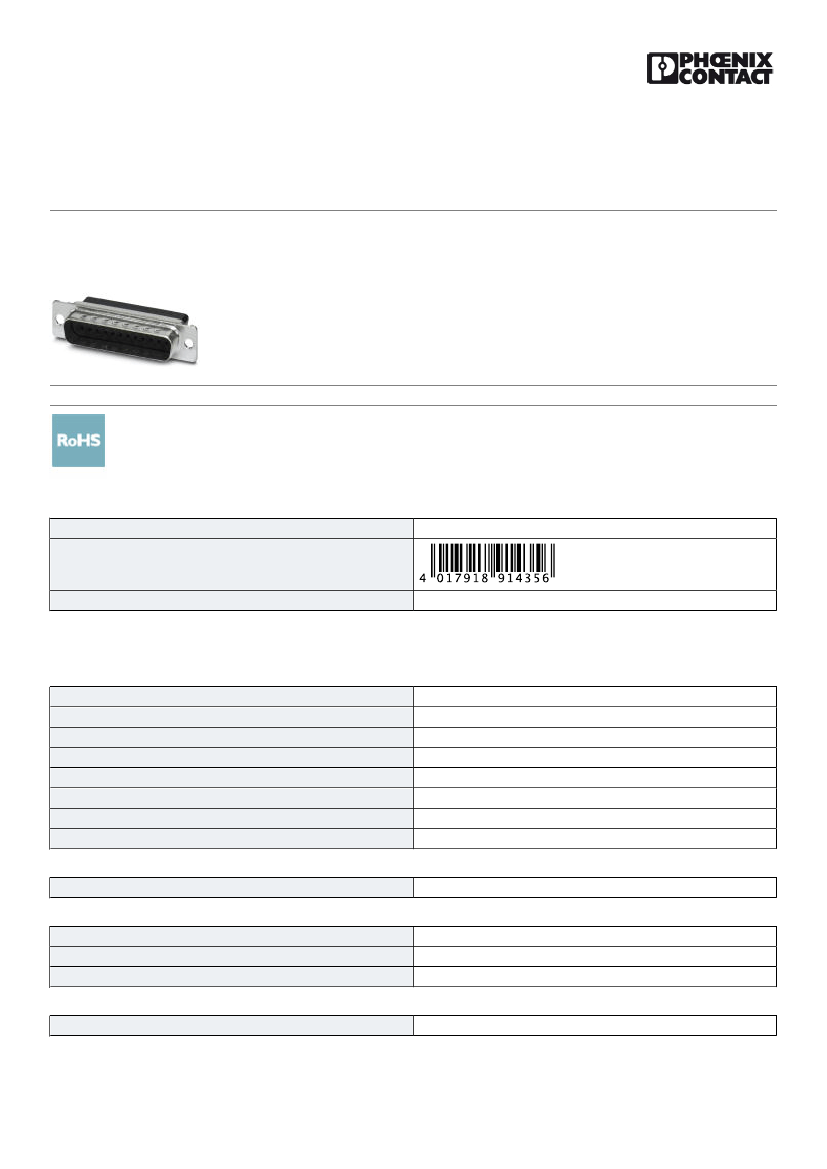

D-SUB contact support - VS-25-ST-DSUB-CD-B - 1689954

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

D-SUB contact carrier, shell size 3, for 25 signal contacts, type of contact pin, for crimp contacts, straight,

fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25-...

Key Commercial Data

Packing unit

GTIN

4017918914356

10 pc

Technical data

Mechanical characteristics

Number of positions

Connection profile

Insertion/withdrawal cycles

Connection method

Insertion force per signal contact

Mounting type

Type

Size of housing

25

25-pos. D-SUB

≥ 500

Crimp connection

≤ 3.40 N

Hole

25

3

Ambient conditions

Ambient temperature (operation)

-55 °C ... 130 °C

Material data

Flammability rating according to UL 94

Housing material

Contact carrier material

V0

Steel, tin-plated

Glass-fiber reinforced thermoplastics, UL 94 V0

Electrical characteristics

Number of positions

25

10/04/2018 Page 1 / 3
