0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
FH26 Series
G
Space saving(51 pos. shown)
1.0mm
3.2mm
16.8mm
Metal fittings do no protrude
outside of the connector body

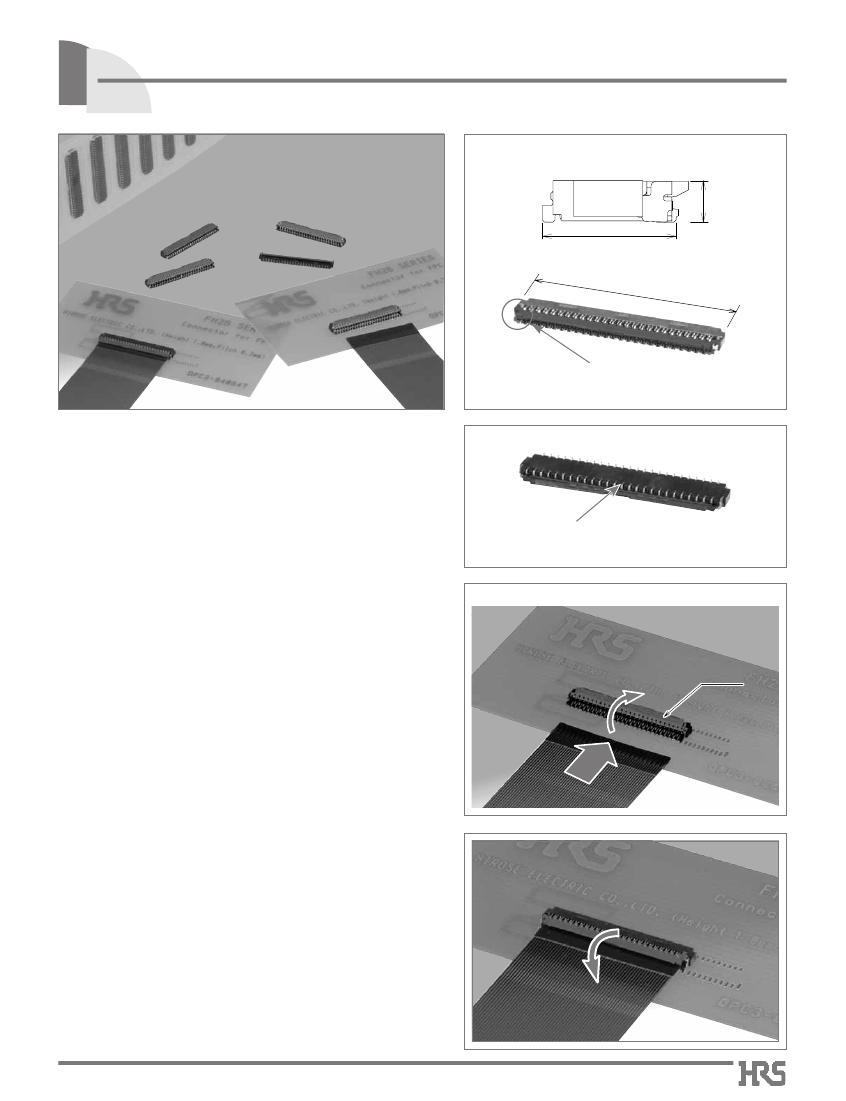

IFeatures
1. Extremely light weight
The typical version, with all 51 contacts loaded, weights
only 0.1 grams.
G
Can be mounted over conductive traces.
2. Easy solderability on the PC board
The soldering leads are on 0.6 mm pitch, exiting on front
and back of the connector.
No exposed contacts on the bottom
of the connector
3. Conductive traces on the PCB can run under the
connector
No exposed contacts on the bottom of the connector.
G
Operation
(1) Actuator open
(1) Actuator open
(2) Insert FPC
(2) Insert FPC
4. Easy FPC insertion and reliable electrical
connection
Proven Flip LockR actuator allows easy insertion of FPC.
Tactile sensation when fully closed confirms complete
electrical and mechanical connection.
Actuator
q
5. Accepts standard thickness FPC
0.2mm thick standard Flexible Printed Circuit board can be
used.
This is the only ultra-low profile ZIF connector allowing the
use of standard FPC.
w
6. Board placement with automatic equipment
Flat top surface and packaging on the tape-and-reel allows
use of vacuum nozzles.
Standard reel contains 5,000 connectors.
FPC
7. The connector does not use chlorine and
bromine exceeding standard limits.
(FH26W series)
* Defined in accordance with IEC61249-2-21
Br 900ppm or lower, Cl 900ppm or lower, Br + Cl
1,500ppm or lower
(3) Close the actuator
(3) Close the actuator
(4) FPC connected
(4) FPC connected
e
8. Available for 500 pieces packaging
Although the normal product is 5,000 pieces per reel,
500 winds per reel is also available.
(Emboss reel external diameter is Ø180mm.)
r
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH26 SeriesG0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
ISpecifications
Rating
Current rating
Voltage rating
0.2A DC
30V AC
Operating temperature range -55
ç
to +85ç (Note 1)
Operating humidity range
Relative humidity 90%
max. (No condensation)
Storage temperature range -10ç to +50ç (Note 2)
Storage humidity range
Relative humidity 90% max.
Recommended FPC :
Item
Thickness: = 0.2±0.03mm gold plated
Specification
50 M ohms min.
No flashover or insulation breakdown.
100 m ohms max.
* Including FPC conductor resistance
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1
µ
s or more.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1µs. min.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 50 M ohms min.
No affect on appearance or performance.
Contact resistance: 100 m ohms max.
Insulation resistance: 50 M ohms min.
No damage, cracks, or parts looseness.
No deformation of components affecting performance.
100 V DC
90 V AC /one minute
1 mA
10 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 10 cycles, 3
directions.
Acceleration of 981 m/s
2
, 6 ms duration, sine half-wave waveform,
3 cycles in each of the 3 axis
Conditions
1.
Insulation resistance
2.
Withstanding voltage
3. Contact resistance
4. Durability
(Insertion/ withdrawal)
5. Vibration
6. Shock
7. Humidity
(Steady state)
96 hours at temperature of 40±2ç and humidity of 90% to 95%.
Temperature: -55 ç/+15ç
to +35ç/+85ç/+15ç to +35ç
Time: 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç +/-10ç for 5±1 seconds
8. Temperature cycle
9. Resistance to soldering heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
IMaterials
Part
Material
LCP
Insulator
PA
Finish
Color: Black
FH26 series: Deep brown
FH26W series: Light brown
Gold plating
Pure tin reflow plating
Remarks
UL94V-0
UL94HB
---------------
---------------
Contacts
Metalfittings
Phosphor bronze
IOrdering
information
FH 26 W - 51S - 0.3 SHW (05)
1
1
Series name: FH
2
Series No.: 26
3
Blank: Standard
W:
Satisfies halogen-free requirements
(Flame retardance UL94HB).
2
3
4
5
6
7
6
Termination type SHW: SMT horizontal staggered mounting type
7
Specifications
(05)…Gold plating, 5,000 pieces / reel
(10)…Gold plating with nickel barrier, 5,000 pieces / reel
(98)…Gold plating, 500 pieces / reel
(99)…Gold plating with nickel barrier, 500 pieces / reel
4
Number of positions: 13 to 71
5
Contact pitch: 0.3mm
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH26 SeriesG0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors

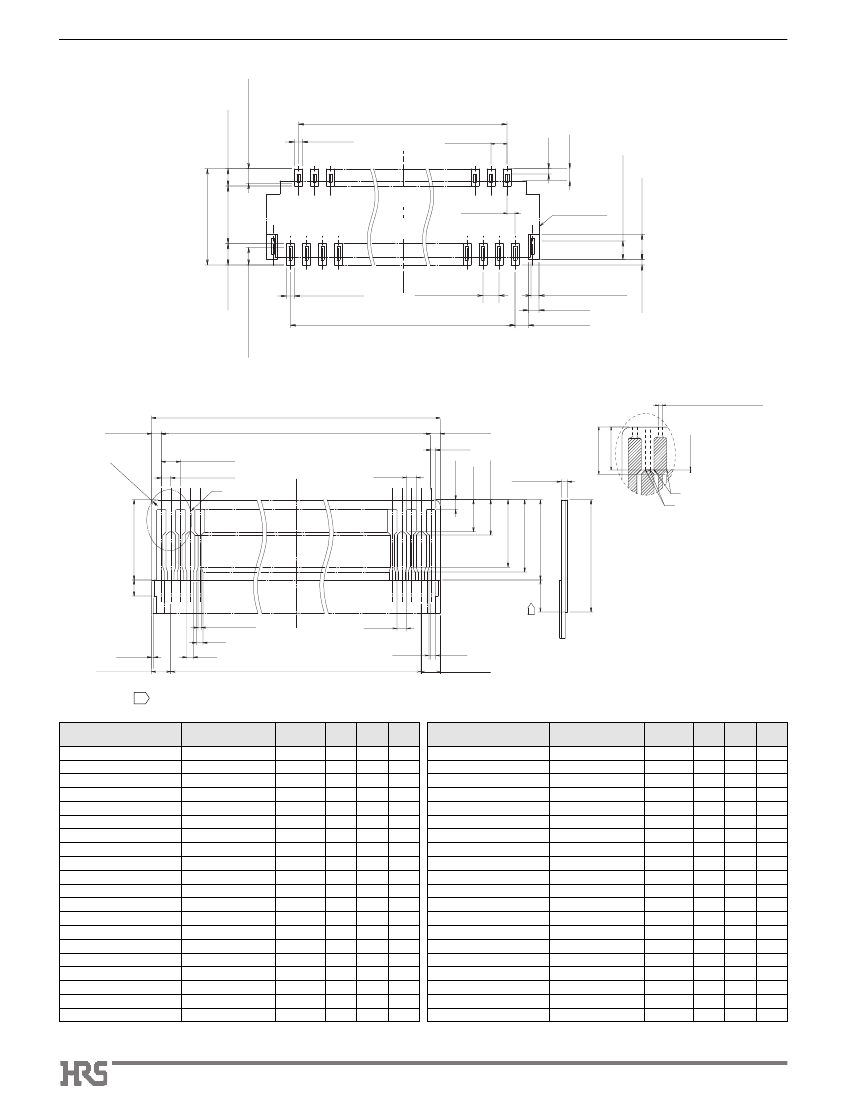

IConnector
Dimensions
0.3
0.6
A
B
(1.25)
(0.3)
3.2
(0.12)
0.6
Number of contacts indicator
(0.12)
C
0.5
3.2
(D: FPC insertion slot dimension)
E
1
0.1
1
0.1
0.3
Notes 1 The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
2 Packaged on tape and reel only. Check packaging specification.
3 Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
4 After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
Part Number
FH26-13S-0.3SHW(**)
FH26-15S-0.3SHW(**)
FH26-17S-0.3SHW(**)
FH26-21S-0.3SHW(**)
FH26-23S-0.3SHW(**)
FH26-25S-0.3SHW(**)
FH26-27S-0.3SHW(**)
FH26-29S-0.3SHW(**)
FH26-31S-0.3SHW(**)
FH26-33S-0.3SHW(**)
FH26-35S-0.3SHW(**)
FH26-37S-0.3SHW(**)
FH26-39S-0.3SHW(**)
FH26-41S-0.3SHW(**)
FH26-45S-0.3SHW(**)
FH26-51S-0.3SHW(**)
FH26-55S-0.3SHW(**)
FH26-57S-0.3SHW(**)
FH26-61S-0.3SHW(**)
FH26-71S-0.3SHW(**)
Part Number
FH26W-13S-0.3SHW(**)
FH26W-15S-0.3SHW(**)
FH26W-17S-0.3SHW(**)
FH26W-19S-0.3SHW(**)
FH26W-21S-0.3SHW(**)
FH26W-23S-0.3SHW(**)
FH26W-25S-0.3SHW(**)
FH26W-27S-0.3SHW(**)
FH26W-29S-0.3SHW(**)
FH26W-31S-0.3SHW(**)
FH26W-33S-0.3SHW(**)
FH26W-35S-0.3SHW(**)
FH26W-37S-0.3SHW(**)
FH26W-39S-0.3SHW(**)
FH26W-41S-0.3SHW(**)
FH26W-45S-0.3SHW(**)
FH26W-51S-0.3SHW(**)
FH26W-57S-0.3SHW(**)
FH26W-61S-0.3SHW(**)
FH26W-71S-0.3SHW(**)
CL No.
580-0209-3-**
580-0218-4-**
580-0217-1-**
580-0207-8-**
580-0203-7-**
580-0208-0-**
580-0204-0-**
580-0216-9-**
580-0214-3-**
580-0210-2-**
580-0205-2-**
580-0224-7-**
580-0201-1-**
580-0206-5-**
580-0211-5-**
580-0200-9-**
580-0221-9-**
580-0212-8-**
580-0213-0-**
580-0202-4-**
CL No.
580-2401-1-**
580-2402-4-**
580-2403-7-**
580-2437-9-**
580-2404-0-**
580-2405-2-**
580-2406-5-**
580-2400-9-**
580-2407-8-**
580-2408-0-**
580-2409-3-**
580-2410-2-**
580-2411-5-**
580-2412-8-**
580-2413-0-**
580-2414-3-**
580-2415-6-**
580-2417-1-**
580-2418-4-**
580-2419-7-**
Number of Contacts
13
15
17
21
23
25
27
29
31
33
35
37
39
41
45
51
55
57
61
71
Number of Contacts
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
45
51
57
61
71
A
5.4
6.0
6.6
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.2
13.8
15.0
16.8
18.0
18.6
19.8
22.8
A
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.2
13.8
15.0
16.8
18.6
19.8
22.8
B
3.0
3.6
4.2
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
15.6
16.2
17.4
20.4
B
3
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
16.2
17.4
20.4
C
3.6
4.2
4.8
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.2
16.8
18.0
21.0
C
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.8
18.0
21.0
D
4.23
4.83
5.43
6.63
7.23
7.83
8.43
9.03
9.63
10.23
10.83
11.43
12.03
12.63
13.83
15.63
16.83
17.43
18.63
21.63
D
4.23
4.83
5.43
6.03
6.63
7.23
7.83
8.43
9.03
9.63
10.23
10.83
11.43
12.03
12.63
13.83
15.63
17.43
18.63
21.63
E
4.9
5.5
6.1
7.3
7.9
8.5
9.1
9.7
10.3
10.9
11.5
12.1
12.7
13.3
14.5
16.3
17.5
18.1
19.3
22.3
E
4.9
5.5
6.1
6.7
7.3
7.9
8.5
9.1
9.7
10.3
10.9
11.5
12.1
12.7
13.3
14.5
16.3
18.1
19.3
22.3
Note1 : Embossed tape reel packaging. Order by number of reels.
Note2 : ** : Specification. Refer to ordering information.
1
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

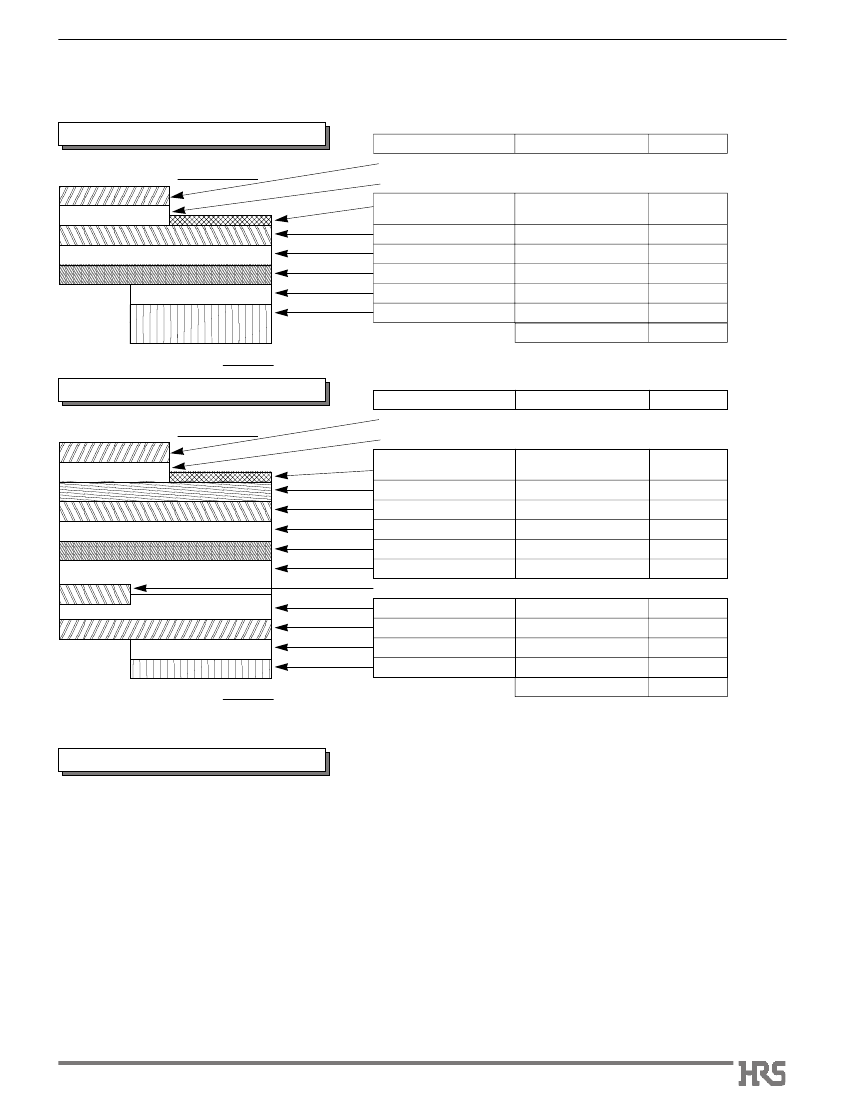

FH26 SeriesG0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
IRecommended
PCB mounting pattern and metal mask dimensions
(0.55:Metal mask)
Recommended metal mask thickness: t=0.1
B±0.05
(0.23:Metal mask)
(0.45)
(0.2)
0.3±0.03
0.6±0.05
0.65±0.05
(0.7:Metal mask)
2.15±0.05
(3.6)
0.3±0.05
Outline of
the connector
0.8±0.05
(0.65:Metal mask)
0.3±0.03
(0.23:Metal mask)
C±0.05
0.6±0.05
(0.3:Metal mask)
0.4±0.05
0.5±0.05
IRecommended
FPC Dimensions
F±0.05
1.1±0.1
1±0.1
0.3±0.07
R0
Detail H
(Lead plated 0.1 MAX)
0.3±0.07
(0.15)
πRELATIVE
POSITIONS
OF POINT-A dnd B
C±0.03
0.6±0.02
0.2±0.05
0.95±0.05
1±0.1
.2
M
AX
0.3±0.02
H
0.3
+0.04
-0.03
0.3±0.1
1.1±0.1
0.2±0.03
B
A
3.5 MIN.(Stiffener)
2.25±0.1
2.1±0.1
2.5±0.3
(0.5)
(2.5)
0.1±0.02
(0.07)
0.6±0.07
(0.2)
(0.2)
B±0.03
0.3
+0.04
-0.03
(0.05)
(0.15)
0.6±0.07
1
Part Number
Dimention M must be 0.5mm minimum when the stiffener is shorter than 3.5 min.
All dimensions: mm
CL No.
580-0209-3-**
580-0218-4-**
580-0217-1-**
580-0207-8-**
580-0203-7-**
580-0208-0-**
580-0204-0-**
580-0216-9-**
580-0214-3-**
580-0210-2-**
580-0205-2-**
580-0224-7-**
580-0201-1-**
580-0206-5-**
580-0211-5-**
580-0200-9-**
580-0221-9-**
580-0212-8-**
580-0213-0-**
580-0202-4-**
Number of
Contacts
13
15
17
21
23
25
27
29
31
33
35
37
39
41
45
51
55
57
61
71
B
3.0
3.6
4.2
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
15.6
16.2
17.4
20.4
C
3.6
4.2
4.8
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.2
16.8
18.0
21.0
F
4.2
4.8
5.4
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.8
15.6
16.8
17.4
18.6
21.6
Part Number
FH26W-13S-0.3SHW(**)
FH26W-15S-0.3SHW(**)
FH26W-17S-0.3SHW(**)
FH26W-19S-0.3SHW(**)
FH26W-21S-0.3SHW(**)
FH26W-23S-0.3SHW(**)
FH26W-25S-0.3SHW(**)
FH26W-27S-0.3SHW(**)
FH26W-29S-0.3SHW(**)
FH26W-31S-0.3SHW(**)
FH26W-33S-0.3SHW(**)
FH26W-35S-0.3SHW(**)
FH26W-37S-0.3SHW(**)
FH26W-39S-0.3SHW(**)
FH26W-41S-0.3SHW(**)
FH26W-45S-0.3SHW(**)
FH26W-51S-0.3SHW(**)
FH26W-57S-0.3SHW(**)
FH26W-61S-0.3SHW(**)
FH26W-71S-0.3SHW(**)
CL No.
580-2401-1-**
580-2402-4-**
580-2403-7-**
580-2437-9-**
580-2404-0-**
580-2405-2-**
580-2406-5-**
580-2400-9-**
580-2407-8-**
580-2408-0-**
580-2409-3-**
580-2410-2-**
580-2411-5-**
580-2412-8-**
580-2413-0-**
580-2414-3-**
580-2415-6-**
580-2417-1-**
580-2418-4-**
580-2419-7-**
Number of
Contacts
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
45
51
57
61
71
B
3.0
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
16.2
17.4
20.4
C
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.8
18.0
21.0
F
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.8
15.6
17.4
18.6
21.6
FH26-13S-0.3SHW(**)
FH26-15S-0.3SHW(**)
FH26-17S-0.3SHW(**)
FH26-21S-0.3SHW(**)
FH26-23S-0.3SHW(**)
FH26-25S-0.3SHW(**)
FH26-27S-0.3SHW(**)
FH26-29S-0.3SHW(**)
FH26-31S-0.3SHW(**)
FH26-33S-0.3SHW(**)
FH26-35S-0.3SHW(**)
FH26-37S-0.3SHW(**)
FH26-39S-0.3SHW(**)
FH26-41S-0.3SHW(**)
FH26-45S-0.3SHW(**)
FH26-51S-0.3SHW(**)
FH26-55S-0.3SHW(**)
FH26-57S-0.3SHW(**)
FH26-61S-0.3SHW(**)
FH26-71S-0.3SHW(**)
4
1
M
0±0.03
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH26 SeriesG0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
IRecommended
FPC Construction
G
Contact FPC manufacturer for specific details.
1. Using Single-sided FPC
Connecting side
Material Name
Covering film layer.
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Reinforcement material adhesive
Stiffener
Material
Polyimide
1 mil thick.
Thickness (µm)
25
25
1µm to 5µm Nickel underplated
0.2µm Gold plated
Cu
1/2oz
3
35
25
25
40
75
203
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Polyimide
Total
3 mil thick
Back side
2. Using Double-sided FPC
Connecting side
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering layer film
Material
Polyimide
1 mil thick
Thickness (µm)
25
25
1µm to 5µm Nickel underplated
0.2µm Gold plated
Cu
Cu
1/2oz
3
15
18
18
25
18
18
25
25
25
25
197
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Cu
1/2oz
Thermosetting adhesive
Polyimide
1 mil thick
Reinforcement material adhesive Thermosetting adhesive
Stiffener
Back side
Polyimide
Total
1 mil thick
G
To prevent release of the FPC due to it's bending, use of double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Precautions
1. This specification is a recommendation for the construction of the FH26 Series FPC and FFC (t=0.2 ± 0.03).
2. For details about the construction, please contact the FPC/FFC manufacturers.
The TMS320F28335 contains a 12-bit AD converter with the following features: 12-bit ADC core with built-in (sample and hold) S/H Analog input: 0.0V to 3.0V (voltages above 3.0V produce full-scale conv...
[font=微软雅黑][color=#000000] As we all know, MSP430 is famous for its ultra-low power consumption. However, many users have reported that in actual applications, when measuring the power consumption of ...
Is there any expert who has written a program to calculate the global geomagnetic field? Can you give me some advice? The kind that requires high accuracy....
dx guys, please help me, how can I make tcpmp play in my own window? According to the introduction of an article, I changed GetDC(NULL) in common to GetDC(Context()->Wnd), but it still cannot be assoc...
Why can't I see the NANDFLASH disk when I burn the CE image file I compiled to my board? I can't write files to CE in synchronization mode, but the CE interface can be displayed completely. I just can...
High efficiency and low standby power consumption are two major challenges in today's switching power supply design. Resonant topology or LLC topology is becoming increasingly popular because it ca...[Details]
Traditional broadcasting systems generally need to be operated manually at a fixed time, and can only realize one-way broadcasting with few functions. Traditional bell ringing equipment has a singl...[Details]
With the rapid development of science and technology, especially the widespread application of digital technology and various ultra-large-scale integrated circuits, electronic equipment, especially...[Details]
1. Circuit composition
The whole circuit consists of two parts:
1. Power saving control circuit
As shown in the figure below. Including delay circuit and drive circuit.
(1) Delay ci...[Details]
1. Introduction
With the growth of parking demand, the scale of parking lots is becoming larger and larger. A lot of research has been done on intelligent parking lots in China, but most of th...[Details]
Converged processors meet scalability requirements
In current embedded system design, solutions based on MCU, DSP, FPGA and ASIC account for more than 90% of the market share. These solutions ...[Details]
The Mobile Industry Processor Interface (MIPI) Alliance is an organization responsible for promoting the standardization of software and hardware in mobile devices. It has released the D-PHY specif...[Details]
1 Introduction
Ultrasonic waves have strong directivity, slow energy consumption, and can propagate over long distances in a medium, so they are used for distance measurement. Ultrasonic detec...[Details]
With the development and widespread application of computer technology, especially in the field of industrial control, computer communication is particularly important. Although serial communication g...[Details]
General LED lighting has a current limiting resistor in the driving circuit, and the power consumed by the resistor has nothing to do with the LED light emission. In order to improve efficiency, a...[Details]
introduction
MAX6636 is a multi-channel precision temperature monitor that can not only monitor local temperature, but also connect up to 6 diodes externally. Each channel has a programmable...[Details]
LED guardrail lights use fluorescent tubes or LEDs as light sources and continuous guardrails as carriers to form an approximately linear guardrail light strip. This article mainly introduces...[Details]
Introduction
As the country increases its efforts to control the atmospheric environment, motorcycle emission regulations will become stricter year by year, and motorcycles that do not meet the...[Details]
1 Introduction
At present, people have higher and higher requirements for the quality of life. When people are busy with work, soymilk machine is a new type of household beverage machine. It uses so...[Details]
_pdf/pg_0001.png)
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
