FH23-33S-0.3SHW(05) datasheet, PDF

Datasheet> All Categories > The connector> The connector> FH23-33S-0.3SHW(05)

FH23-33S-0.3SHW(05): Descriptionffc & fpc connectors 0.3mm 33 pos R/A smt gold flash plating; CategoryThe connector The connector; File Size587KB，12 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FH23-33S-0.3SHW(05) Overview

ffc & fpc connectors 0.3mm 33 pos R/A smt gold flash plating

FH23-33S-0.3SHW(05) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Hirose
package instruction	HALOGEN FREE
Reach Compliance Code	unknown
Other features	LIF, ZIF, STAGGERED PIN
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold Flash (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	100 mΩ
DIN compliance	NO
Dielectric withstand voltage	90VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.01 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	33
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

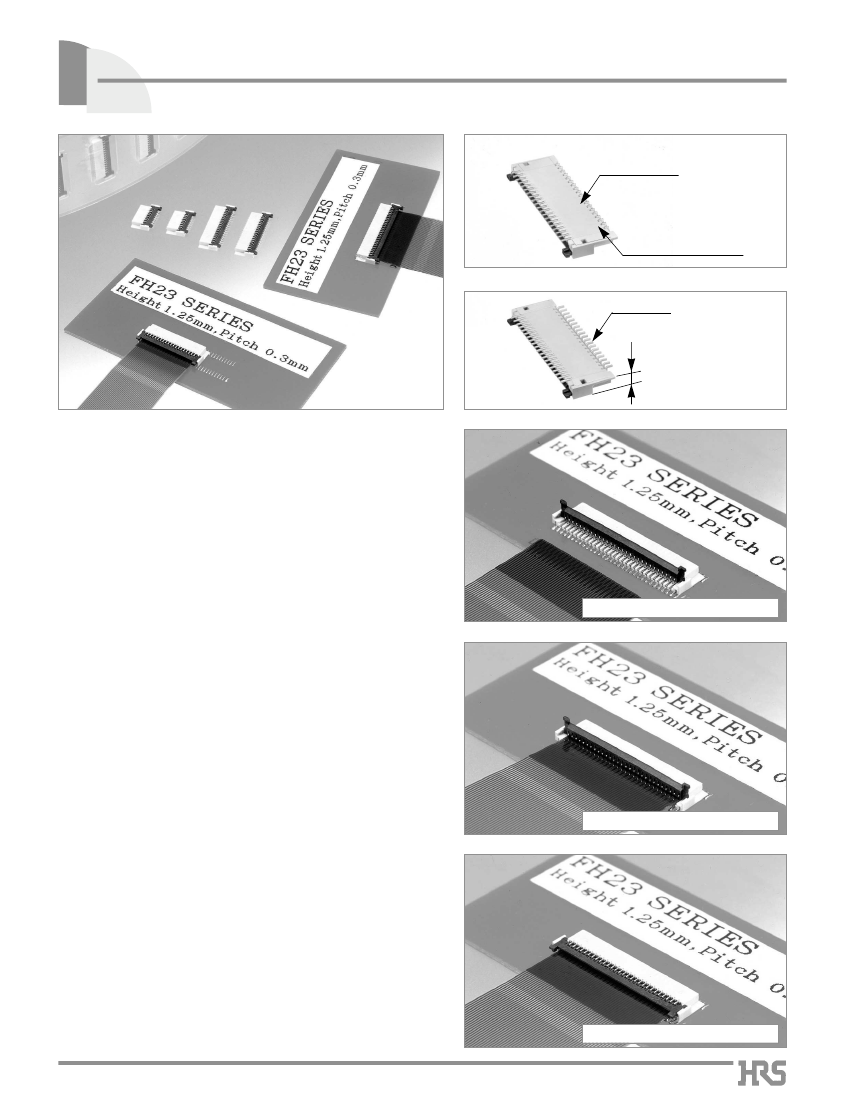

0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connectors

FH 23 Series

Staggered termination configuration. Only 1.25 mm above the board.

Leadless type

Completely enclosed

bottom surface

Lead type

1.25mm

Features

1. FPC low insertion force and high holding force

Hirose Electric's unique low insertion force (LIF) design

(patents pending) improves the Flexible Printed Circuit

(FPC) holding force after insertion.

FPC insertion force:Reduced approximately 36%

(as compared with FH18 Series connectors).

FPC holding force:Improvement of approximately 22%

(as compared with FH18 Series connectors).

2. Temporary hold of FPC

There is no need to hold the FPC after insertion in the

connector. The connector will hold it in correct position,

allowing closing of the actuator.

When the actuator is opened

3. Easy board mounting

The surface mounted termination of the contacts is staggered on

0.6 mm centers, positioned on front and back of the connector.

Bottom of the connector is completely insulated, allowing

conductive traces on PCB to run under the connector.

4. Proven Flip-lock Actuator assures easy and

reliable operation

Rotating actuator permits easy insertion and reliable connection

with the FPC. Tactile sensation confirms complete mechanical

locking of the actuator and the electrical connection.

5. Variations to suit different mounting areas

Available with lead and leadless type of terminations

(for opposing FPC insertion side).

Temporary hold of FPC

6. Designed for placement with automatic equipment

Flat top surface allows pick-up with vacuum nozzles.

Packaged in embossed tape, on reel. One reel contains 2,500 pieces.

7. Accepts 0.2mm thick FPC

8. Variety of contact positions

Available with 15,17,21,23,25,27,31,33,37,39,45,51,61and 71 pos.

9. Halogen Free

The connector does not use chlorine and bromine

exceeding standard limits.

*Defined in accordance with IEC61249-2-21

*Br

900ppm or lower, Cl 900ppm or lower, Br + Cl 1,500ppm or lower

When the actuator is closed

2010.9

FH23-33S-0.3SHW(05) Related Products

	FH23-33S-0.3SHW(05)	FH23S-21S-0.3SHW(05)	FH23S-39S-0.3SHAW(05)	FH23-71S-0.3SHAW(05)	FH23-51S-0.3SHW(06)	FH23-21S-0.3SHAW(05)	FH23-61S-0.3SHAW(05)
Description	ffc & fpc connectors 0.3mm 33 pos R/A smt gold flash plating	ffc & fpc connectors fpc conn 21 cont smt lead term	ffc & fpc connectors fpc conn 39 cont smt lead-less term	ffc & fpc connectors 71p F socket smt horizon mnt leadless	ffc & fpc connectors 0.3mm 51 pos R/A smt gold flash plating	ffc & fpc connectors 0.3mm 21 pos R/A smt NO leads, gold flash	ffc & fpc connectors 0.3mm 61 pos R/A smt NO leads, gold flash
Is it lead-free?	Lead free	-	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to	conform to
package instruction	HALOGEN FREE	-	-	HALOGEN FREE	HALOGEN FREE	HALOGEN FREE	HALOGEN FREE
Reach Compliance Code	unknown	-	-	unknow	unknown	compliant	compliant
Other features	LIF, ZIF, STAGGERED PIN	-	-	STAGGERED CONFIGURATION, LIF, ZIF	-	STAGGERED CONFIGURATION, LIF, ZIF	STAGGERED CONFIGURATION, LIF, ZIF
Connector type	FFC/FPC CONNECTOR	-	-	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	-	NOT SPECIFIED	GOLD (8)	GOLD FLASH	NOT SPECIFIED
Contact completed and terminated	Gold Flash (Au)	-	-	Gold Flash (Au)	Gold (Au)	Gold Flash (Au)	Gold (Au)
Contact point gender	FEMALE	-	-	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	-	-	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
contact mode	STAGGERED	-	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	100 mΩ	-	-	100 mΩ	100 mΩ	100 mΩ	100 mΩ
DIN compliance	NO	-	-	NO	NO	NO	NO
Dielectric withstand voltage	90VAC V	-	-	90VAC V	90VAC V	90VAC V	90VAC V
Durability	10 Cycles	-	-	10 Cycles	10 Cycles	10 Cycles	10 Cycles
Filter function	NO	-	-	NO	NO	NO	NO
IEC compliance	NO	-	-	NO	NO	NO	NO
maximum insertion force	LIF N	-	-	LIF N	-	LIF N	LIF N
Insulation resistance	50000000 Ω	-	-	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Insulator color	BEIGE	-	-	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	LIQUID CRYSTAL POLYMER (LCP)	-	-	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO	-	-	NO	NO	NO	NO
Plug contact pitch	0.01 inch	-	-	0.01 inch	0.01 inch	0.01 inch	0.01 inch
Plug information	NO	-	-	NO	NO	NO	NO
Mixed contacts	NO	-	-	NO	NO	NO	NO
Installation option 1	LOCKING	-	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	-	BOARD	BOARD	BOARD	BOARD
PCB row number	2	-	-	2	2	2	2
Number of rows loaded	1	-	-	1	1	1	1
Options	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	-	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Rated current (signal)	0.3 A	-	-	0.3 A	0.3 A	0.3 A	0.3 A
Guideline	UL	-	-	UL	UL	UL	UL
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.6 mm	-	-	0.6 mm	0.6 mm	0.6 mm	0.6 mm
Termination type	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	33	-	-	71	51	21	61
UL Flammability Code	94V-0	-	-	94V-0	94V-0	94V-0	94V-0
