ESW-136-58-F-S datasheet, PDF - EEWORLD Datasheet

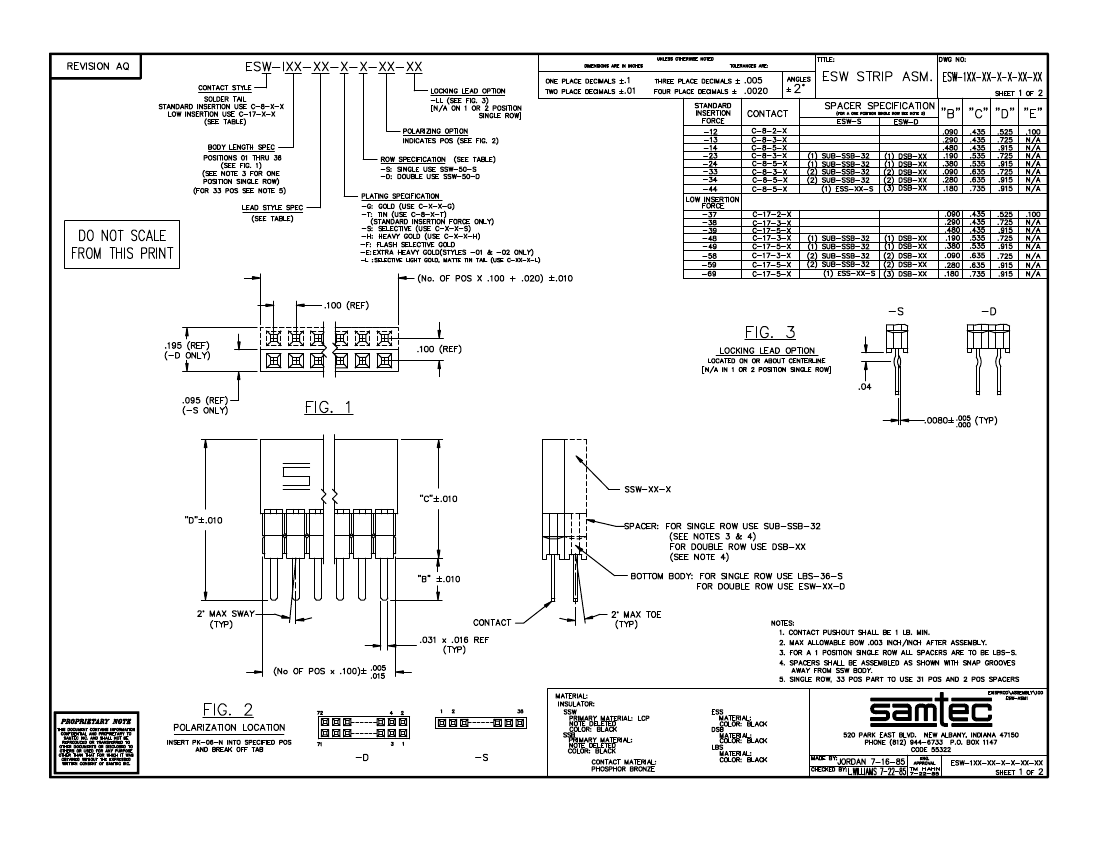

ESW-136-58-F-S: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ESW-136-58-F-S Overview

Board Connector, 36 Contact(s), 1 Row(s), Female, Straight, Solder Terminal,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1715455829
Reach Compliance Code	compliant
YTEOL	9.1
body width	0.095 inch
subject depth	0.635 inch
body length	3.62 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS ARE AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	3u inch
Rated current (power)	5.2 A
Guideline	UL
Terminal length	0.09 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
