RS1A227M1012MSS datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> RS1A227M1012MSS

RS1A227M1012MSS: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size30KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

RS1A227M1012MSS Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED

RS1A227M1012MSS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2008522070
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.5
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.022 mA
Manufacturer's serial number	RS
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	206 mA
surface mount	NO
Delta tangent	0.3
Terminal surface	TIN
Terminal shape	WIRE

Preview

Download Datasheet

View All

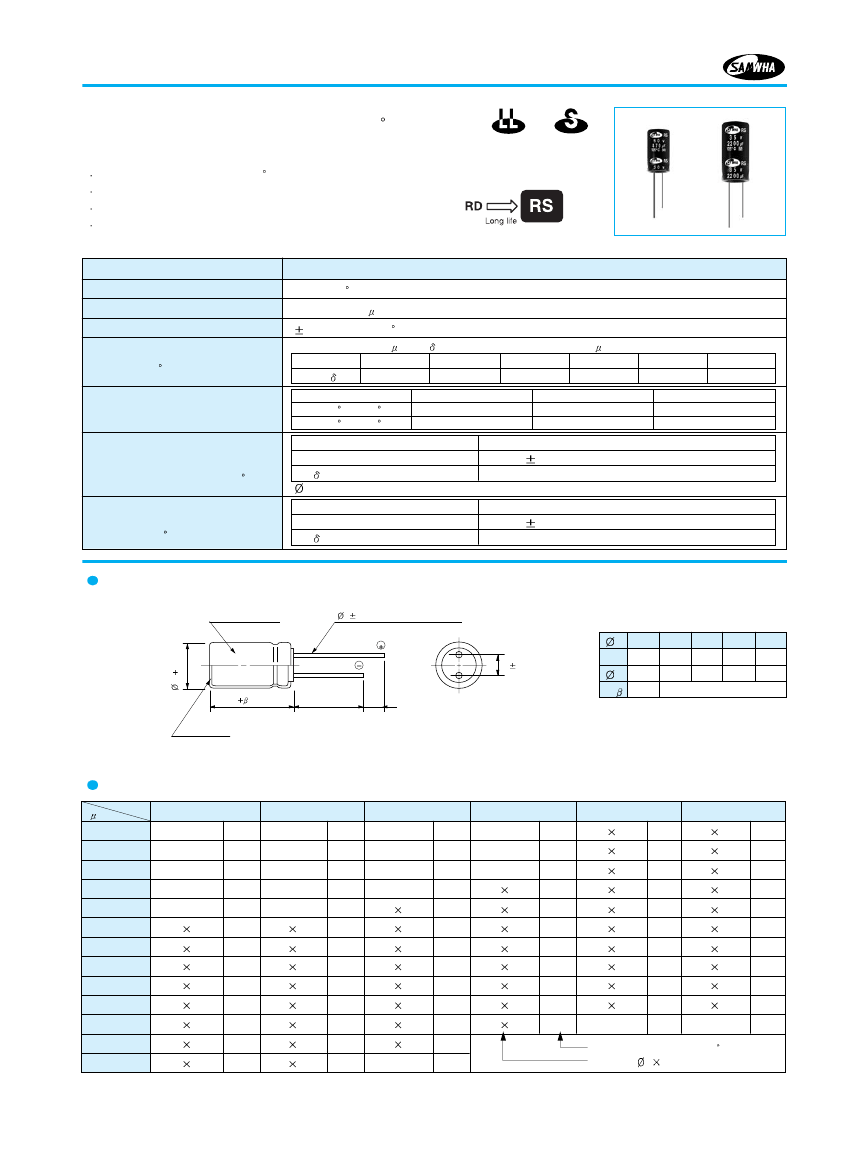

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

Long Life (7000 hours at 105 C)

Series

Long Life

Solvent Proof

Load life of 7000 hours at 105 C

High performance

High ripple capability

Designed for use in switching power supplies

Item

Operating temperature range

Leakage current max.

Capacitance tolerance

Dissipation factor max.

(at 120Hz, 20 C)

Low temperature characteristics

(Impedance ratio at 120Hz)

Load life

(after application of the rated

voltage for 7000 hours at 105 C)

Shelf life

(after leaving capacitors under

no load at 105 C for 1000 hours)

-55 ~ +105 C

Characteristics

I = 0.01CV or 3 A whichever is greater (after 2 minutes)

20% at 120Hz, 20 C

Capacitance > 1000 F : tan increases by 0.02 for each 1000 F from below value

0.30

0.25

0.22

0.18

0.15

tan

Z-25 C/Z+20 C

Z-40 C/Z+20 C

Leakage current

Capacitance change

tan

8 products are for 5000 hours

Leakage current

Capacitance change

tan

Less than specified value

Within 30% of initial value

Less than 300% of specified value

Less than specified value

Within 15% of initial value

Less than 150% of specified value

0.12

25 ~ 63

DRAWING

Insulating sleeve

0.05 Tinned copper-ply wire

Unit : mm

D 0.5 max.

p 0.5

3.5

0.6

1.0

5.0

0.6

12.5

5.0

0.6

2.0

7.5

0.8

7.5

0.8

max.

15 min.

4 min.

Safety vent

DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

4.7

100

220

330

470

1000

2200

3300

4700

12.5

11.5

12.5

31.5

35.5

119

206

276

330

601

1009

1298

1567

12.5

11.5

12.5

35.5

138

238

319

415

694

1134

1516

1855

12.5

11.5

12.5

35.5

102

172

280

374

511

924

1376

1794

12.5

11.5

12.5

35.5

102

122

207

367

515

614

1110

1688

Ripple current (mA rms) at 105 C, 120Hz

Case size

D L (mm)

12.5

11.5

12.5

31.5

135

161

257

476

584

863

1377

12.5

11.5

12.5

35.5

102

146

174

303

515

630

932

1675
