25SVPD6R8M: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 25V, 6.8uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size86KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

25SVPD6R8M Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 25V, 6.8uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

25SVPD6R8M Parametric

Parameter Name	Attribute value
Objectid	1594666312
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	6.8 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	80 mΩ
leakage current	0.17 mA
Manufacturer's serial number	SVPD
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	1200 mA
surface mount	NO
Delta tangent	0.1
Terminal shape	WIRE

Preview

Download Datasheet

View All

RoHS

compliance

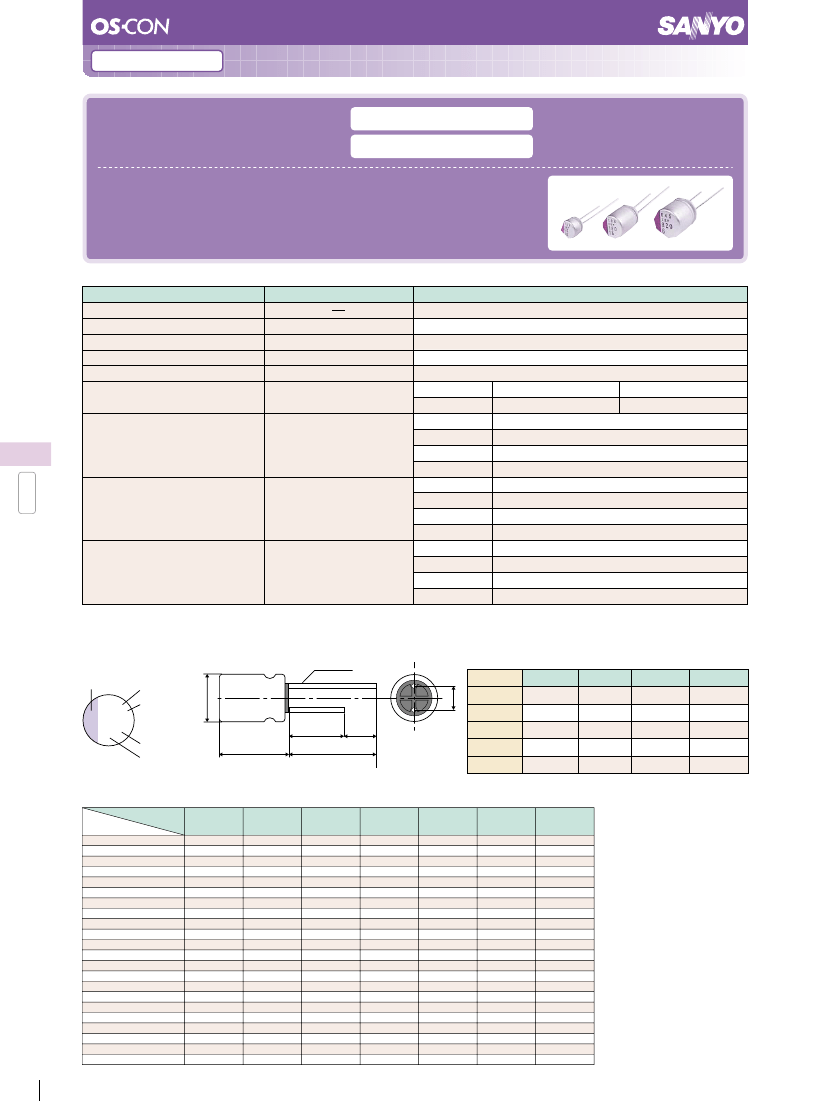

Aluminum solid capacitors with Conductive polymer

SEP

■Specifications

Standard radial lead type

Guaranteed at 105°C for 3,000h

Series

This is a radial lead type using conductive polymer based on

the SVP series.

Lead free-flow is supported.

Items

Category temperature range

Tolerance on rated capacitance

Tangent of loss angle

Leakage current

※1

ESR

Characteristics of impedance

ratio at high temp. and low temp.

Endurance

Conditions

120Hz

After 2 minutes

100KHz to 300KHz

Based the value at

100KHz，+20°C

105°C, 3,000h, Rated

voltage applied

(2.5V→2,000h),

(25V→20V applied)

60°C, 90 to 95%RH,

1,000h,

No-applied voltage

Flow method

(260±5°C X 10s)

Damp heat (Steady state)

Resistance to

soldering heat

Characteristics

-55°C to +105°C

M :±20%

Less than or equal to the value of Table11

Z / Z

20°C

0.75 to 1.25

-55°C

0.75 to 1.25

Z / Z

20°C

+105°C

∆C/C

Within

±20%

tanδ

1.5 times or less than an initial standard

ESR

1.5 times or less than an initial standard

Leakage current

Below an initial standard

∆C/C

Within

±20%

tanδ

1.5 times or less than an initial standard

ESR

1.5 times or less than an initial standard

Leakage current Below an initial standard (after voltage processing)

∆C/C

Within

±5%

tanδ

Below an initial standard

ESR

Below an initial standard

Leakage current Below an initial standard (after voltage processing)

φD

003

SEP

Series

(SEP)

F

SEP

38

※1

In case of some problems for measured values, measure after applying rated voltage for 2.5 to 20V products or temperature derating

voltage for 25V products for 120 minutes at 105°C .

■Marking

and dimensions

Polarity marking

（Cathode）

Case No.

φd

(unit : mm)

（＋）

Size Code

C6

E7

F8

E12

F13

φD±0.5

6.3

8.0

10.0

8.0

10.0

Lmax.

6.0

7.0

8.0

12.0

13.0

F

2.5±0.5

3.5±0.5

5.0±0.5

3.5±0.5

5.0±0.5

φd

±

0.05

0.45

0.50

0.60

820

6

15min.

Rated capacitance

Rated voltage

4min.

L

19min.

■Size

List

µF

6.8

10

22

33

39

47

56

68

82

100

120

150

180

220

270

330

470

560

680

820

1200

1500

RV

（SV）

2.5

（3.3）

RV : Rated voltage (SV) : Surge voltage (Room temperature)

4

6.3

10

16

20

25

（5.2）（8.2）（12）（18.4）（23.0）（25.0）

C6

E7

C6

E7

C6

E7

F8

E12

F8

F13

F8

E12

F13

F8

E12

F13

E7

F8

E12

F13

E7

F8,E12

E7

F8

F13

C6

E7

F8

E12

F13

※For

the minimum packing quantity, please refer to page 55.

Recommended Resources

Anti-oversaturation function deletion circuit schematic with desaturation protection

Nickel cadmium charger circuit diagram

DC/DC conversion circuit diagram without isolation

B7430 (former Soviet Union) type socket electrical wiring diagram circuit

CNC display stabilized power supply circuit diagram a

Power amplifier circuit diagram a
