0.3 mm Pitch, 1.2 mm above the board, Top and bottom Contact,
Back-Flip actuator Flexible Printed Circuit ZIF Connectors
FH39 Series
q
Small size (39 pos. shown)
1.1mm
13.9
mm
(39
pos
.)
4
3.
5m
m

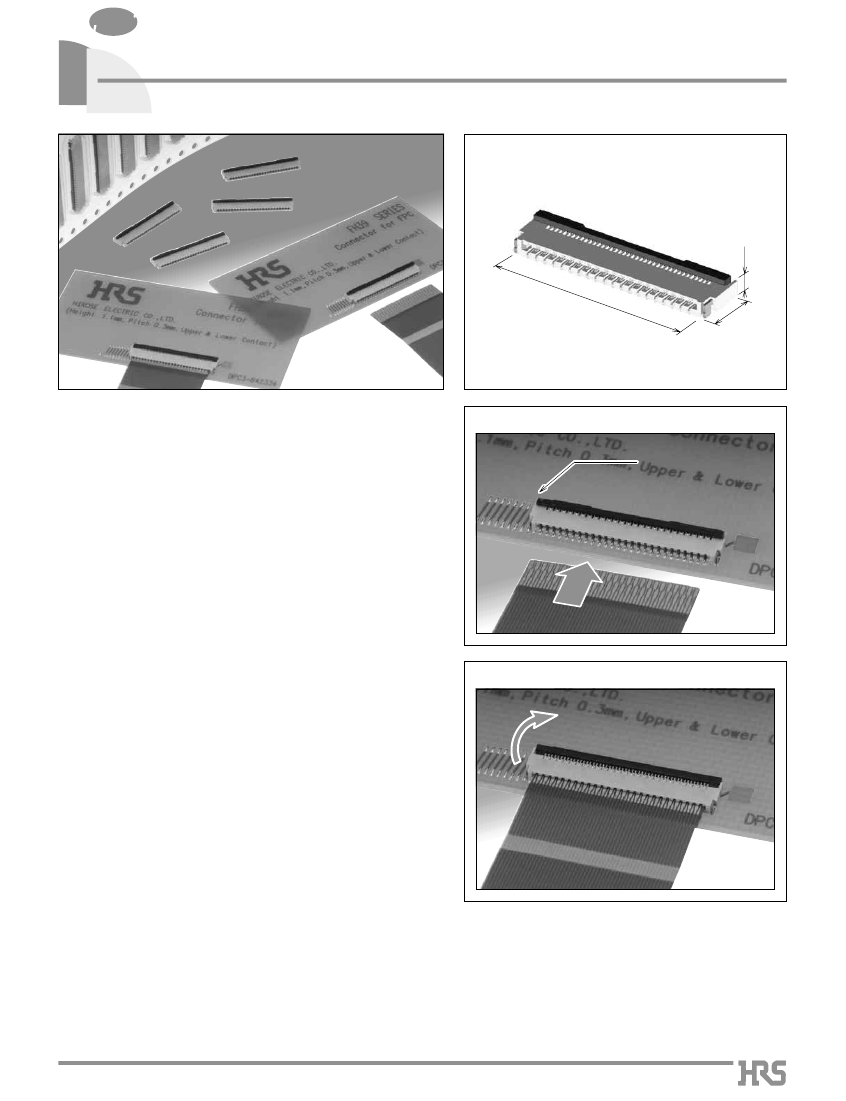

sFeatures
1. Low-profile 0.3mm pitch connector with top
and bottom contact
Usable via either its top or bottom contact point, this
connector achieves enhanced freedom in terms of the
product design.
q
Easy FPC insertion
actuator
2. High contact reliability thanks to the spring
terminal structure
Because both top and bottom contact points are spring-
loaded, the contact point adapts to the FPC motion, and
high contact reliability is ensured.
FPC
3. Delivered with the actuator open
FPC can be immediately inserted without the need for the
opening of the actuator.
q
Completely locked
4. Easy FPC insertion
Entry chamfers at all sides of the FPC insertion slot assure
correct insertion and positioning of the FPC.
5. Accepts standard FPC thickness
0.2mm thick standard Flexible Printed Circuit (FPC) can be
used. This is the only ultra-low profile ZIF connector using
standard FPC.
6. Conductive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
7. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate
vacuum pick-up and placement.
Standard reel packaging contains 5000 connectors.
8. Halogen-free
*
(FH39J Series)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH39 Seriesq0.3 mm Pitch, 1.2 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
sSpecifications
Current rating 0.2 A
Ratings
Voltage rating 30 Vrms AC
Recommended FPC
Operating
-55 to +85°C (Note 1)
temperature range
Operating
Relative humidity 90% max.
humidity range
(No condensation)
Storage
-10 to +50°C (Note 2)
temperature range
Storage
Relative humidity 90% max.
humidity range
(No condensation)
Thickness: 0.2
±
0.03 mm, Gold plated contact pads
Conditions
100 V DC
90 Vrms AC / 1 minute
1 mA, AC max (AC: 1kHz)
10 cycles
Frequency: 10 to 55 Hz,
single amplitude of 0.75 mm,
10 cycles in each of the 3 axis
Acceleration of 981m/s
2
, 6 ms duration,
sine half-wave, 3 cycles in each of the 3 axis
96 hours at 40ç and humidity of 90 to 95%
Temperature:-55ç➝+15ç to +35ç➝+85ç➝+15ç to +35ç
Time: 30➝ 2 to 3
➝
30➝ 2 to 3 minutes
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç ± 5ç for 5 seconds
Item
Specification
1.Insulation resistance 50 Mø min.
2.Withstanding voltage No flashover or insulation breakdown
100 mø max.
3.Contact resistance
* Including FPC and FFC conductor resistance
Contact resistance: 100 mø max.
4.Durability
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
5.Vibration
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
6.Shock
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
7.Humidity
Insulation resistance: 50 Mø min.
(Steady state)
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
8.Temperature cycle
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
9.Resistance to
No deformation of components affecting
soldering heat
performance
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage,
shipment or during transportation after board mounting.
Note 3: Information contained in this catalog represents general requirements for this Series.
Contact us for the drawings and specifications for a specific part number shown.
sMaterials
Part
Insulator
Contacts
Metalfittings
Material
LCP
PA
Phosphor bronze
Finish
Color:Beige
Color:Black
Gold plated
Pure tin reflow plated
Remarks
UL94V-0
-----------------
-----------------
sOrdering
information
FH 39 J - 51S - 0.3 SHW (10)
1
2
3
4
5
6
7
1
Series name:FH
2
Series No.:39
3
Blank :Standard
A :Long actuator type
J :Halogen-free requirements
(Flame retardance UL94V-0).
4
Number of positions
FH39 :25 to 61
FH39A :67, (71 under planning)
FH39J :25 to 51
Contact pitch:0.3mm
5
6
Termination type
SHW...SMT horizontal staggered row mount type
7
Plating specifications
(10)...Gold plating with nickel barrier
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH39 Seriesq0.3 mm Pitch, 1.2 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors

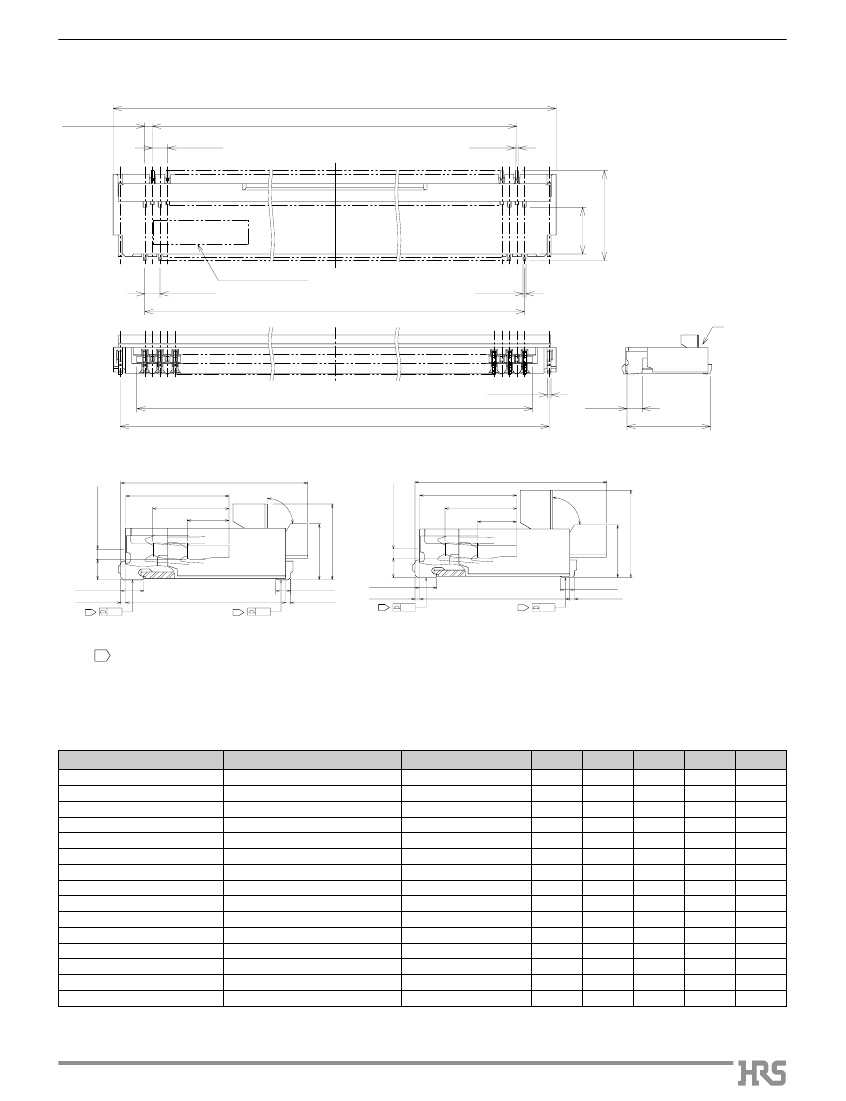

sConnector
Dimensions
A±0.15
0.3±0.1
0.6±0.1
B±0.1
(0.12)
Production LOT No.
0.6±0.1
C±0.1
B
(0.12)
(0.15)
(D)
E±0.1
(0.6)
(3.3)
B Detailed drawing
[FH39 Series]
(3.85)
B Detailed drawing
[FH39A Series]
(4.15)
(0.42) (FPC:t0.2mm)
(0.42) (FPC:t0.2mm)
(2.1)
(1.55)
(0.85)
0.47±0.1
0.1±0.15
1
3.25±0.15
1
0.3±0.1
0.1±0.15
0.1
0.47±0.1
0.1±0.15
1
3.25±0.15
1
0.3±0.1
0.1±0.15
0.1
0.1
0.1
Note 1
2
3
4
:
:
:
:
The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
Packaged on tape and reel only. Check packaging specification.
Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
D
E
7.83
9.15
8.43
9.75
9.03
10.35
10.23
11.55
12.03
13.35
13.83
15.15
15.63
16.95
18.63
19.95
20.43
21.75
21.63
22.95
7.83
9.15
10.23
11.55
12.03
13.35
13.83
15.15
15.63
16.95
Part Number
FH39-25S-0.3SHW(10)
FH39-27S-0.3SHW(10)
FH39-29S-0.3SHW(10)
FH39-33S-0.3SHW(10)
FH39-39S-0.3SHW(10)
FH39-45S-0.3SHW(10)
FH39-51S-0.3SHW(10)
FH39-61S-0.3SHW(10)
FH39A-67S-0.3SHW(10)
FH39A-71S-0.3SHW(10)
FH39J-25S-0.3SHW(10)
FH39J-33S-0.3SHW(10)
FH39J-39S-0.3SHW(10)
FH39J-45S-0.3SHW(10)
FH39J-51S-0.3SHW(10)
CL No.
580-1806-8-10
580-1805-5-10
580-1807-0-10
580-1803-0-10
580-1800-1-10
580-1802-7-10
580-1801-4-10
580-1808-3-10
580-1809-6-10
Under planning
580-1815-9-10
580-1814-6-10
580-1813-3-10
580-1811-8-10
580-1812-0-10
Number of contacts
25
27
29
33
39
45
51
61
67
71
25
33
39
45
51
A
9.7
10.3
10.9
12.1
13.9
15.7
17.5
20.5
22.3
23.5
9.7
12.1
13.9
15.7
17.5
B
6.6
7.2
7.8
9
10.8
12.6
14.4
17.4
19.2
20.4
6.6
9
10.8
12.6
14.4
1.1±0.1
(1.89)
(2.1)
(1.55)
(0.85)
1.1±0.1
(1.54)
(1.85)
(9
0˚
3.55±0.2
Tape and reel packaging (5,000 pieces/reel).
Order by number of reels.
˚)
(90
)
C
7.2
7.8
8.4
9.6
11.4
13.2
15
18
19.8
21
7.2
9.6
11.4
13.2
15
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH39 Seriesq0.3 mm Pitch, 1.2 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
sRecommended
PCB mounting pattern and metal mask dimensions
(Metal mask:0.42)
B±0.05
0.5±0.05
Recommended
metal mask thickness : t=0.1
0.6±0.05
(0.1)
(0.2)
0.2±0.03
3.65MIN (Stiffner)
0.1±0.05
(Metal mask:1)
1±0.05
0.35±0.05
(Metal mask:0.35)
0.8±0.05
1.05±0.1
1.15±0.1
(Uncovered area)
2.25±0.1
2.1±0.1
2.65±0.3
0.3±0.03
(Metal mask:0.25)
2.48±0.05
(3.65)
0.3±0.05
(Metal mask:0.57)
0.67±0.05
0.3±0.03
(Metal mask:0.25)
C±0.05
0.6±0.05
sRecommended
FPC Dimensions
F±0.05
0.3±0.07
0.3
+0.04
-0.03
C±0.03
0.3±0.07
0.6±0.02
0.3±0.02
0.3±0.1
2-
R0
.2
0.3
+0.04
-0.03
0.1
0.2
0.1±0.02
0.6±0.07
B±0.03
0.6±0.07
*
Stiffener dimension should be 3.65mm min., and X dimension should be 0.5mm for improved flexibility of FPC.
All dimensions: mm
F
7.8
8.4
9
10.2
12
13.8
15.6
18.6
20.4
21.6
7.8
10.2
12
13.8
15.6
Part Number
FH39-25S-0.3SHW(10)
FH39-27S-0.3SHW(10)
FH39-29S-0.3SHW(10)
FH39-33S-0.3SHW(10)
FH39-39S-0.3SHW(10)
FH39-45S-0.3SHW(10)
FH39-51S-0.3SHW(10)
FH39-61S-0.3SHW(10)
FH39A-67S-0.3SHW(10)
FH39A-71S-0.3SHW(10)
FH39J-25S-0.3SHW(10)
FH39J-33S-0.3SHW(10)
FH39J-39S-0.3SHW(10)
FH39J-45S-0.3SHW(10)
FH39J-51S-0.3SHW(10)
CL No.
580-1806-8-10
580-1805-5-10
580-1807-0-10
580-1803-0-10
580-1800-1-10
580-1802-7-10
580-1801-4-10
580-1808-3-10
580-1809-6-10
Under planning
580-1815-9-10
580-1814-6-10
580-1813-3-10
580-1811-8-10
580-1812-0-10
Number of contacts
25
27
29
33
39
45
51
61
67
71
25
33
39
45
51
B
6.6
7.2
7.8
9
10.8
12.6
14.4
17.4
19.2
20.4
6.6
9
10.8
12.6
14.4
C
7.2
7.8
8.4
9.6
11.4
13.2
15
18
19.8
21
7.2
9.6
11.4
13.2
15
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH39 Seriesq0.3 mm Pitch, 1.2 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors

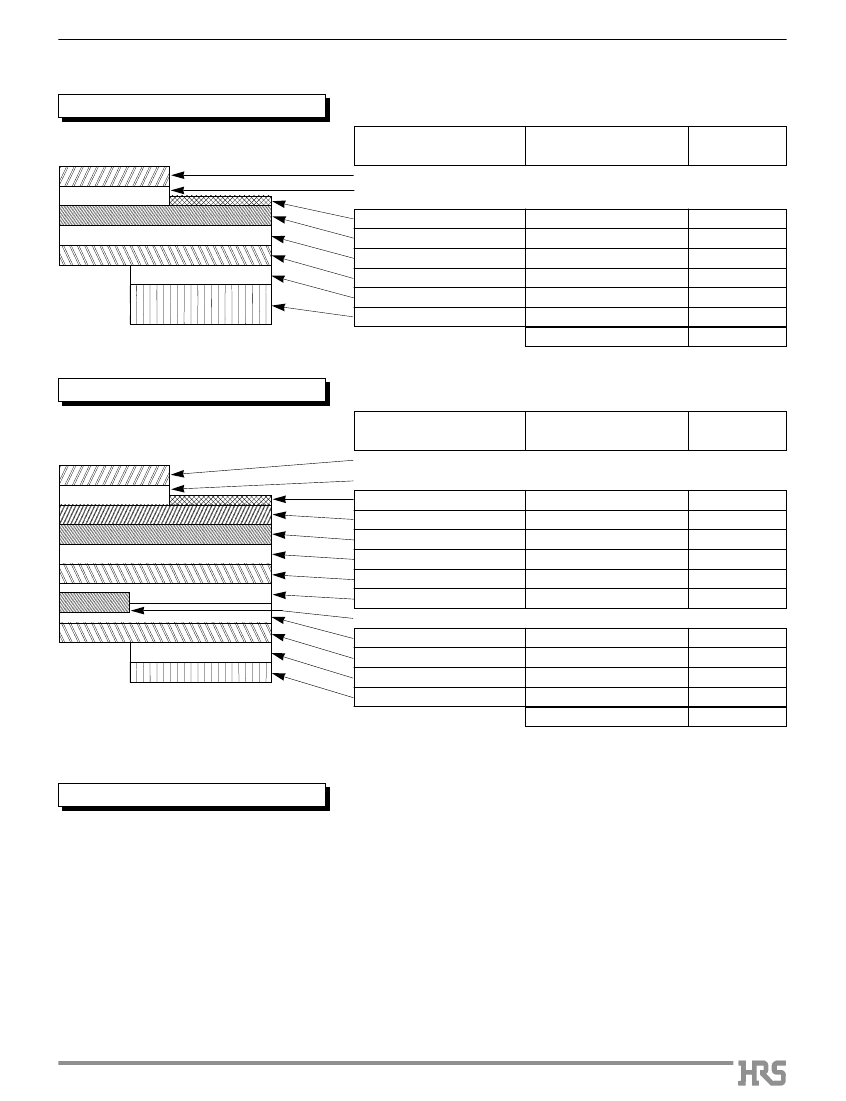

sRecommended
FPC construction
1. Using Single-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Stiffener
Polyimide
Material
1 mil thick.
Material Thickness
(µm)
(25)
(25)
3
35
25
25
40
75
203
1 mil thick
3 mil thick
0.2µm thick gold plated over 1 to 5µm
nickel underplating
Cu 1oz
Thermosetting adhesive
Polyimide
Polyimide
Total
Reinforcement material adhesive Thermosetting adhesive
2. Using Double-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Stiffener
0.2µm thick gold plated over 1 to 5µm
nickel underplating
Material
Polyimide
1 mil thick.
Material Thickness
(µm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
25
25
197
Cu
Cu 1/2oz
Thermosetting adhesive
Polyimide
Cu 1/2oz
Thermosetting adhesive
Polyimide
Polyimide
Total
1 mil thick.
3 mil thick
1 mil thick
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
* To prevent release of the FPC due to its bending, use of the double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Precautions
1: This specification is a recommendation for the construction of the FH39 Series FPC (t=0.2±0.05).
2: For details about the construction, please contact the FPC manufacturers.
If JTAG cannot recognize TI's DSP, there may be the following reasons: If JTAG cannot recognize TI's DSP, there may be the following reasons:1. There is a problem with the emulator;2. There is a probl...
The problem is as described above. I use the WINCE5.0 system. When the system seconds are equal to 0, the obtained year will be incorrect, as follows: 15:38:05.875 System time: February 1, 2010 15:37:...
[i=s]This post was last edited by dontium on 2015-1-23 13:31[/i] The adoption of hybrid and electric drivetrains in cars, trucks and motorcycles has created new and previously unknown challenges in th...
STMicroelectronics ( ST ) recently announced the STM8S105 and STM8S207 microcontrollers are particularly suitable for the development of motor control applications that need to be used in harsh electr...
What is a polarized relay?
Polarized relays are relays that are activated by the combined effect of polarized magnetic field and magnetic field generated by control current passing through control coi...
Many of CNLINK's encryption chips are equipped with NVM areas. Because of its physical characteristics of not erasing when power is off and security features such as anti-brute force cracking, many us...
_pdf/pg_0001.png)
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
