HGXOHT OSCILLATOR
460 kHz to 50 MHz
High Shock, High Temperature Crystal Oscillator
DESCRIPTION
Statek’s HGXOHT crystal oscillator is a high temperature,
surface-mount oscillator that can survive extremely high
shocks _ up to 100,000 g. The design consists of a
hermetically-sealed high-shock crystal and a CMOS
compatible integrated circuit housed in a 5.0 mm x 7.5 mm
surface-mount ceramic package.
FEATURES
Mechanical shock survivability up to 100,000 g
High temperature operation up to 200
O
C
Excellent stability over temperature
Fast start-up
High shock resistance
Designed for surface mount applications
CMOS and TTL compatible
Optional output Enable/Disable
Low EMI emission
Hermetically sealed ceramic package
APPLICATIONS
2
3

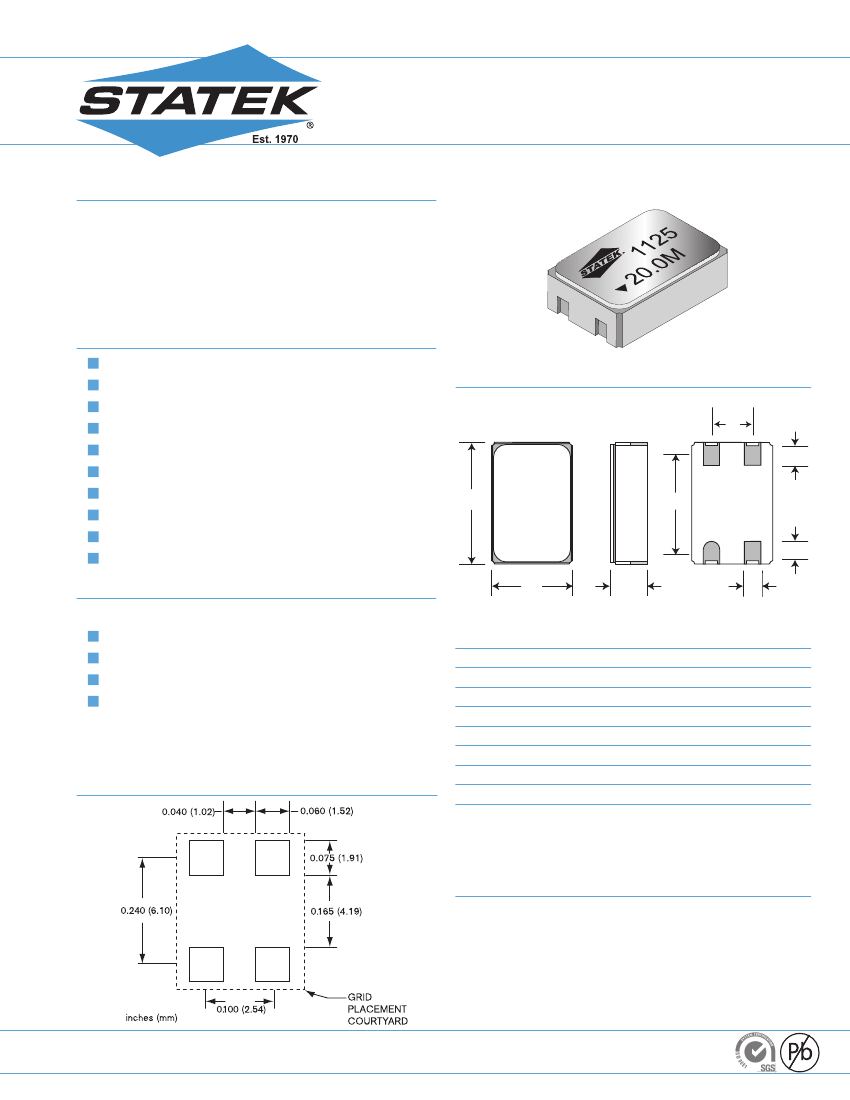

PACKAGE DIMENSIONS
G
D
A
TOP
F
1
4
D
B
C
E
Industrial
Downhole instrumentation
Rotary shaft sensors
Underground boring tools
Avionics applications
DIM
A
B
C*
D
E
SUGGESTED LAND PATTERN
TYPICAL
inches
0.295
0.197
0.089
0.055
0.040
0.240
0.100
mm
7.50
5.00
2.25
1.40
1.02
6.10
2.54
MAXIMUM
inches
0.302
0.204
0.098
-
-
-
-
mm
7.68
5.18
2.50
-
-
-
-
F
G
*SM1 (Termination material is Au over Ni over W). Solder dip (SM3 and SM5) also
available.
PIN CONNECTIONS
1. Enable/Disable (E) or not connected (N)
2. Ground
3. Output
4.
V
DD
10208 Rev B
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
Specifications are typical at 25
O
C unless otherwise noted.
Specifications are subject to change without notice. Tighter
specifications available, please contact factory.
Supply Voltage
Calibration Tolerance
Frequency Stability
Over Temperature
1
Total Tolerance
2
Output Load (CMOS)
3
Start-up Time
Rise/Fall Time
Duty Cycle
Shock survival
4
Vibration, survival
5
Operating Temp Range
6
3.3 V ±10%
5.0 V ±10%
± 50 ppm, or tighter as required
± 100 ppm for 25
O
C to 150
O
C
± 150 ppm for 25
O
C to 175
O
C
± 175 ppm for 25
O
C to 200
O
C
± 200 ppm for 25
O
C to 200
O
C
15 pF
5 ms MAX
10 ns MAX
40% MIN, 60% MAX
Up to 100,000 g, 0.5 ms, ½ sine
20 g, 10-2000 Hz, swept sine
-55ºC up to 200ºC
Supply Voltage V
DD
-0.5 V to 4.0 V (3.3V V
DD
)
-0.5 V to 7.0 V (5V V
DD
)
Storage Temperature
-55
O
C to +125
O
C
Maximum Process Temperature 260
O
C for 20 s
ENABLE/DISABLE OPTIONS (E/N)
Statek offers two enable/disable options: E and N. The E-
version has a Tri-State output and stops oscillating internally
when the output is put into the high Z state. The N-version
does not have PIN 1 connected internally and has no
enable/disable capability. The following table describes the
Enable/Disable option E.
COMPARISON OF
ENABLE/DISABLE OPTIONS E AND N
E
N
When enabled (PIN 1 is high*)
Output
Oscillator
Current consumption
Freq. output
Oscillates
Normal
Freq. output
Oscillates
Normal
1. Does not include calibration tolerance.
2. Frequency over temperature relative to nominal frequency.
3. Higher CMOS loads available. Contact factory.
4. Shock survival applies at -55ºC to +125ºC.
5. Per MIL-STD-202G, Method 204D, Condition D, Random vibration testing also available.
6. Expected life at 200ºC is in excess of 1,500 hours.
When disabled (PIN 1 is low)
Output
Oscillator
Current consumption
High Z state
Stops
Very low
N/C
N/C
N/C
PACKAGING OPTIONS
HGXOHT
- Tray Pack
- Tape and Reel
- 16 mm tape, 7” or 13” reels
Per EIA 481 (see Tape and Reel data
sheet # 10109)
*
When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.
N/C Pin 1 not connected, output frequency.
HOW TO ORDER HGXOHT SURFACE MOUNT CRYSTAL OSCILLATORS
HGXOHT
Supply Voltage
4 = 3.3V
5 = 5.0V
4
D
S
Blank = Standard
S = Special or
custom
N
Enable/Disable
Option
E or N
SM3
Termination
Blank = SM1
= Gold Plated (Pb Free)
SM3 = Solder Dipped
SM5 = Solder Dipped (Pb Free)
20.0M
Frequency
K = kHz
M = MHz
,
Calibration
Tolerance
@ 25
0
C
(in ppm)
/
/
200
/
H
Temp. Range:
H = 25
0
C to 200
0
C
S = Customer
Specified Temp.
Range
Shock Level
A = 5,000 g
B = 10,000 g
C = 20,000 g
D = 30,000 g
F = 50,000 g
G = 75,000 g
H = 100,000 g
Total Frequency
Tolerance (in
ppm)
Frequency
Stability over
Temp. Range
(in ppm)
OR
50
Calibration
Tolerance
@ 25
0
C
(in ppm)
Note: The HGXOHT oscillator with SM1 or SM5
termination is Pb free. The HGXOHT oscillator
with SM3 termination contains Pb.
/
175
/
Total
Frequency
Tolerance
(in ppm)
/
H
Temp. Range:
H = 25
0
C to
200
0
C
S = Customer
Specified Temp.
Range
Frequency
Stability over
Temp. Range
(in ppm)
10208 Rev B
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
