FXB06HCHD datasheet, PDF - EEWORLD Datasheet

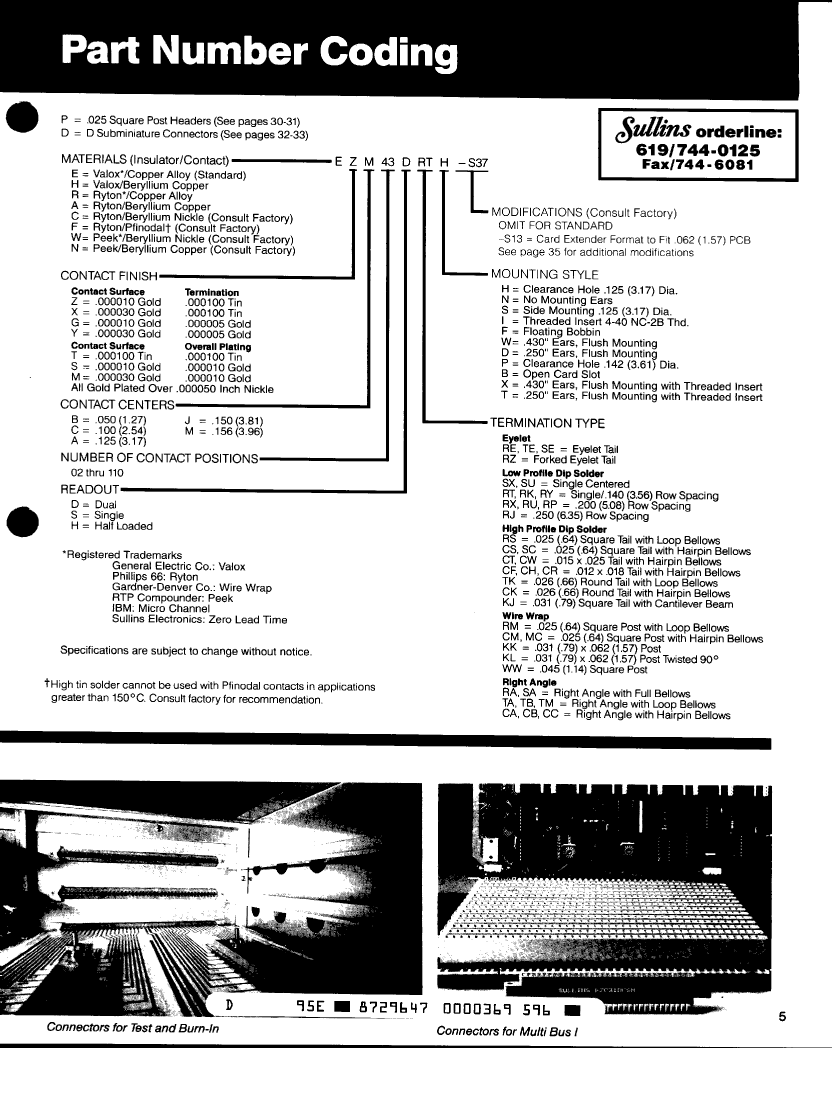

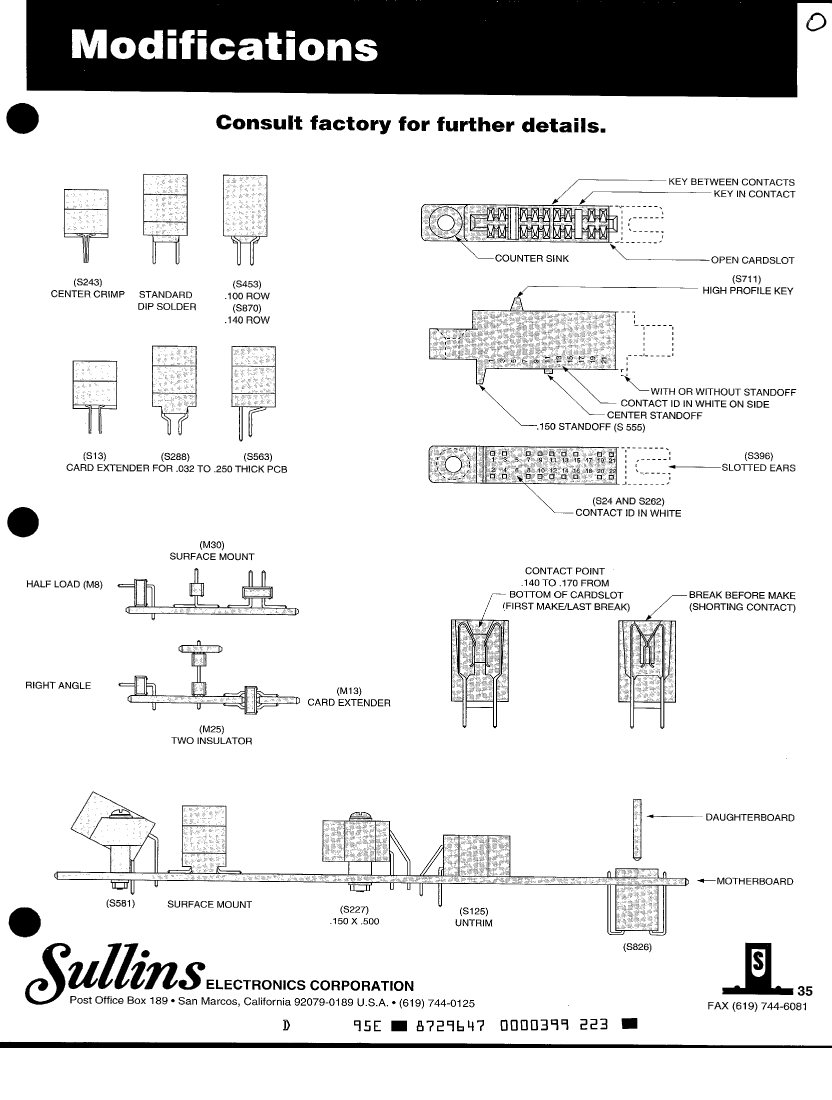

FXB06HCHD: DescriptionCard Edge Connector, 6 Contact(s), 1/2 LOADED Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Hole .125-.137, Red Insulator, Receptacle; CategoryThe connector The connector; File Size834KB，5 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric View All

FXB06HCHD Overview

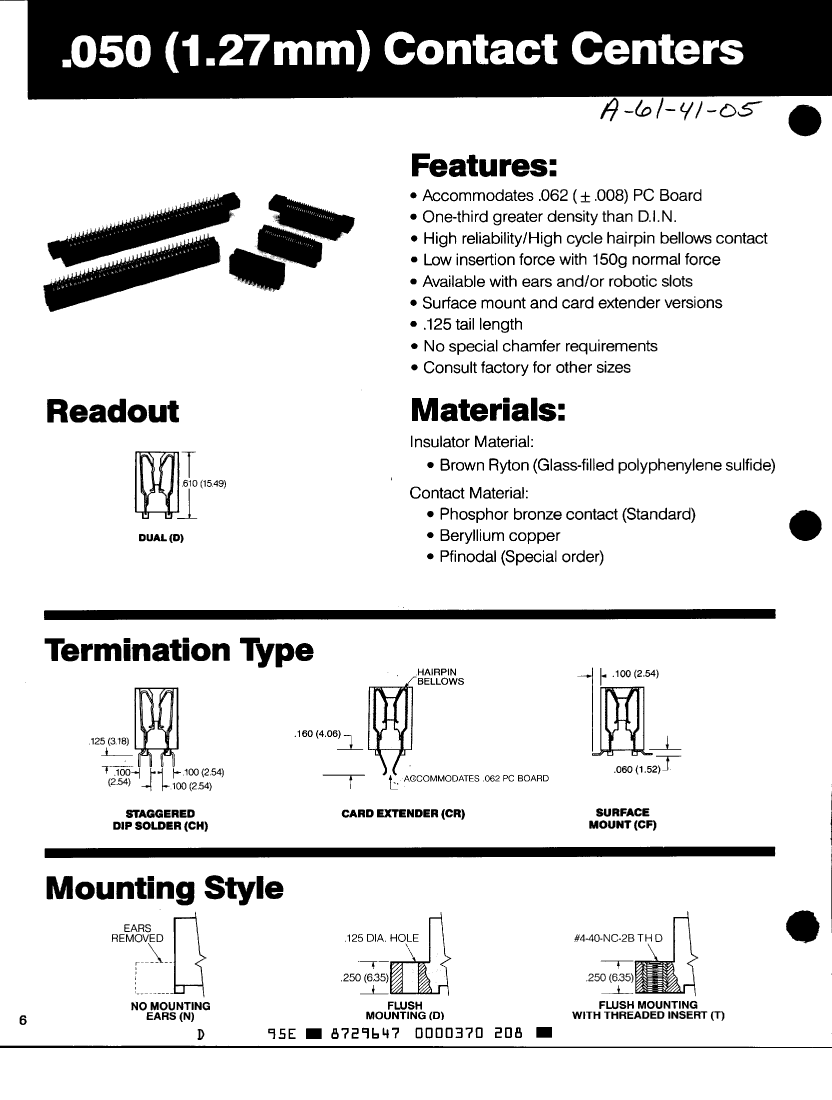

Card Edge Connector, 6 Contact(s), 1/2 LOADED Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Hole .125-.137, Red Insulator, Receptacle

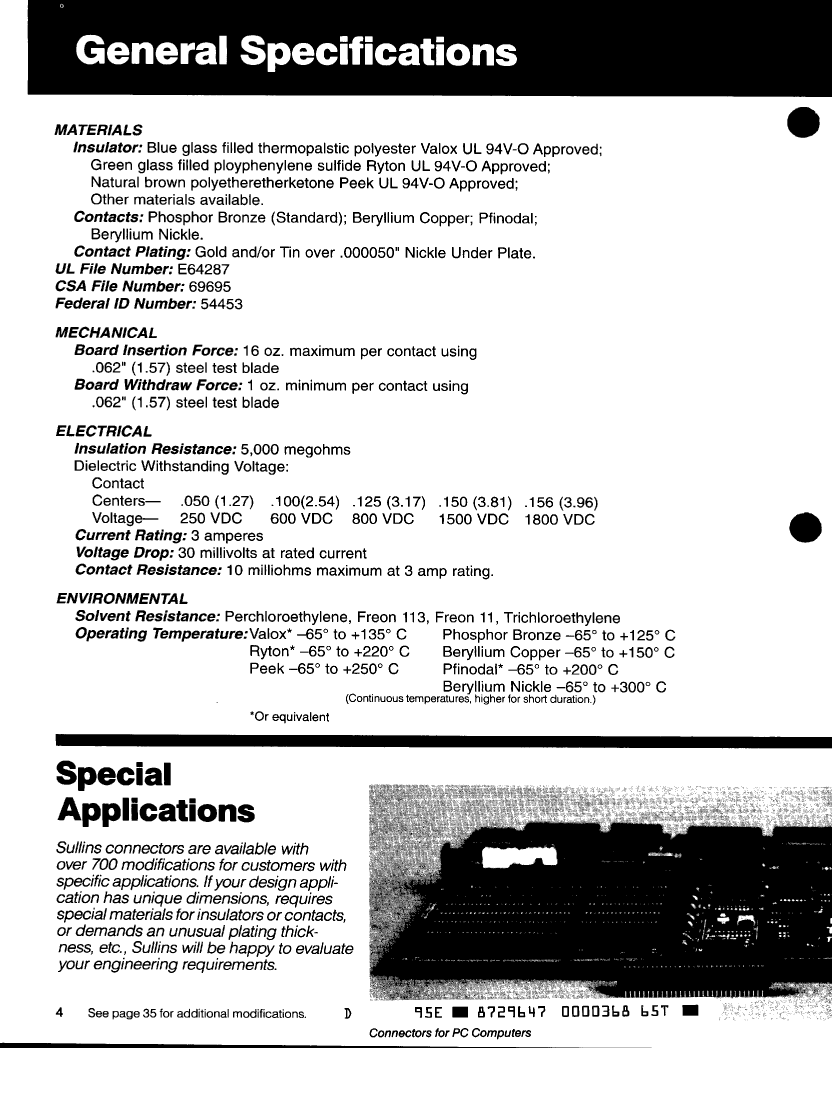

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1157767732
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NONE
Board mount options	MOUNTING FLANGE

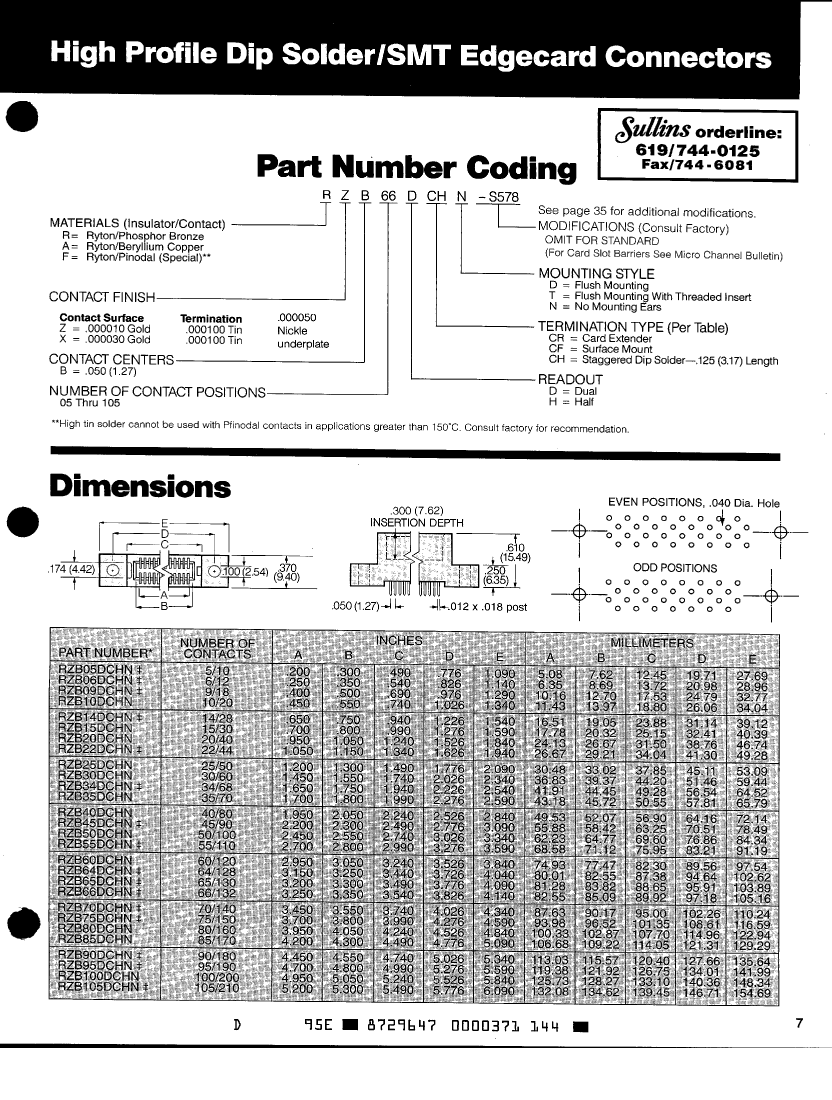

body width	0.37 inch
subject depth	0.61 inch
body length	1.14 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VDC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e0
Plug contact pitch	0.05 inch
Installation option 1	HOLE .125-.137
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1,(1/2 LD)
Number of rows loaded	1/2 LOADED
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Terminal length	0.125 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	.278 N

This Material Copyrighted By Its Respective Manufacturer
