94013-K3304JB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 94013-K3304JB

94013-K3304JB: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.2W, 3300000ohm, 75V, 5% +/-Tol, 1105,; CategoryPassive components The resistor; File Size108KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

94013-K3304JB Overview

Fixed Resistor, Metal Glaze/thick Film, 0.2W, 3300000ohm, 75V, 5% +/-Tol, 1105,

94013-K3304JB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	252045604
Reach Compliance Code	unknown
Country Of Origin	Israel
YTEOL	7.73
structure	Chip
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	0.51 mm
Package length	2.67 mm
Package form	SMT
Package width	1.27 mm
Rated power dissipation(P)	0.2 W
Guideline	MIL-PRF-55342
resistance	3300000 Ω
Resistor type	FIXED RESISTOR
series	RCWP MOISTURE RESIST
size code	1105
technology	METAL GLAZE/THICK FILM
Tolerance	5%
Operating Voltage	75 V

Preview

Download Datasheet

View All

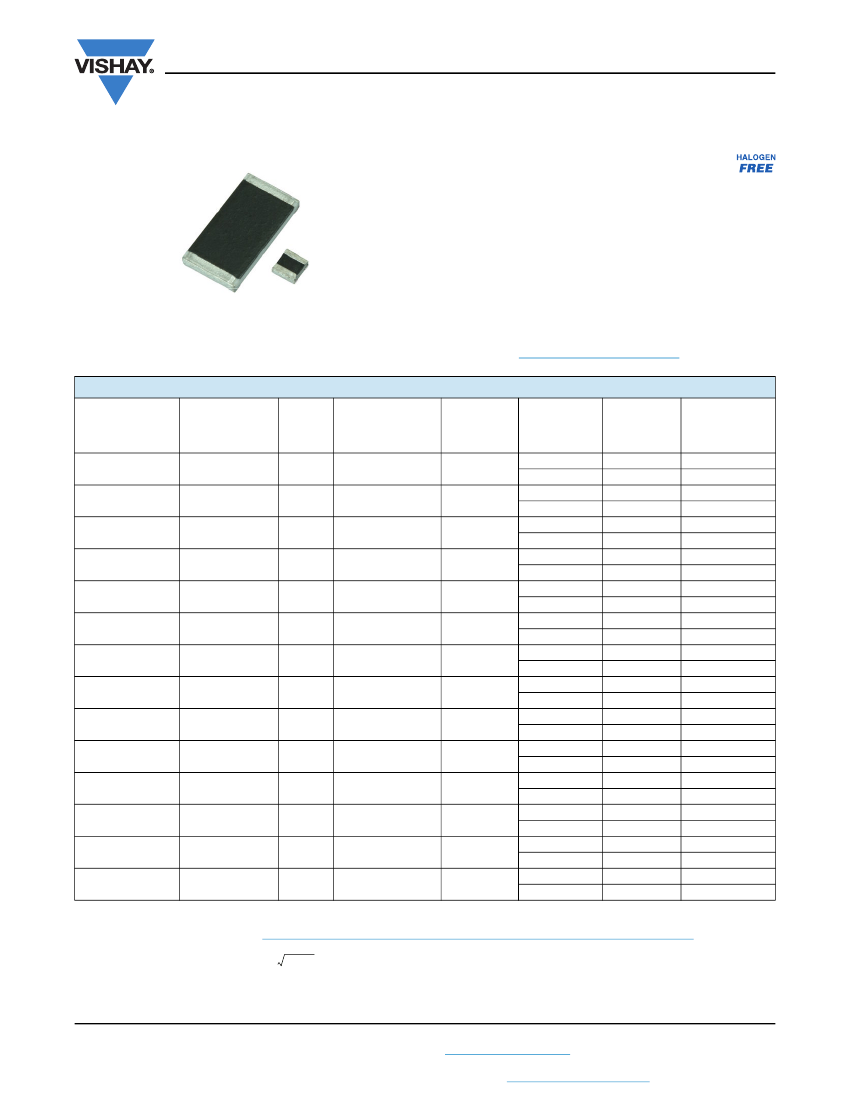

RCWP Moisture Resistant

www.vishay.com

Vishay Dale

Thick Film Chip Resistors, Industrial, Moisture Resistant

FEATURES

• Manufactured to the DSCC drawings for Military

Moisture Resistant chip resistor products

• Designed to be resistant to the degrading effects of

moisture while under power

• Construction is sulfur impervious against a high sulfur

environment (ASTM B 809-95 test method)

• Same materials and construction as MIL-PRF-55342 chip

resistors

• Termination: Tin/lead wraparound termination over nickel

barrier

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

STANDARD ELECTRICAL SPECIFICATIONS

GLOBAL

MODEL

RCWP0201..69

RCWP0302..69

RCWP0402..69

RCWP0502..69

RCWP0603..69

RCWP0550..69

RCWP0575..69

RCWP5100..69

RCWP1206..69

RCWP5150..69

RCWP1100..69

RCWP7225..69

RCWP2010..69

RCWP2512..69

DSCC DRAWING

NUMBER

07010

04007

04008

94025

04009

94012

94015

94013

94016

94026

94019

94014

94017

94018

CASE

SIZE

0201

0302

0402

0502

0603

0505

0705

(3)

1005

1206

1505

1010

2208

2010

2512

MAXIMUM

POWER RATING

(1)

WORKING

70 °C

VOLTAGE

(2)

0.05

0.04

0.05

0.10

0.125

0.15

0.20

0.25

0.35

0.50

0.60

0.80

1.00

100

125

175

150

200

RESISTANCE

RANGE



10 to 47

47.5 to 1M

1 to 9.1

10 to 22M

1 to 9.1

10 to 22M

1 to 9.1

10 to 22M

1 to 5.6

5.62 to 22M

1 to 9.1

10 to 22M

1 to 5.6

5.62 to 22M

1 to 5.6

5.62 to 22M

1 to 5.6

5.62 to 22M

1 to 5.6

5.62 to 22M

1 to 5.6

5.62 to 22M

1 to 5.6

5.62 to 22M

1 to 5.6

5.62 to 22M

1 to 5.6

5.62 to 22M

TOLERANCE

±%

5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

2, 5, 10

1, 2, 5, 10

TEMPERATURE

COEFFICIENT

± ppm/°C

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

300

100, 200, 300

Notes

• Consult factory for extended resistance range.

• These drawings can be viewed at:

www.landandmaritime.dla.mil/Programs/MilSpec/ListDwgs.aspx?DocTYPE=DSCCdwg.

(1)

Power rating depends on max. temperature at the solder joint, the component placement density and the substrate material.

(2)

Continuous working voltage shall be

or maximum working voltage, whichever is less.

(3)

MIL case size 0705 and EIA case size 0805 are dimensionally the same.

Revision: 03-May-13

Document Number: 31007

For technical questions, contact:

ff2aresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000
