DV74HCT164N datasheet, PDF - EEWORLD Datasheet

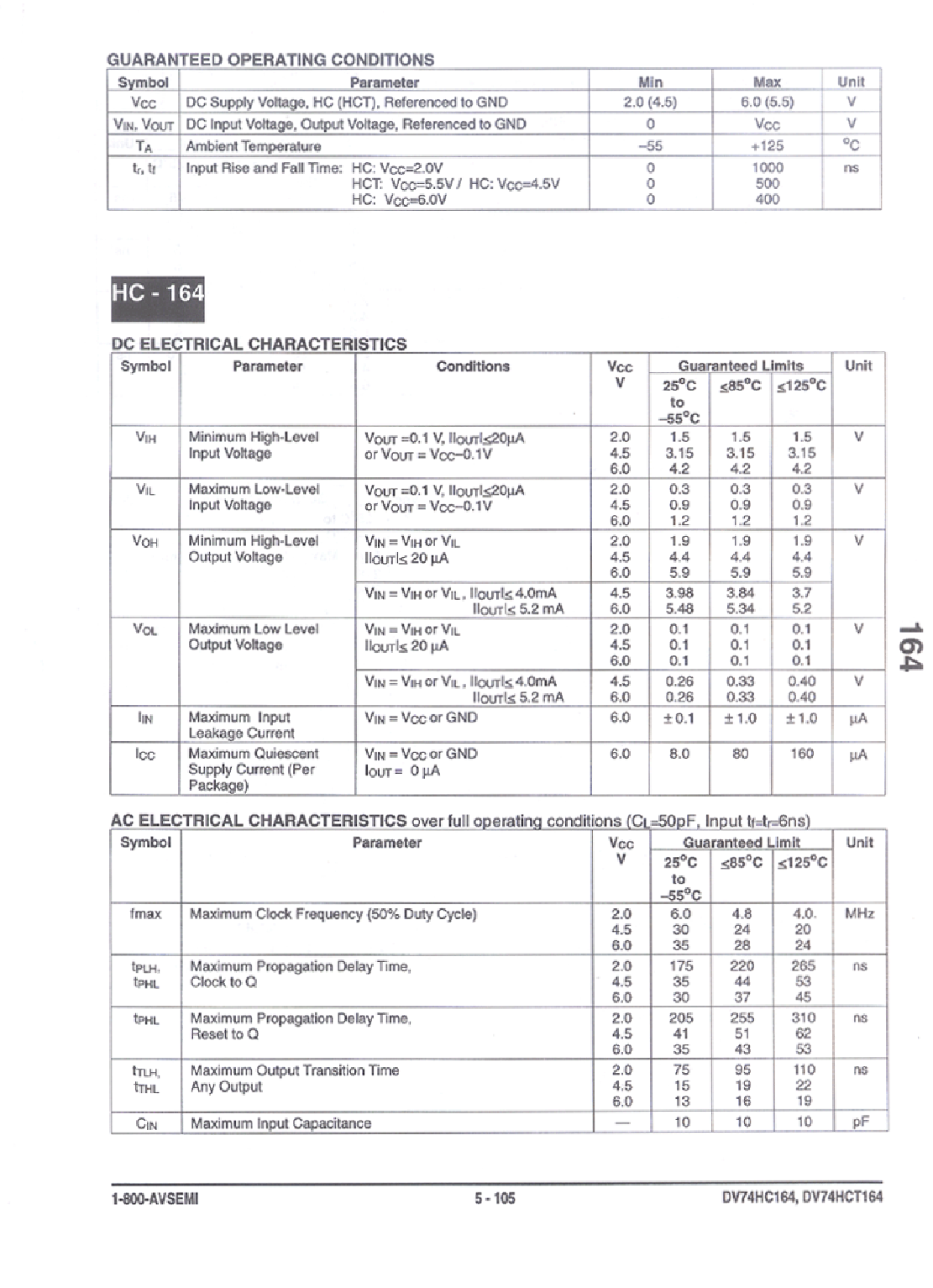

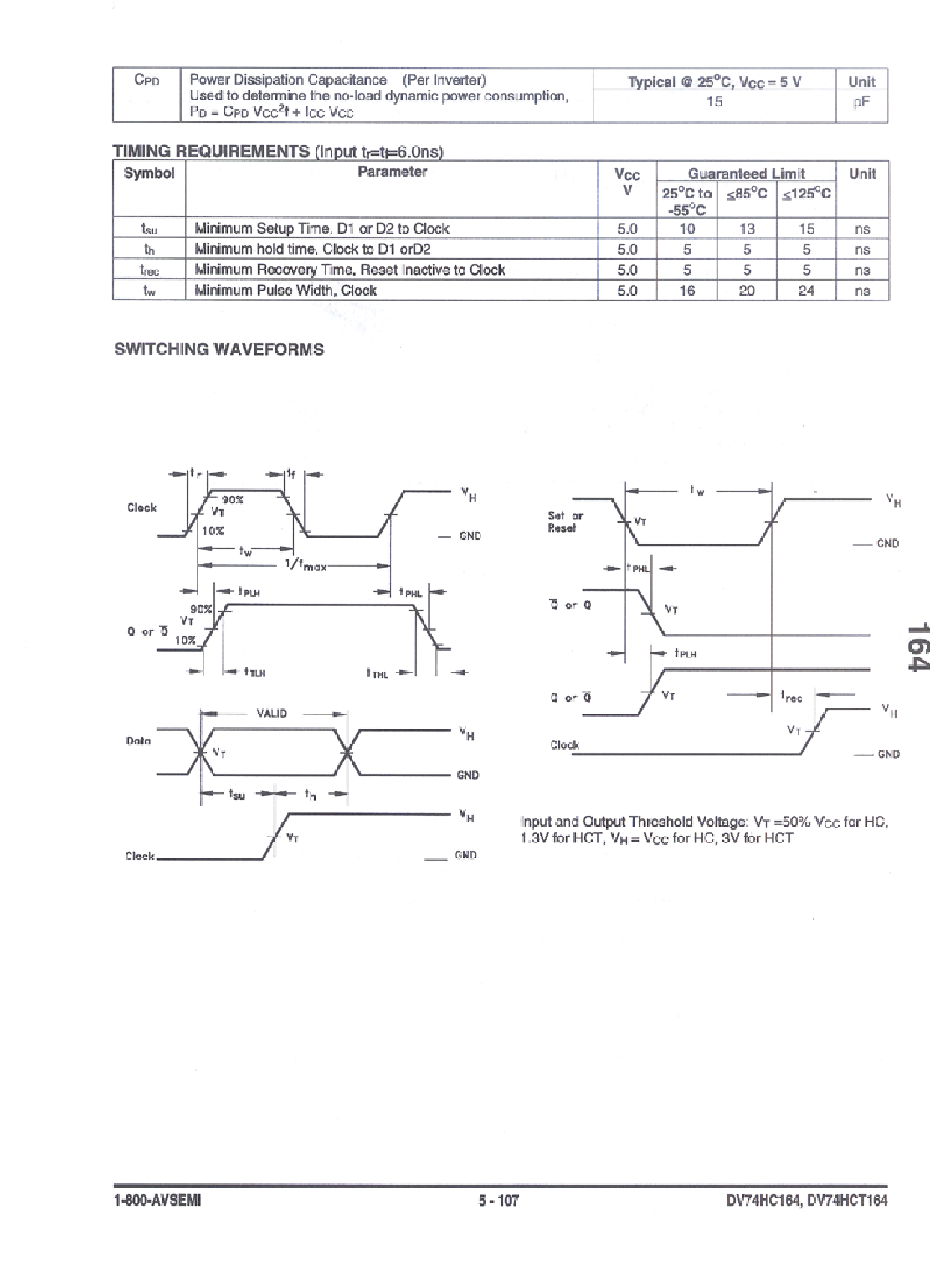

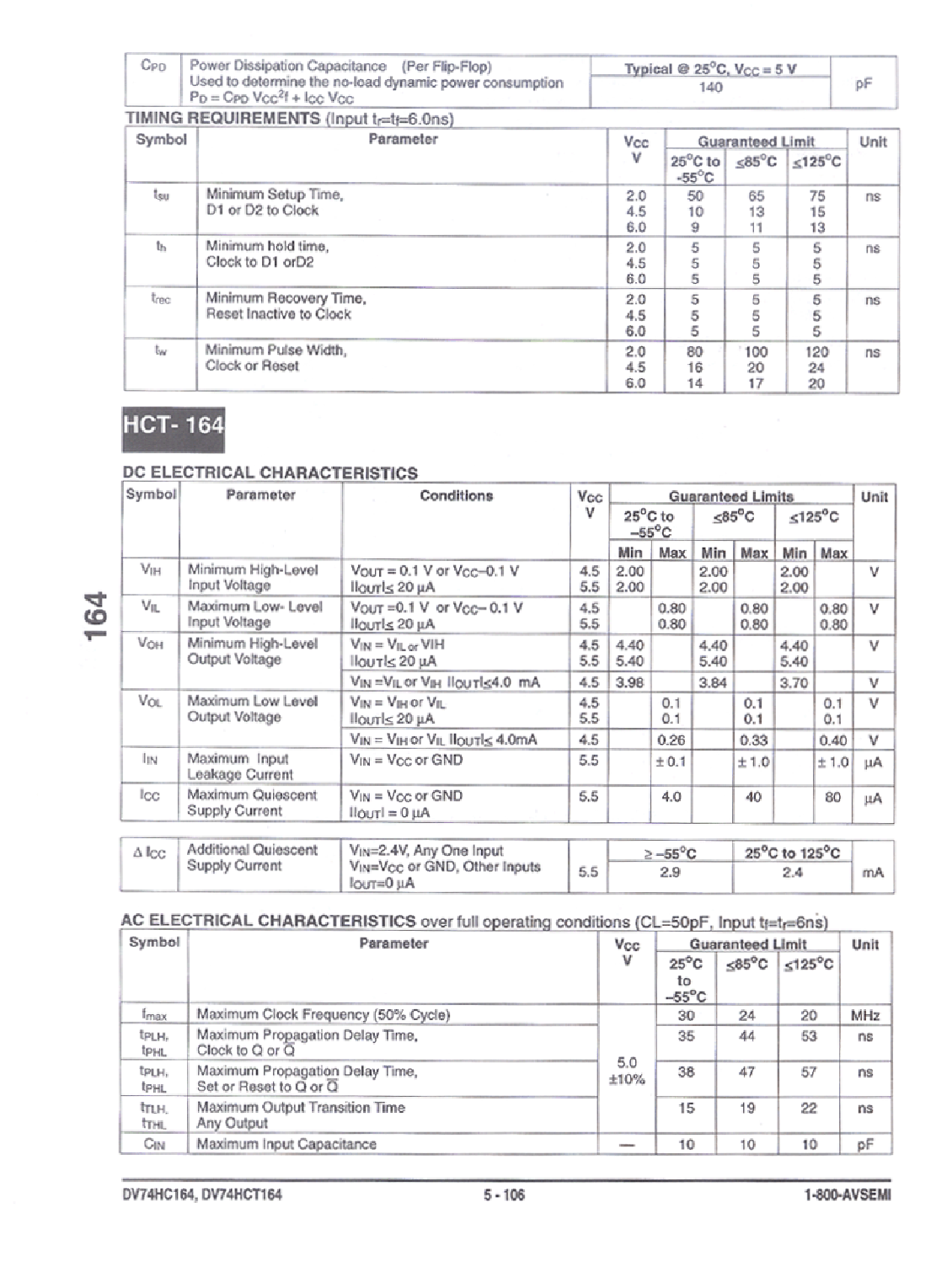

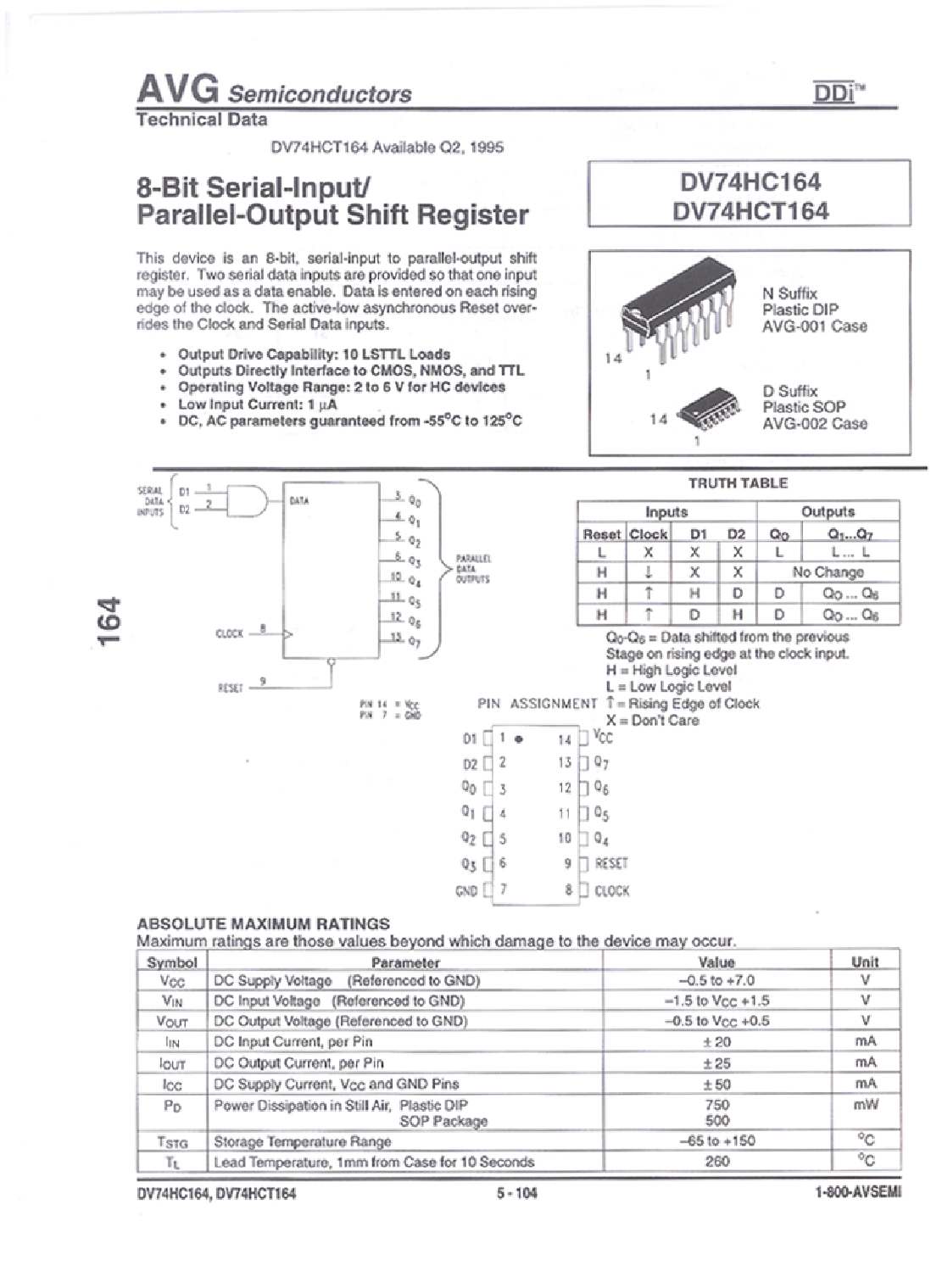

DV74HCT164N: DescriptionSerial In Parallel Out, HCT Series, 8-Bit, Right Direction, True Output, CMOS, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size654KB，4 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HCT164N Overview

Serial In Parallel Out, HCT Series, 8-Bit, Right Direction, True Output, CMOS, PDIP14, PLASTIC, DIP-14

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	PLASTIC, DIP-14
Contacts	14
Reach Compliance Code	unknown
Counting direction	RIGHT
series	HCT
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	53 ns
Certification status	Not Qualified
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	20 MHz
Base Number Matches	1

	DV74HCT164N	DV74HCT164D
Description	Serial In Parallel Out, HCT Series, 8-Bit, Right Direction, True Output, CMOS, PDIP14, PLASTIC, DIP-14	Serial In Parallel Out, HCT Series, 8-Bit, Right Direction, True Output, CMOS, PDSO14, PLASTIC, SOP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	SOIC
package instruction	PLASTIC, DIP-14	SOP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
Counting direction	RIGHT	RIGHT
series	HCT	HCT
JESD-30 code	R-PDIP-T14	R-PDSO-G14
length	18.86 mm	8.65 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT
Number of digits	8	8
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	53 ns	53 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.69 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	3.9 mm
minfmax	20 MHz	20 MHz
Base Number Matches	1	1
