EBL/EGL
Vishay Roederstein
Aluminum Capacitors
Axial and Mounting Ring Capacitors Style
FEATURES
•
•
•
•
•
•
•
Polarized aluminum electrolytic capacitors
High ripple current capability
Very long lifetime
Charge/discharge proof
Extended temperature range: 125 °C
Mounting Ring available
Compliant to RoHS directive 2002/95/EC
RoHS
COMPLIANT
APPLICATIONS
Component outlines
Obsolete - please refer to:
www.vishay.com/doc?28334
•
Industrial and automotive electronics, telecommunication,
power supply units
•
Coupling, smoothing, filtering, buffering and timing
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
(Ø D x L)
Rated capacitance range C
R
Capacitance tolerance
Rated voltage range
Category temperature range
Endurance test at 125 °C
Useful life at 125 °C and I
R
applied
Useful life at 85 °C and I
R
applied
Useful life at 40 °C, 1.8 x I
R
applied
Shelf Life (0 V, 125 °C)
Failure rate (0.8 U
R,
40 °C)
Based on sectional specification
Endurance test at 150 °C
Climatic category IEC 60068
h
500
40/125/56
UNIT
mm
µF
%
V
°C
h
h
h
h
h
10
-9
/h
≤
14
≤
8
- 40 to 125
2000
4000
11 000
500 000
6.3 to 100
- 55 to 125
3000
8000
18 000
1 000 000
100
≤
14
-
≤
10
IEC 60384-4, EN130300
- 40 to 125
2000
4000
11 000
500 000
LOW VOLTAGE
6.5 x 18
to 10 x 25
1 to 1500
12 x 30
to 21 x 40
68 to 10 000
± 20
200
- 55 to 125
3000
8000
14 000
1 000 000
HIGH VOLTAGE
6.5 x 18
to 10 x 25
4.7 to 10
12 x 30
to 21 x 40
22 to 100
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
1.0
2.2
4.7
10
22
33
47
68
100
150
220
330
470
U
R
(V)
6.3
→
→
→
→
→
→
→
→
→
→
→
→
→
10
→
→
→
→
→
→
→
→
→
→
6.5 x 18
8 x 18
8 x 18
→
→
→
6.5 x 18
8 x 18
10 x 18
10 x 18
16
→
→
→
→
EBL
→
→
6.5 x 18
8 x 18
10 x 18
10 x 25
10 x 25
25
→
→
→
→
40
→
→
→
→
→
→
6.5 x 18
8 x 18
8 x 18
10 x 18
10 x 25
12 x 30
12 x 30
63
6.5 x 18
6.5 x 18
6.5 x 18
6.5 x 18
6.5 x 18
6.5 x 18
8 x 18
10 x 18
10 x 25
12 x 30
12 x 30
15 x 30
18 x 30
100
-
-
6.5 x 18
6.5 x 18
8 x 18
10 x 25
10 x 25
12 x 30
12 x 30
15 x 30
18 x 30
18 x 38
21 x 38
200
-
-
8 x 18
10 x 25
12 x 30
15 x 30
18 x 30
18 x 38
21 x 38
-
-
-
-
www.vishay.com
1
Document Number: 25116
Revision: 14-May-09
For technical questions, contact:
aluminumcaps1@vishay.com
Obsolete - Please refer to 118 AHT (28334)
EBL/EGL
Vishay Roederstein
Aluminum Capacitors
Axial and Mounting Ring Capacitors Style
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
680
1000
1500
2200
3300
4700
4800
10 000
U
R
(V)
6.3
→
10 x 18
10 x 25
→
→
→
→
→
10
10 x 18
10 x 25
12 x 30
12 x 30
15 x 30
18 x 30
18 x 38
21 x 38
16
10 x 25
12 x 30
12 x 30
15 x 30
18 x 30
18 x 38
21 x 38
-
25
12 x 30
12 x 30
15 x 30
18 x 30
18 x 38
21 x 38
-
-
40
15 x 30
18 x 30
18 x 38
21 x 38
-
-
-
-
-
-
63
18 x 38
21 x 38
-
-
EGL
-
-
100
-
-
-
-
200
-
-
-
-
-
-
-
-
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
B
Ød
C
L
33 ± 1
+
ØD
L
ØD
A
AXIAL STYLE: DIMENSIONS
in millimeters,
MASS, PACKAGING QUANTITIES AND ORDERING CODE
NOMINAL
CASE
SIZE
ØDxL
6.5 x 18
8 x 18
10 x 18
10 x 25
12 x 30
15 x 30
18 x 30
18 x 38
21 x 38
MASS
APPROX.
(g)
18.5
18.5
18.5
25.0
30.5
30.5
30.5
40.0
40.0
25
25
25
30
35
35
35
45
45
73.0 ± 1.6
73.0 ± 1.6
73.0 ± 1.6
73.0 ± 1.6
73.0 ± 1.6
73.0 ± 1.6
73.0 ± 1.6
-
-
1.3
1.7
25
3.3
6
8
10
15
21
..00W
..00W
..00W
..00W
..00W
PACKAGING, ENDING OF ORDERING CODE, QUANTITIES
BULK IN BOX
CODE
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
-
-
-
-
55
55
55
34
34
6.9
8.5
10.5
10.5
12.5
15.5
18.5
18.5
21.5
-
-
-
-
260
300
200
120
100
PCS.
TAPED ON REEL
CODE
..A0W
..A0W
..A0W
..A0W
..A0W
..A0W
..A0W
n.a
n.a
PCS.
1000
500
500
500
400
250
200
TAPED AMMO
CODE
..B0W
..B0W
..B0W
..B0W
n.a
n.a
n.a
n.a
n.a
PCS.
1000
500
500
500
Ød
C
Ø
D
max.
L
max.
A
min.
B
Axial style capacitors are insulated.
www.vishay.com
2
For technical questions, contact:
aluminumcaps1@vishay.com
Document Number: 25116
Revision: 14-May-09
Obsolete - Please refer to 118 AHT (28334)
EBL/EGL
Aluminum Capacitors
Axial and Mounting Ring Capacitors Style
Vishay Roederstein

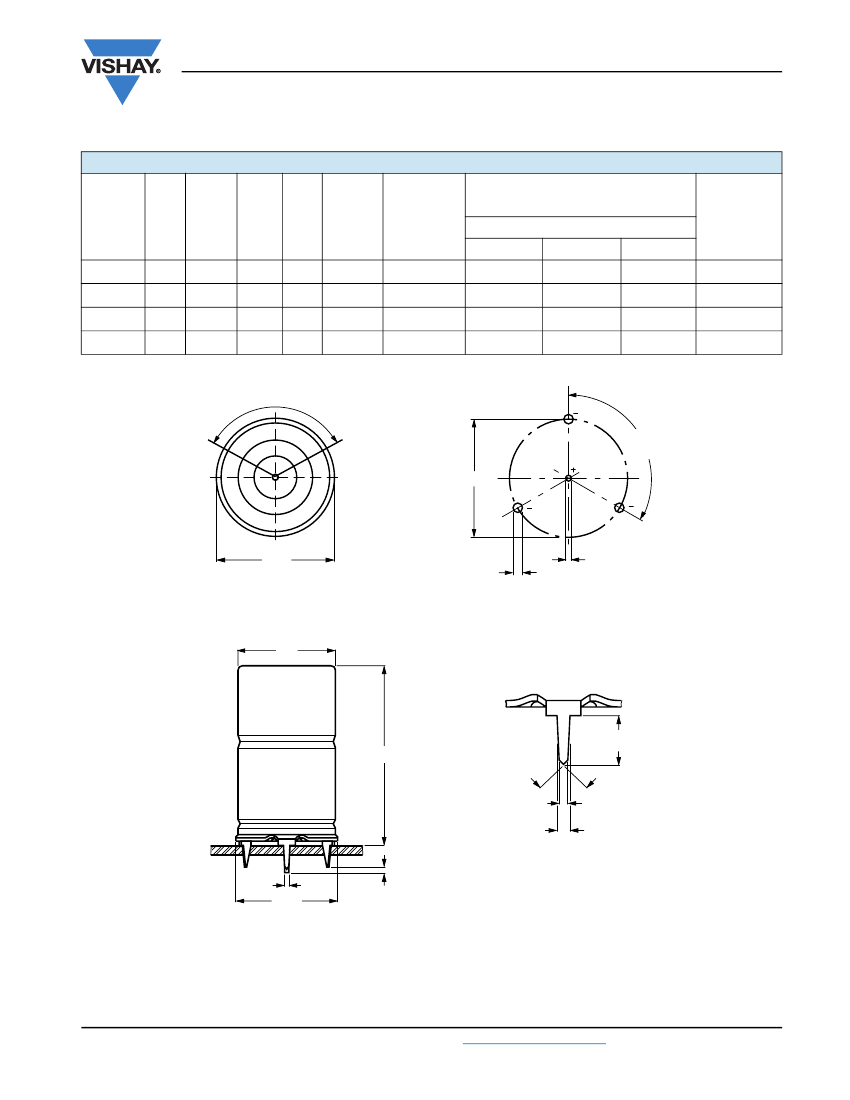

MOUNTING RING STYLE: DIMENSIONS
