DAC1214UB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC1214UB

DAC1214UB: DescriptionD/A Converter, 4 Func, Serial Input Loading, 0.5us Settling Time, PDSO28,; CategoryAnalog mixed-signal IC converter; File Size449KB，7 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

DAC1214UB Overview

D/A Converter, 4 Func, Serial Input Loading, 0.5us Settling Time, PDSO28,

DAC1214UB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Maximum analog output voltage	5 V
Minimum analog output voltage	-5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	SERIAL
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
Maximum linear error (EL)	0.0122%
Number of digits	12
Number of functions	4
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Nominal settling time (tstl)	0.5 µs
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

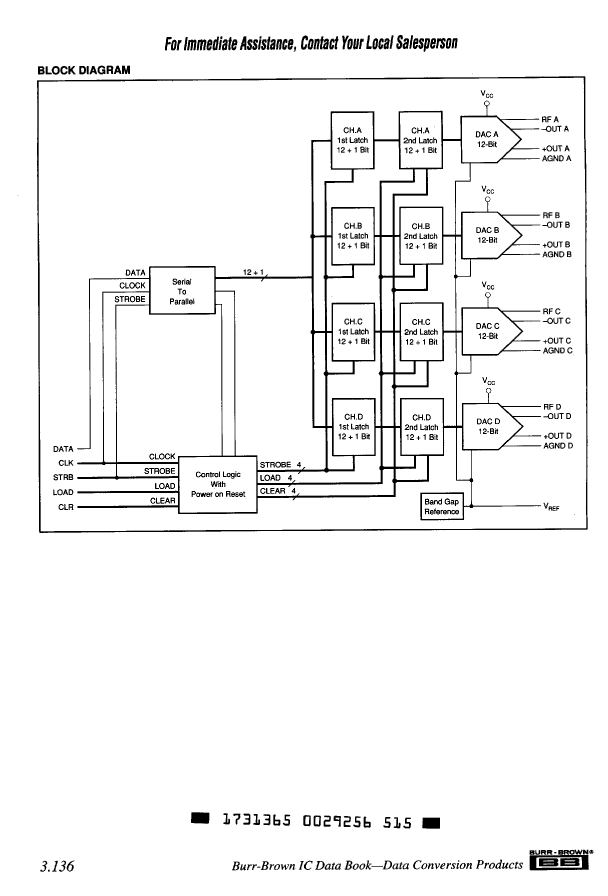

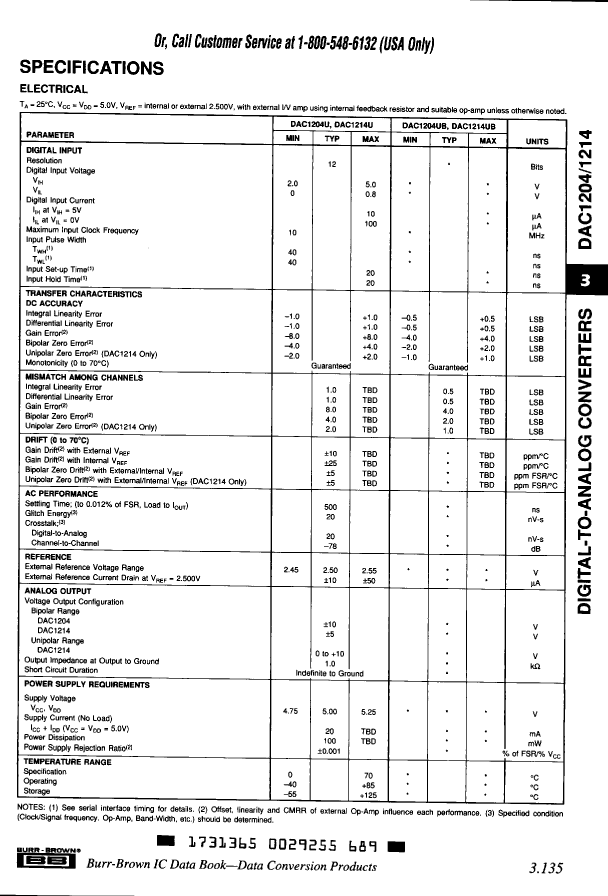

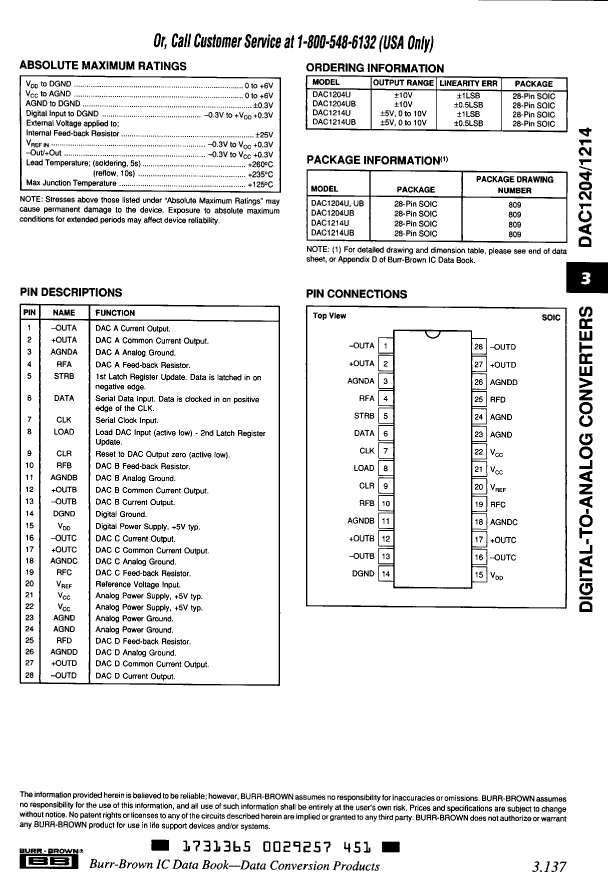

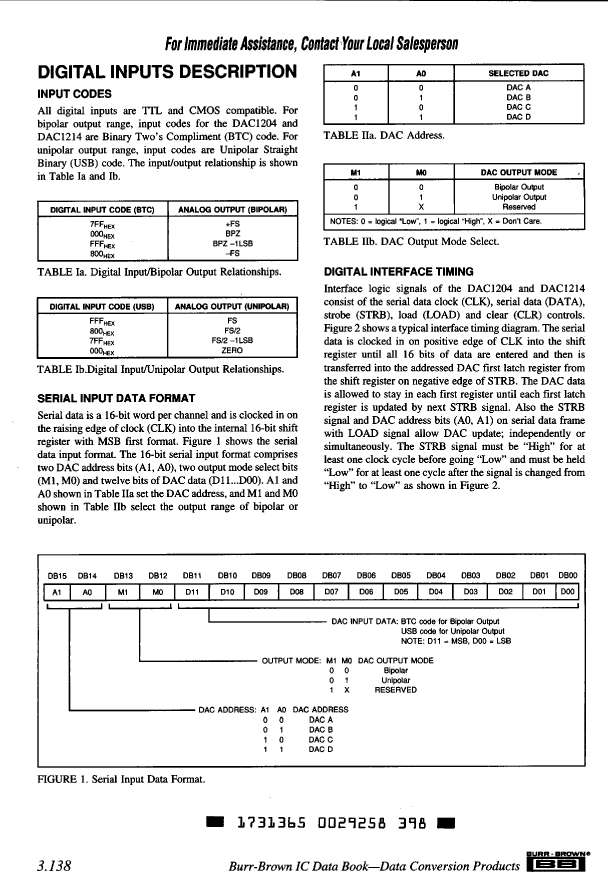

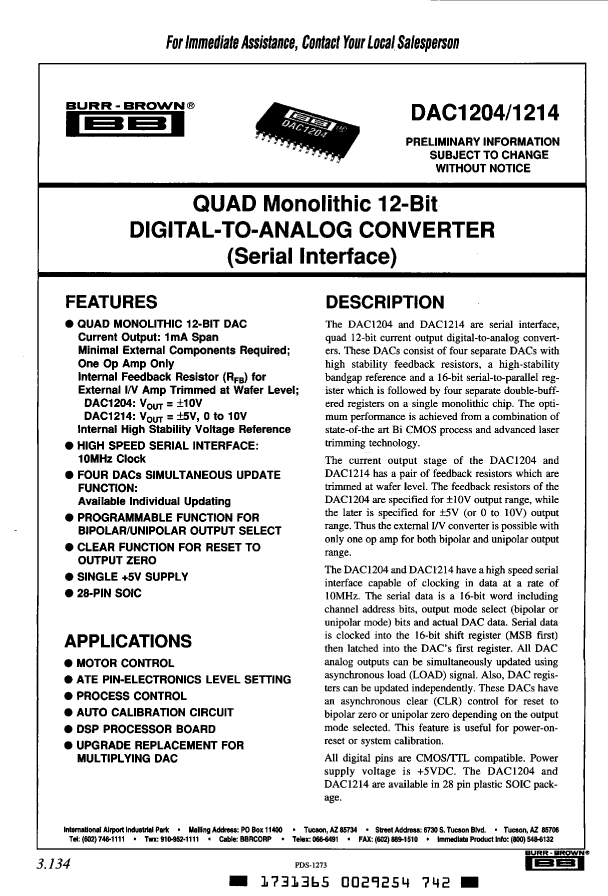

Preview

Download Datasheet

View All

DAC1214UB Related Products

	DAC1214UB	DAC1204U	DAC1204UB	DAC1214U
Description	D/A Converter, 4 Func, Serial Input Loading, 0.5us Settling Time, PDSO28,	D/A Converter, 4 Func, Serial Input Loading, 0.5us Settling Time, PDSO28,	D/A Converter, 4 Func, Serial Input Loading, 0.5us Settling Time, PDSO28,	D/A Converter, 4 Func, Serial Input Loading, 0.5us Settling Time, PDSO28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum analog output voltage	5 V	10 V	10 V	5 V
Minimum analog output voltage	-5 V	-10 V	-10 V	-5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY
Input format	SERIAL	SERIAL	SERIAL	SERIAL
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0
Maximum linear error (EL)	0.0122%	0.0244%	0.0122%	0.0244%
Number of digits	12	12	12	12
Number of functions	4	4	4	4
Number of terminals	28	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP28,.4	SOP28,.4	SOP28,.4	SOP28,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal settling time (tstl)	0.5 µs	0.5 µs	0.5 µs	0.5 µs
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-
