PR405-NKG48HD: DescriptionSingle Color LED, Green, Water Clear, T-1 3/4, 5.08mm,; CategoryLED optoelectronic/LED photoelectric; File Size288KB，3 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric View All

PR405-NKG48HD Overview

Single Color LED, Green, Water Clear, T-1 3/4, 5.08mm,

PR405-NKG48HD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4003362133
Reach Compliance Code	compliant
YTEOL	7.7
color	GREEN
Configuration	SINGLE
Maximum forward current	0.0095 A
Lens type	WATER CLEAR
Nominal luminous intensity	10000.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	22.35 mm
method of packing	BULK
peak wavelength	520 nm
shape	ROUND
size	5.08 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	3.18 mm
perspective	15 deg

Preview

Download Datasheet

View All

P405 / PR405 Series

0.250" (6.35mm)

Snap-in LED Panel Indicator

Prominent snap-in LED indicator, single or bi-color LED

Voltage: 2VDC - 120VAC

Key features

• Mounting hole size: .249” (6.32mm) to .252” (6.40mm)

• For panels: .031” (.79mm) to .125” (3.18mm)

• Prominent with black bezel that enhances the LED contrast

• Voltage: 2-60 VDC or 120VAC

• Terminals: Bi-pin or wire leads (6” wire leads, 24 AWG)

• Available with a variety of LEDs including AlInGaP and InGaN technology for high brightness

applications, bi-color and with integrated resistors

• T-1 3/4 (5mm) LED

• Available in six LED single colors: red, amber, orange, green, blue and white

• Available in one bi-color: red/green.

• Low power consumption - uses up to 90% less energy than an incandescent indicator

• Front panel snap-in mounting requires no additional hardware

• LEDs operate signiﬁcantly cooler than traditional lamps

• Compliant with RoHS and REACH

Your first call for illuminated components

vcclite.com 1.800.522.5546

02/19 Rev1

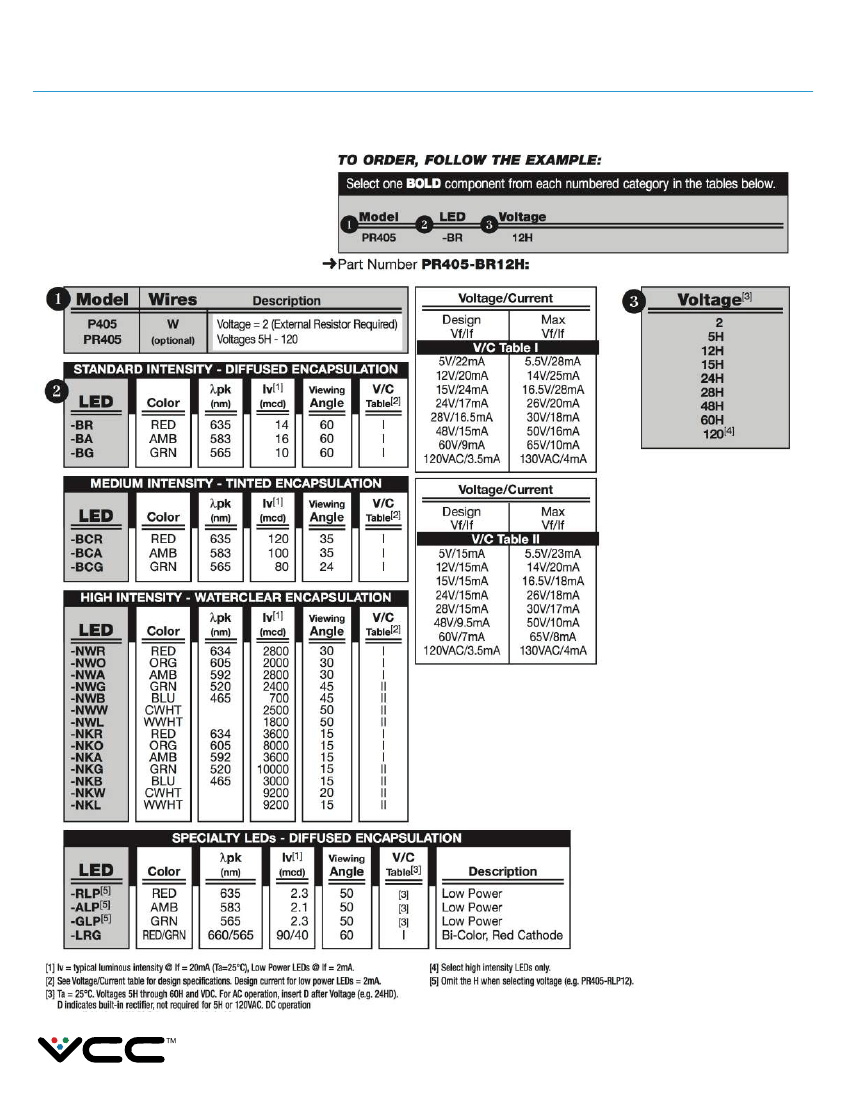

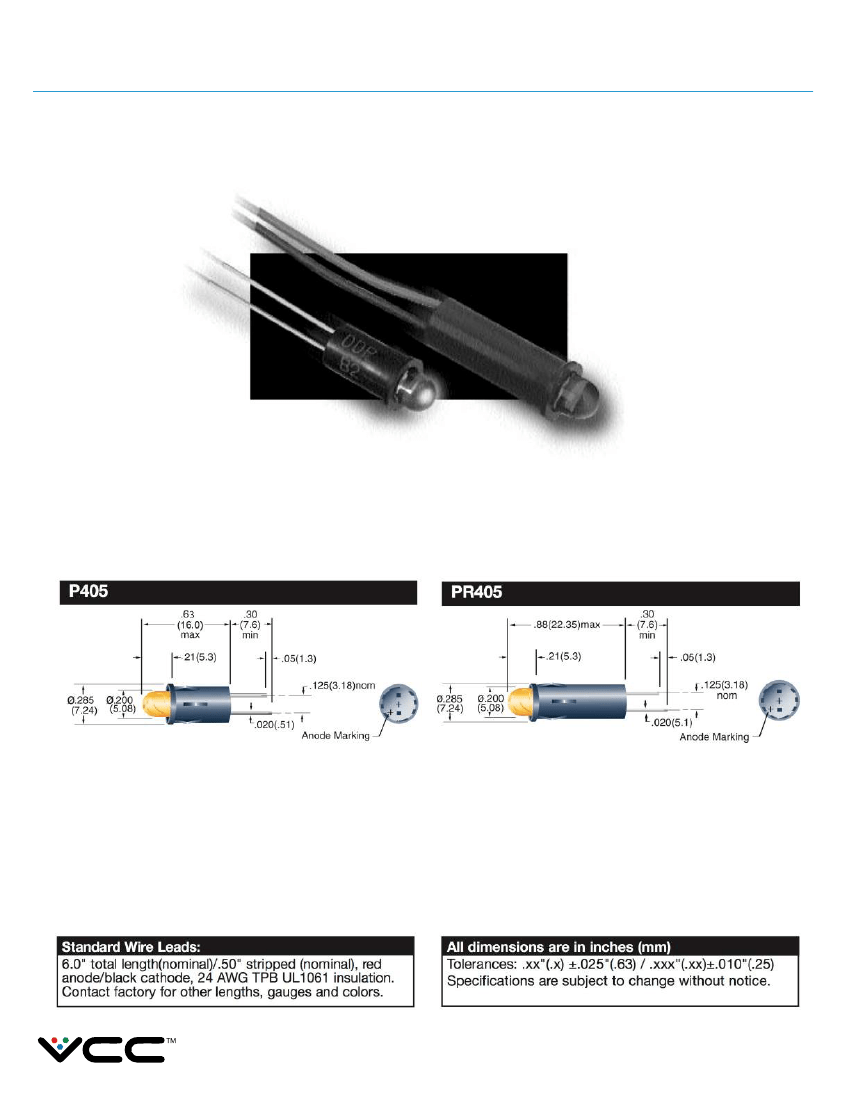

P405W / PR405 Series

|

Page

1

of 3
