53318-0961

Description
Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size159KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

53318-0961 Overview

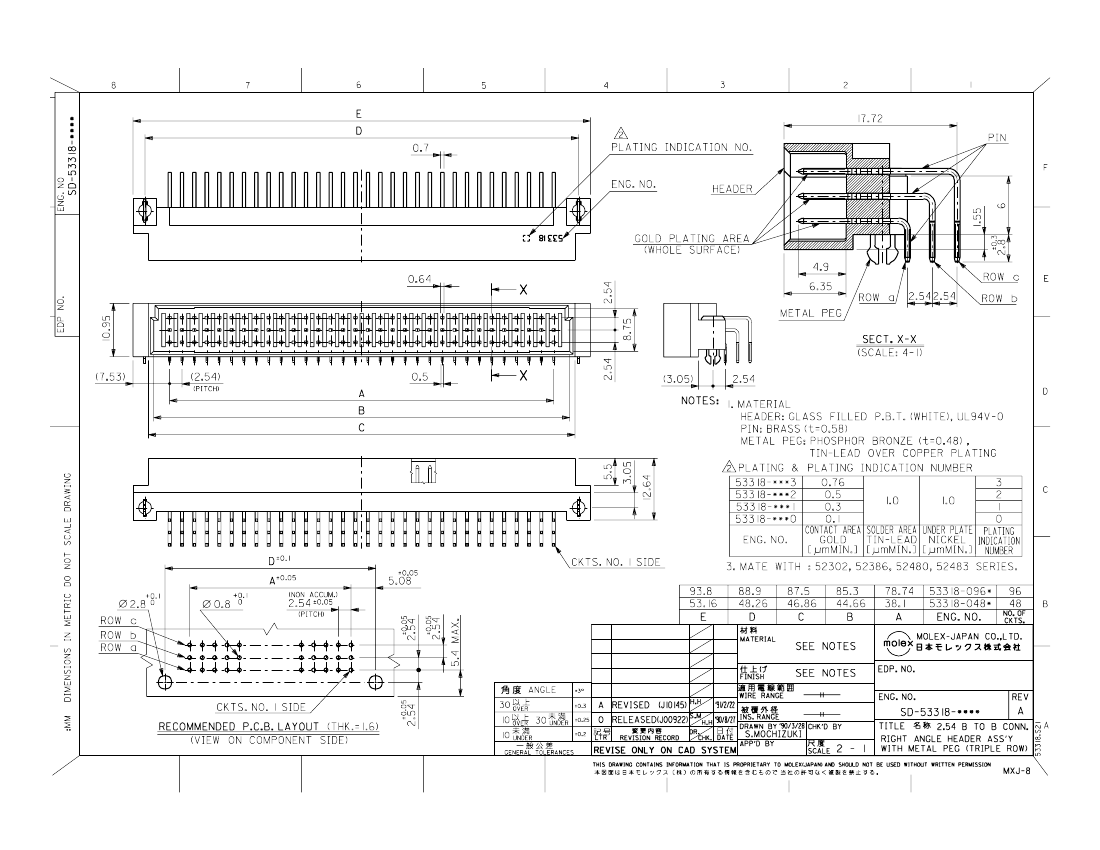

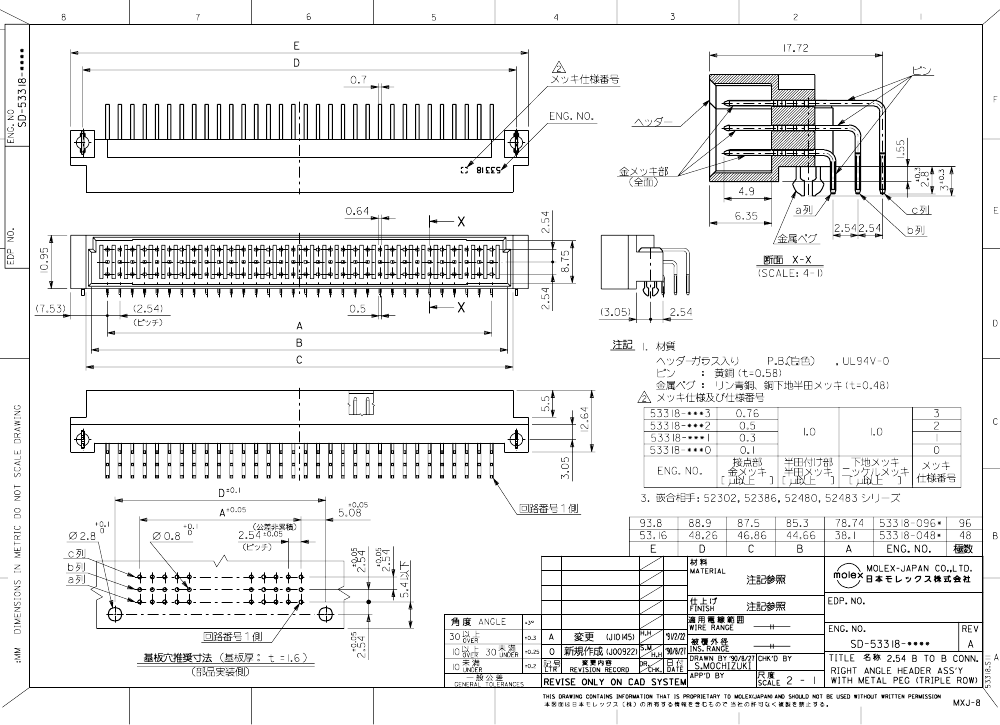

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

53318-0961 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresSTANDARDS: DIN 41612; IEC 603-2
body width0.431 inch
subject depth0.7 inch
body length3.693 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationGOLD
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceYES
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Manufacturer's serial number53318
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number3
Number of rows loaded3
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness3u inch
polarization keyENDS
Rated current (signal)2 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts96
UL Flammability Code94V-0
Base Number Matches1

53318-0961 Related Products

53318-0961 53318-0963
Description Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code unknown unknown
Other features STANDARDS: DIN 41612; IEC 603-2 STANDARDS: DIN 41612; IEC 603-2
body width 0.431 inch 0.431 inch
subject depth 0.7 inch 0.7 inch
body length 3.693 inch 3.693 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact to complete cooperation GOLD GOLD
Contact point gender MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED
Contact resistance 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance YES YES
Dielectric withstand voltage 1000VAC V 1000VAC V
Filter function NO NO
IEC compliance YES YES
Insulation resistance 1000000000 Ω 1000000000 Ω
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance NO NO
Manufacturer's serial number 53318 53318
Plug contact pitch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
PCB row number 3 3
Number of rows loaded 3 3
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm
Plating thickness 3u inch 75u inch
polarization key ENDS ENDS
Rated current (signal) 2 A 2 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal length 0.11 inch 0.11 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 96 96
UL Flammability Code 94V-0 94V-0
Base Number Matches 1 1
