CRB6A8E102JU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CRB6A8E102JU

CRB6A8E102JU: DescriptionArray/Network Resistor, Isolated, 0.0625W, 1000ohm, 50V, 5% +/-Tol, -250,250ppm/Cel, Surface Mount, 0625, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size144KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

CRB6A8E102JU Overview

Array/Network Resistor, Isolated, 0.0625W, 1000ohm, 50V, 5% +/-Tol, -250,250ppm/Cel, Surface Mount, 0625, CHIP, ROHS COMPLIANT

CRB6A8E102JU Parametric

Parameter Name	Attribute value
Objectid	1945286179
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Component power consumption	0.0625 W
The first element resistor	1000 Ω
Manufacturer's serial number	CRB6A8E
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	8
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	6.4 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.6 mm
method of packing	TR, PLASTIC
Rated power dissipation(P)	0.0625 W
Rated temperature	70 °C
resistance	1000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	CRB6A 8E
size code	0625
surface mount	YES
Temperature Coefficient	250 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

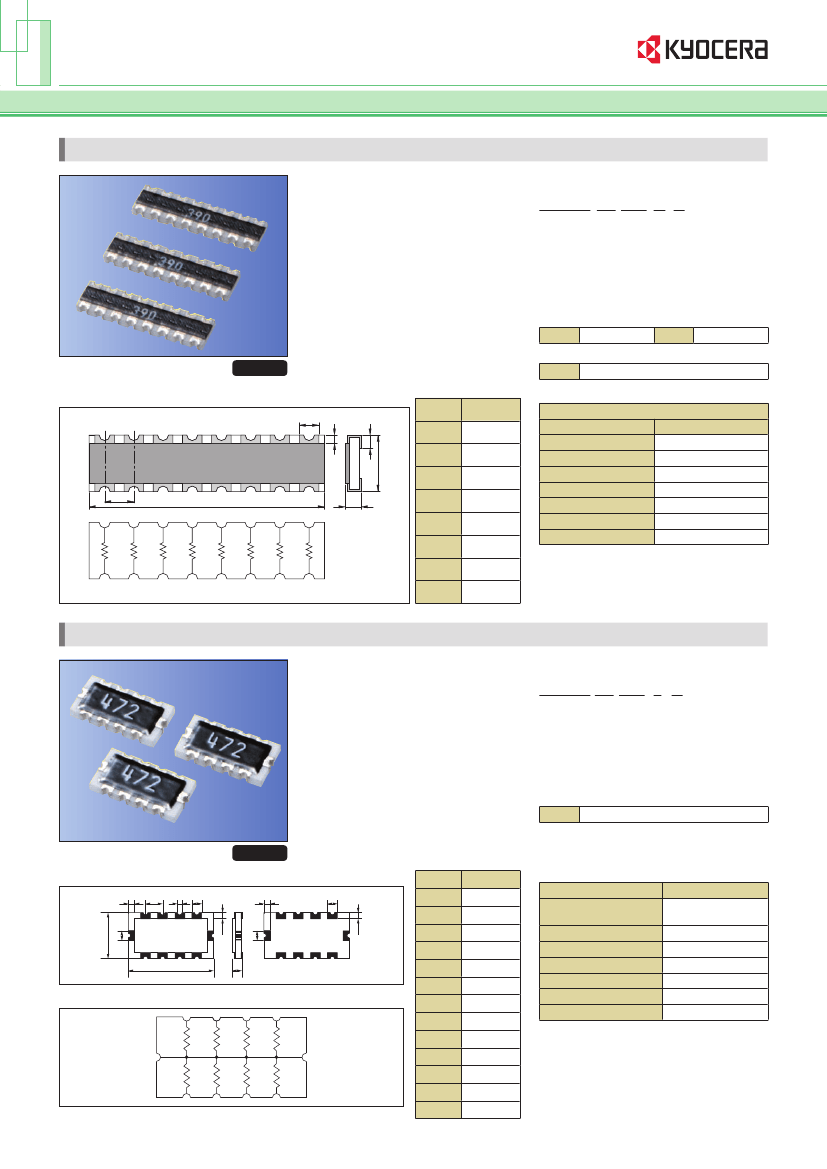

Chip Resistor Array/ CRB6A8E Series

Chip Resistor Network/ RNA4A Series

8 element chip Resistor Array/ CRB6A8E Series (Concave Termination)

Features

• Equal length conductors can be traced

out from 0.8mm pitch termination

How to Order

CRB6A 8E 390 G U

①

Series CRB6A

②

Number of elements

8 elements

③

Resistance value

3 digits numbering

④

Tolerance

±2%

② ③ ④ ⑤

±5%

⑤

Packaging

RoHS Compliant

(Unit: mm)

Taping plastic 4,000 pcs./ reel

Dimensions

Rating

Code

(Top side)

Dimensions

6.4±0.2

1.6±0.2

0.6±0.1

0.8 typ.

0.3±0.2

0.4±0.15

0.5±0.1

0.4±0.15

Chip Resistor Arrays

Item

Rating

Rated power (70°C)

1/ 16W/ element

Max. working voltage

50V

Max. over-load voltage

100V

Resistance value

10W to 1MW

Tolerance

±2%,

±5%

Working temperature

−55

+125°C

Number of elements

8E: 8 elements



Rated Voltage:

√

Rated power

Resistance value,

whichever is less.

Standard Resistance Value: E-6 Series

Please contact sales engineer for any other requirements of

the nominal resistance value and the tolerance.

(Bottom side)

Chip Resistor Network/ RNA4A Series (Concave Termination)

Features

• Reduction in mounting costs & Process

• Save PCB space

• Eight resistors in one SMD package

• Reduction of inventory control costs

How to Order

RNA4A 8E 103 J U

①

② ③ ④ ⑤

Applications

• Lap Top Computer • Notebook Computer

• Printer

• Hard Disk Drive

• CD ROM

• Facsimile

①

Series

②

Number of elements (8E: 8 elements)

③

Resistance code (3 digits)

④

Resistance tolerance (J:

±5%)

⑤

Packaging

Plastic Taping, 4,000 pcs./ reel

Taping Qty.: 4000 pcs./ 7 inch reel (4mm pitch)

Carrier Tape: plastic

RoHS Compliant

Dimensions

(Unit: mm)

Code

Dimensions

4.0±0.15

2.1±0.15

0.6±0.1

0.5±0.1

0.25±0.15

0.5±0.1

0.3±0.15

0.3 typ.

0.8 typ.

0.4±0.1

0.4±0.15

0.5±0.1

0.35±0.15

Specifications

Item

Rated power (70°C)

Max. working voltage

Max. over-load voltage

Resistance value

Tolerance

Number of elements

Working temperature

Rating

1/ 16W (0.0625W)/

Element

25V

50V

100W to 220KW

±5%

8E: 8 elements

−55

+125°C

Circuit Diagram



Rated Voltage:

√

Rated power

Resistance value,

whichever is less.

Standard Resistance Value: E-6 Series

If resistance value under 100W is needed, please contact

sales.

• Nominal resistance value is all the same.

Recommended Resources

Switching power supply circuit in set-top box

Digital tube extinguishing signal circuit diagram

window comparator

LTC1044 application example negative voltage converter

Precision absolute value circuitry with wide dynamic range

Computer motherboard circuit diagram 810 4_21
