500MMG474KTX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 500MMG474KTX

500MMG474KTX: DescriptionFilm Capacitor, Polyester, 500V, 10% +Tol, 10% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size556KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

500MMG474KTX Overview

Film Capacitor, Polyester, 500V, 10% +Tol, 10% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

500MMG474KTX Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1756148765
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	6.82
capacitance	0.47 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
high	18 mm
JESD-609 code	e3
length	13 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	AMMO PACK
positive tolerance	10%
Rated (DC) voltage (URdc)	500 V
surface mount	NO
Terminal surface	TIN
Terminal pitch	10 mm
Terminal shape	WIRE
width	10 mm

Preview

Download Datasheet

View All

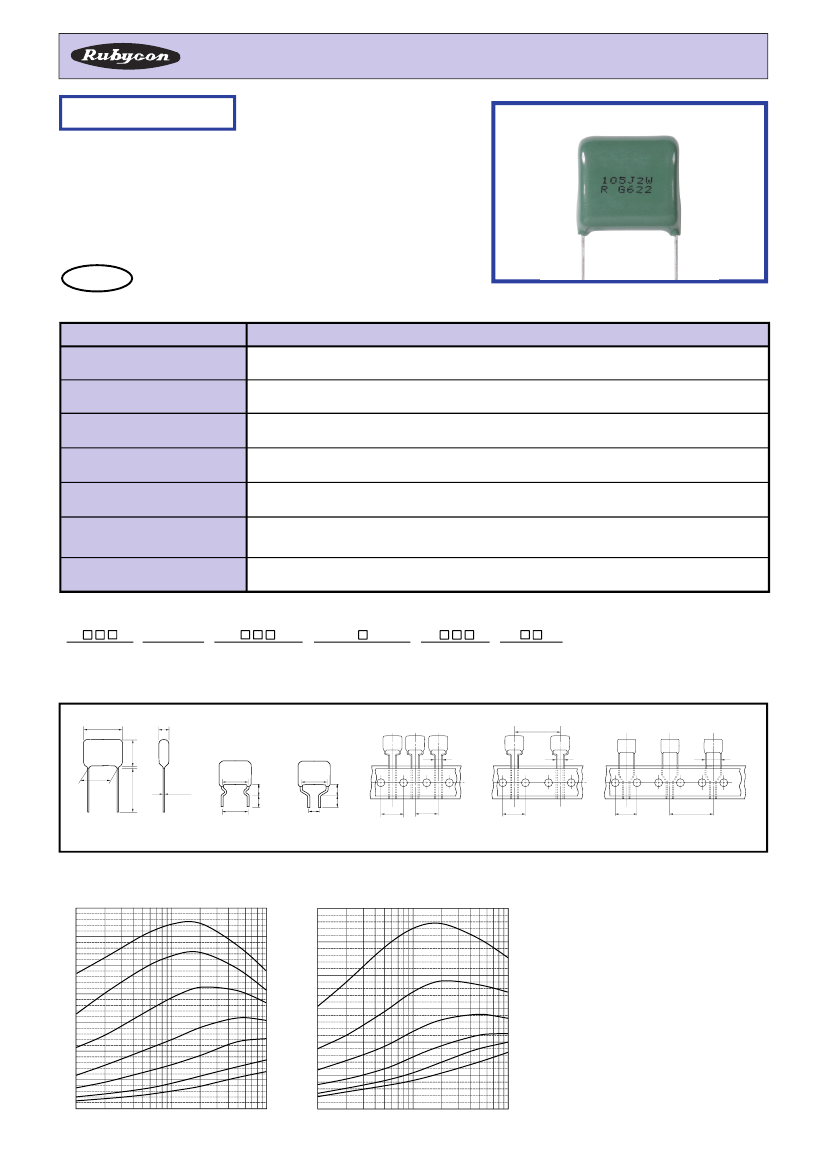

メタライズドポリエステルフィルムコンデンサ

ＭＥＴＡＬＬＩＺＥＤ　ＰＯＬＹＥＳＴＥＲ　ＦＩＬＭ　ＣＡＰＡＣＩＴＯＲＳ

ＭＭＧ

series

標準品

Standard

・自己回復性があり、信頼性が高いコンデンサです。

Reliability is excellent because these capacitors provide self-healing.

・外装に難燃性（UL94

V-0）のエポキシ樹脂を½用していますので、

安全性に優れています。

Coated with flame-retardant (UL94 V-0) epoxy resin.

compliance

RoHS

◆規格表／SPECIFICATION

項目

Item

カテゴリ温度範囲

Category Temperature Range

定格電圧範囲

Rated Voltage Range(U

)

静電容量許容差

Capacitance Tolerance

誘電正接

tanδ

耐電圧

Voltage Proof

絶縁抵抗

Insulation Resistance

準拠規格

Reference Standard

特性

Characteristics

－40½＋105℃ ※

250Vdc, 450Vdc, 500Vdc, 630Vdc

±10%(K)

0.01max at 1kHz

×150% 60s

C≦0.33μF:15000MΩmin

C＞0.33μF:5000ΩFmin

JIS C 5101-2, JIS C 5101-1

※85℃を超える範囲では½用上の注意事項に示す電圧½減を行ってください。

Derate the voltage as shown CAUTION FOR PROPER USE OF FILM CAPACITORS when using the capacitor beyond 85℃

◆呼称方法／PART

NUMBER

定格電圧

Rated Voltage

MMG

シリーズ名

Series

静電容量

Capacitance

静電容量許容差

Capacitance Tolerance

副記号

Option

リード加工記号

Lead Forming

(mm)

◆寸法図／DIMENSIONS

A max

B max

C max

20 min

1.0 max

＝

5±0.5 5max

φd±0.05

Blank

H7,Y7,17

S7,W7,Q7,K7

TX,TH

TL,TJ,TN

TS(F=10)

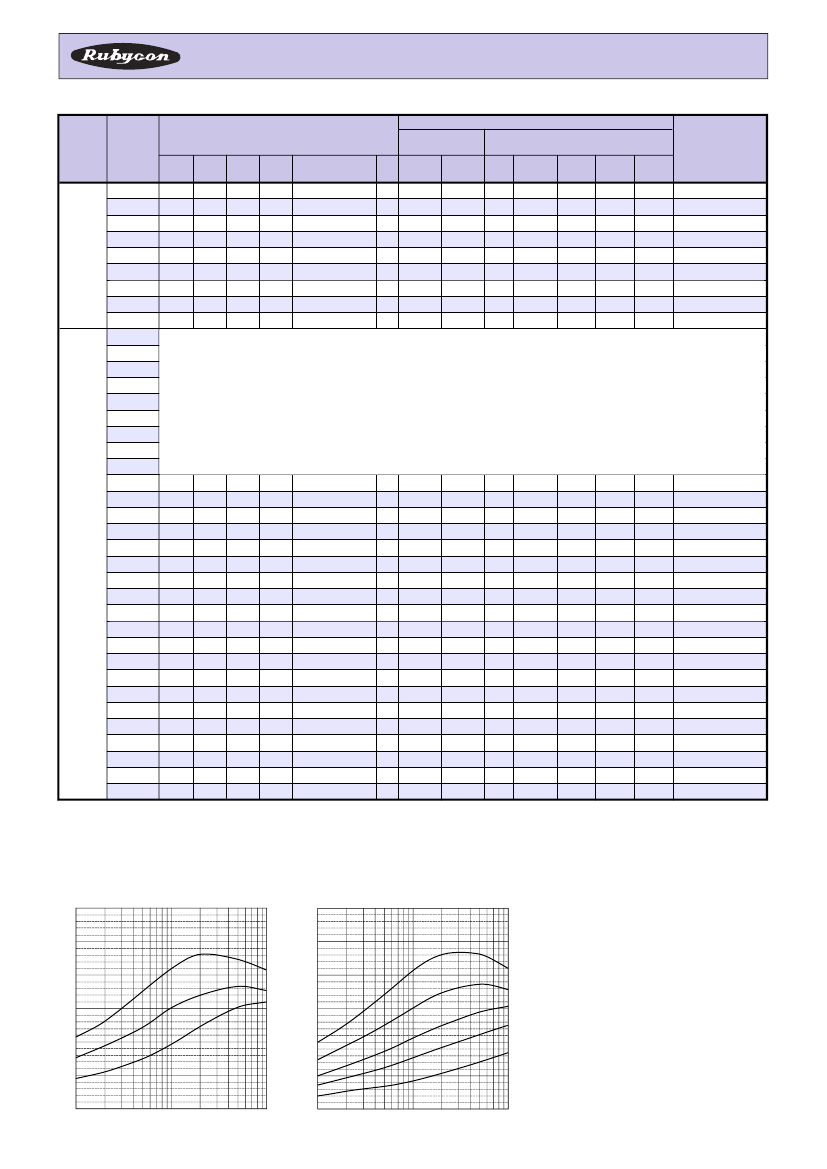

◆周波数に対する許容電流／PERMISSIBLE

CURRENT FOR FREQUENCY

Permissible current（A r.m.s.)

250Vdc

450Vdc

475

225

105

474

224

104

106

475

225

105

474

224

104

100

Frequency（kHz)

1000

100

Frequency（kHz)

1000
