DS09-FFC-M2T-02-SG15-GY datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DS09-FFC-M2T-02-SG15-GY

Preview

DS09-FFC-M2T-02-SG15-GY: DescriptionD Type Connector, 9 Contact(s), Female, IDC Terminal, #4-40, Plug; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

DS09-FFC-M2T-02-SG15-GY Overview

D Type Connector, 9 Contact(s), Female, IDC Terminal, #4-40, Plug

DS09-FFC-M2T-02-SG15-GY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304513275
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
body length	1.213 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
Shell surface	TIN
Shell material	METAL
Termination type	IDC
Total number of contacts	9

DS09-FFC-M2T-02-SG15-GY Preview

1

2

3

4

5

6

7

8

9

A

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Plating:

Contact Resistance:

Insulator Material:

B

1 Amp

Phosphor Bronze

Selective Gold

15mΩ Max

PBT & G/F Reinforced

UL94V-0

Insulation Resistance: 1000MΩ min. (at 500V DC)

Shell Material:

SPCC, Tin or Nickel Plated

Withstanding:

AC 500V min. for one min

Operating Temp:

-25ºC to 85ºC

A

B

C

D

E

Series

DSXX

D-Sub Connector

XX=09,15,25,37

Type

XFC

MFC=Male IDC

FFC=Female IDC

Shell

M2X

M2T=Metal Tin Plate

M2N=Metal Nickel Plate

Pos.

9

15

25

37

Pos.

9

15

25

37

Face Options

Contact Finish

XX

01=.120 Thru Hole Blank=Selective Gold

02=4-40 Threaded SG15=15u” Sel. Gold

Insert

SG30=30u” Sel. Gold

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Dimensions (mm)

A

B

C

D

24.99

30.80

11.08

8.31

33.32

39.10

19.39

16.62

47.04

53.09

33.24

30.47

63.50

69.40

49.86

47.09

E

F

H

16.10

18.60

16.33

24.00

26.60

24.66

38.14

40.90

38.38

54.60

57.10

54.84

Color

Options

XX

Blank=Black Blank=None

BL=Blue

SSR=Stain Steel

GY=Gray

Strain Relief

PSR=Plastic Strain

Relief

C

D

E

F

Date

06/20/08

06/20/08 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

DSXX-FFC-M2X-01-XX-XX-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

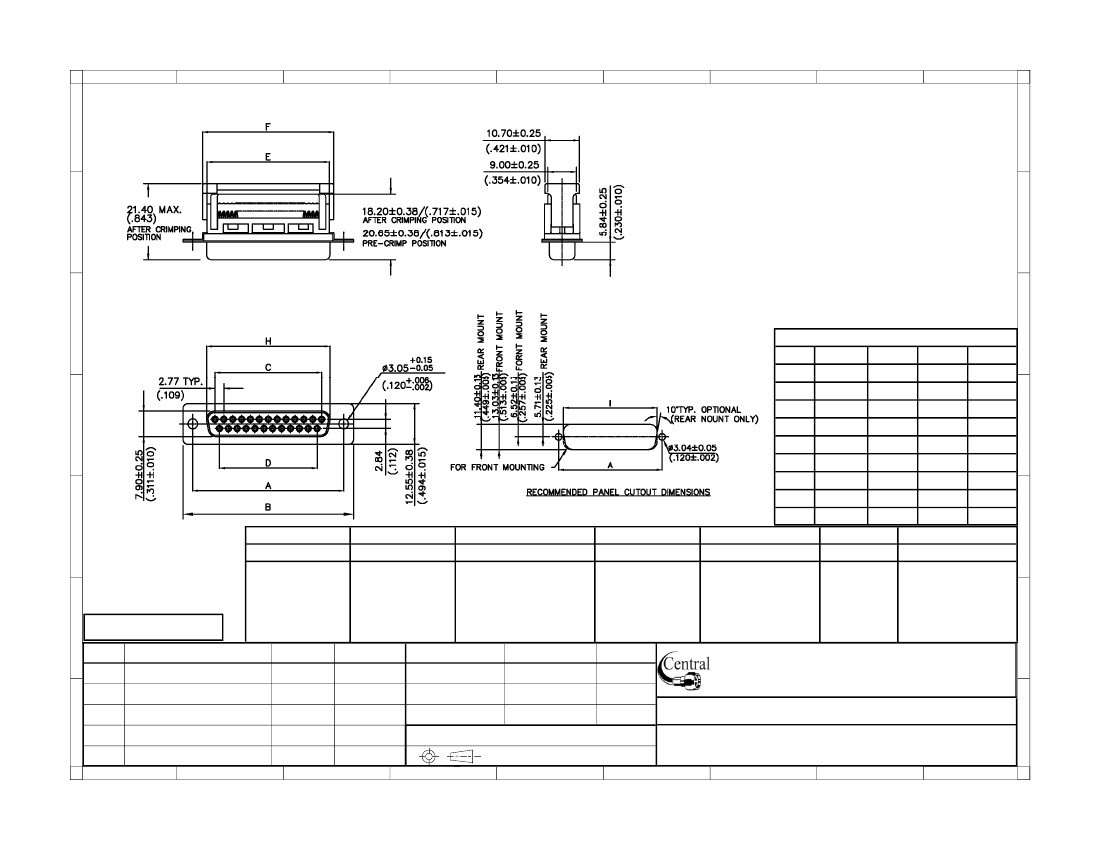

Description: IDC D-Sub Female Connector

G

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
