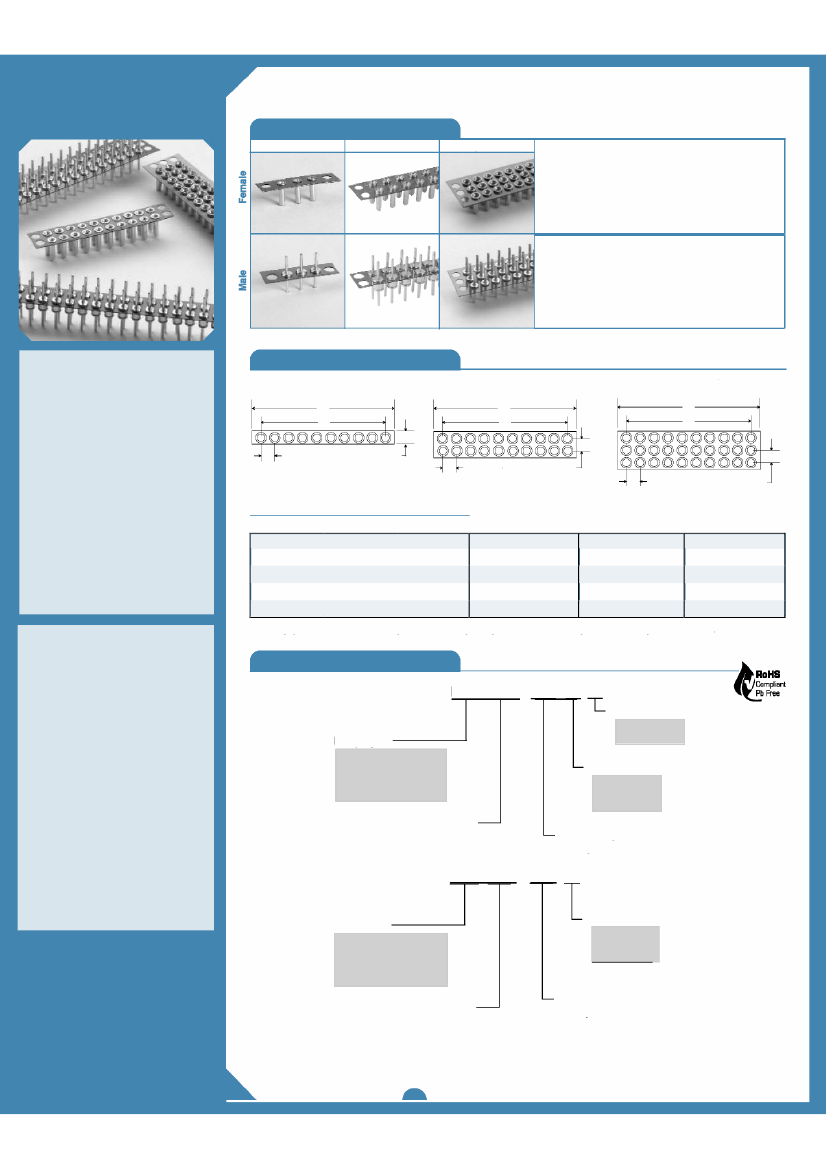

Board to Board
Connectors
.079/(2.00mm) Pitch Board to Board Connectors
Table of Models
Single Row
Dual Row
Triple Row
Peel-A-Way
®
Insulators
®
Description:
Peel-A-Way (KMS, KMD, KMT)
Material: Polyimide Film
Index: -269°C to 400°C (-452° F to 752° F)
KMS
KMD
KMT
Description:
Peel-A-Way (KMA, KMB, KMC)
Material: Polyimide Film
Index: -269°C to 400°C (-452° F to 752° F)
®
KMA
KMB
KMC
Features:
Supplied in high temperature Peel-
A-Wayremovable terminal carrier.
Male and female connectors are
designed in mating pairs.
.079/(2.00mm) row to row pitch.
High reliability screw-machined
terminals with closed-end
construction for 100% anti-wicking
of solder.
For surface mount board to board
options consult factory.
Reliable mechanical support.
Custom configurations available.
Dimensional Information
Single Row
X
Y
Dual Row
X
Y
Triple Row
X
Y
.079 Typ.
(2.00)
.1 00 Typ.
(2.54)
.079 Typ.
(2.00)
.079 Typ.
(2.00)
.079 Typ.
(2.00)
.079 Typ.
(2.00)
Total # of Pins per Connector
Single
Dual
Triple
010
020
030
040
050
020
040
060
080
100
030
060
090
120
150
# of Pins
Per Row
10
20
30
40
50
X
in. (mm)
.866/(22.00)
1.654/(42.00)
2.441/(62.00)
3.228/(82.00)
4.016/(102.00)
Y
in. (mm)
.709/(18.00)
1.496/(38.00)
2.283/(58.00)
3.071/(78.00)
3.858/(98.00)
Specifications:
Terminals:
Brass - Copper Alloy
(C36000) ASTM-B-1 6
Multiply number of rows by number of pins per row for total pin count in part number.
How To Order
Female
Body Type
RoHS Compliant Insulators:
KMT 090 - 85 M G
Contact Plating
RoHS Compliant:
Contacts:
Beryllium Copper
(C17200) ASTM-B-194
Plating:
G - Gold over Nickel
M - Matte Tin over Nickel
T - Tin/Lead over Nickel
Gold per ASTM-B-488
Matte Tin per ASTM545-97
Tin/Lead per MIL-P-81728
Nickel per QQ-N-290
G - Gold
T - Tin/Lead
Terminal Plating
RoHS Compliant:
KMS - Single Row
KMD - Dual Row
KMT - Triple Row
Total Number of Pins ___
(no. of pins per row x no. of rows)
Std. pins per row = 10, 20, 30, 40 & 50
G - Gold
M - Matte Tin
T - Tin/Lead
Terminal Type
See options
Male
KMC 090 - 165 M
Terminal Plating
RoHS Compliant:
Body Type
RoHS Compliant Insulators:
KMA - Single Row
KMB - Dual Row
KMC - Triple Row
Total Number of Pins ___
(no. of pins per row x no. of rows)
Std. pins per row = 10, 20, 30, 40 & 50
G - Gold
M - Matte Tin
T - Tin/Lead
Terminal Type
See options
Note: Terminals plated with Matte Tin are available only with Gold plated contacts.
Quick-Turn delivery is not available on products with Matte Tin plating.
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
.079/(2.00mm) Pitch Board to Board Connectors
®
Peel-A-Way Insulators
Type -85
Peel-A-Way
®
only
.058 Dia.
(1.47)
Standard Female Quick-Turn Terminals
Type -176
Peel-A-Way only
.058 Dia.
(1.47)
®
Additional standard and custom terminals available.
See Terminals section or consult factory.
Type -210
Peel-A-Way
®
only
.058 Dia.
(1.47)
Board to Board
Connectors
Type -95
Peel-A-Way
®
only
(Not Quick-Turn)
.058 Dia.
(1.47)
.031
(.79)
.155
(3.94)
.031
(.79)
.155
(3.94)
.015
(.38)
.155
(3.94)
.155
(3.94)
.038 Dia.
(.97)
.125
(3.18)
PCB
.038 Dia.
(.97)
.034 Dia.
(.86)
.034 Dia.
(.86)
PCB
.020 Dia.
(.51)
Standard Male Terminals
Type -165
Peel-A-Way
®
only
.018 Dia.
(.46)
.058 Dia.
(1.47)
.125
(3.18)
Type -339
Peel-A-Way only
.018 Dia.
(.46)
.058 Dia.
(1.47)
.070
(1.78)
.125
(3.18)
®
Type -340
Peel-A-Way only
.018 Dia.
(.46)
.058 Dia.
(1.47)
.085
(2.16)
.125
(3.18)
®
Type -525
Peel-A-Way only
.018 Dia.
(.46)
®
.129
(3.28)
.031
(.79)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.040 Dia.
(1.02)
.031
(.79)

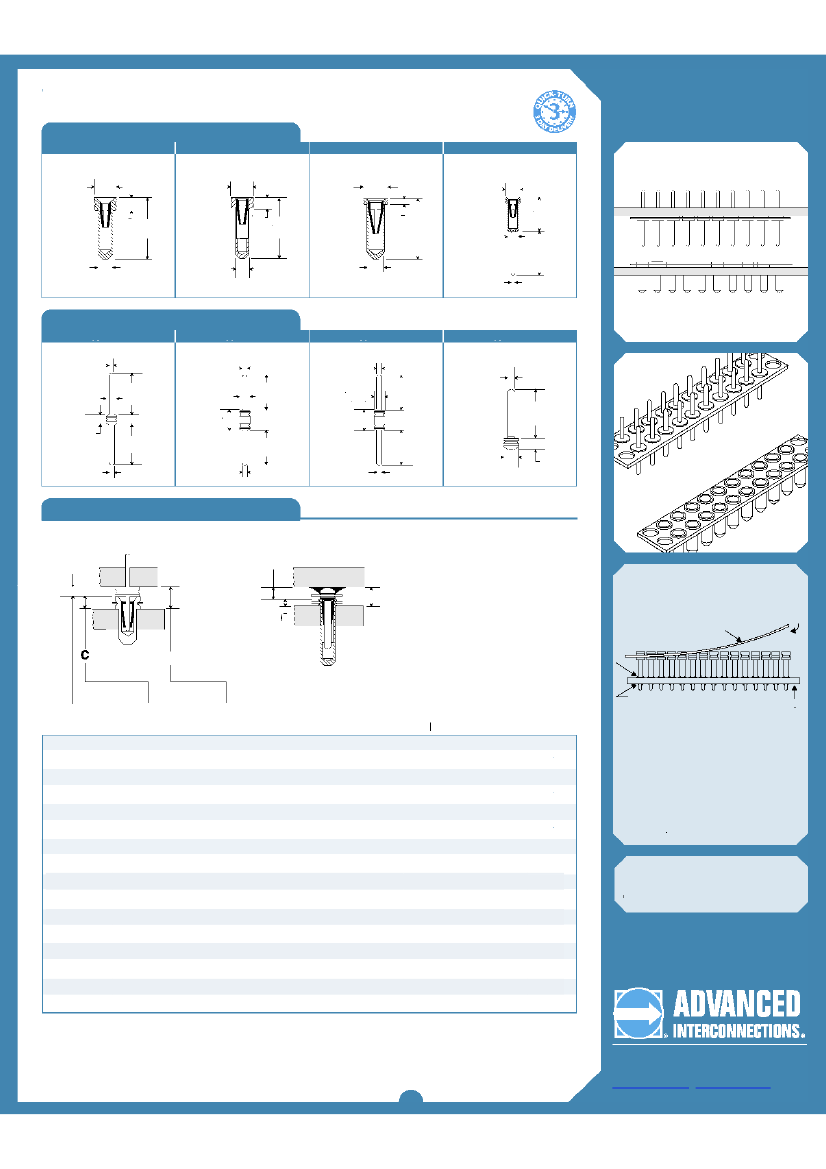

Dimensional Information
Figure 1
Thru-Hole
B
Figure 2
Surface Mount
B
A
Peel-A-Way
®
Removable
Carriers
Pe el awa y
after soldering
to PCB.
Polyimide Film
C
A
Order one each Male & Female
to get the required “A” dim.
Male Part #
KMB020-1 65G
B
in./(mm)
.031/(.79)
C
in./(mm)
.015/(.38)
A
in./(mm)
.046/(1.17)
Solder fillets visible both sides
for inspection and cleaning.
PCB
Female Part #
KMD020-21 0MG
.031/(.79)
.031/(.79)
.015/(.38)
.031/(.79)
.046/(1.17)
.062/(1.57)
KMB020-525G
KMB020-1 65G
KMD020-21 0MG
KM D020-85MG
.031/(.79)
.031/(.79)
.031/(.79)
.031/(.79)
.062/(1.57)
.062/(1.57)
KMB020-525G
KMB020-1 65G
KM D020-85MG
KMD020-1 76MG
Fig. #
1
2
1
2
1
2
1
1
1
1
1
1
2
1
1
1.Place socket on PC board.
2.Send PC board and socket through
soldering operation.
3.Peel away polyimide film carrier
for complete solder joint visibility
or leave in place for added
stability.
.031/(.79)
.070/(1.78)
.031/(.79)
.015/(.38)
.062/(1.57)
.085/(2.16)
KMB020-525G
KMB020-321 G
KMD020-1 76MG
KMD020-21 0MG
.085/(2.16)
.070/(1.78)
.015/(.38)
.031/(.79)
.100/(2.54)
.101/(2.57)
KMB020-322G
KMB020-321 G
KMD020-21 0MG
KM D020-85MG
Available Online:
RoHS Qualification Test Report
.070/(1.78)
.085/(2.16)
.031/(.79)
.031/(.79)
.101/(2.57)
.116/(2.95)
KMB020-321 G
KMB020-322G
KMD020-1 76MG
KM D020-85MG
.085/(2.16)
.031/(.79)
.031/(.79)
.155/(3.94)
.116/(2.95)
.186/(4.72)
KMB020-322G
KMB020-1 65G
KMD020-1 76MG
KM D020-95MG
.031/(.79)
.070/(1.78)
.155/(3.94)
.155/(3.94)
.186/(4.72)
.225/(5.72)
KMB020-525G
KMB020-321 G
KM D020-95MG
KM D020-95MG
.085/(2.16)
.155/(3.94)
.240/(6.10)
KMB020-322G
KM D020-95MG
20 position dual row part numbers shown. See How To Order section for ordering information.
If required Adimension is not shown, consult factory.
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401 .823.8723
info@advanced.com
|
www.advanced.com
Catalog 16 rev. Sept. 07
Page 1 of 9
For detailed product information, click on the part number to access the current product Web Page or click on the Data Sheet link. To ch
CAD Drawing is available on-line, use the CAD Drawing Lookup link in the bar at the bottom of the page.
Note: Every attempt has been made to ensure the accuracy of the RoHS status listed, however we recommend that you confirm the sta
checking the product CAD drawing or consulting our customer service department prior to ordering. In some cases, discontinued produc
still be purchased either through distribution (click Check Stock below) or direct from the factory (higher minimums may apply).
