TX5500
™
Premium Category 5e UTP
Copper Cable
specifications
Category 5e cable shall far exceed ANSI/TIA-568-C.2
and IEC 61156-5 Category 5e component standards.
The conductors shall be 24 AWG construction with
FEP/polyolefin (CMP) or polyolefin (CMR) insulation. The
copper conductors shall be twisted in pairs and covered in
a low smoke flame-retardant PVC (CMP) jacket or
a flame-retardant PVC (CMR) jacket.
S P E C I F I C AT I O N S H E E T
TX5500
™
Category 5e UTP
Copper Cabling System
TX5500
™
Category 5e UTP
Copper Cable
Plenum:
Riser:
PUP5504*-UY
PUR5504*-UY
Mini-Com
®
TX5e
™
UTP
Jack Module
technical information
Electrical
performance:
Certified channel performance in a 4-connector configuration up to 100
meters and exceeds ANSI/TIA-568-C.2 Category 5e and ISO 11801
Class D standards at swept frequencies up to 100 MHz
Certified component performance up to 100 meters and exceeds the
component requirements of ANSI/TIA-568-C.2 and IEC 61156-5
Category 5e component standards at swept frequencies up to 100 MHz
Jack module:
CJ5E88TG**
TX5e
™
PLUS UTP Patch Cords
Foot lengths:
UTPCH3***Y
Meter lengths:
UTPCH1M^Y
DP5e
™
Angled Patch Panels
24-port, 1 RU:
48-port, 2 RU:
12-port:
24-port, 1 RU:
48-port, 2 RU:
DPA245E88TGY
DPA485E88TGY
DP125E88TGY
DP245E88TGY
DP485E88TGY

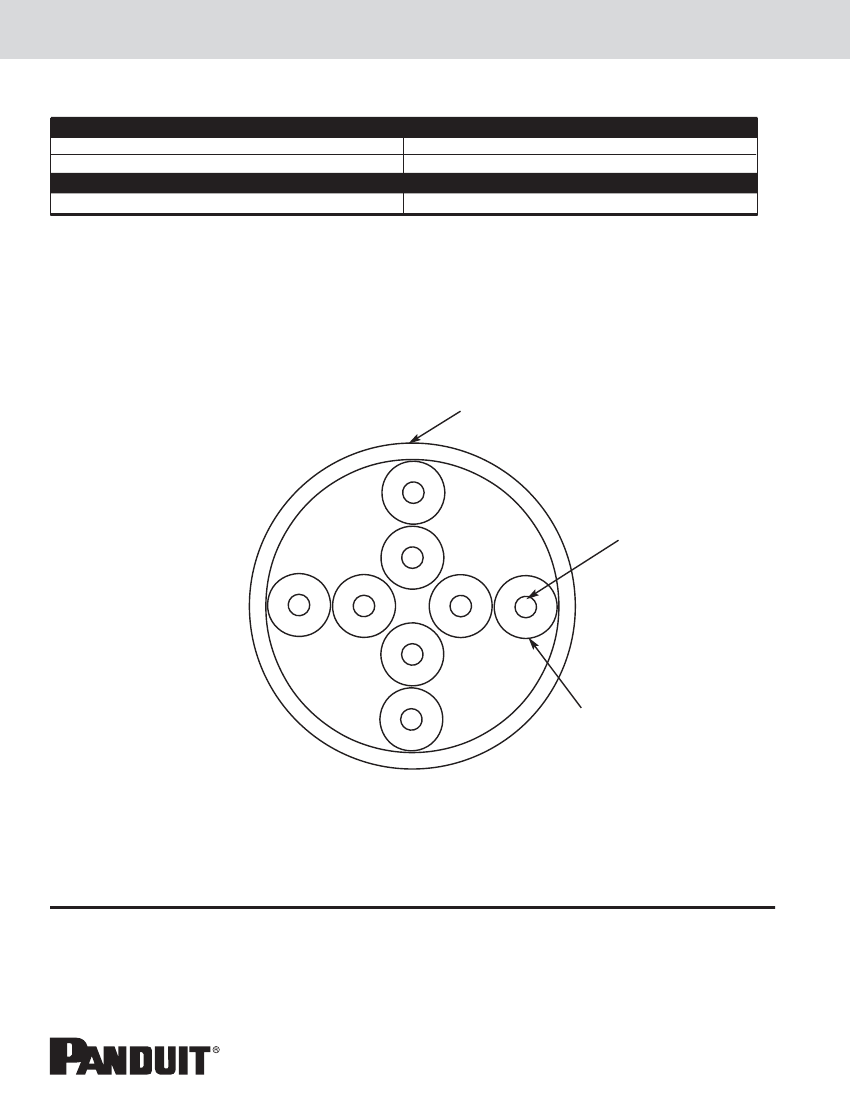

Conductors/
insulators:
Flame rating:
Plenum – 24 AWG bare copper wire covered by FEP/polyolefin insulation
Riser – 24 AWG bare copper wire covered by polyolefin insulation
Plenum – NFPA 262 and CSA FT-6
Riser – UL 1666 and CSA FT-4
DP5e
™
Flat Patch Panels
PoE compliance:
Meets IEEE 802.3af and IEEE 802.3at for PoE applications
Installation tension:
25 lbf. (110 N) maximum
Temperature
Plenum – 32°F to 122°F (0°C to 50°C) during installation
rating:
14°F to 140°F (-10°C to 60°C) during operation
Riser – 32°F to 122°F (0°C to 50°C) during installation
14°F to 167°F (-10°C to 75°C) during operation
Cable jacket:
Plenum – low smoke, flame-retardant PVC
Riser – flame-retardant PVC
Cable diameter:
Plenum – 0.207 in. (5.3mm) nominal
Riser – 0.225 in. (5.7mm) nominal
Cable weight:
Plenum – 24 lbs./1000 ft. (10.9 kg/305m)
Riser – 22 lbs./1000 ft. (9.9 kg/305m)
Packaging:
1000 ft. (305m), in an easy payout box
Tested to ISTA Procedure 1A
Pan-Punch
®
110 Category 5e
Punchdown System
See website (www.panduit.com) or catalog
for complete system information
Cable Prep Tools
Wire snipping tool:
CWST
Wire stripping tool:
CJAST
*To designate color, add suffix WH (White),
BU (Blue), IG (International Gray),
YL ( Yellow), BL (Black), GR (Green), OR
(Orange), RD (Red), or VL (Violet). For additional
cable colors, contact customer service.
**To designate color, add suffix IW (Off White),
EI (Electric Ivory), IG (International Gray),
WH (White), BL (Black), OR (Orange),
RD (Red), BU (Blue), GR (Green),
YL (Yellow), or VL (Violet).
***For lengths 1 to 20 feet (increments of one
foot) and 25, 30, 35, 40 feet, change the length
designation in part number to the desired
length. For standard cable colors other than
Off White, add suffix BL (Black), BU (Blue),
GR (Green), RD (Red), YL (Yellow),
OR (Orange), or VL (Violet) before Y at the
end of the part number. For example, the part
number for a blue, 15-foot patch cord
is UTPCH15BUY.
^For lengths 1 to 10 meters (increments of one
meter) and 0.5, 1.5, 2.5, 15, 20 meters, change
the length designation in the part number to
the desired length. For standard cable colors
other than Off White, add suffix BL (Black),
BU (Blue), RD (Red), YL (Yellow), GR (Green),
OR (Orange), or VL (Violet) after the M in the
part number. For example, the part number for
a blue, 5-meter patch cord is UTPCH5MBUY.
key features and benefits
Easy payout box
Tested beyond the standards
Descending length
cable markings
Ensures proper performance and provides
quick installation
Cable has been characterized to 450 MHz, 350 MHz
above the standard
Easy identification of remaining cable reduces
installation time and cable scrap
applications
TX5500
™
UTP Copper Cable is a component of the Panduit
®
TX5500
™
UTP Copper Cabling
System. This end-to-end system provides Gigabit Ethernet performance with usable bandwidth
beyond 100 MHz. With certified performance to the ANSI/TIA-568-C.2 Category 5e and
ISO 11801 Class D standards, this system will support the following applications:
• Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)
• 115 Mb/s ATM, 622 Mb/s ATM
• Token Ring 4/16
w w w. p a n d u i t . c o m
