510DX276M063BB5D datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 510DX276M063BB5D

510DX276M063BB5D: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 27uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size234KB，7 Pages; ManufacturerBarker Microfarads (BMI)

Download Datasheet Parametric View All

510DX276M063BB5D Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 27uF, Through Hole Mount, RADIAL LEADED

510DX276M063BB5D Parametric

Parameter Name	Attribute value
Objectid	1003133143
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	27 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	3438 mΩ
leakage current	0.01701 mA
Manufacturer's serial number	510DX
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	65.7 mA
surface mount	NO
Terminal shape	WIRE

Preview

Download Datasheet

View All

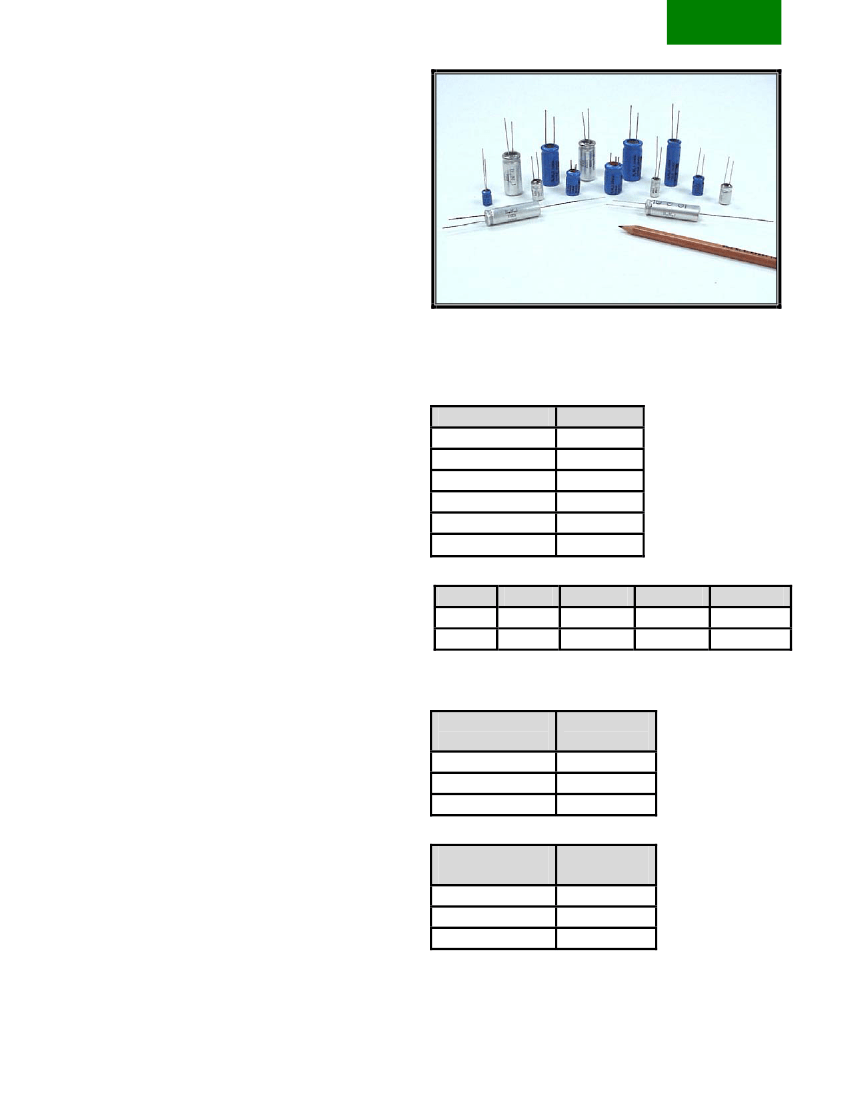

510DX

+125°C

Miniature Radial Lead,

Aluminum Capacitors

Features-

•

Suitable For Tantalum Replacement

Applications

Very Stable, Long Life

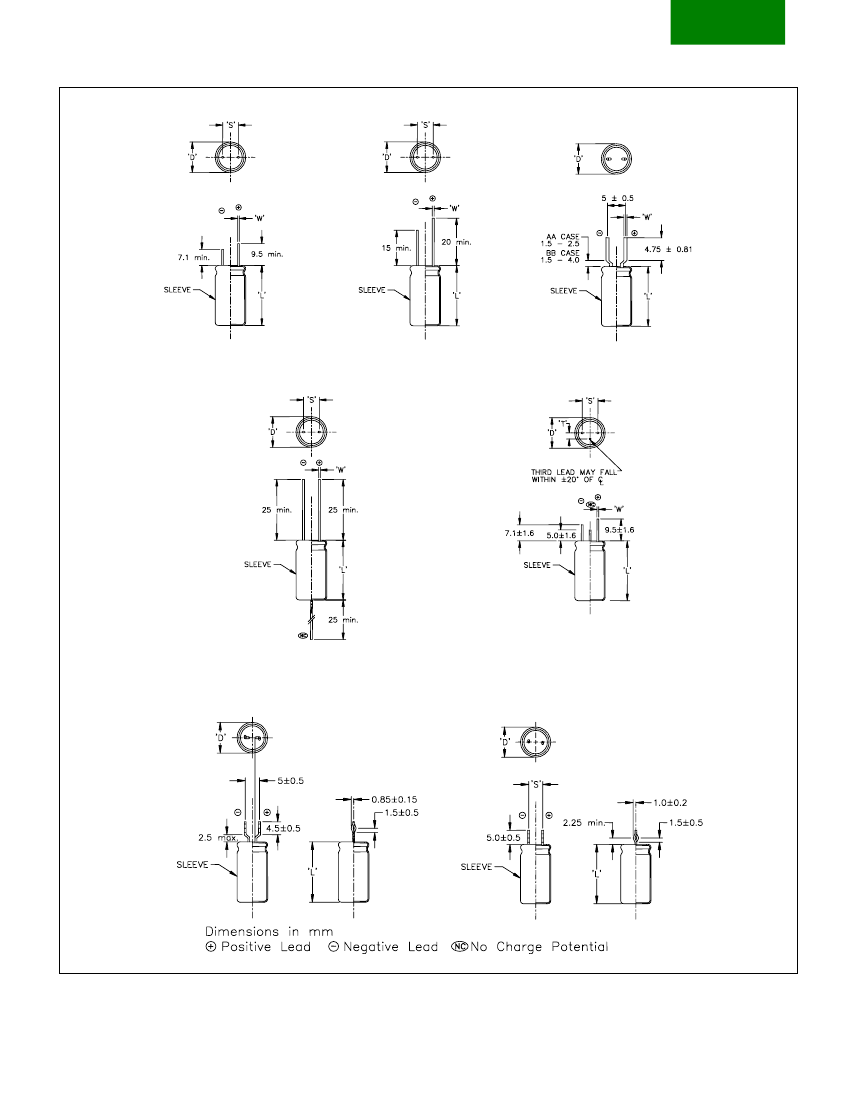

Case Sizes Through 18 x 36mm

Optional 3

Lead On Diameters

≥

12.5mm

General Specifications-

Ripple Current Multipliers:

Operating Temperature:

-40 to +125°C

Voltage Range:

6.3 – 63 VDC

Capacitance Range:

1µF to 6,800µF

Capacitance Tolerance:

±20% (Std.)

Case Size Range:

8.0 X 12.0mm – 18.0 X 36.0mm

Termination:

2 or 3 Radial Leads.

Life Validation Test: 2,000hrs @ +125°C

CAP

≤

15% (6.3 – 10VDC),

≤

10% (16 – 63)

From initial measurement.

ESR

≤

1.25X Initial specified limit.

DCL

≤

Initial specified limit.

Shelf Test: 500hrs @ +105°C

CAP

≤

12% From initial measurement.

ESR

≤

1.25X Initial specified limit.

DCL

≤

2X Initial specified limit.

DC Leakage Current: (After 2 min. charge)

0.01CV

Where:

I is in µA

C is in µF

V is in Volts

Temperature:

Ambient Temp.

+125°C

+105°C

+95°C

+85°C

+75°C

≤

+65°C

Frequency (Hz):

VDC

50-60

0 – 25

0.85

26 – 63

0.80

Multiplier

0.45

1.00

1.18

1.34

1.48

1.61

100-120

1.00

300-400

1.05

1.30

1k-100k

1.10

1.40

Low Temperature Performance:

Capacitance Ratio C

-40°C

+25°C

min. @ 120Hz

Rated Voltage Capacitance

(VDC)

Remaining

6.3 – 10

75%

16 – 25

80%

35 – 63

85%

ESR Ratio ESR

-40°C

/ESR

+25°C

max. @ 120Hz

Rated Voltage

(VDC)

Multiplier

6.3 – 10

35X

16 – 25

30X

35 - 63

25X
