TX14-200R-LT-MH3 datasheet, PDF

TX14-200R-LT-MH3: DescriptionBoard Connector, 200 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size296KB，4 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

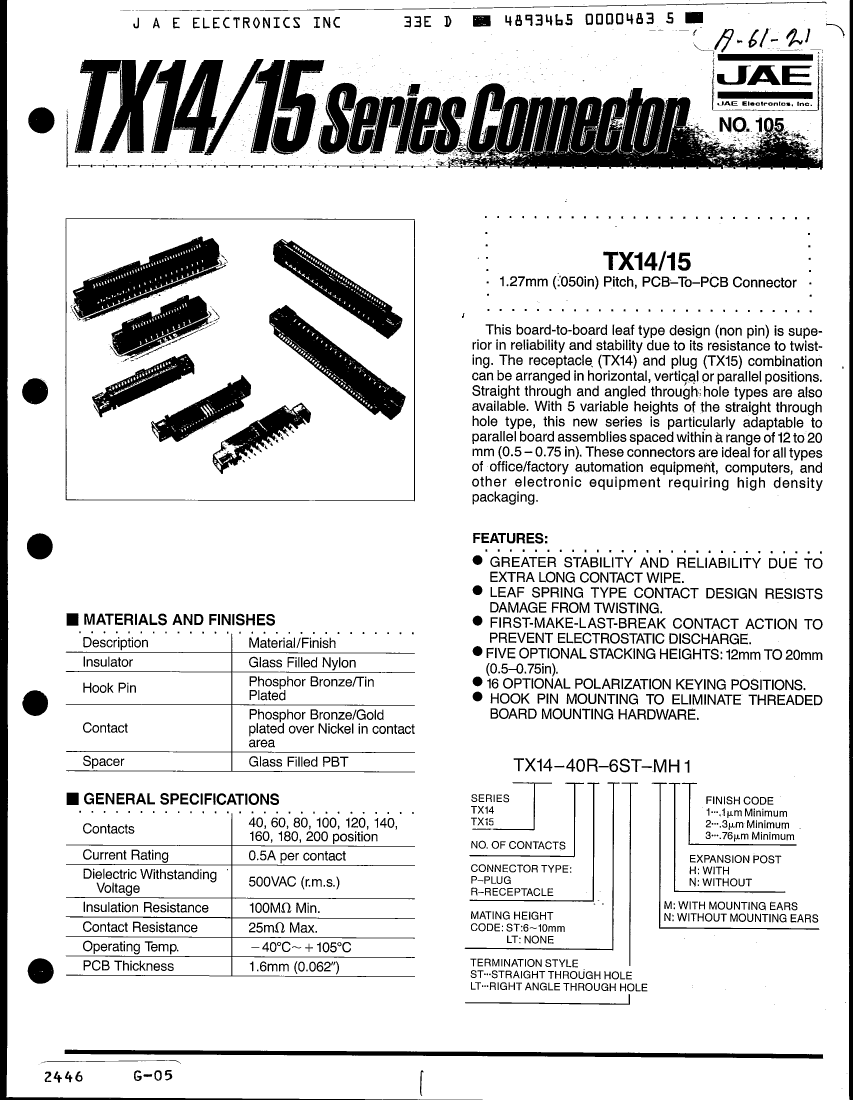

TX14-200R-LT-MH3 Overview

Board Connector, 200 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Objectid	1177559114
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	9.15
Other features	WITH MOUNTING EARS
Board mount options	SPLIT BOARD LOCK

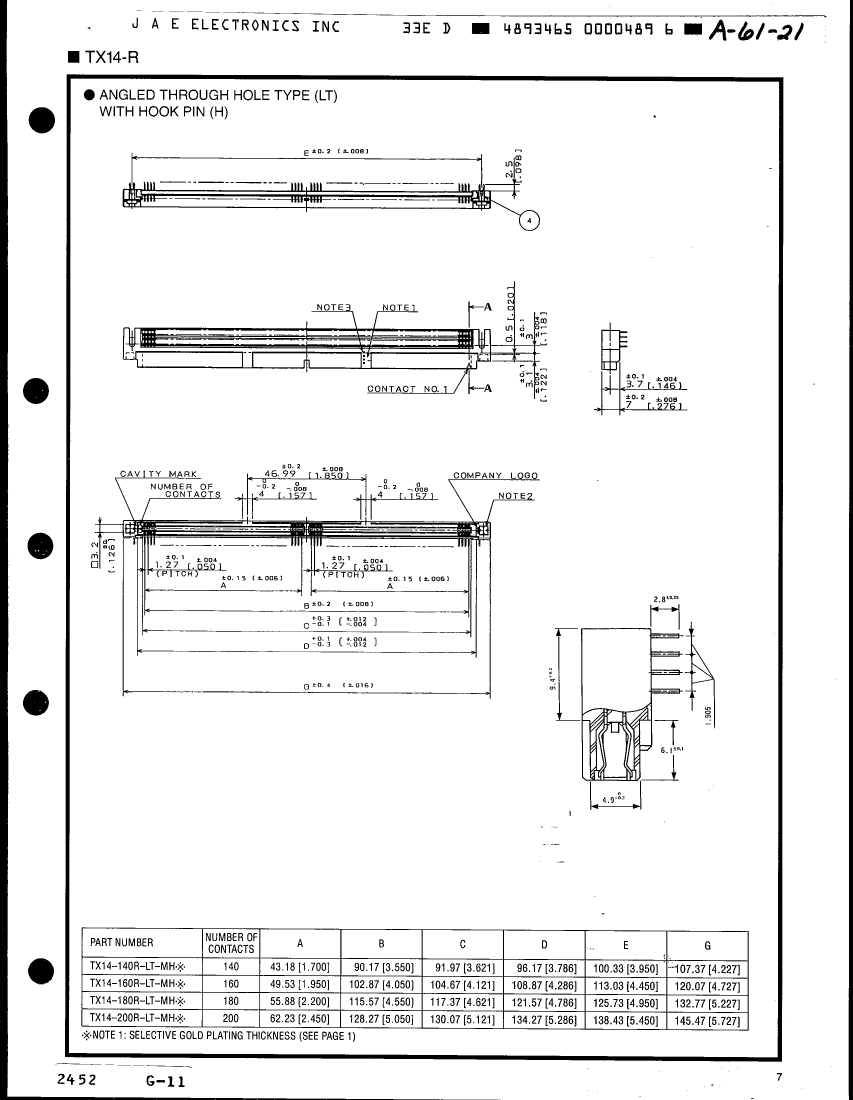

body width	0.275 inch
subject depth	0.61 inch
body length	5.727 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

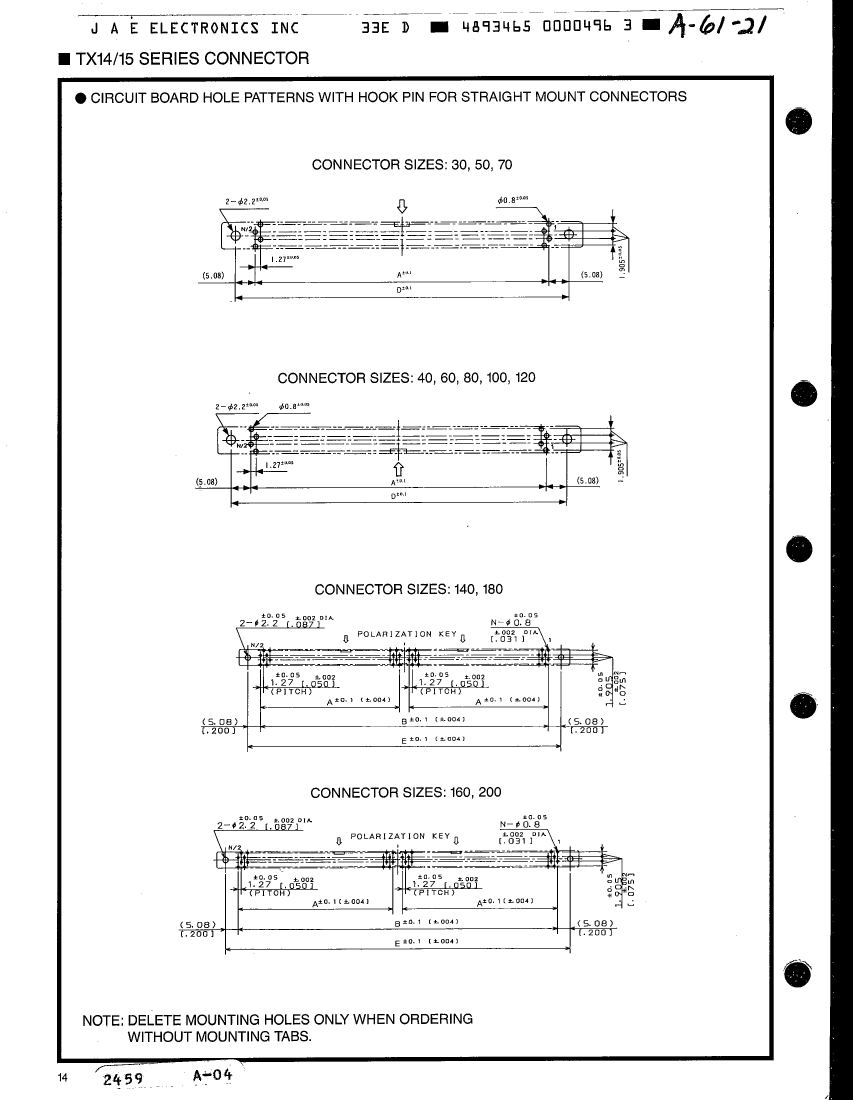

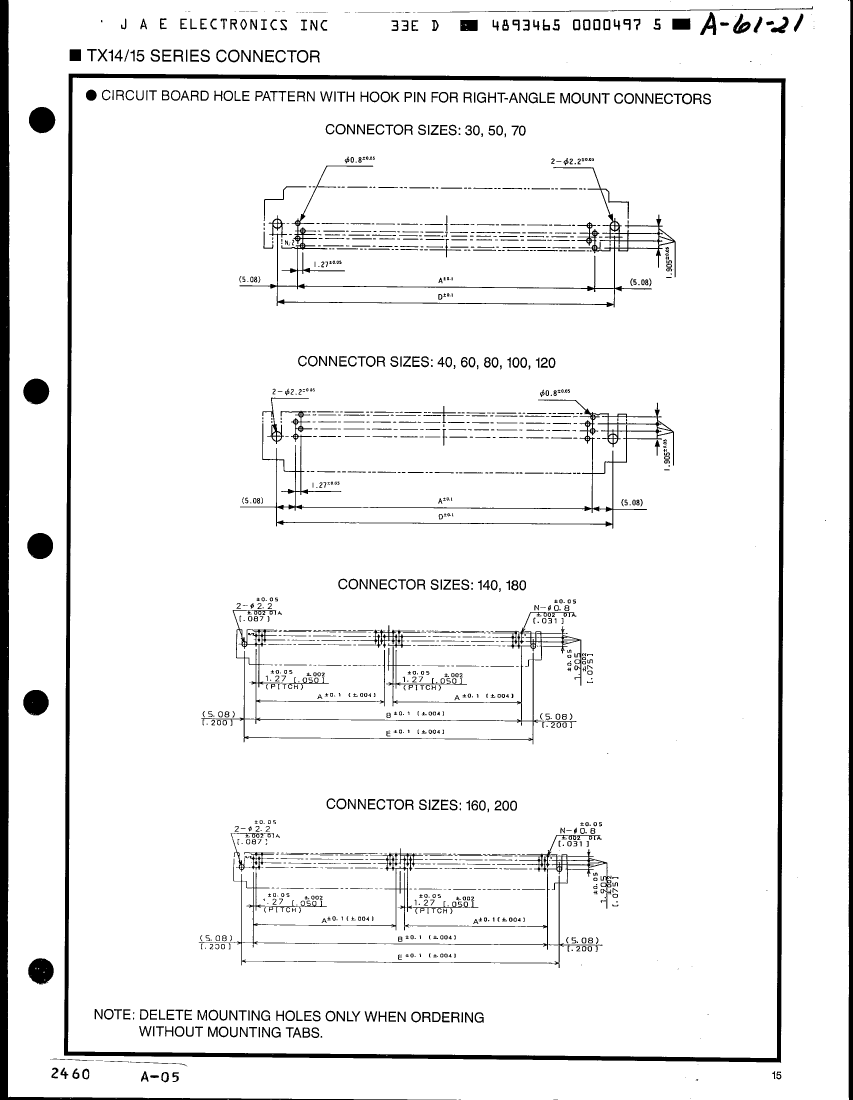

PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
polarization key	CENTER
Rated current (signal)	0.5 A
Terminal length	0.11 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	200
