MDM-25PBRP-TL61A172 datasheet, PDF

MDM-25PBRP-TL61A172: DescriptionD Type Connector, 25 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, #2-56, Receptacle; CategoryThe connector The connector; File Size2MB，7 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

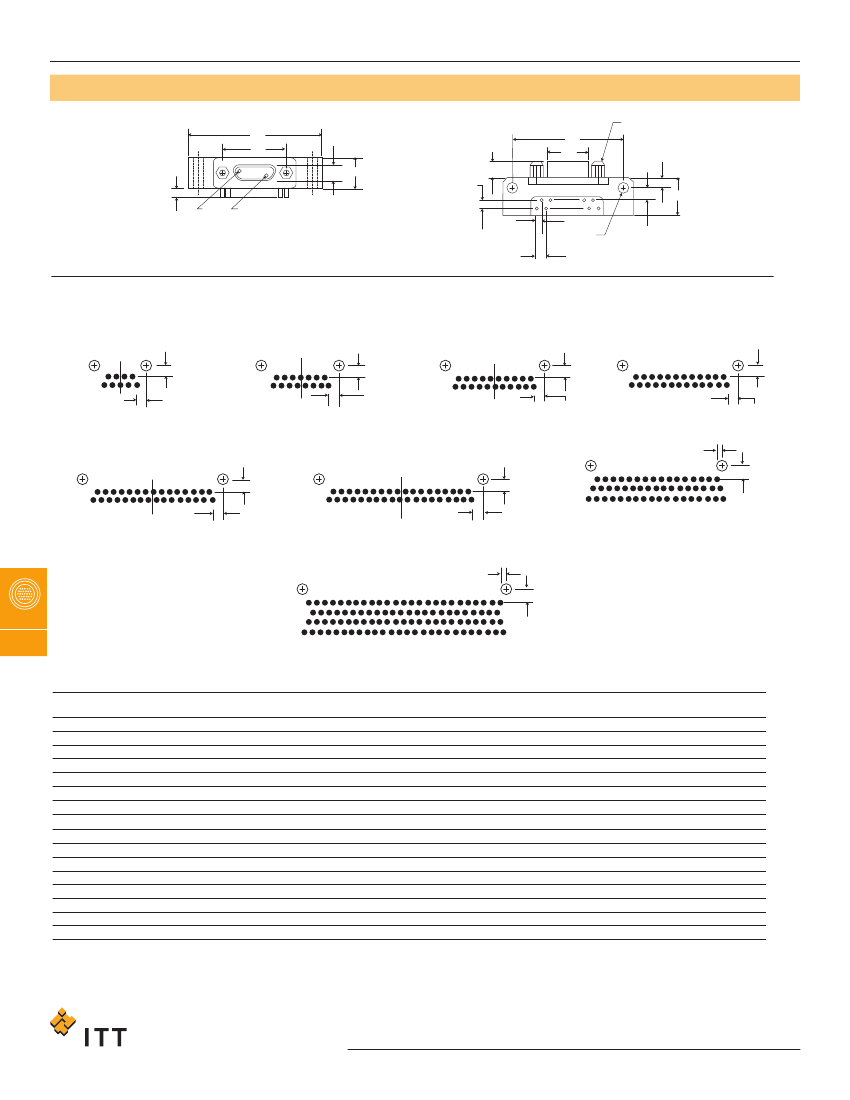

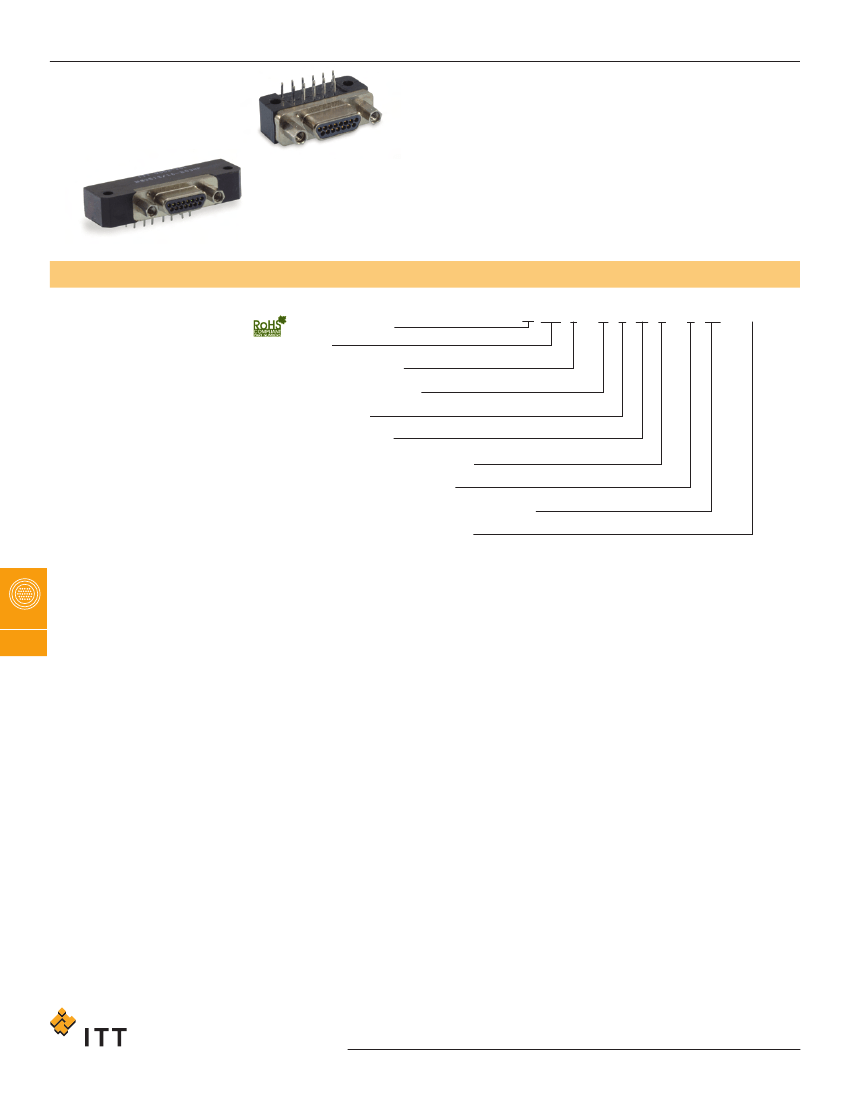

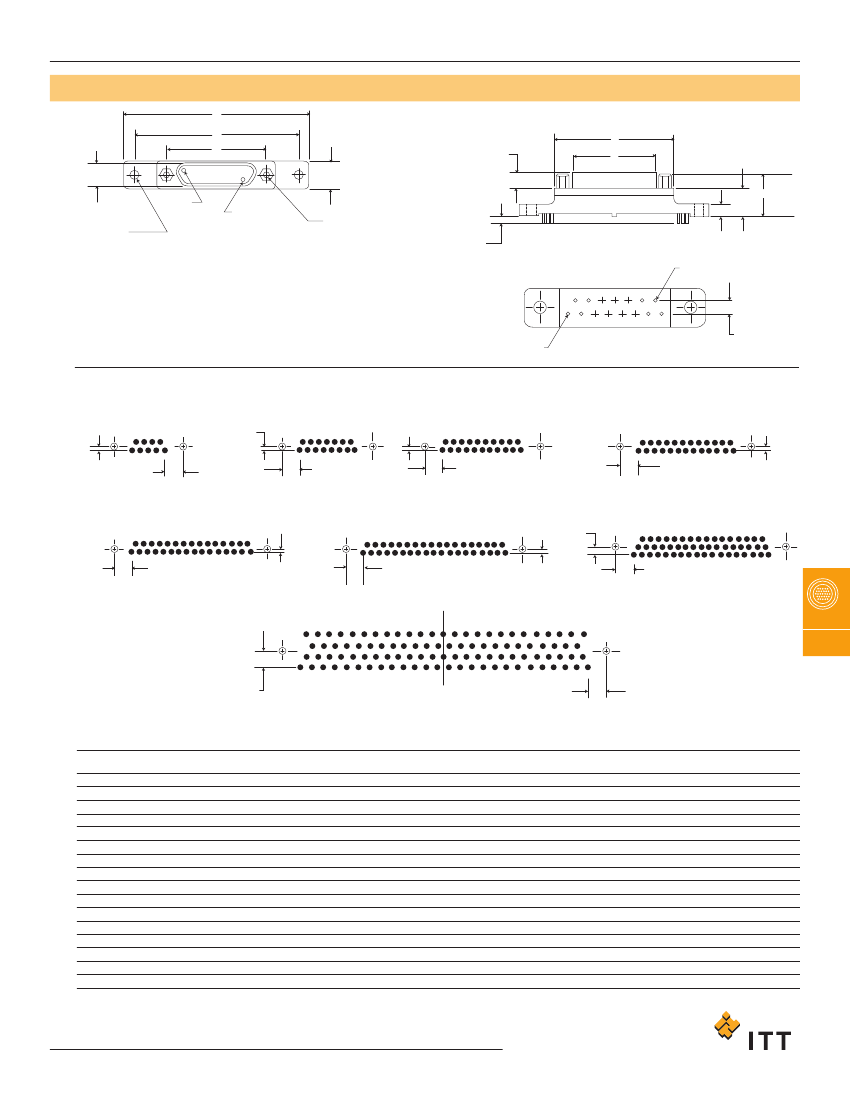

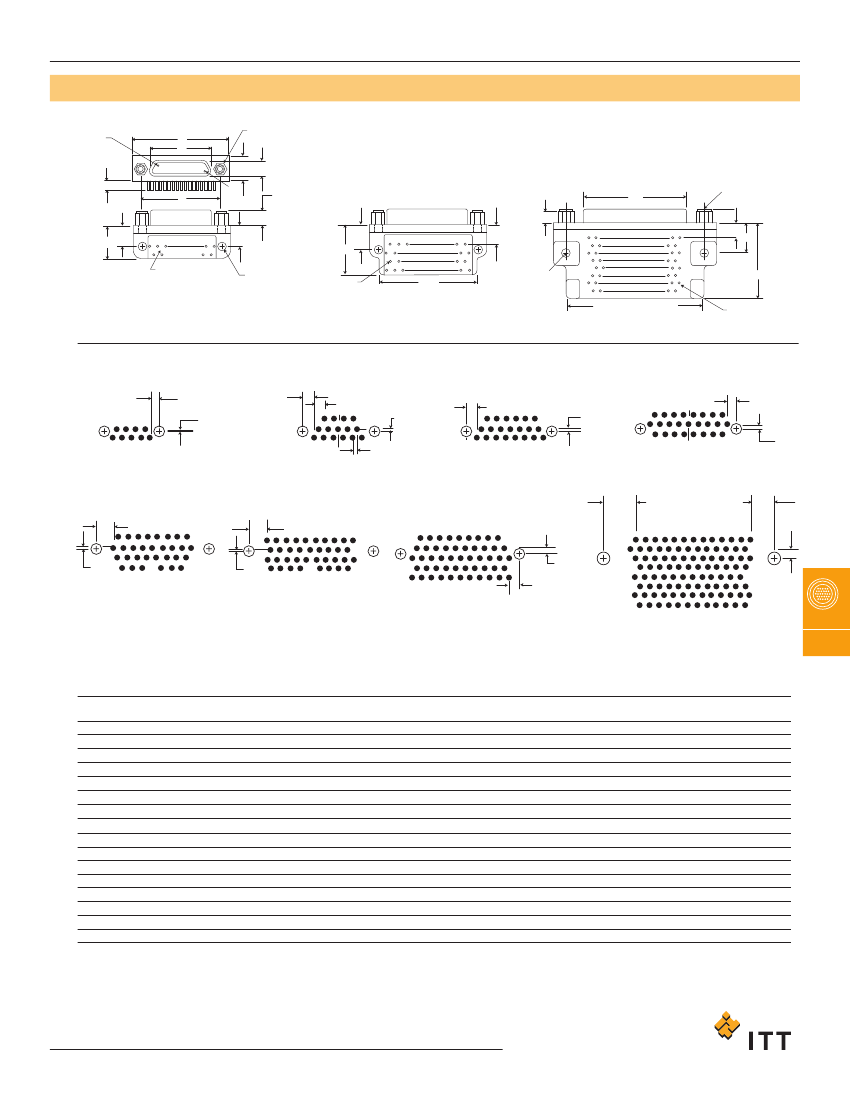

MDM-25PBRP-TL61A172 Overview

D Type Connector, 25 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, #2-56, Receptacle

Parameter Name	Attribute value
Objectid	1152745247
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.58
body width	0.31 inch
subject depth	0.455 inch
body length	1.79 inch
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	900VAC V
empty shell	NO
Filter function	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
insulator material	DIALLYL PHTHALATE
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	JACKPOST
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Shell surface	GOLD
Shell material	ALUMINUM ALLOY
Housing size	D
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	.139 N
