Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-G2...

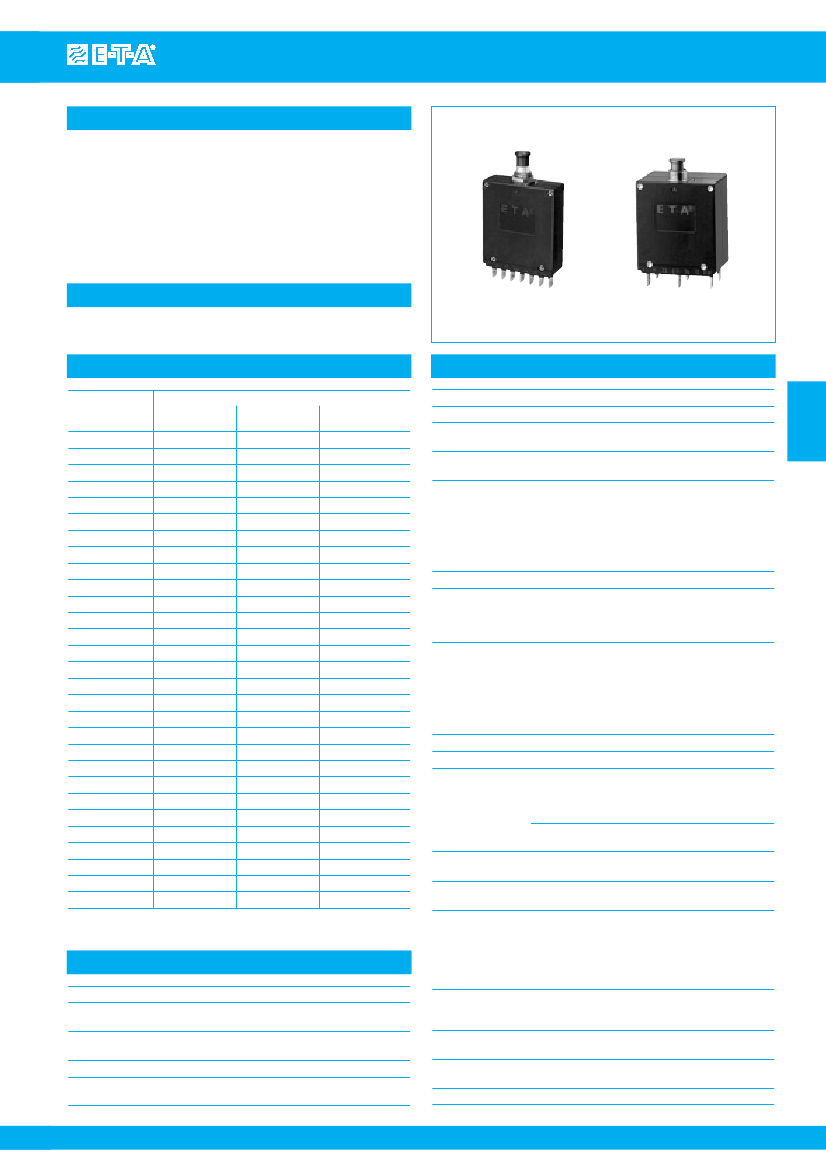

Description

Single, two and three pole magnetic circuit breakers with trip-free

mechanism and push/pull on/off manual actuation. A choice of fast

magnetic only or hydraulically delayed switching characteristics (S- type

MO or HM CBE to EN 60934) ensures suitability for a wide range of

applications. Convenient threadneck panel or plug-in mounting, and with

a white push button indicator band showing clearly the tripped/off

position. Available with auxiliary contacts (1 x N/O, 1 x N/C) for status

signalling and fitted with an unprotected shunt tap terminal as standard.

Approved to CBE standard EN 60934 (IEC 60934).

Typical application

8340-G2...

Control equipment, communications systems, power semiconductors.

1-pole

2-pole

Standard current ratings and typical internal resistance values

Current

rating (A)

0.02

0.05

0.08

0.1

0.15

0.2

0.3

0.5

0.75

1.25

1.5

1.75

2.5

* 50 % ON duty / 60

Internal resistance (Ω) per pole

curve

curves

-F4/F5

-E1/H1/R1

-E2/H2/R2

Technical data

For further details please see chapter: Technical Information

Voltage rating

3 AC 415 V; AC 240 V, 50/60 Hz; DC 80 V

Current ratings

0.02...50 A single pole (40+50 A DC only)

0.02...30 A multipole

Auxiliary circuit

1 A, AC 240 V/DC 65 V

0.5 A, DC 80 V

Typical life

3 AC 415 V, AC 240 V:

0.02...30 A 6,000 operations at 1 x I

, inductive

10,000 operations at 1 x I

, resistive

DC 80 V:

0.02...25 A 6,000 operations at 1 x I

, inductive

0.02...30 A 10,000 operations at 1 x I

, resistive

40 + 50 A 5,000 operations at 1 x I

, resistive

Ambient temperature

-40...+85 °C (-40...+185 °F)

Insulation co-ordination

rated impulse

pollution

(IEC 60664 and 60664A) withstand voltage

degree

2.5 kV

reinforced insulation in operating area

Dielectric strength

(IEC 60664 and 60664A) test voltage

operating area

AC 3,000 V

pole to pole (2 + 3-pole) AC 1,500 V

main to auxiliary circuit AC 1,500 V

aux. circuit 11-12/23-24 AC 1,000 V

switching to trip circuit (-X) AC 1,500 V

Insulation resistance

> 100 MΩ (DC 500 V)

Interrupting capacity I

1,200 A at AC; 2,000 A at DC

Interrupting capacity

(UL 1077)

AC:

1-pole

2-pole

3-pole

1-pole

2-pole

583

35.8

9.9

2.44

0.79

0.39

0.25

0.15

0.10

0.083

0.059

0.044

0.028

< 0.02

< 0.02*

2441

376

148

30.5

9.9

3.16

1.55

0.79

0.58

0.37

0.30

0.20

0.146

0.10

0.059

0.040

0.026

< 0.02

2449

365

144

22.4

9.7

3.1

1.51

0.77

0.56

0.36

0.29

0.24

0.138

0.099

0.057

0.038

0.026

< 0.02

0.02...20 A

25...30 A

AC 250 V/3,500A AC 250 V/3,500A

AC 250 V/3,500A AC 250 V/5,000A

3AC 250V/3,500A 3AC250V/5,000A

0.02...50 A

0.02...30 A

DC 80 V/3,500 A

DC 80 V/3500 A

DC:

Interrupting capacity

(UL 489A)

Degree of protection

(IEC 60529/DIN 40050)

Vibration

with button down:

2000 A

operating area IP40

terminal area IP00

min.

Approvals

Authority

VDE (EN 60934)

UL 1077, CSA

UL 489 A

CCC

Voltage ratings

Current ratings

3 AC 415 V; AC 240 V; DC 80 V

0.02...30 A

DC 80 V

0.02...50 A 1-pole

DC 80 V

0.02...50 A 1, 2-pole

3 AC 250 V; AC 250 V

0.02...30 A

1,2,3-pole

DC 80 V

0.05...30 A 1, 2-pole

3 AC 415 V; AC 240 V; DC 80 V

0.02...30 A

DC 80 V

0.02...50 A 1, 2-pole

10 g (57-2000 Hz), ±0.76 mm (10-57 Hz)

at 0.9 x I

other mounting planes: 10 g (57-2000 Hz) at I

to IEC 60068-2-6, test Fc

10 frequency cycles/axis

Shock

100 g (11 ms) at 1xI

, directions 1,2,3,4,5

100 g (11 ms) at 0.8 x I

, direction 6

to IEC 60068-2-27, test Ea

Corrosion

96 hours at 5 % salt mist,

to IEC 60068-2-11, test Ka

Humidity

240 hours at 95 % RH

to IEC 60068-2-3, test Ca

Mass

approx. 70 g per pole

06/07

(091106)

www.e-t-a.com

-7
