122-93-422-41-801000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 122-93-422-41-801000

122-93-422-41-801000: DescriptionIC Socket, DIP22, 22 Contact(s),; CategoryThe connector socket; File Size265KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

122-93-422-41-801000 Overview

IC Socket, DIP22, 22 Contact(s),

122-93-422-41-801000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW PROFILE
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP22
JESD-609 code	e0
Number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

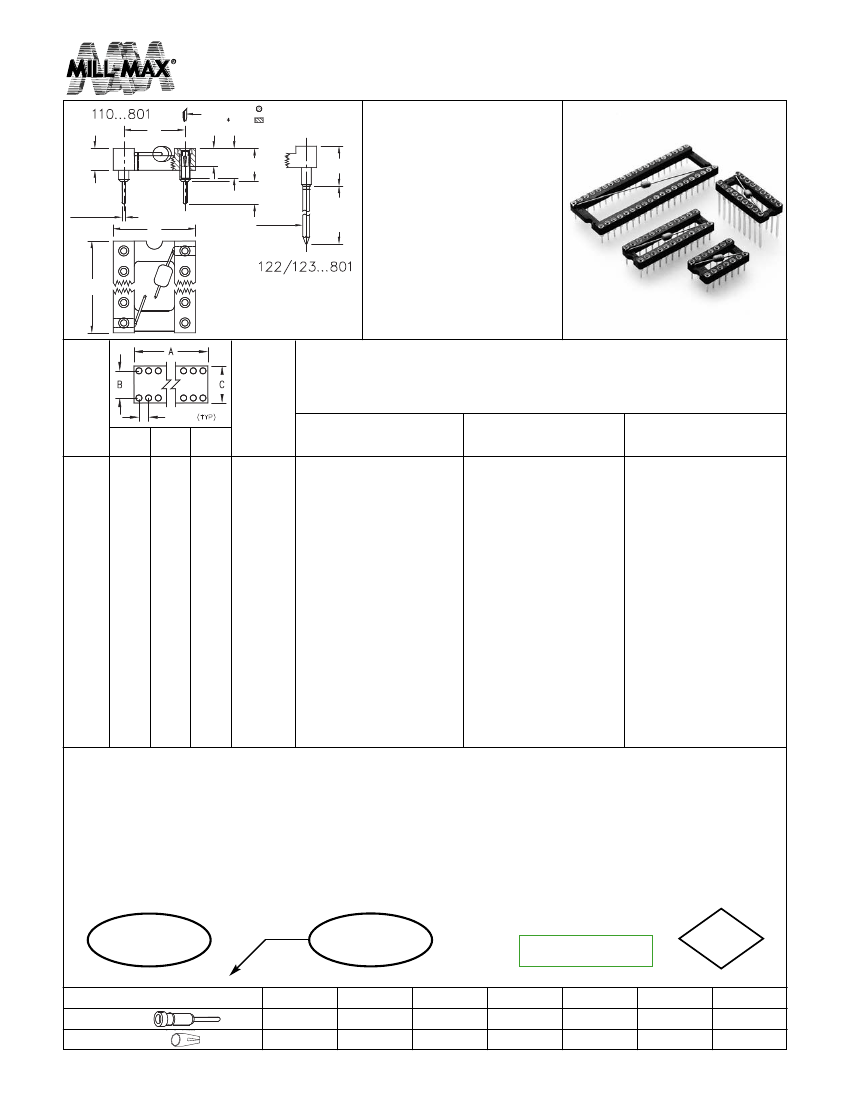

DUAL-IN-LINE SOCKETS

With Integral Decoupling Capacitor

Open Frame

0,38-.064

0,25 0,46

Series 110, 122, 123...801

2,79

2,41

3,71 4,19

3,18

4,9

•

Low profile DIP sockets with

integral decoupling capacitor:

F 20%-50V multi-layer

ceramic epoxy encapsulated.

Temp. range: -25

C to +85

•

Hi-Rel, 4-finger BeCu #30

contact is rated at 3 amps. See

page 218 for details.

•

Series 110, 122 and 123 use

MM #1001, #0088 or #0089

pins. See pages 136 and 166

for details.

•

Insulators are high temperature

thermoplastic.

0,51 DIA.

0,64

SQUARE

L=9,4

L=12,96

Total number

of pins

2,54

Quantity

per tube

Ordering Information

Solder Tail

2 Level Wrapost

L = 9,4mm

122-XX-314-41-801000

122-XX-316-41-801000

122-XX-318-41-801000

122-XX-320-41-801000

122-XX-322-41-801000

122-XX-324-41-801000

122-XX-328-41-801000

122-XX-422-41-801000

122-XX-624-41-801000

122-XX-628-41-801000

122-XX-632-41-801000

122-XX-640-41-801000

3 Level Wrapost

L = 12,96mm

123-XX-314-41-801000

123-XX-316-41-801000

123-XX-318-41-801000

123-XX-320-41-801000

123-XX-322-41-801000

123-XX-324-41-801000

123-XX-328-41-801000

123-XX-422-41-801000

123-XX-624-41-801000

123-XX-628-41-801000

123-XX-632-41-801000

123-XX-640-41-801000

17,7

20,3

22,8

25,3

27,8

30,4

35,5

7,62

10,1

110-XX-314-41-801000

110-XX-316-41-801000

110-XX-318-41-801000

110-XX-320-41-801000

110-XX-322-41-801000

110-XX-324-41-801000

110-XX-328-41-801000

110-XX-422-41-801000

110-XX-624-41-801000

110-XX-628-41-801000

110-XX-632-41-801000

110-XX-640-41-801000

27,8 10,16 12,7

30,4

35,5

40,6

50,8

15,24

17,7

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

2002/95/EC

RoHS

SPECIFY PLATING CODE XX=



0,25μm Au

0,76μm Au

5,08μm Sn/Pb



5,08μm Sn

0,76μm Au



Sleeve (Pin)

Contact (Clip)

0,76μm Au

w w w. m i l l - m a x . c o m



516-922-6000
