JJCOE228MSMHBB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> JJCOE228MSMHBB

JJCOE228MSMHBB: DescriptionElectric Double Layer Capacitor, 2.5V, 20% +Tol, 20% -Tol, 2200000000uF, Chassis Mount; CategoryPassive components capacitor; File Size45KB，1 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

JJCOE228MSMHBB Overview

Electric Double Layer Capacitor, 2.5V, 20% +Tol, 20% -Tol, 2200000000uF, Chassis Mount

JJCOE228MSMHBB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2115706546
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2200000000 µF
Capacitor type	ELECTRIC DOUBLE LAYER CAPACITOR
Manufacturer's serial number	JC
Installation features	CHASSIS MOUNT
negative tolerance	20%
Maximum operating temperature	60 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
positive tolerance	20%
Rated (DC) voltage (URdc)	2.5 V
surface mount	NO
Terminal shape	BINDING POST

JJCOE228MSMHBB Preview

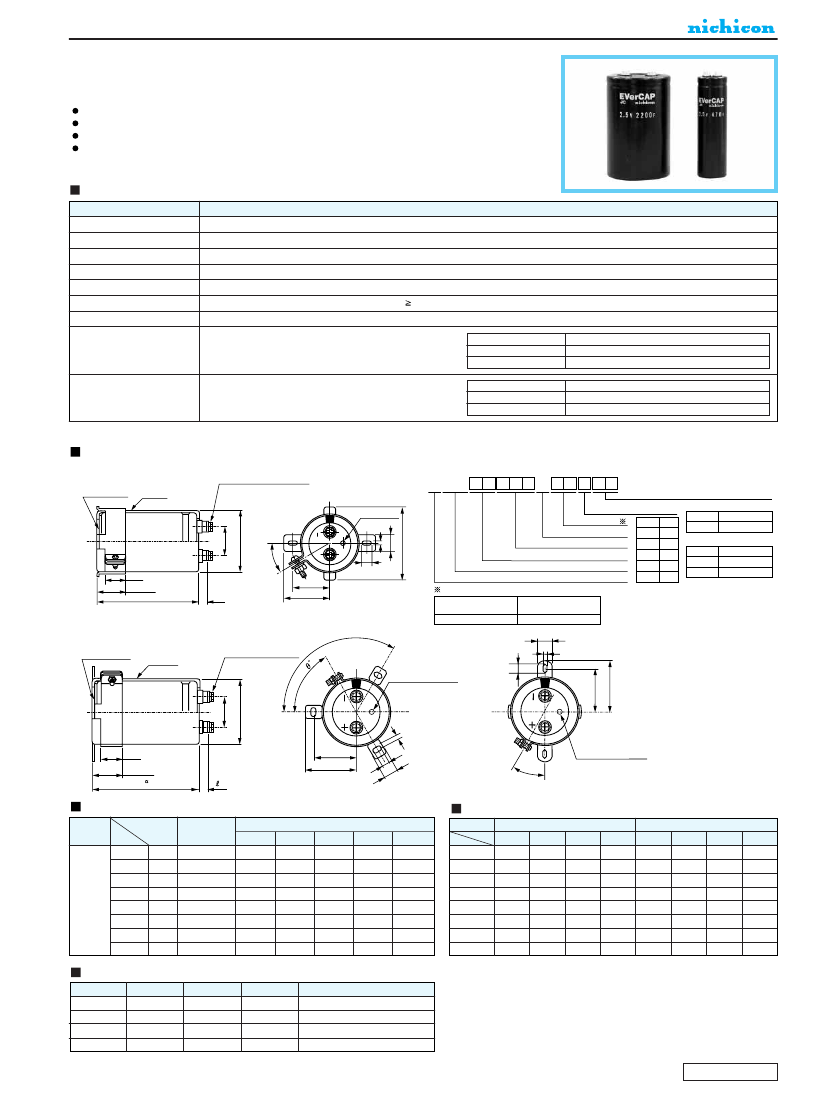

ELECTRIC DOUBLE LAYER CAPACITORS "EVerCAP"

Item

Screw Terminal Type

series

Excellent in voltage holding property

Suitable for quick charge and discharge

Wild temperature range

(

–

°C ~ +

°C)

Available for adapted to the RoHS directive (2002/95/EC).

Specifications

Performance Characteristics

– 25 ~ + 60°C

2.5V

470 ~ 3300F See Note

± 20% (20°C)

0.5C (mA) [ C : Rated Capacitance(F) ]

(After

30 minutes' application of rated voltage, 2.5V)

70%

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Stability at Temperature

Capacitance (

– 25°C) /

Capacitance (

20°C)

100

E.S.R.

Endurance

Refer to the list below.

After an application of DC voltage for 1000 hours at 60°C ,

capacitors meet the characteristic requirements

listed

at right.

Capacitance change

E.S.R.

Leakage current

Capacitance change

Within ±30% of initial value

300% or less of initial specified value

Initial specified value or less

Within ±15% of initial value

300% or less of initial specified value

Initial specified value or less

Shelf Life

After leaving capacitors under no load at 60°C for 1000hours,

they meet the characteristic requirements listed at right.

E.S.R.

Leakage current

Marking

Printed with white color letter on black sleeve.

Drawing

Type numbering system (Example : 2.5V 470F)

10 11

12 13 14

Mounting bracket

Bottom plate

Sleeve

Hexagenal headed bolt

(M5)

J J C 0 E 4 7 7 M S E C

Pressure relief vent

Case dia. code

Configuration

Capacitance tolerance (

±20%

)

Rated Capacitance (470F)

Rated voltage (2.5V)

Series name

Type

Configuration

Cr (III) Plating

(RoHS compliant)

Cr (

VI)

Plating

29±1

15±0.5

+3MAX.

φD

Code

63.5 G

76.2 H

+2MAX

12.7±1

(φ35)

Code less 2-leg brackets

No brackets

(φ51 ~

φ90)

Code less 3-leg brackets

2-leg brackets

No bracket

6±1

45±1

3.5

51~

φ90

Bottom plate

Hexagenal headed bolt

Sleeve

Pressure relief vent

+2MAX

Pressure relief vent

MAX.

Dimensions

Rated

Voltage

(V)

Cap.

( F)

Cap

code

E.S.R.

(at 1kHz 20

°C)

Dimensions of mounting bracket

12m

Ω

10m

Ω

Case size

35 (C)

51 (F)

63.5 (G)

76.2 (H)

90 (J)

120

160

63.5

120

63.5

160

76.2

120

76.2

160

(mm)

2-Legs

33.2

6.0

4.5

63.5

40.5

46.5

7.0

4.5

76.2

46.5

6.0

4.5

6.0

4.5

3-Legs

Symbol

2.5

(0E)

470

1000

1200

1500

1800

2200

2700

3300

477

108

128

158

188

228

278

338

32.5

38.5

7.5

5.0

63.5

38.1

8.0

5.0

76.2

44.5

49.2

7.0

5.0

50.8

58.5

8.0

5.0

Dimensions of terminal pitch(W) and length(

) and Normal dia. of bolt (mm)

63.5

76.2

22.0

28.6

31.8

Nominal of bolt

Note :

After charging a capacitor at the rated voltagr of 2.5V for 30-

minute, the capacitance is caluculated by the following

formula, measuring the time of duration,

∆T

(sec.) from 2V

down to 1V when constant current discharge at i (A) =0.01

nominal capacitance is carried out.

Capacitance (F)= i

× ∆T

CAT.8100U

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
