Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...

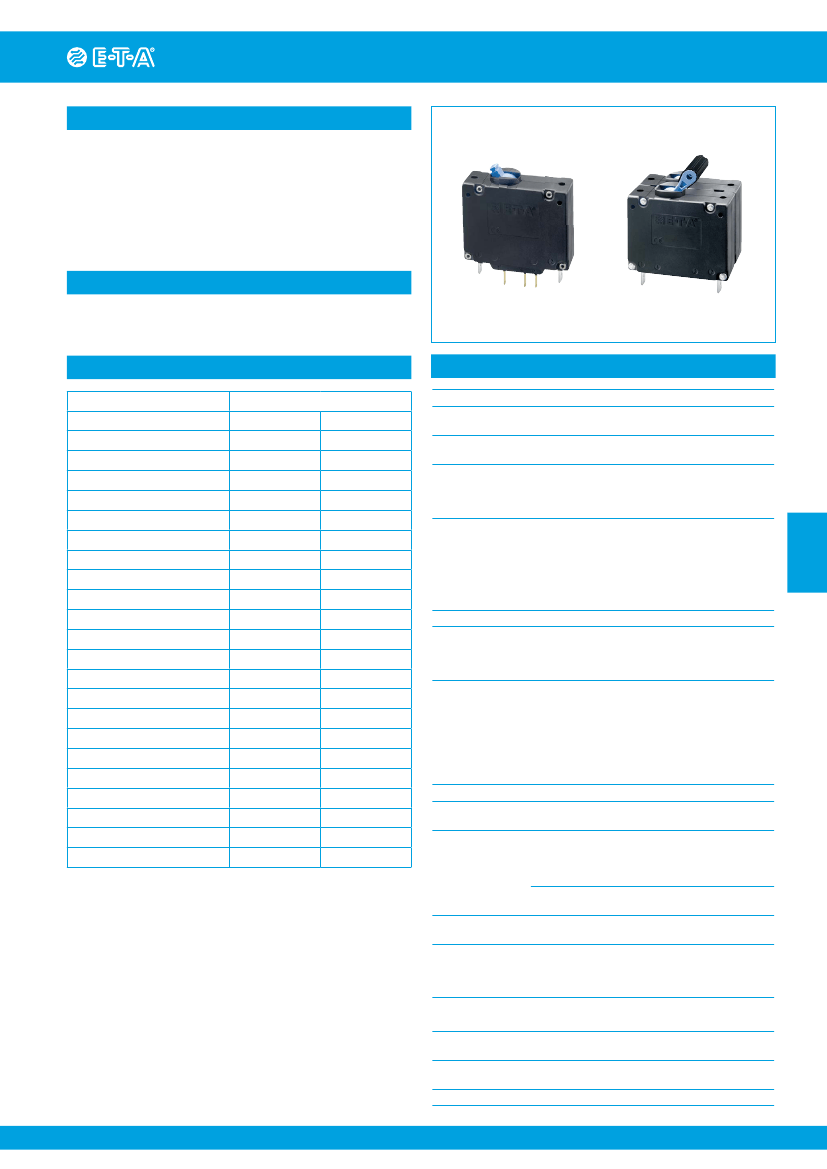

Description
Single and multipole magnetic circuit breakers with trip-free
mechanism and toggle actuation. A choice of fast magnetic only or
hydraulically delayed switching characteristics (S-type MO or HM
CBE to EN 60934) ensures suitability for a wide range of applications.
Industry standard dimensions and panel mounting. Options include
auxiliary changeover contacts. Low temperature sensitivity at rated
load.
Approved to CBE standard EN 60934 (IEC 60934).
Typical application
Control equipment, communications systems, transportation, power
supplies.
1-pole
8340-F...
2-pole
Standard current ratings and typical internal resistance values
Current rating (A)
K1, M1, T1,
0.02
0.05
0.1
0.25
0.5
0.75
1
2
2.5
3
5
6
8
10
12
15
16
20
25
30
40
50
2669
452
100
15.5
3.9
1.65
0.95
0.26
0.15
0.10
0.042
0.029
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
≤ 0.01
≤ 0.01
M2, T2
2457
376
94
14.7
3.2
1.56
0.90
0.20
0.15
0.10
0.040
0.028
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
-
-
Technical data
For further details please see chapter: Technical Information
Voltage rating
3 AC 415 V; AC 240 V, 50/60 Hz; DC 80 V
(higher DC ratings to special order)
Current ratings
0.02...50 A single pole (40+50 A DC only)
0.02...30 A multipole
Auxiliary circuit
6 A, AC 240 V;
3 A, DC 28 V
1 A, DC 65 V;
0.5 A, DC 80 V
Typical life
3 AC 415 V, AC 240 V:
0.02...30 A
6,000 operations at 1 x I
N
, inductive
10,000 operations at 1 x I
N
, resistive
DC 80 V: 0.02...25 A
6,000 operations at 1 x I
N
, inductive
0.02...30 A
10,000 operations at 1 x I
N
, resistive
40 + 50 A
6,000 operations at 1 x I
N
, resistive
Ambient temperature
-40...+85 °C (-40...+185 °F)
Insulation co-ordination
rated impulse
pollution
(IEC 60664 and 60664A) withstand voltage
degree
2.5 kV
2
reinforced insulation in operating area
Dielectric strength
(IEC 60664 and 60664A)
operating area
test voltage AC 3,000 V
Line to Load
test voltage AC 1,500 V
pole to pole
(2- and 3-pole)
test voltage AC 1,500 V
main to auxiliary circuit
test voltage AC 3,000 V
switching to trip circuit
test voltage AC 1,500 V
(version -X)
Insulation resistance
> 100 MΩ (DC 500 V)
Interrupting capacity
6 x IN at AC;
IEC 60934 - test sequence E 4 x IN at DC
Interrupting capacity
(UL 1077)
AC:
1-pole
2-pole
3-pole
1-pole
2-pole
4
I
N
0.02...20 A
25...30 A
AC 250 V/3,500A AC 250 V/3,500A
AC 250 V/3,500A AC 250 V/5,000A
3AC 250V/3,500A 3AC250V/5,000A
0.02...50 A
0.02...30 A
DC 80 V/3,500 A
DC 80 V/3500 A
DC:
Degree of protection
(IEC 60529/DIN 40050)
Vibration
with toggle down:
directions 1, 2, 3, 4, 5:
Shock
Corrosion
Humidity
Mass
2015/16
www.e-t-a.de
operating area IP40
terminal area IP00
10 g (57-2000Hz) ± 0.76 mm (10-57 Hz)
at 0.9 x IN
10 g (57-2000 Hz) at 1 x IN.
100 g (11 ms) at 1 x IN, directions 1,2,3,4,5
100 g (11 ms) at 0.8 x IN, direction 6.
96 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH
to IEC 60068-2-78, test Cab
approx. 65 g per pole
4
- 13
Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...
Ordering information
Type No.
8340
magnetic circuit breaker with toggle actuator
Mounting
F
flange mounting
Configuration
4
with mounting nuts M3
9
snap-in frame
Number of poles
1
single pole protected
2
two pole protected
3
three pole protected
Panel hardware
0
without panel hardware
Terminal design (main contact)
K4
screw terminals M5 recommended for I
N
> 20 A
P1
blade terminals A6.3-0.8 mm (QC.250) (≤ 35 A)
Characteristic curve
Characteristic curve K, short delay:
K1
DC trip time at 2 x I
N
: 0.16-1.2 s
Characteristic curve M, medium delay:
M1
DC trip time at 2 x I
N
: 0.6-7.5 s
M2
AC 60/50Hz trip time at 2 x I
N
: 2.2-20 s
Characteristic curve T, long delay:
T1
DC trip time at 2 x I
N
: 10-70 s
T2
AC 60/50Hz trip time at 2 x I
N
: 15-150 s
Actuator colour/design
A
black, long toggle
K
black, short toggle
Z
black, without toggle, with slot
other colours to special order
Marking on actuator
0
without marking
L
I-O; ON-OFF
N
I-O; ON-OFF (IN on housing top)
Auxiliary contacts
H0
without auxiliary contacts
H1
with auxiliary contacts, gold-flushed
H2
auxiliary contacts, gold-flushed
on one pole only (multipole)
Auxiliary contact function
4
1 change over contact
Auxiliary contact terminal design
2
blade terminal 2.8-0.5 mm
Current ratings
0.02...50 A
8340 - F
1 1
0 - P1 M1 - A L H1 4 2 - 30A
ordering example
Approvals
Authority
VDE
Standard
IEC / EN
60934
UL 1077
Rated voltage
AC 240/415 V
AC 240 V
DC 80 V
AC 250 V
DC 80 V
DC 80 V
DC 80 V
AC 250 V
DC 80 V
AC 240/415 V
AC 240 V
DC 80 V
AC 240 V
DC 50 V
AC 240 V
Current ratings
0.02 A…30 A
0.02 A…30 A
0.02 A…50 A
0.02 A…30 A
0.02 A…50 A
100 A (2 poles in
parallel)
0.05 A…30 A
(1 + 2 pole)
0.02 A…30 A
0.02 A…30 A
0.02 A…30 A
0.02 A…30 A
0.02 A…50 A
1 A…30 A (8340-F410)
1 A…30 A (8340-410)
1 A…30 A (8340-F420)
1 A…30 A (8340-F430)
UL
UL
CSA
CQC
UL 489A
C22.2 No
235
GB 17701
QPL
Sweden
Defence
Material
Admin.
MIL-C-55629
Internal connection diagrams
1-pole protected
magnetic
line 1
11(C)
unit 1
12(NC) 14(NO)
12(NC) 14(NO)
I>
2 load
I>
2
1
unit 2
12(NC) 14(NO)
I>
unit 3
12(NC) 14(NO)
I>
2 load
2 load
11(C)
multipole
line 1
11(C)
4
1-pole protected
hydraulic-magnetic
line 1
11(C)
Preferred types
Preferred types
8340-F410-P1K1-ALH0-
8340-F410-P1K1-ALH142-
8340-F410-P1M1-ALH0-
8340-F410-P1M1-ALH142-
8340-F410-K4K1-ALH0-
8340-F410-K4K1-ALH142-
8340-F410-K4M1-ALH0-
8340-F410-K4M1-ALH142-
Standard current ratings (A)
1
x
x
x
x
2
x
x
x
x
3
x
x
x
x
5
x
x
x
x
8
x
x
x
x
10
x
x
x
x
12
x
x
x
x
16
x
x
x
x
20
x
x
x
x
25
30
40
50
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
4
- 14
www.e-t-a.de
2015/16
Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...

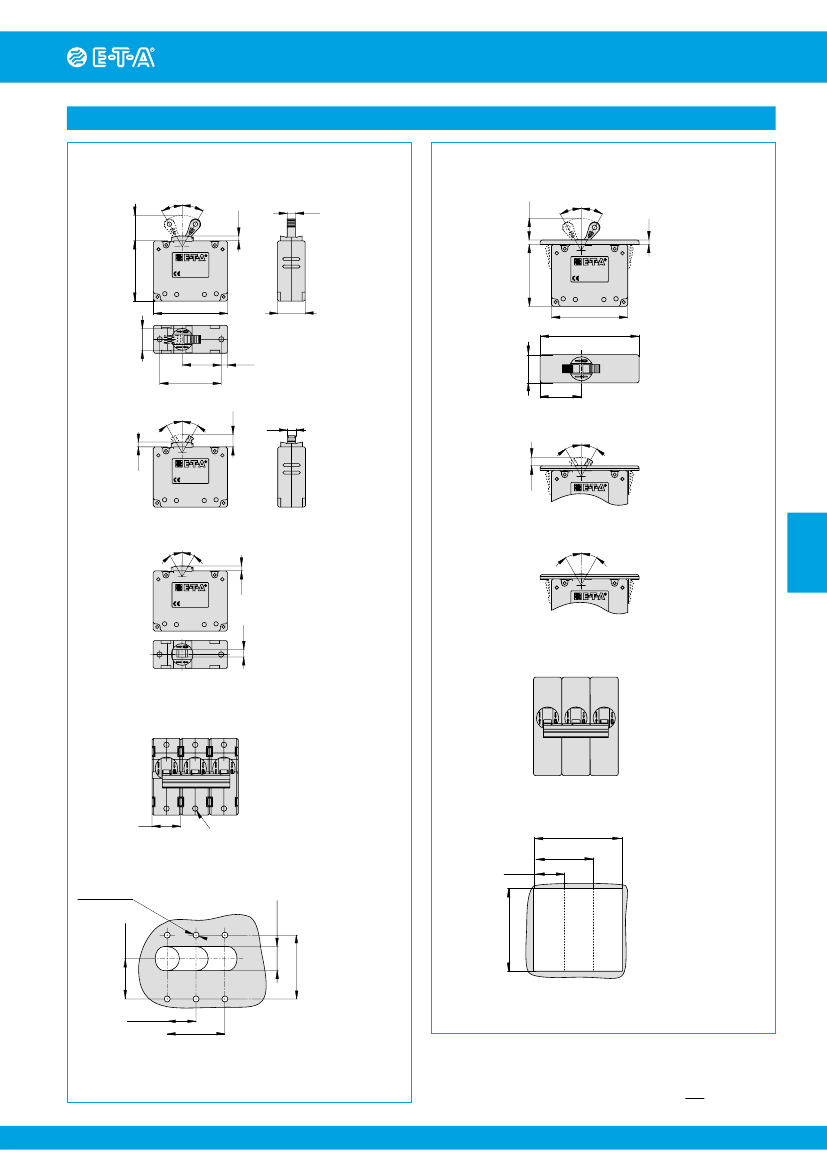

Dimensions
Flange mounting
Configuration: F4
Actuator: long toggle
30°
30°
Configuration: F9
Actuator: long toggle
3.3
.130
5.5
.217
14.4
.567
30°
ON
30°
17.5
.689
ON
OFF
OFF
41.2
1.62
1
4
3
2
41.2
1.62
1
4
3
2
50.8
2.00
19
.748
Ø15
.591
50.8
2.00
66
2.60
19
.748
26.7
1.05
42.2
1.66
4.3
.169
Actuator: short toggle
30°
ON
27.4
1.08
8.6
.339
5.5
.217
30°
OFF
Actuator: short toggle
30°
ON
5.6
.220
30°
OFF
3.3
.130
1
4
3
2
Actuator: without toggle, with slot
ON
30°
30°
Actuator: without toggle, with slot
30°
30°
ON
OFF
3
.118
OFF
4
1
5.3
.208
4
3
2
3.3
.130
number of poles: 1-3
Applicable for nominal dimensions without direct tolerance indication:
DIN ISO 286 ± IT13
Pole
1
2
3
number of poles: 1-3
pole:
1
2
3
Cut-out dimensions
max. panel thickness: 2 ± 0.1 mm or 4 ± 0.15 mm
(snap-fit)
19
.748
Cut-out dimensions
max. panel thickness: 3 mm
3.5
±0.1
(M3)
+0.1
4
-0.15
(6-32UNC)
Ø16
±0.12
.630
±.004
.138
±.004
(M3)
+.004
.157
-.006
(6-32UNC)
26.7
±0.1
1.05
±.004
mounting thread M3
or 6-32 UNC-2B
mounting depth
max. 4.5 mm/.177 in.
tightening torque max. 0.33 Nm
19.2
±0.2
.756
±.008
57.6
±0.2
2.27
±.008
38.4
±0.2
1.51
±.008
42.2
±0.1
1.66
±.004
Applicable for nominal dimensions without direct tolerance indication:
DIN ISO 286 ± IT13
19.05
±0.12
.750
±.005
38.1
±0.12
1.50
±.005
This is a metric design and millimeter dimensions take precedence ( mm )
inch
2015/16
www.e-t-a.de
55.4
±0.2
2.18
±.008
4
- 15
Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...

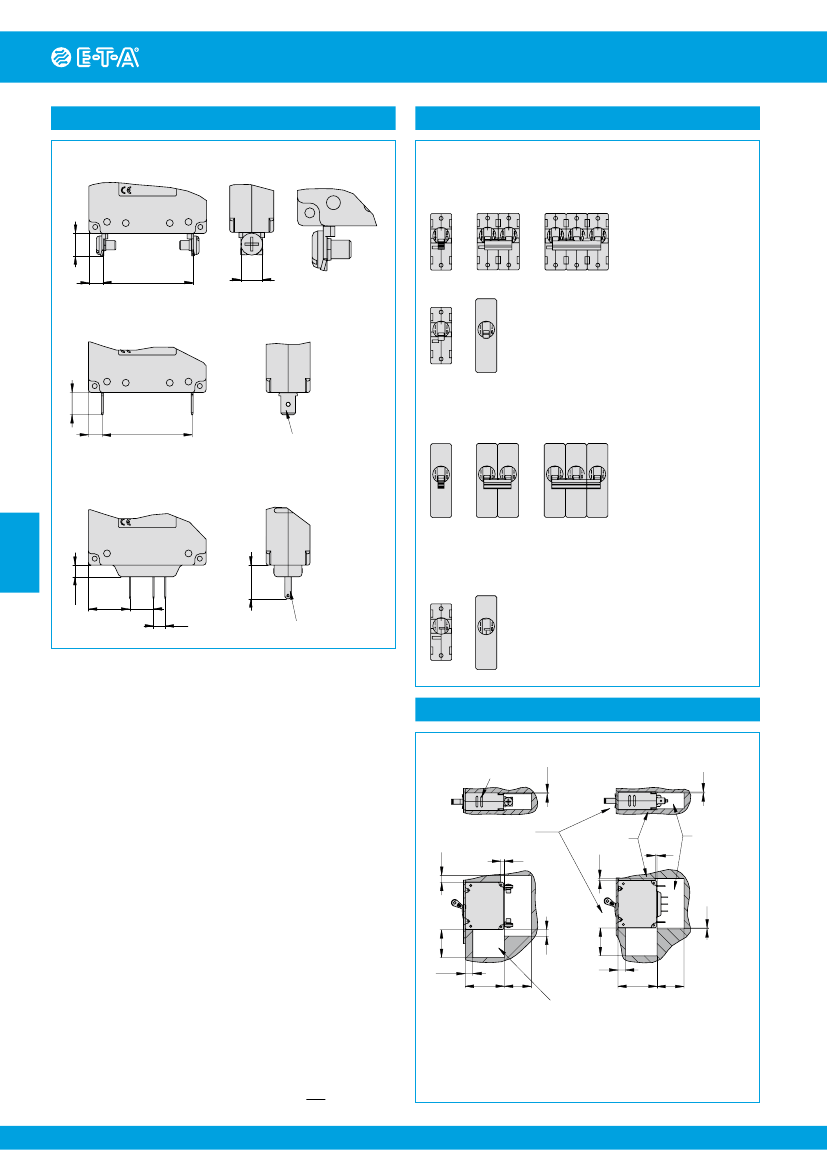

Terminal design / Dimensions
K4 screw terminals
tightening torque max. 1.2 Nm
K4 screw terminals M5
Actuator configuration
Actuator design
number of poles: 1 - 3
Configuration: F4
Actuator long
OFF
0
OFF
0
OFF
0
OFF
0
OFF
0
1
1
4
3
2
9.7
.382
OFF
0
16 A
16 A
16 A
6
.236
38.8
1.53
9.4
.370
Actuator short
P1 blade terminals
OFF
0
OFF
0
16 A
16 A
1
4
3
2
number of poles: 1 - 3
Configuration: F9
6
.236
38.8
1.53
blade terminals
DIN 46244-A6.3-0.8
9.6
.378
Actuator long
Auxiliary contacts
version H (standard, asymmetrical gold-flushed terminals,
silver contacts
OFF
0
OFF
0
OFF
0
OFF
0
OFF
0
OFF
0
16 A
16 A
16 A
16 A
16 A
16 A
4
5
.197
1
11
14
12
2
number of poles: 1
Configuration: F4 / F9
14.5
.571
Actuator: Z (black, without toggle, with slot)
17.9
.705
10.2
.401
5.1
.200
blade terminals
DIN 46244-A2.8-0.5
OFF
OFF
16 A
16 A
Installation drawing
Terminal design K
1
.039
blow out outlet CBE
Terminal design P
1
.039
mounting area
2
.079
2
.079
terminal
area
8
.315
1.18
30
42
1.65
29
1.14
1
.039
operating area
(reinforced insulation)
4
.157
.276
1.18
7
30
8
.315
42
1.65
29
1.14
Trip time values indicated for front mounting on a vertical
even surface
This is a metric design and millimeter dimensions take precedence ( mm )
inch
4
- 16
www.e-t-a.de
7
.276
blow out area
(minuaturable on request)
2015/16
Magnetic and Hydraulic-Magnetic Circuit Breaker 8340-F...
Typical time/current characteristics at 23 °C / +73.4 °F
Curve M1 (medium delay) for DC
10000
1000
Trip time in seconds
100
10
1
0.1
0.01
0.001
0
1
2
3
4
8
5
6
7
… times rated current
9
10
11
12
Trip time in seconds
Curve K1 (short delay) for DC
10000
1000
100
10
1
0.1
0.01
0.001
0
1
2
3
4
5
6
7
8
… times rated current
9
10
11
12
Curve M2 (medium delay) for AC 50/60 Hz
10000
1000
Trip time in seconds
Curve K2 (short delay) for AC 50/60 Hz
10000
1000
Trip time in seconds
100
10
1
0.1
0.01
0.001
100
10
1
0.1
0.01
0.001
0
1
2
3
4
6
8
5
7
… times rated current
9
10
11
12
0
1
2
3
4
6
8
5
7
… times rated current
9
10
11
12
4
N.B.
All curves will only be maintained if the escutcheon is mounted on a vertical surface.
Other characteristic curves to special order (e. g. with impulse delay for inrush peaks).
2015/16
www.e-t-a.de
4
- 17
京公网安备 11010802033920号
EEWORLD
