ADVANCED INFORMATION
GC/GF Series Quartz Crystal
Legacy 49SMLB Series
11.5 x 4.5 x 4.0mm & 11.5 x 4.5 x 3.0mm
Quartz Crystal Metal Can (SMD)
GC GF
11.5 x 4.5 x 4.0mm SMD
Frequency Range:
Product Features
•
Standard: 4.0mm Max height GC Series
•
Low profile: 3.0mm Max height GF Series
•
Available on tape & reel, 24mm tape,
1000 units per reel
•
Pb-free and RoHS/Green compliant.
•3.2
to 40.000 MHz, AT Fundamental
•30.0
to 54.000 MHz, AT 3rd Overtone
•40.0
to 54.000 MHz, BT Fundamental
Characteristics at 25°C ±2°C:
•Frequency
Calibration Tolerance: ±30ppm
•Load
Capacitance: 8 to 32pF or Series Resonance
•Effective
Series Resistance (ESR):
Product Description
The crystals are miniature AT or BT cut strip
resonators housed in low profile packages for
surface mounting. The parts utilize a proven,
low-cost, metal package technology with a
precision molded base and universal contact
configuration.
Fundamental: 20 to 200Ω max depending on frequencey
3rd Overtone: 40 to 100Ω max depending on frequency
•Drive
Level: 100µW typ. (500µW Max)
•Shunt
Capacitance: 7pF Max
Temperature Range:
Applications
•
Set-Top Box/Multimedia
•
Clock/VCXO Multiplier
•
Network Adapter Cards
•
Modems
•
Microcontrollers and Processors
•
Remote control devices
•Operating:
–20 to +70°C or -40 to +85°C
•Storage:
–55 to +125°C
Temperature Stability:
•±10,
±20, ±30ppm (–20 to +70°C) AT Cut
•±30,
±50 ppm (–40 to +85°C) AT Cut
•0
to -100ppm (–20 to +70°C) BT Cut
Aging @ 25°C, first year:
•±5ppm
Max
Reflow Temperature:
•260°C
Max, 10 seconds Max (RoHS package)
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
14-0002
All specifications are subject to change without notice.
GC/GF REV2014_JAN21
1
Quartz Crystal Metal Can (SMD)
GC GF
GC/GF Series Quartz Crystal
Legacy 49SMLB Series
Mechanical:
•Shock:
JESD22-B104 Condition B
•Solderability:
MIL-STD-883, Method 2003 (non-RoHS package)
•Solderability:
J-STD-002( RoHS package )
•Terminal
Strength: MIL-STD-883 Method 2004
•Vibration:
JESD22-B103
•Solvent
Resistance: JESD22-B107
•Resistance
to Soldering Heat: MIL-STD-202, Method 210, Condition I or J (Non-RoHS package)
•Resistance
to Soldering Heat: J-STD-020C Table 5-2 Pb-free devices (3 cycles max) (RoHS package)
Environmental:
•Gross
Test Leak: JESD22-A109, Condition C
•Fine
Test Leak: JESD22-A109, Condition A1
•Moisture
Resistance: JESD22-A113
•Insulation Resistance: 500 MΩ min (100 VDC)
Part Ordering Information:
GC/GF XXX YYYY
A: Product½Family
B: XXX = Frequency½Code
C: YYYY = Specification½Code
Following the above format, Saronix-eCera part numbers will be assigned upon
confirmation of exact customer requirements.
Legacy Ordering Information - For Reference Only:
49SMLB 03.6864
–
Type / Package
49SMLB = 2 contact, 4mm high
49SAB = 4 contact, 5 mm high
49SNC = 4 contact, 5mm high
49SUB = 6 contact, 5mm high
Frequency
Frequency (in MHz) = 0x.xxxx, xx.xxxx
(a zero is used in front of frequencies
under 10 MHz)
Cut Type
– (dash) = AT-cut Parallel Resonance
Blank = AT-cut Series Resonance
B = BT-Cut
Load Capacitance
xx = Parallel Resonance (specify load)
Blank = Series Resonance
18
GGC
-E
(X)
Options
(T) = Tape and Reel (full increments only) 1000 pieces
(Q) = Manufactured in a TS16949 or QS9000
registered facility
Blank = Bulk
–E (dash E) = Lead (Pb)-free RoHS Compliant Version
Blank = non-RoHS (not available for new designs)
Calibration / Stability / Temp Range
GGC = ±30ppm / ±30ppm / -20 to +70°C (ATCut)
GHE = ±30ppm / ±50ppm / -40 to +85°C (ATCut)
HJE = ±50ppm / ±100ppm / -40 to +85°C (ATCut)
Blank = ±50ppm/0 to -100ppm/-20 to +70°C (BTCut)
*others available
Part Number Example:
Part Number Examples: Freq 5.1234MHz, ±30ppm calib, ±30ppm stability, -20 to +70°C, 16pF
Freq 5.1234MHz, ±30ppm calib, ±30ppm stability, -20 to +70°C, 16pF
= 49SMLB05.1234-16GGC–E (for PB-Free/RoHS Compliant)
= 49SMLB05.1234-16GGC
= 49SMLB05.1234-16GGC–E (for PB-Free/RoHS Compliant)
= 49SMLB05.1234-16GGC
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
14-0002
All specifications are subject to change without notice.
GC/GF REV2014_JAN21
2
Quartz Crystal Metal Can (SMD)
GC GF
GC/GF Series Quartz Crystal
Legacy 49SMLB Series

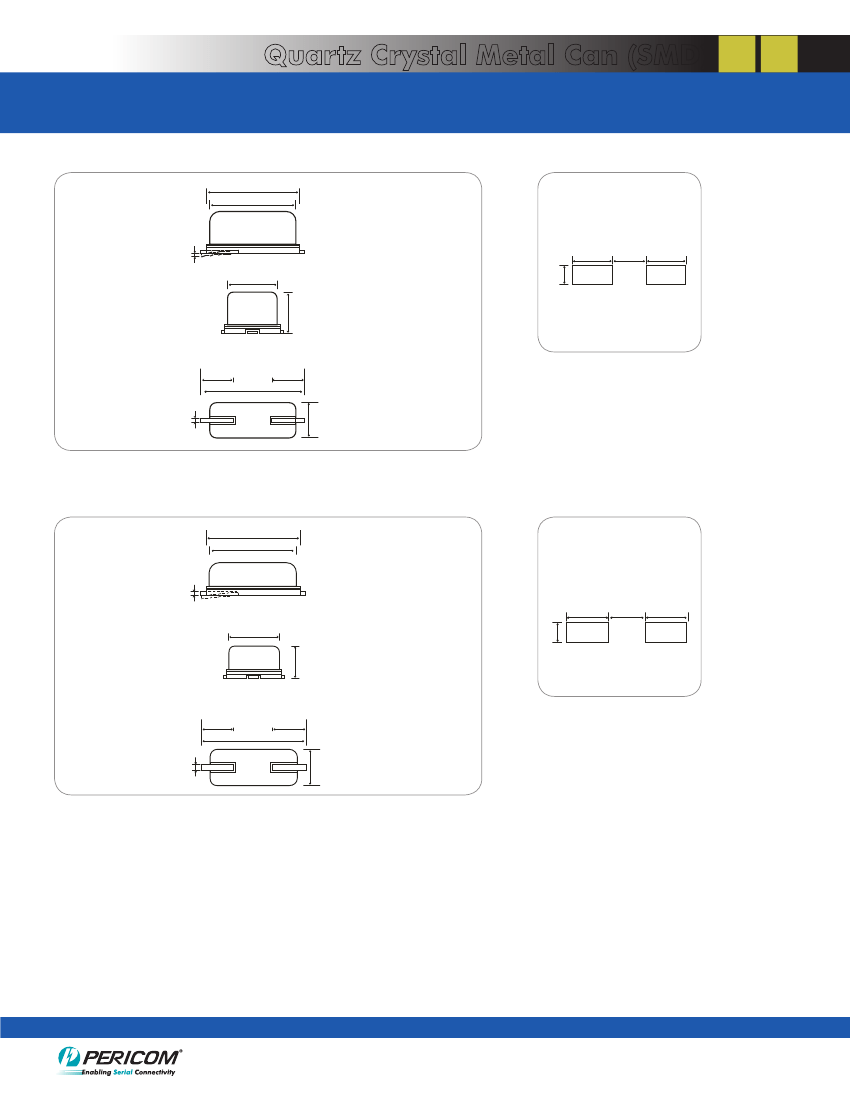

Mechanical Drawings: GC Series
11.7 max
10.6 max
4.8
11.7 max
0~0.3
10.6 max
2.0
4.8
3.8 max
1.5~2.0
4.6
4.8
4.6
Recommended Land Pattern:
4.8
0~0.3
4.0 ±0.2
3.8 max
UNIT: mm
4.0 ±0.2
4.5 max
12.7±0.5
4.5 max
UNIT: mm
0.8±0.2
4.5 max
4.8 max
12.7±0.5
4.5 max
0.8±0.2
4.8 max
Mechanical Drawings: GF Series
(Low Profile)
11.7 max
10.6 max
2.0
4.8
Recommended Land Pattern:
4.6
4.8
0~0.3
11.7 max
10.6 max
4.8
3.8 max
4.6
4.8
0~0.3
3.0±0.2
1.5~2.0
3.8 max
UNIT: mm
4.0 ±0.2
4.5 max
12.7±0.5
4.5 max
UNIT: mm
0.8±0.2
4.8 max
4.5 max
12.7±0.5
4.5 max
0.8±0.2
4.8 max
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
14-0002
All specifications are subject to change without notice.
GC/GF REV2014_JAN21
3
