Materials
1.
Insulator, PBT + 15% glass fiber, white
2.
Shell, C2700 brass, 2
μm
nickel plated
3.
Spring contact, C5191 phosphor bronze, 2
μm
nickel
plated
Electrical requirements
Dielectric
strength: 1 min @ 500 Vac
Insulation
resistance: 100 MΩ @ 500 Vdc
Contact
resistance: 30 mΩ or less
Rated
voltage: 20 Vdc
Rated
current: 6 A
Mechanical requirements
Insertion
force: 0.5-3 kgf
Withdrawal
force: 0.4-2 kgf
Durability:
5000 mating cycles while maintaining; 0.3-2 kgf
insertion force, 0.2-1.5 kgf withdrawal force and a less than
100
mΩ contact resistance.
Environmental requirements
Damp
test: 40 °C, RH 90-100% for 96 hrs. Cool to ambient
and
recover for 2 hours. Maintain dielectric strength of 500
Vac
for 1 min, insulation resistance of 50 MΩ @ 500 Vdc
minimum
and a contact resistance of 100 mΩ or less.
Dry
test: 70 °C, RH 70-85% for 96 hrs. Cool to ambient and
recover
for 2 hours. Maintain insulation resistance of 50
MΩ
@ 500 Vdc minimum and a contact resistance of 100
mΩ
or less.
Salt
spray test: 35 °C, RH 90-95%, 5% NaCl mist for 24 hrs.
Wash
parts after test. Maintain mechanical requirements
and
a contact resistance of less than 80 mΩ.
Operating range
-25
to 70 °C, relative humidity of 85% or less
0.5 ±0.20
1.5 ±0.10
+0.10
1.7 - 0
4.7 ±0.10
+0.10
4.75 - 0
1.7 ±0.20
1.5
0.7
5.8 ±0.30
2.7
3.5
16.7 ±0.30
21 ±0.50
2
1
3
2.4
5 ±0.30
1.6
Revision
A
Date
11/7/2012
Description
Initial release
RoHS compliant
Notes
Function test: no open, no short circuit, no INT
20802 Sockeye Place #130
Bend, OR 97701 USA
tel
541.323.3228
fax
541.323.4202
800
877.670.7118 www.tensility.com
SIZE
Part number
A
DIMENSIONS ARE IN MILLIMETERS
TOLERANCES:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
DESCRIPTION:

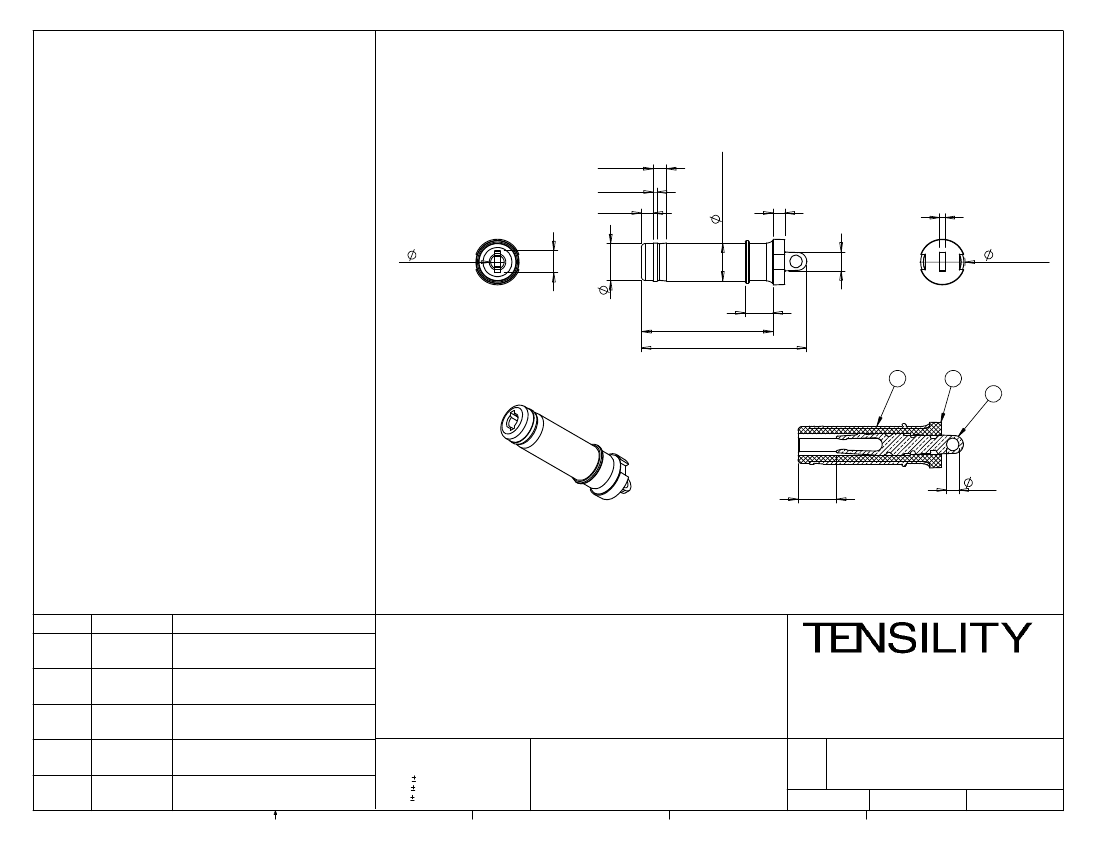

Connector, dc plug, 4.75x1.7xL21mm, brass,
nickel plated, molding type, white insulators
50-00316
WEIGHT:
1
SHEET 1 OF 1
SCALE: 2:1
3
2
5
4
