Rotary Position
Sensor Line Guide
Select Rotary Position Sensors.
Firmly positioned as the leader.
The Honeywell Sensing and Control (S&C) Rotary Position Sensor
lineup is comprised of encoders, potentiometers, Hall-effect
rotary position sensors, and precision-crafted resolvers.
Our
Encoders
are available in both mechanical and optical
versions, and are best for potential applications requiring panel-
mounted, manually-operated rotary sensing.
Potentiometer Sensors
utilize precision technology developed
for potential military applications. Our proprietary conductive
plastic offers extensive temperature range and infinite resolution,
and is designed to provide precision position measurement.
Hall-Effect Rotary Position Sensors
are offered in a variety of
sensing ranges, supply voltages, and output configurations.
Resolvers
are offered in pancake, brushless, and canned styles.
Honeywell S&C is one of a handful of companies offering this
highly precise sensor technology. But that’s what you’d expect
from an industry leader.
FEATURES
ENCODERS
510E Series.
Features:
Mechanical encoder • Employs
2-bit gray code with up to 36 positions
or a 4-bit gray code • Cost effective •
Eliminates need for A/D converters •
Stability from -40 °C to 105 °C [-40 °F to
221 °F] • Positive detent feel • Continuous
electrical travel • Horizontal and vertical
mounting
Benefits:
Operates as a cost-effective,
high-resolution incremental switching
device. The “L” channel leads the
“R” channel by 90° electrically in the
clockwise position. Often used in limited-
space panel-mounted applications where
the need for costly, front-panel displays
can be completely eliminated. Potential
applications include robotics, irrigation
controls, audio/visual equipment, and EKG
and defibrillation machines.
600 Series.
Features:
Optical encoder • Dual
quadrature output generating 128 pulses
per channel • Cost effective • Eliminates
need for A/D converters • Stability from
-40 °C to 65 °C [-40 °F to 149 °F] • Cable
and printed circuit terminations available
• Stainless steel shaft • Nickel-plated
bushing • PC terminals and cable leads
available • Outputs are TTL compatible
Benefits:
Enhanced life, no contact
device capable of approximately 10
million revolutions. Outputs two square
waves in quadrature at a rate of 128
pulses per channel per revolution.
Potential applications include industrial
motion sensing and control, motor/flow
control, robotics, low-to-high input for
test and measurement, robotics, medical
equipment and instrumentation, precision
joysticks and computer peripherals.
CERMET AND WIREWOUND
POTENTIOMETERS
309/409 Series.
Features:
Compact • Modular package
• Cermet element • 1 W power rating
• Enhanced performance • 409: sealed
for board washing • PC and solder-hook
terminals
Benefits:
Reduced cost potentiometer
that offers the temperature stability of a
cermet element and a 1 watt power rating
in a compact body. Stable over operating
temperature. Potential applications include
audio consoles, lighting controls, precision
joysticks, telecom control systems,
manual controls, medical equipment,
telecommunications, and marine controls.
389 Series.
Features:
Cermet element • 1 W power
rating • Small size • Stackable – up
to 6 modules • Rotary, push-pull, and
momentary options • 1/4 in or 1/8 in
diameter shafts • Single, dual-concentric,
continued on page 7

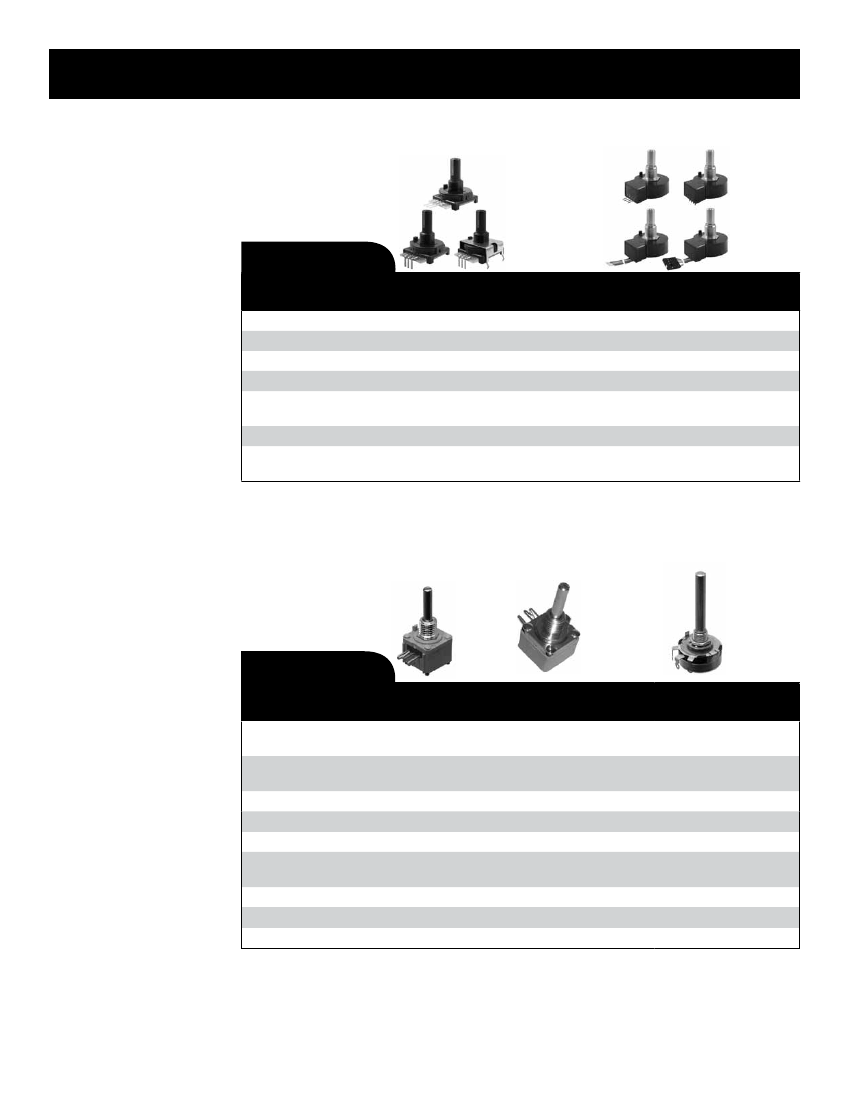

Rotary Position Sensor Line Guide
Quality. Reliability. Enhanced
life. Global reach.
Honeywell S&C rotary position
sensors deliver the features
you need and quality you
demand. Even better, we
offer worldwide support and
manufacturing.
Encoders:
Our mechanical
encoders have 2-bit and
4-bit graycode outputs for
absolute electrical reference
applications. Manually
operated optical encoders
output two square waves
in quadrature. Various
resolutions, PC terminals, or
cable leads are available.
Potentiometers:
The
Honeywell S&C lineup
is legendary in military
and aerospace industries
for reliability, durability,
and enhanced life. Our
potentiometer designs allow
customization to your specs
and cost requirements
without sacrificing reliability
and accuracy. Measuring
linear, rotary position, or
displacement, these units
easily withstand exposure to
harsh chemicals and high
temperatures.
Resolvers:
These non-
contact, enhanced precision
rotary position sensors are
available in standard styles
and are fully customizable,
offering remarkable specs for
impressive performance.

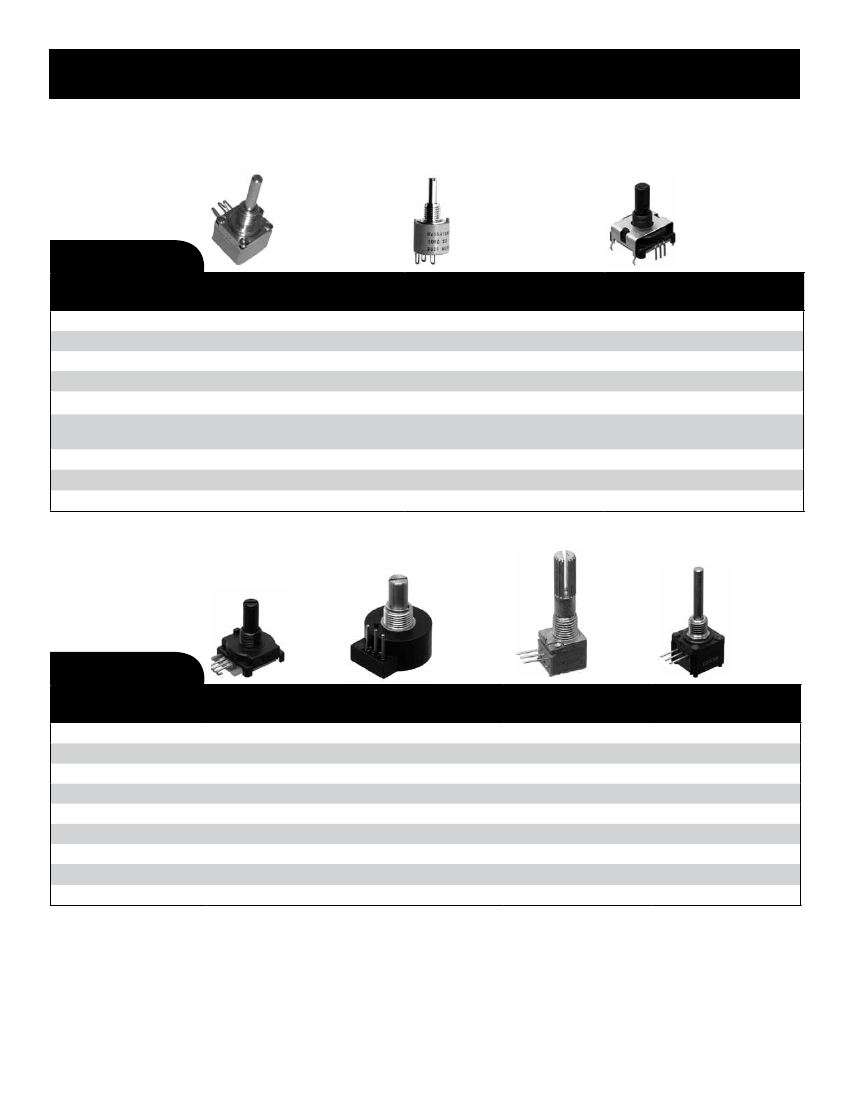

Encoders
510E Series
Type
Pulse per revolution
Output
Temperature range
Expected rotational
life
Operating speed
Terminals
mechanical
16, 9, 6, 4
2- or 4-bit grey code
no
100K cycles
50 rpm max.
PCB pins
600 Series
optical
128
quadrature square wave
-40 °C to 65 °C [-40 °F to 149 °F]
10 million rotations min.
300 rpm max.
PC type B-66, PC type C-24,
cable, cable/connector
Cermet and
Wirewound Pots
309/409 Series
309: compact modular house
409: sealed for board washing
25K cycles
cermet
1W
PC, solder hook
100 Ohm to 5 mOhm
standard
industrial
linear, tapered
389 Series
multiple sections available
25K cycles
cermet
1W
PC, solder hook
linear: 5 Ohm to 5 mOhm;
tapered: 100 Ohm to 2 mOhm
standard
industrial
linear, tapered
43/RA20 Series
RA20 meets MIL-R-19
10K cycles
wirewound
2W
solder lug
43: 10 Ohm to 50 kOhm
RA20: 50 Ohm to 15 kOhm
standard, locking
industrial
linear
Type
Expected rotational
life
Element type
Power rating
Terminal type
Resistance range
Bushing type
Potentiometer type
Electrical taper
2
www.honeywell.com/sensing

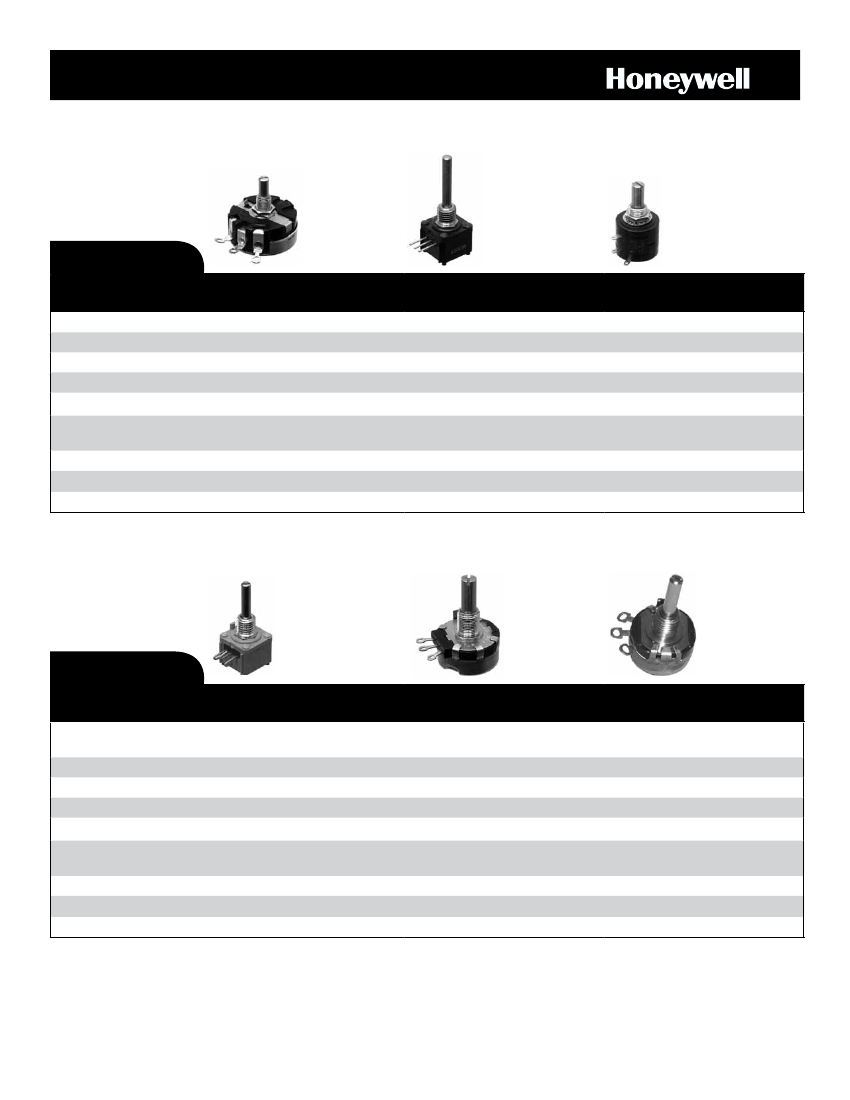

Conductive
Plastic Pots
MKV Series
SensorCube Series
sealed construction
TH100 Series
special electrical and mechanical
configurations
1 million cycles
conductive plastic
0.5 W
three 20 AWG, 152,4 mm [6.0 in] leads
10000 ohms (total resistance)
slotted rotor
position transducer
linear
Type
Expected rotational life
Element type
Power rating
Terminal type
Resistance range
Bushing type
Potentiometer type
Electrical taper
10 million cycles
conductive plastic
1W
turret
500 Ohm to 20 kOhm
no bushing, standard
precision
linear
10 million cycles
conductive plastic
1W
turret
1 kOhm to 10 kOhm
standard
precision
linear

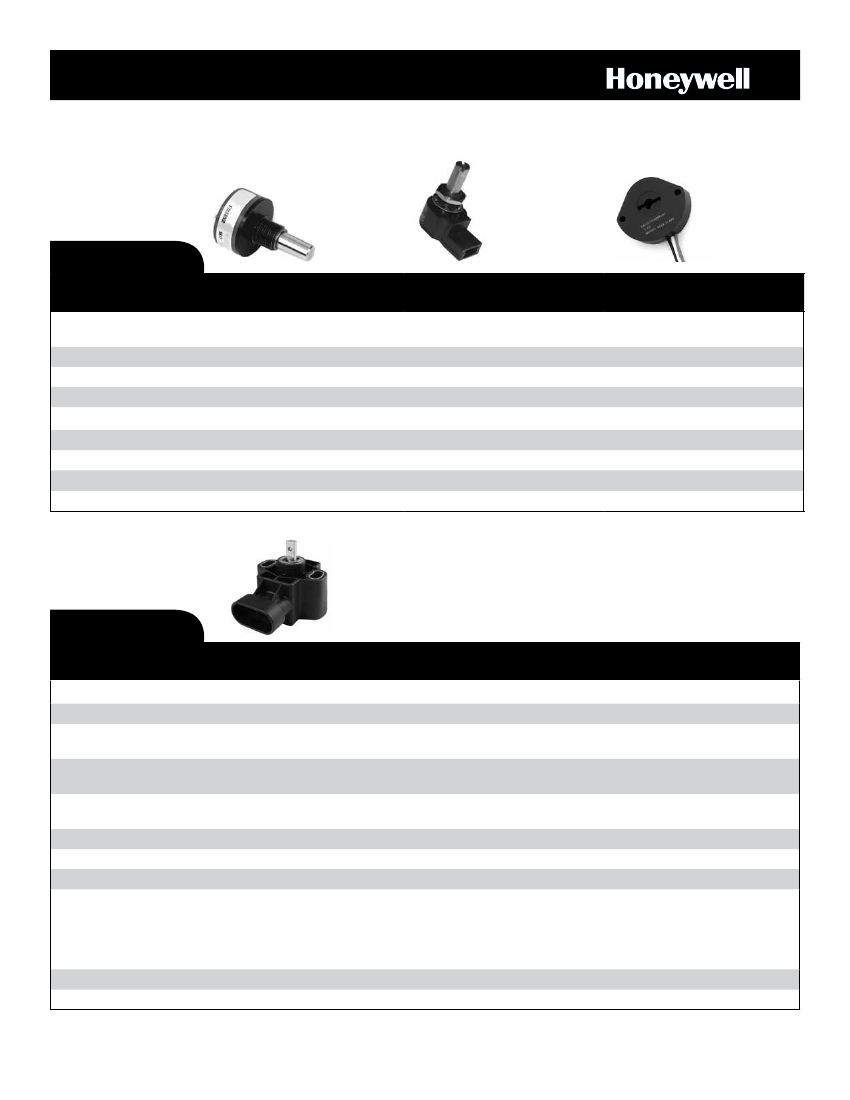

Hall-Effect Rotary
Position Sensors
RTY Series
Sensing range
Redundant version
Input voltage
Output
Input current
Operating temperature range
Connector
Life
50° (±25°), 60° (±30°), 70° (±35°), 90° (±45°), 120° (±60°), 180° (±90°), 270° (±135°), 360° (±180°)
no
low voltage: 5 Vdc ±0.5 Vdc
high voltage: 10 Vdc to 30 Vdc
low voltage: 0.5 V to 4.5 V ratiometric
high voltage: 0.5 V to 4.5 V non-ratiometric
low voltage: 20 mA max.; during output to ground short, 25 mA max.
high voltage: 32 mA max.; during output to ground short, 47 mA max.
-40 °C to 125 °C [-40 °F to 257 °F]
AMP super seal
35 M cycles
• EMI radiated immunity: 100 V/m from 200 MHz to 1000 MHz per ISO11452-2
• EMI conducted immunity:
- low voltage: 100 mA BCI per ISO11452-4 from 1 MHz to 200 MHz
- high voltage: 100 mA BCI per ISO11452-4 from 1 MHz to 400 MHz
• EMC: exceeds CE requirements
PBT plastic
55 mm L x 43 mm W x 41 mm H [2.17 in L x 1.69 in W x 1.61 in H]
EMI/EMC
Housing material
Dimensions
www.honeywell.com/sensing
5
Mobile and portable
