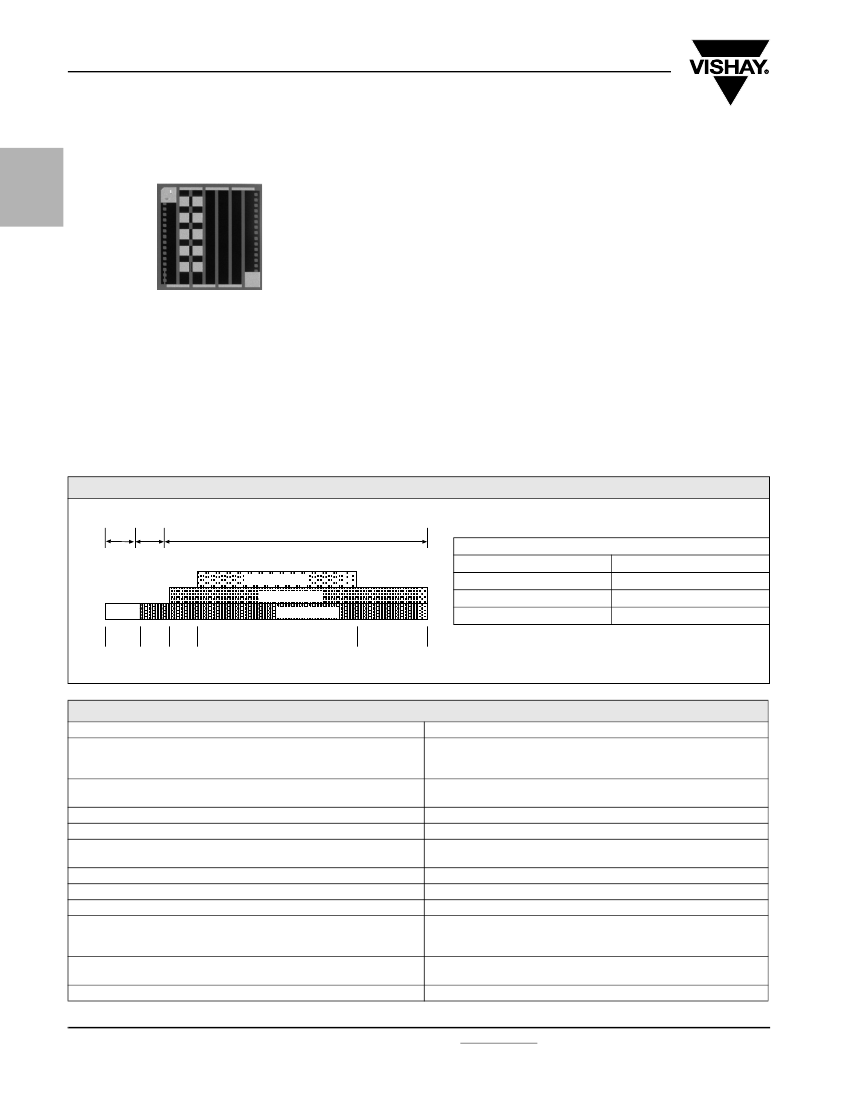

PWB
Vishay Electro-Films
Thin Film Power Resistors
CHIP
RESISTORS
FEATURES
•
Wire bondable
Product may not
be to scale
•
Power: 1 W
•
Chip size: 0.070 inches square
•
Resistance range: 0.3
Ω
to 20 kΩ
•
Oxidized silicon substrate for good power dissipation
•
Resistor material: Tantalum nitride, self-passivating
The PWB series resistor chips offer a 1 W power rating in a
relatively small size. They offer one of the best combinations
of size and power available.
The PWBs are manufactured using Vishay Electro-Films
(EFI) sophisticated thin film equipment and manufacturing
technology. The PWBs are 100 % electrically tested and
visually inspected to MIL-STD-883.
APPLICATIONS
The PWB resistor chips are used mainly in higher power circuits of amplifiers where increased power loads require a more
specialized resistor.
TEMPERATURE COEFFICIENT OF RESISTANCE, VALUES AND TOLERANCES
Tightest Standard Tolerance Available
5%
1%
0.5 %
PROCESS CODE
CLASS H*
± 50 ppm/°C
± 100 ppm/°C
*
± 250 ppm/°C
CLASS K*
005
004
009
001
000
008
*MIL-PRF-38534 inspection criteria
0.3
Ω
2
Ω
10
Ω
50
Ω
10 kΩ
20 kΩ
* ± 600 ppm/C R < 2
Ω
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Noise, MIL-STD-202, Method 308
100
Ω
- 250 kΩ
< 100
Ω
or > 251 kΩ
MoistureResistance, MIL-STD-202
Method 106
Stability, 1000 h, + 125 °C, 500 mW
Operating Temperature Range
Thermal Shock, MIL-STD-202,
Method 107, Test Condition F
High Temperature Exposure, + 150 °C, 100 h
Dielectric Voltage Breakdown
Insulation Resistance
Operating Voltage
Steady State
5 x Rated Power
DC Power Rating at + 70 °C (Derated to Zero at + 175 °C)
(Conductive Epoxy Die Sttach to Alumina Substrate)
5 x Rated Power Short-Time Overload, + 25 °C, 5 s
- 35 dB typ.
- 20 dB typ.
± 0.5 % max.
ΔR/R
± 0.5 % max.
ΔR/R
- 55 °C to + 125 °C
± 0.1 % max.
ΔR/R
± 0.2 % max.
ΔR/R
200 V
10
12
min.
100 V max.
200 V max.
1W
± 0.25 % max.
ΔR/R
%
www.vishay.com
62
For technical questions, contact: efi@vishay.com
Document Number: 61021
Revision: 12-Mar-08
PWB
Thin Film Power Resistors
Vishay Electro-Films
DIMENSIONS
in inches
0.070
0.063
0.005
0.070
0.063
0.005
CHIP
RESISTORS
0.072
0.072
TYPICAL RANGE
R < 240
Ω
0.010
TYPICAL RANGE
240
Ω
- 20 kΩ
SCHEMATIC
MECHANICAL SPECIFICATIONS
in inches
PARAMETER
Chip Size
Chip Thickness
Chip Substrate Material
Resistor Material
Bonding Pad Size
Number of Pads
Pad Material
Backing
Options:
Gold back for eutectic die attach
Gold bonding pads, 15 kÅ minimum thickness
Consult Applications Engineer
0.070 x 0.070 ± 0.005 (1.781 x 1.781 mm)
0.010 ± 0.002 (0.254 ± 0.05 mm)
Oxidized silicon, 10 kÅ minimum SiO
2
Tantalum nitride, self-passivating
0.005 x 0.010 (0.127 x 0.254 mm) minimum
2
10 kÅ minimum aluminum
None, lapped semiconductor silicon
ORDERING INFORMATION
Example: 100 % visual, 10 kΩ, ± 1 %, ± 100 ppm/°C TCR, aluminum pads, class H visual inspection
W
INSPECTION/
PACKAGING
W = 100 % visually inspected
parts in matrix trays per
MIL-STD-883
X = Sample, visually inspected
parts loaded in matrix
trays (4 % AQL)
PWB
PRODUCT
FAMILY
000
PROCESS
CODE
See Process Code
table
1000
RESISTANCE
VALUE
Use first 4 digits
significant digits of the
resistance
1
MULTIPLIER
CODE
D
= 0.0001
C
= 0.001
B
= 0.01
A
= 0.1
0
=1
1
= 10
F
TOLERANCE
CODE
D
= 0.5 %
F
= 1.0 %
G
= 2.0 %
H
= 2.5 %
J
= 5.0 %
K
= 10 %
Document Number: 61021
Revision: 12-Mar-08
For technical questions, contact: efi@vishay.com
www.vishay.com
63
