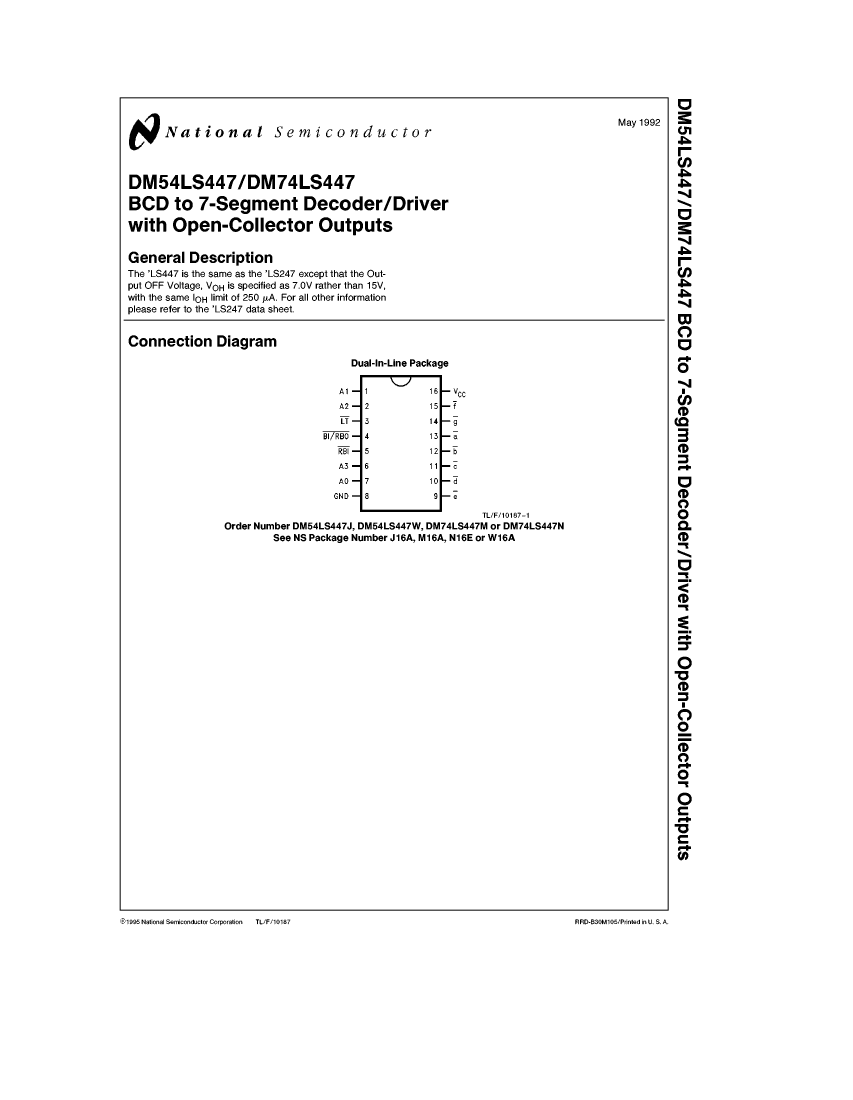

Decoder/Driver, TTL, CDFP16,

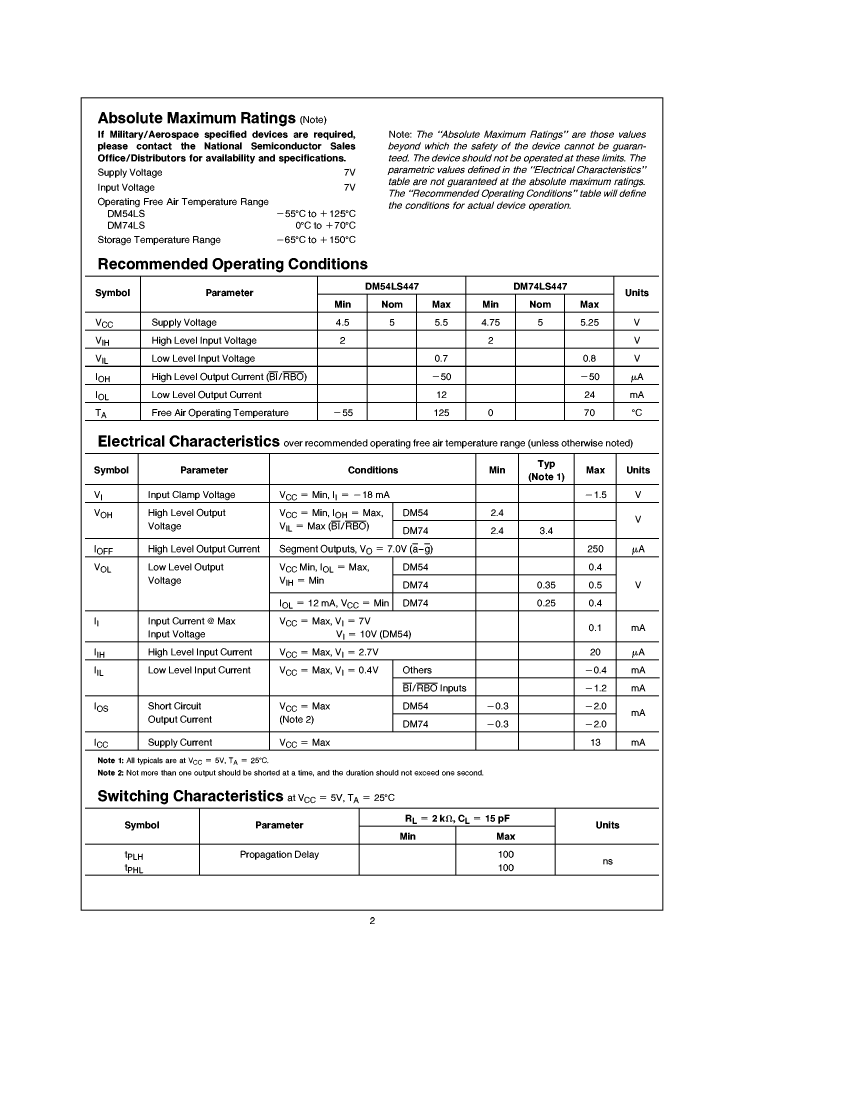

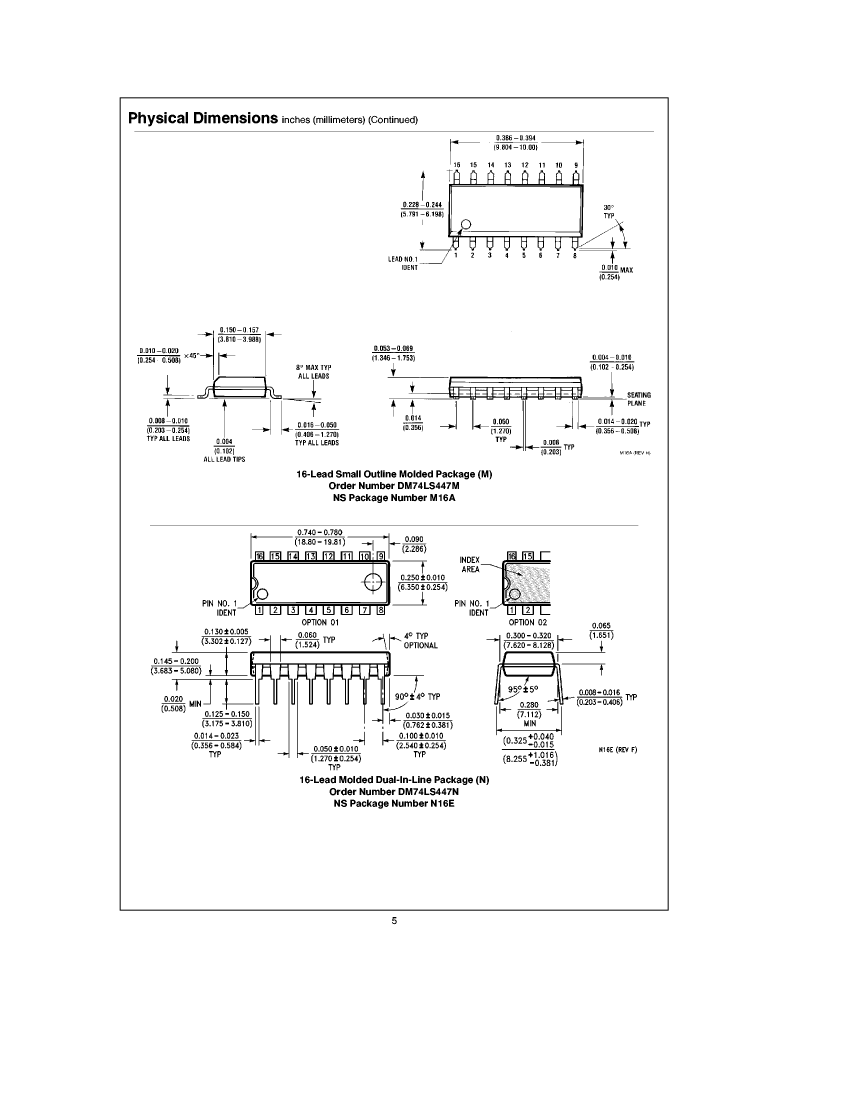

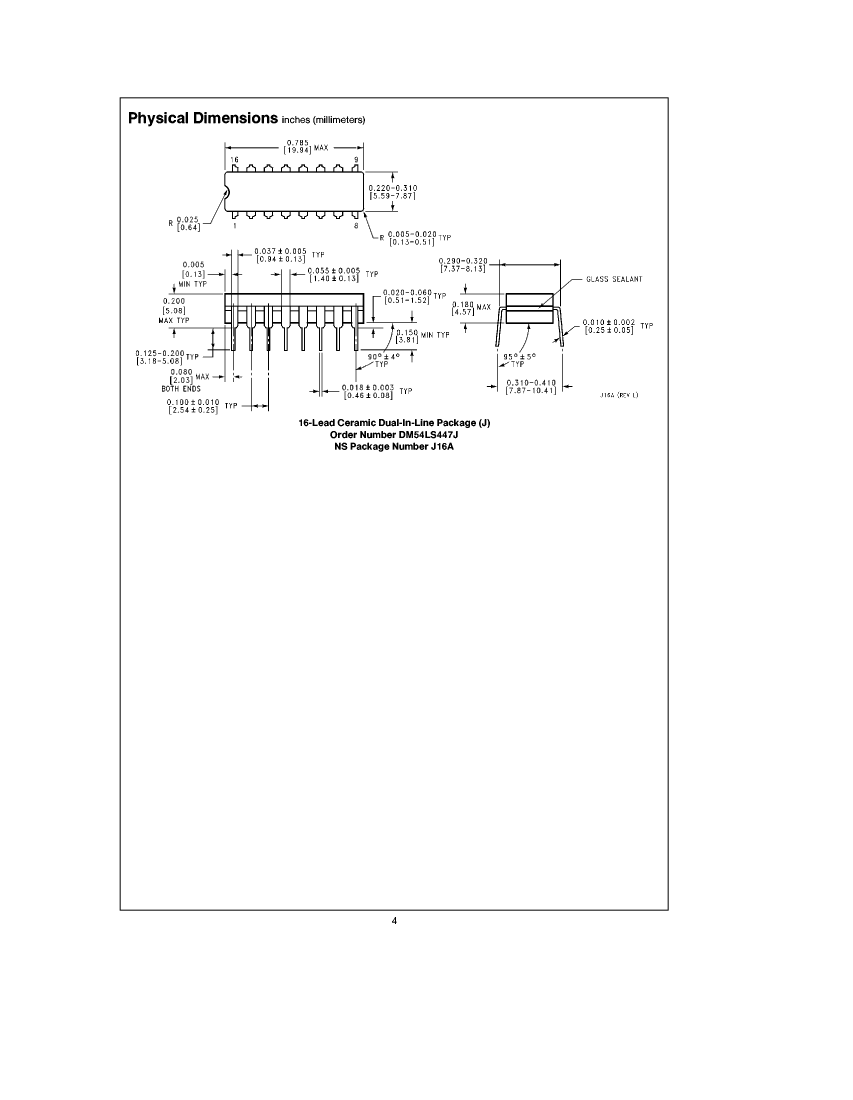

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Reach Compliance Code | compliant |
| JESD-30 code | R-XDFP-F16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | OTHER DECODER/DRIVER |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| power supply | 5 V |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 54LS447FMQB | 54LS447DMQB | DM54LS447W | 74LS447FCQM | 74LS447FCQR | 74LS447PCQR | 74LS447PCQM | DM74LS447M | DM54LS447J | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Decoder/Driver, TTL, CDFP16, | Decoder/Driver, TTL, CDIP16, | Decoder/Driver, TTL, CDFP16, | Decoder/Driver, TTL, CDFP16, | Decoder/Driver, TTL, CDFP16, | Decoder/Driver, TTL, PDIP16, | Decoder/Driver, TTL, PDIP16, | Decoder/Driver, TTL, PDSO16, | Decoder/Driver, TTL, CDIP16, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant | unknown | compliant | compliant | compliant | compliant | unknown | unknown |
| JESD-30 code | R-XDFP-F16 | R-XDIP-T16 | R-XDFP-F16 | R-XDFP-F16 | R-XDFP-F16 | R-PDIP-T16 | R-PDIP-T16 | R-PDSO-G16 | R-XDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 125 °C |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC |
| encapsulated code | DFP | DIP | DFP | DFP | DFP | DIP | DIP | SOP | DIP |
| Encapsulate equivalent code | FL16,.3 | DIP16,.3 | FL16,.3 | FL16,.3 | FL16,.3 | DIP16,.3 | DIP16,.3 | SOP16,.25 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | IN-LINE | FLATPACK | FLATPACK | FLATPACK | IN-LINE | IN-LINE | SMALL OUTLINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | YES | NO | NO | YES | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | THROUGH-HOLE | FLAT | FLAT | FLAT | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | - | Not Qualified | Not Qualified | Not Qualified |
| package instruction | - | DIP, DIP16,.3 | DFP, FL16,.3 | DFP, FL16,.3 | DFP, FL16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | SOP, SOP16,.25 | DIP, DIP16,.3 |
