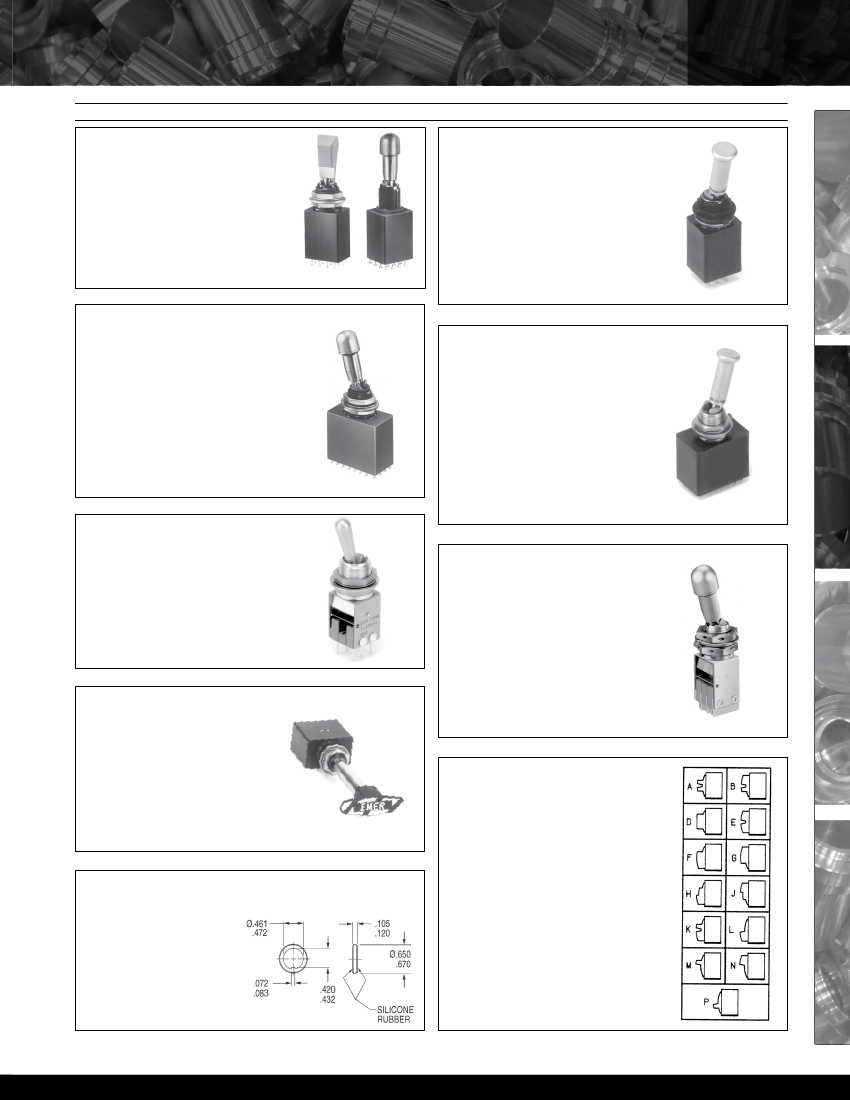

SEALED TOGGLE SWITCHES
PANEL SEALED PER MIL-PRF-83731
SEALED
TOGGLES
T1
3-Position, 4 Pole, Lever Lock
Basic Switches:
Per MIL-PRF-8805/101
Enclosure:
Sealed per MIL-DTL-83731
Rating:
5 amps Resistive @ 28VDC
1 amp Inductive @ 28VDC
1 amp Lamp @ 28VDC
2 amps Motor @ 28VDC
Action:
Maintained
Cap:
Nylon
Handle:
Stainless steel
*Lever
Lock configurations A thru P available.
T1-0216*
T1-0185*
2-Position, 3 Pole, Lever Lock
Basic Switches:
Per MIL-PRF-8805/109
Enclosure:
Sealed per MIL-DTL-83731
Rating:
1 amp Resistive @ 28VDC
0.5 amp Inductive @ 28VDC
Action:
Maintained-momentary
Handle:
Stainless steel, dull nickel plate
Cap, Handle:
Brass, dull nickel
Bushing: Stainless steel with black oxide finish
T1-0175*
*Lever
Lock configurations D, F and G available.
3-Position, 8 Pole, Lever Lock
Basic Switches:
Per MIL-PRF-8805/101
Enclosure:
Sealed per MIL-DTL-83731
Operating Force:
6.0 lbs. max
Rating:
5 amps Resistive @ 28VDC
1 amp Inductive @ 28VDC
1 amp Lamp @ 28VDC
2 amps Motor @ 28VDC
Action:
Maintained
Cap, Handle:
Brass, dull nickel plate
Handle:
Stainless steel
T1-0210*
*Lever
Lock configurations A thru P available.
2-Position, 3 Pole, Lever Lock
Basic Switches:
Per MIL-PRF-8805/101
Enclosure:
Sealed per MIL-DTL-83731
Operating Force:
6.0 lbs. max
Rating:
5 amps Resistive @ 28VDC
1 amp Inductive @ 28VDC
1 amp Lamp @ 28VDC
2 amps Motor @ 28VDC
Action:
Maintained
Cap, Handle:
Brass, dull nickel plate
Handle:
Stainless steel
T1-0214*
TOGGLE SWITCHES
2-Position, 2 Pole
Toggle Seal:
Per MIL-DTL-83731
Basic Switch:
Per MIL-PRF-8805/109 (except terminals)
Enclosure:
Sealed per MIL-DTL-83731
Operating Force:
2.0 lbs. to 5.0 lbs. max
Rating:
1 amp Resistive @ 28VDC
0.5 amp Inductive @ 28VDC
Action:
Maintained-maintained
Bat, Handle, Bushing & Bracket:
Stainless steel
T1-0051-1
2-Position, 3 Pole, Lever Lock
Basic Switches:
Per MIL-PRF-8805/101
Enclosure:
Toggle seal per MIL-DTL-83731
Operating Force:
5.0 lbs. max
Rating:
150mA Resistive @ 28VDC
Mechanical Life:
100,000 cycles
Action:
Maintained-maintained
Handle:
Stainless steel, dull nickel plate
Cap, Handle:
Brass, dull nickel plate
Bushing & Bracket: Stainless steel
T1-0081D*
*Lever
Lock configurations D, F and G available.
3-Position, 8 Pole, “T” Lever Lock
Basic Switch:
Per MIL-PRF-8805
Enclosure:
Sealed per MIL-DTL-83731
Rating:
5 amps Resistive @ 28VDC
1 amp Inductive @ 28VDC
1 amp Lamp @ 28VDC
2 amps Motor @ 28VDC
Action:
Maintained
Bushing, Cap & Handle:
Stainless steel
T1-0215*
*Lever
Lock configurations A thru P available.
Lever Lockout Configuration Codes
Figures A thru P are schematics to illustrate lockout
configurations and momentary positions. They do
not represent details of construction.
A
Locked in all three positions
B
Locked in Center and Keyway Side position
D
Locked out of Center position
E
Locked in Center position
F
Locked in Opposite Keyway position
G
Locked in Keyway Side position
H
Locked out of Center and Keyway Side Position
J
Locked out of Center and Opposite Keyway position
K
Locked in Center and Opposite Keyway position
L
Locked out of Keyway Side position
M
Locked out of and into Opposite Keyway position
N
Locked out of Opposite Keyway position
P
Locked out of and into Keyway Side position
Stainless Steel/Silicone Rubber Washer
Stainless steel cup washer with silicone rubber seal assures proper watertight panel
seal. Mounts behind panel.
Approved to MIL-DTL-5423/16. Designed
for sealing 15/32” bushing with keyway.
OTTO P/N:
710196
MIL P/N:
M5423/16-01
Thickness of bushing seal is reduced
to 0.080” when mounted to panel
.
Specifications Subject To Change Without Notice
www.ottoexcellence.com
185
