3M AB7000HF
Series EMI Absorber
Data Sheet
Description
™
February 2009
3M™ AB7000HF Series EMI Absorber consists of a flexible polymer resin loaded with
soft metal flakes. An acrylic pressure-sensitive adhesive allows for easy application.
•
Low Halogen version of AB7000 absorber. Meets guidelines set forth in IEC
61249-2-21.
•
Flexible, high permeability magnetic sheets
•
One-sided acrylic pressure sensitive adhesive
•
Easily die cut into complex shapes
RoHS 2002/95/EC
RoHS Compliant 2002/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of the
maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2002/618/EC, unless the
substance is in an application that is exempt under RoHS. This information represents 3M’s knowledge and belief, which may be
based in whole or in part on information provided by third party suppliers to 3M.
Agency Approvals
& Self Certifications
Applications
AB7000HF absorber is typically used for applications requiring EMI control and signal
integrity improvement in the 50MHz to 10 GHz range. It is a broadband EMI absorber
designed to work in near-field applications inside and around electronic devices and
assemblies. Common applications include reduction of noise and crosstalk inside
mobile electronics, reduction of crosstalk and EMI on ribbon cables and flex cables,
reduction of radiated IC noise (applying absorber directly to the noisy IC), damping of
radiation and oscillations inside shields and cavities, and increasing signal integrity on
high speed data lines through crosstalk reduction.
Many factors determine the true attenuation of an electromagnetic interference
absorbing material, including shape and thickness, intimacy of substrate contact,
smoothness of application surface, strength and frequency of the EMI signal, etc.
Since AB7000HF absorber is a near field absorber, attenuation characteristics tend to
be very application specific. Power loss characteristics are measured using a 5cm x
5cm square of AB7000HF absorber placed on a 50 microstrip line. The attenuation
and noise dampening attained generally increases as the thickness of the material
increases.
Not for specifications. Values are typical, not to be considered minimum or maximum.
Properties measured at room temperature 73° (~23° ) unless otherwise stated.
F
C
Property (Test Method)
Adhesive
Type of Backing
Product Number
Backing Thickness
Adhesive Thickness
Standard packaging
Temperature Range
Surface resistivity (ASTM D-257)
Initial Permeability
1
Typical Performance
2
Typical Value
Acrylic non-conductive pressure-sensitive adhesive (PSA)
Polymer resin with magnetic metal flake filler
AB7010HF
0.13mm
0.03mm
AB7020HF
0.25mm
0.05mm
AB7030HF
0.35mm
0.05mm
AB7050HF
0.55mm
0.05mm
Attenuation and
Power Loss
Typical Properties
P
hysical
210mm x 297mm
-25° to 85° C
1x10
6
(min)
110
Refer to S
11
attenuation and power loss graphs
Notes: 1.This value measured at 1MHz 3M TM K RD-EMC-AB-02. 2. Attenuation is measured by 7mm coaxial verification kit
1 of 2
3
3M™ AB7000HF Series EMI Absorber
under short fixed condition. Power loss is measured by a 50
microstrip line method. 3M TM K-RD-EMC-AB-01

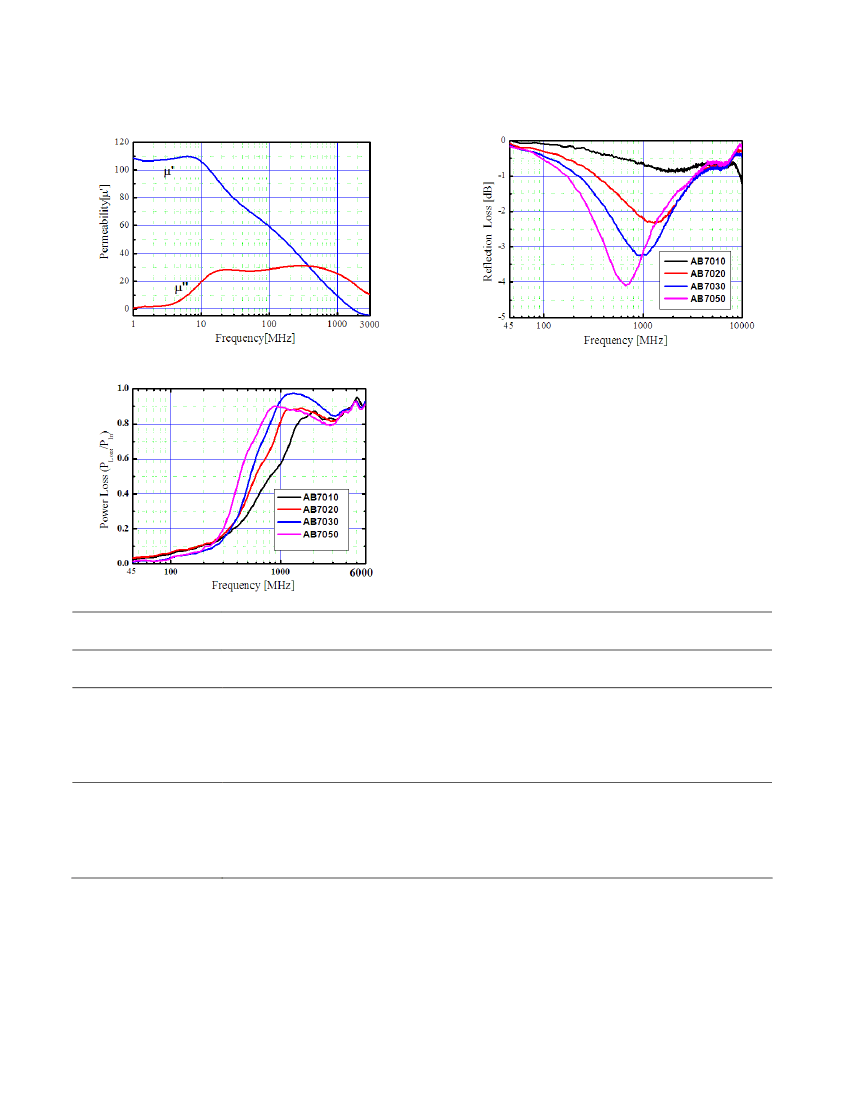

Permeability
Reflection Loss
Power Loss
Shelf Life & Storage
Availability
Important Notice
This product has a 5-year shelf life from date of manufacture when stored in a humidity
controlled storage (10°
C/50° to 27°
F
C/80° and <75% relative humidity).
F
Please contact your local distributor; available from 3M.com/electrical [Where to Buy] or call
1-800-676-8381.
All statements, technical information, and recommendations related to 3M’s products are based on information
believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must
evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product, which are not contained in 3M’s current publications, or any
contrary statements contained on your purchase order, shall have no force or effect unless expressly agreed upon,
in writing, by an authorized officer of 3M.
Warranty; Limited
Remedy; Limited
Liability
This product will be free from defects in material and manufacture at the time of purchase. 3M MAKES NO OTHER
WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above,
your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of
the 3M product. Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or
consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
3M is a trademark of 3M Company.
3
Electrical Markets Division
6801 River Place Blvd.
Austin, TX 78726-9000
800 676 8381
FAX 800 828 9329
www.3M.com/emc
Please recycle
© 3M 2009 All rights reserved
78-8127-8770-9 A
Page 2 of 2
