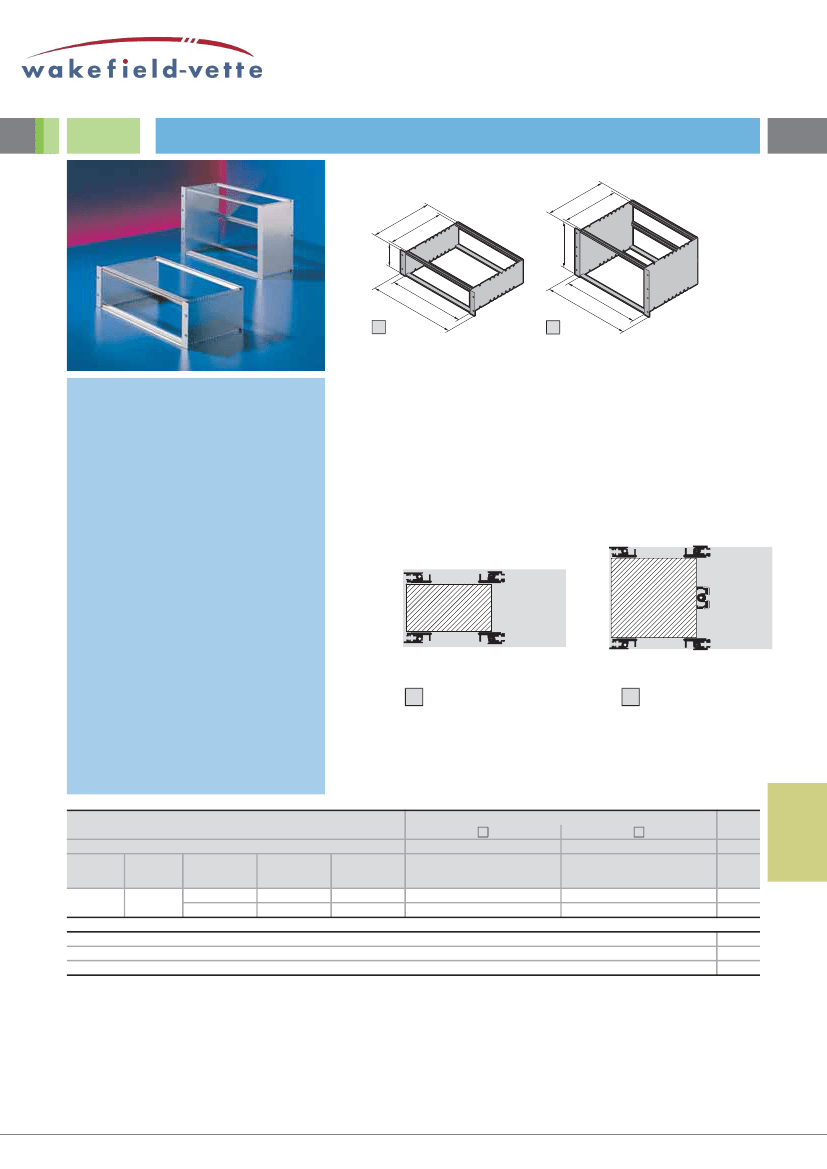

SUBRACKS

Ripac ECO

Ripac ECO 3 U, 6 U, sheet steel

= Width

= Depth

Material/surface finish:

Side panels:

1.5 mm sheet steel, zinc-plated

Flanges/horizontal rails:

Extruded aluminum section,

clear-chromated

Supply includes:

Side panels, flanges, horizontal

rails, threaded inserts, assembly screws.

Tests:

Shock and vibration tested to:

IEC 600-68-2-6 test Fc

IEC 600-68-2-27 test Ea

Standards:

Ripac subracks are based on

the system dimensions of

DIN 41 494 part 5 and

IEC 60 297-3.

For backplane

Order No.

(H1)

482.6 (19˝)

Accessories

Covers

Horizontal rails

Guide rails

Side panel

(T1) mm

175

235

150

210

Max.

PCB depth

160

220

For backplane

3688.114

3688.115

For backplane

3688.116

3688.117

Page

125

100

119

ELECTRONIC PACKAGING SYSTEMS
