LTC2874

Description
the ltc®2874 provides a rugged, 4-port IO-link power and communications interface to remote devices connected by cables up to 20m in length
Categorysemiconductor    Analog mixed-signal IC
File Size710KB,44 Pages
ManufacturerLinear ( ADI )
Websitehttp://www.analog.com/cn/index.html
Download Datasheet Compare View All

LTC2874 Overview

the ltc®2874 provides a rugged, 4-port IO-link power and communications interface to remote devices connected by cables up to 20m in length

FeaTures
n
n
n
n
LTC2874
Quad IO-Link Master
Hot Swap Controller
and PHY
DescripTion
The
LTC
®
2874
provides a rugged, 4-port IO-Link power and
communications interface to remote devices connected
by cables up to 20m in length.
Output supply voltage and inrush current are ramped
up in a controlled manner using external N-channel
MOSFETs, providing improved robustness compared to
fully integrated solutions.
Wake-up pulse generation, line noise suppression, con-
nection sensing and automatic restart after fault conditions
are supported, along with signaling at 4.8kb/s, 38.4kb/s,
and 230.4kb/s.
Configuration and fault reporting are exchanged using
a SPI-compatible 4-wire interface that operates at clock
rates up to 20MHz.
The LTC2874 implements an IO-Link master PHY. For
IO-Link device designs, see the
LT
®
3669.
L,
LT, LTC, LTM, Linear Technology, the Linear logo, µModule are registered trademarks and
Hot Swap is a trademark of Linear Technology Corporation. IO-Link is a registered trademark of
PROFIBUS User Organization (PNO). All other trademarks are the property of their respective
owners.
n
n
n
n
n
n
n
n
n
n
IO-Link
®
Compatible (COM1/COM2/COM3)
8V to 34V Operation
Hot Swap™ Controller Protected Supply Outputs
Discrete Power MOSFETs for Ruggedness and
Flexibility
Configurable 100mA (4-Port), 200mA (2-Port), or
400mA (1-Port) CQ Drive Capability
Automatic Wake-Up Pulse Generation
Automatic Cable Sensing
CQ Pins Protected to ±50V
Configurable L+ Current Limit with Foldback
Short Circuit, Input UV/OV and Thermal Protection
Optional Interrupt and Auto-Retry after Faults
2.9V to 5.5V Logic Supply for Flexible Digital Interface
No Damage or Latchup to ±8kV HBM ESD
38-Lead (5mm × 7mm) QFN and TSSOP Packages
applicaTions
n
n
n
IO-Link Masters
Intelligent Sensors and Actuators
Factory Automation Networks

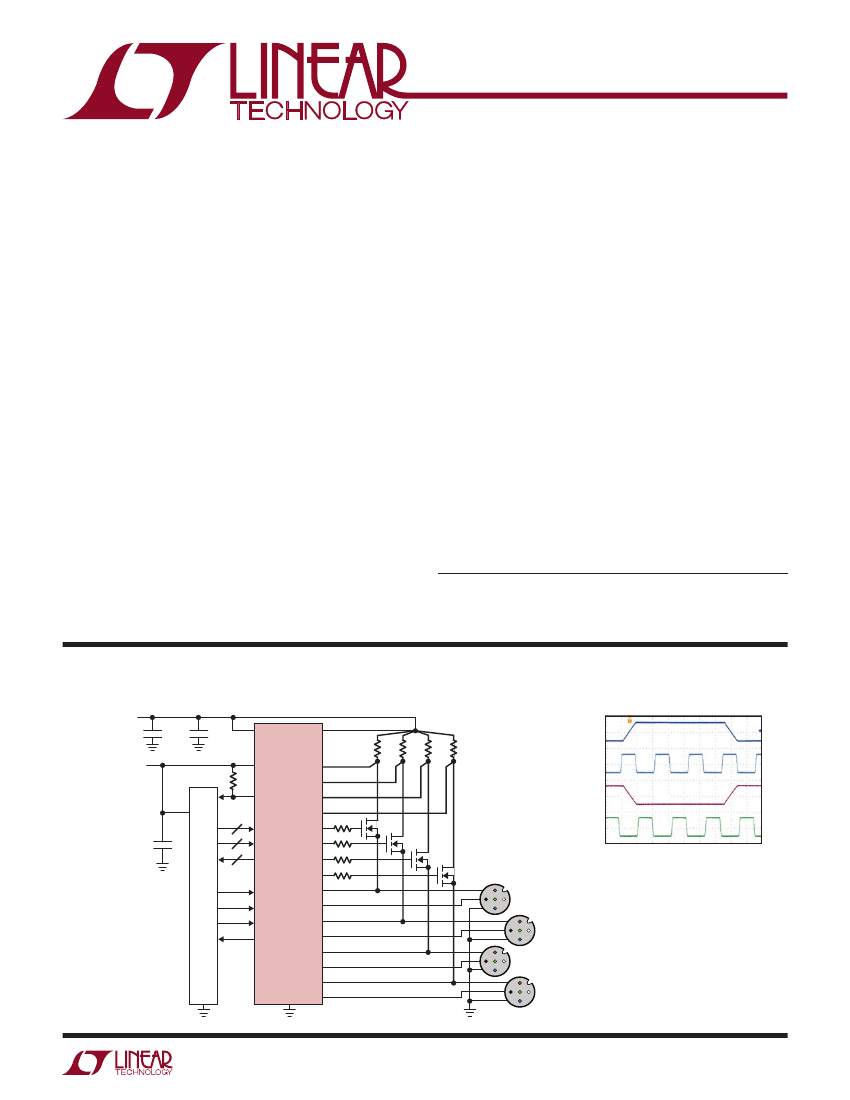

Typical applicaTion
Quad-Port 200mA Power Source and Signaling Interface
8V TO 34V
100µF
1µF
V
DD
SENSE
+
LTC2874
SENSE
1
20V/DIV
CQ3
10
CQ4
4µs/DIV
LOAD: 4nF
CQ1, CQ3: SLEW = 0
CQ2, CQ4: SLEW = 1
4
3
4
3
4
3
1
2
1
2
1
2
1
2
2874 TA01b
Operating Waveforms
CQ1
0.2
CQ2
2.9V TO 5.5V
4.7k
IRQ
V
CC
1µF
4
4
4
V
L
IRQ
SENSE
2
SENSE
3
SENSE
4
TXENn
TXDn
RXDn
GATE1
GATE2
GATE3
GATE4
L+1
CQ1
L+2
CQ2
L+3
CQ3
L+4
CQ4
µC
CS
SCK
SDI
SDO
4
3
GND
GND
2874 TA01a
2874fb
For more information
www.linear.com/LTC2874
1

LTC2874 Related Products

LTC2874 LTC2874IFE#TRPBF LTC2874IUHF#PBF LTC2874IUHF#TRPBF LTC2874IFE#PBF
Description the ltc®2874 provides a rugged, 4-port IO-link power and communications interface to remote devices connected by cables up to 20m in length IC CONTROLLER HOT SWAP 38TSSOP IC CONTROLLER HOT SWAP 38QFN IC CONTROLLER HOT SWAP 38QFN IC CONTROLLER HOT SWAP 38TSSOP
type - transceiver transceiver transceiver transceiver
protocol - IO-Link IO-Link IO-Link IO-Link
Number of drivers/receivers - 4/4 4/4 4/4 4/4
duplex - Half Half Half Half
Voltage - Power - 8 V ~ 34 V 8 V ~ 34 V 8 V ~ 34 V 8 V ~ 34 V
Operating temperature - -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Installation type - surface mount surface mount surface mount surface mount
Package/casing - 38-TFSOP (0.173", 4.40mm wide) exposed pad 38-WFQFN Exposed Pad 38-WFQFN Exposed Pad 38-TFSOP (0.173", 4.40mm wide) exposed pad
Supplier device packaging - 38-TSSOP-EP 38-QFN(5x7) 38-QFN(5x7) 38-TSSOP-EP
