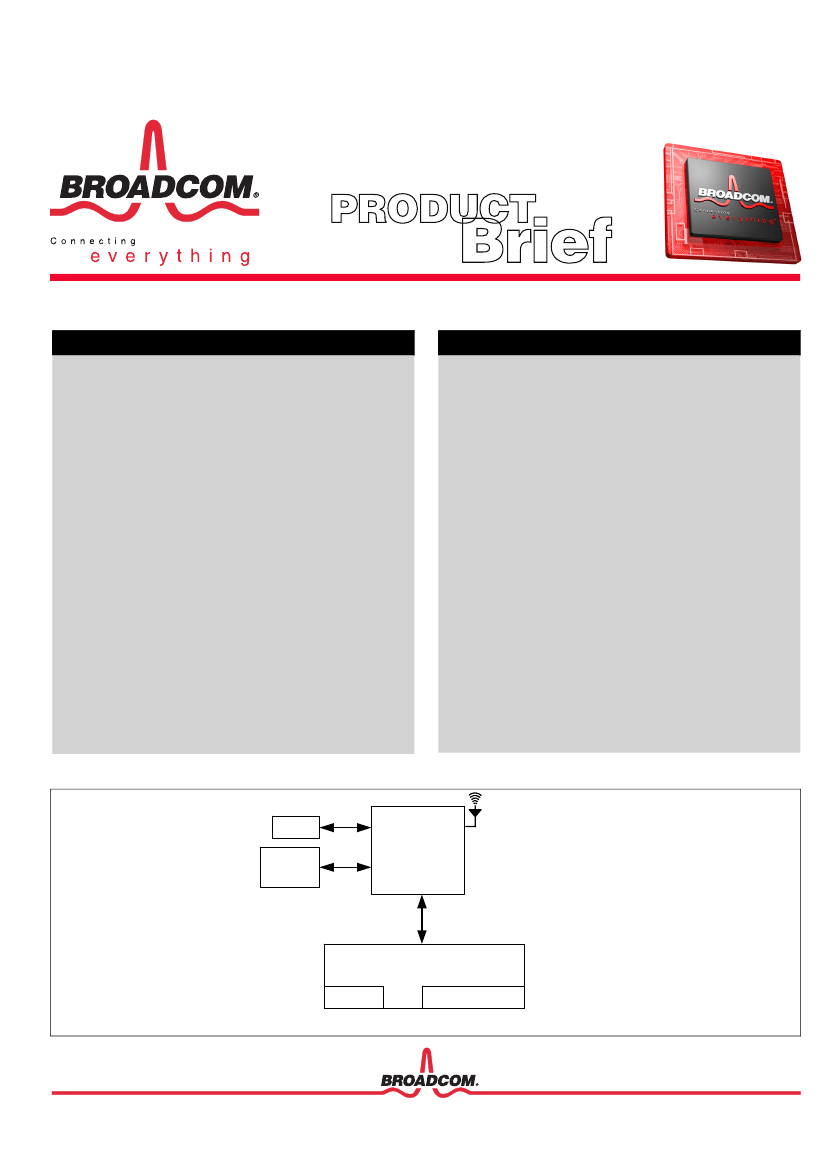

BCM5354
®
Brief
SUMMARY OF BENEFITS
•
The BCM5354 achieves the lowest cost and highest
performance router system-on-chip (SoC) integration for
residential and small office, home office (SOHO) markets
OPTIMIZED 802.11G ROUTER WITH BROADRANGE™
FEATURES
•
240-MHz MIPS32
®
CPU core
•
16-KB instruction cache, 16-KB data cache, and 1-KB pre-
fetch cache
•
Memory Management Unit (MMU) for high-level Real-Time
Operating System (RTOS) support
•
Time-to-market is significantly reduced through stable
Linux
®
and VxWorks
®
kernels, board support packages
(BSPs), drivers and toolchains
•
2.4-GHz direct conversion radio
•
USB 2.0 host controller
•
SDRAM controller
•
16-bit, 120-MHz SDRAM controller
•
SDR and DDR support
•
2 MB to 128 MB capacity
•
Turn-key software is code compatible with other AirForce™
routers and access points (APs) enabling seamless migration
of proprietary features
•
USB host interface allows for platform expansion by end users
and can support USB print server or Microsoft Windows
®
Connect Now functionality
that is backward–compatible with standard 802.11 b/g
•
Supports serial or parallel flash
•
Five-port integrated 10/100BASE-TX/FX IEEE 802.3u
compliant Auto-MDIX transceivers and LAN/WAN switch
controller
•
Supports high-speed performance mode (HSM) of 125 Mbps
•
BroadRange™ signal processing technology enhances receive
sensitivity resulting in excellent wireless throughput and
range in a home and business environment
•
Eight GPIOs for attachment to various external devices
(example: LEDs)
•
One JTAG and two UART ports for debugging development
and attaching Data Terminal Equipment (DTE)
•
0.13 um technology
Low Cost 802.11g Router
Flash
BCM5354
802.11b/g
MAC/PHY/
Radio +
Switch
DDR/SDR
SDRAM
Five-Port Magnetics
Four-Port LAN
10/100
RJ-45
WAN
10/100
RJ-45
OVERVIEW
USB 2.0
Host
1 MB-32MB
Flash
2 MB-128MB
120 Mhz
DDR/SDR
SDRAM
802.11 b/g MAC/PHY/Radio
Encore DSP
16 KB
I-Cache
16 KB
D-Cache
PLL
GPIO
Flash I/F
SDRAM
I/F
240-MHz
MIPS32 with MMU
JTAG
UART
Low-Cost Five-Port Switch 10/100 MAC/PHY
System Block Diagram
The BCM5354 integrates a high-performance MIPS32 processor, IEEE
802.11 b/g MAC/PHY, 2.4-GHz direct conversion radio, USB 2.0 host
controller, SDRAM controller, and a configurable five-port Fast
Ethernet (FE) switch.
The BCM5354 provides wireless LAN connectivity that supports data
rates of up to 125 Mbps that is backward-compatible with standard
802.11 b/g.
The BCM5354 supports a WAN connection via its configurable media
interfaces. The per-port programmable four-level priority queues enable
QoS (IEEE 802.1p) for guaranteed bandwidth applications, DiffServ/
TOS, and L2/L3 IGMP snooping. The IEEE 802.1Q VLAN allows
flexible implementation of VLAN grouping and WAN port segregation.
Applications running on the BCM5354 leverage field-proven software
which includes SecureEasySetup™ and comprehensive wireless
network security support that comprises WEP/WPA/WPA2 encryption.
The BCM5354 offers the industry’s most aggressive home router
integration and enables the lowest bill of materials (BOM) solution cost.
Broadcom’s superior technology and innovation also benefit
manufacturers with faster time-to-market, and end products that are
differentiated from the competition through rich features, exceptional
range, and outstanding reliability.
Broadcom
®
, the pulse logo,
Connecting everything
®
, the Connecting everything logo, AirForce™,
SecureEasySetup™, and BroadRange™, are among the trademarks of Broadcom Corporation and/or its
affiliates in the United States, certain other countries and/or the EU. Any other trademarks or trade names
mentioned are the property of their respective owners.
®
BROADCOM CORPORATION
16215 Alton Parkway, P.O. Box 57013
Irvine, California 92619-7013
© 2007 by BROADCOM CORPORATION. All rights reserved.
5354-PB00-R
01/24/07
