3.3V, HcMos, sMD oscillator
Page 1 of 2
Model: F4100 sERiEs
RoHs compliant / Pb Free
http://www.foxonline.com/need_a_sample.htm
Rev. 1/16/2014
• PaRt nuMbER sElEction
Part Number
116-Frequency-xxxxx
117-Frequency-xxxxx
124-Frequency-xxxxx
125-Frequency-xxxxx
126-Frequency-xxxxx
127-Frequency-xxxxx
128-Frequency-xxxxx
Model Frequency
Number Stability
1
F4100
±100PPM
F4100R
±100PPM
F4105
±50PPM
F4105R
±50PPM
F4106
±25PPM
F4106R
±25PPM*
F4108
±20PPM*
Operating
Temperature (ºC)
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
Frequency
Range (MHz)
0.012 ~ 170.000
0.012 ~ 170.000
0.012 ~ 170.000
0.012 ~ 170.000
0.012 ~ 165.000
0.012 ~ 156.520
0.012 ~ 162.000
Why XpressO?
Lower Cost, Faster Delivery, Low Jitter!
XpressO
®
Equivalent
FXO-HC73
• ElEctRical cHaRactERistics
PARAMETERS
MAX
(unless otherwise noted)
0.012 ~ 170.000 MHz
-55ºC ~ +125ºC
3.3V ± 10%
3mA
6mA
15mA
20mA
25mA
40mA
45% ~ 55%
40% ~ 60%
6nS
4nS
3nS
6nS
4nS
3nS
10% V
dd
90% V
dd
Min
2mA Min
-2mA Min
15pF
10µA
5mS
10mS
150nS
5mS
10mS
0.3pS Typ.
2.5pS Typ.
20pS Typ.
Top
View
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage (V
dd
)
Input Current
(I
dd
)
0.012 ~ 0.040 MHz
0.040+ ~ 1.500 MHz
1.500+ ~ 32.000 MHz
32.000+ ~ 50.000 MHz
50.000+ ~ 67.000 MHz
67.000+ ~ 170.000 MHz
Output Symmetry (50% V
dd
)
0.012 ~ 50.000 MHz
50.000+ ~ 170.000 MHz
Rise Time (10% ~ 90% V
dd
) (T
r
)
0.012 ~ 80.000 MHz
80.000+ ~ 125.000 MHz
125.000+ ~ 170.000 MHz
Fall Time (90% ~ 10% V
dd
) (T
f
)
0.012 ~ 80.000 MHz
80.000+ ~ 125.000 MHz
125.000+ ~ 170.000 MHz
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
s
)
0.012 ~ 32.000 MHz
32.000+ ~ 170.000 MHz
Output Disable Time
2
Output Enable Time
2
0.012 ~ 32.000 MHz
32.000+ ~ 170.000 MHz
Jitter (FO
≥
100MHz
)
12kHz ~ 20MHz
RMS Period
Cycle-to-Cycle
1
7.5 Max
#4
#1
Dot denotes
pin 1
#3
5.2 Max
#2
1.5 Max
1.4±0.2
Bottom
View
#1
#4
#2
#3
5.08±0.1
2.6±0.2
Recommended
Solder Pad Layout
1.8±0.1
2.0±0.1
4.2±0.1
5.08±0.1
Pin Connections
#1 E/D #3 output
#2 GnD #4 V
DD
All dimensions are in millimeters
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration. *Excludes Shock/Vibration
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to
minimize power supply line noise. Drawing is for reference to critical specifications defined by
size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.
All specifications subject to change without notice.
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
• EnablE / DisablE Function
2
INH (Pin 1)
O
UTPUT (Pin 3)
OPEN
2
ACTIVE
'1' Level V
ih
≥ 70% V
dd
ACTIVE
'0' Level V
il
≤ 30% V
dd
High Z
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
An Integrated Device Technology, Inc. company
3.3V, HcMos, sMD oscillator
Page 2 of 2
Model: F4100 sERiEs
RoHs compliant / Pb Free
http://www.foxonline.com/need_a_sample.htm
Rev. 1/16/2014

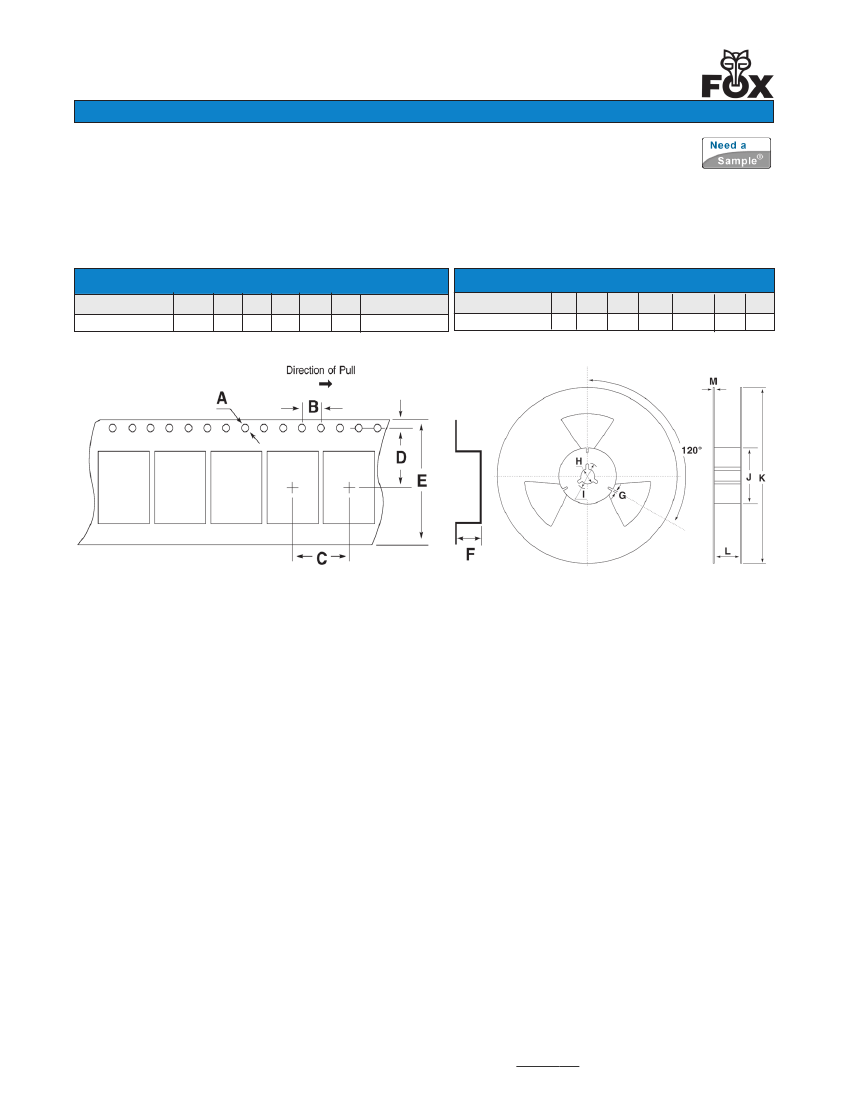

• taPE sPEciFications
(millimeters)
MoDEl
F4100 Series
• REEl sPEciFications
(millimeters)
G H
i
J
K
l M
2.0
∅13 ∅21 ∅80 ∅255
17.5 2.0
b
c D E
F
STD Reel QTY
MoDEl
a
F4100 Series
2,000
∅1.5
4.0 8.0 7.5 16.0 2.15
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
An Integrated Device Technology, Inc. company
