3FD-520

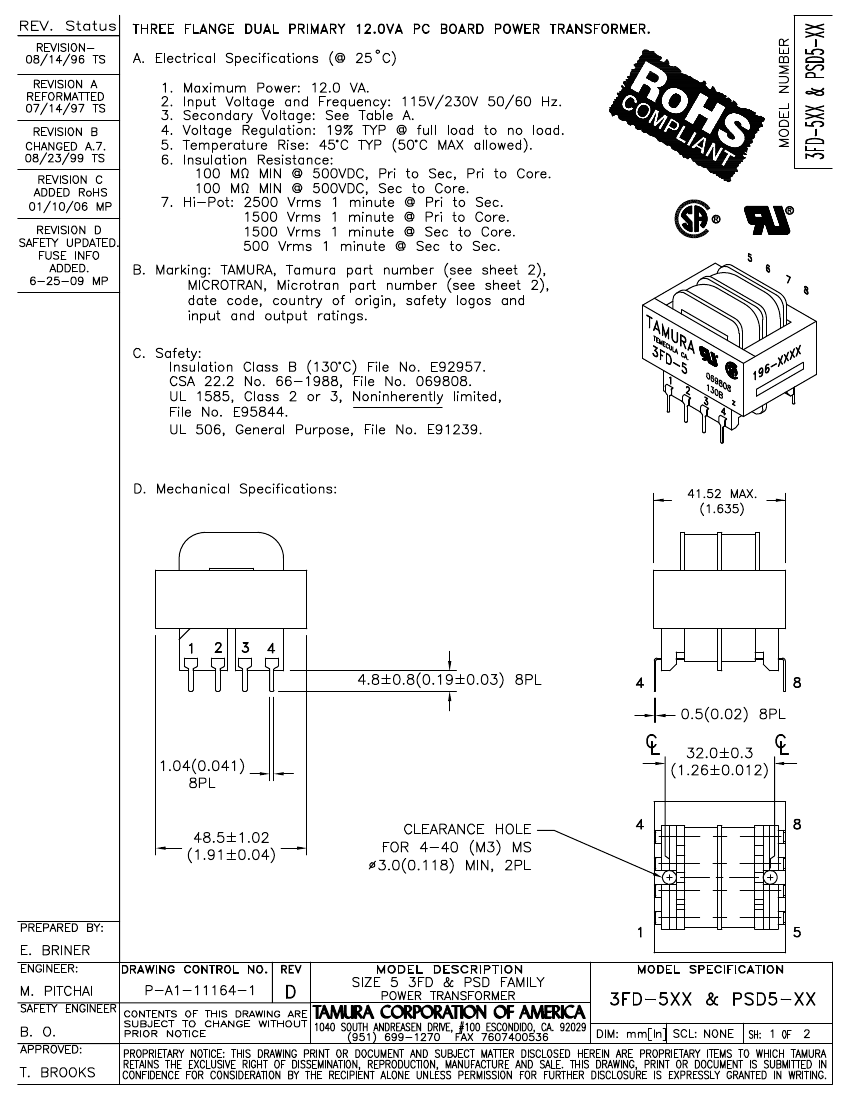

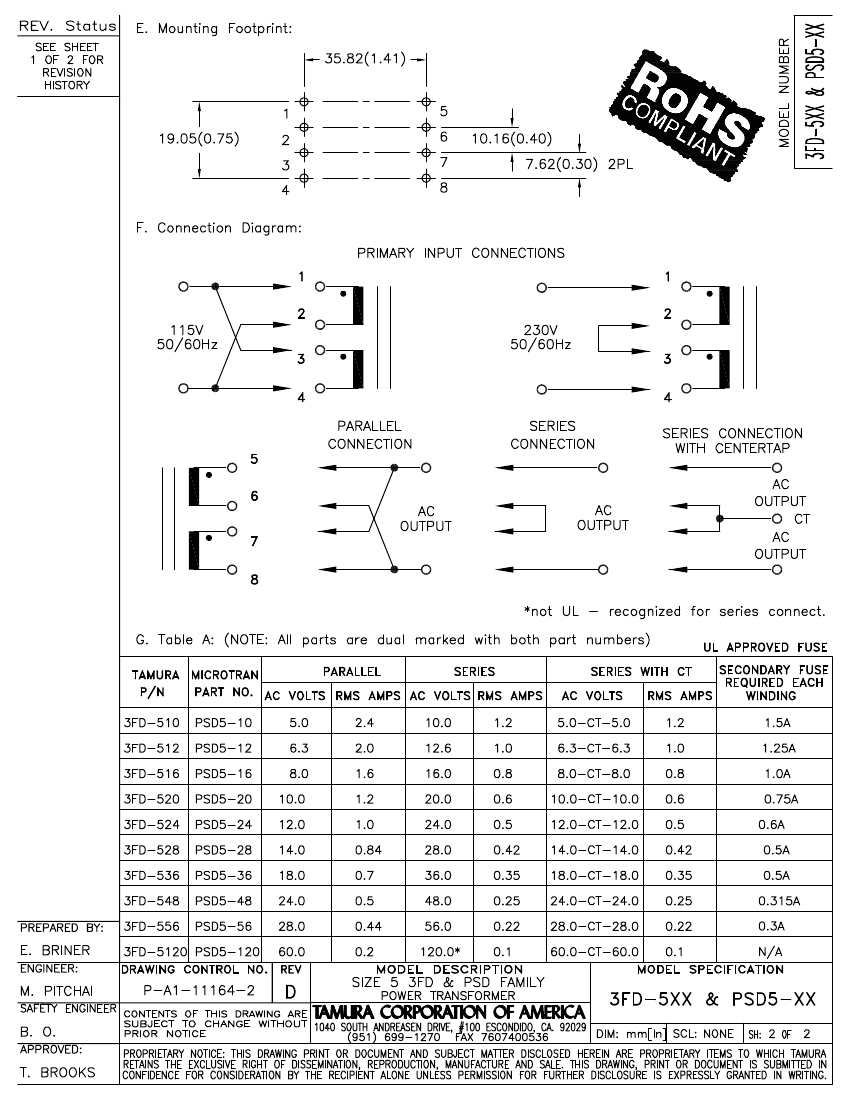

Description
power transformers 20vct@0.6A 10v@1.2A dual primary
CategoryPower management    transformer
File Size485KB,2 Pages
ManufacturerTAMURA Corporation
Websitehttp://www.tamura-ss.co.jp/
Download Datasheet Parametric Compare View All

3FD-520 Online Shopping

Suppliers Part Number Price MOQ In stock
3FD-520 - - View Buy Now

3FD-520 Overview

power transformers 20vct@0.6A 10v@1.2A dual primary

3FD-520 Parametric

Parameter NameAttribute value
MakerTAMURA Corporation
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresPCB MOUNTABLE
CertificationUL; CSA
Number of secondary windings2
Output current 10.6 A
Transformer typePOWER TRANSFORMER
VA rating12 VA
Base Number Matches1

3FD-520 Related Products

3FD-520 3FD-524
Description power transformers 20vct@0.6A 10v@1.2A dual primary power transformers 24vct@0.5A 12v@1A dual primary
Maker TAMURA Corporation TAMURA Corporation
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features PCB MOUNTABLE PCB MOUNTABLE
Certification UL; CSA UL; CSA
Number of secondary windings 2 2
Output current 1 0.6 A 0.5 A
Transformer type POWER TRANSFORMER POWER TRANSFORMER
VA rating 12 VA 12 VA
Base Number Matches 1 1
