80LSW10000M36X118

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 10000uF, Chassis Mount, CAN
File Size252KB,2 Pages
Manufacturerrubycon
Websitehttp://www.rubycon.co.jp/cn/
Environmental Compliance
Download Datasheet Parametric View All

80LSW10000M36X118 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 10000uF, Chassis Mount, CAN

80LSW10000M36X118 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid2014537152
package instruction,
Reach Compliance Codecompliant
Country Of OriginJapan
ECCN codeEAR99
YTEOL7.35
capacitance10000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
leakage current16 mA
Manufacturer's serial numberLSW
Installation featuresCHASSIS MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)80 V
ripple current5800 mA
surface mountNO
Delta tangent0.2
Terminal shapeBINDING POST

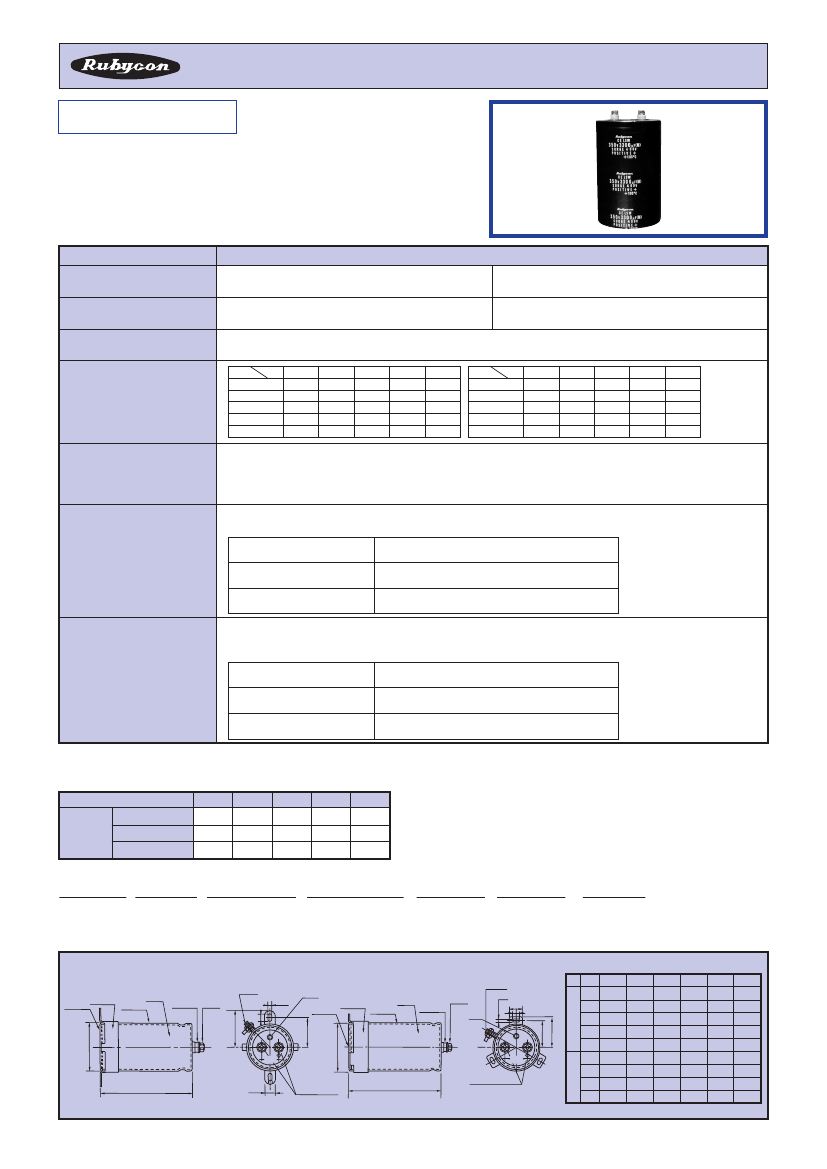

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS
大½アルミニウム電解コンデンサ
LSW
LSW
シリーズ
SERIES
ネジ端子½ 105℃ 3000時間品
105℃ 3000 hours, Screw Terminal Type
◆特 長/FEATURES
105℃ 3000時間品。
Load Life : 105℃ 3000 hours.
RoHS指令対応品。
RoHS compliance.
◆規格表/SPECIFICATIONS
項 目  
Items
カテゴリ温 度 範 囲
Category Temperature Range
特   性      
Characteristics
−40∼+105℃
10∼100V.DC
±20%
(20℃,
120Hz)
WV
φD
10
16
25
35
50
36
0.75
0.6
0.4
0.3
0.25
51
1.0
0.7
0.5
0.5
0.3
64
1.3
0.8
0.7
0.6
0.5
77
1.5
1.0
0.8
0.7
0.6
90
1.5
1.0
0.8
0.7
0.6
φD
63
80
100
160∼250
315∼400
WV
36
0.2
0.2
0.15
0.15
0.2
51
0.25
0.2
0.2
0.15
0.2
64
0.3
0.25
0.25
0.2
0.25
77
0.4
0.3
0.25
0.2
0.25
90
0.4
0.3
0.25
0.2
0.25
−25∼+105℃
160∼400V.DC
定 格 電 圧 範 囲
Rated Voltage Range
静 電 容 量 許 容 差
Capacitance Tolerance
(
20℃,
)
120Hz
損 失 角 の 正 接 (tanδ)
Dissipation Factor(MAX)
I=0.02CV又は5mAいずれか小なる値以下
(定格電圧印加5分後)
I=0.02CV
or 5mA whichever is smaller.  
(After 5 minutes application of rated voltage)
Leakage Current(MAX)
I=漏れ電流(μA)
Leakage Current
C=定格静電容量(μF)
Rated Capacitance
V=定格電圧(V)
Rated Voltage
105℃中で3000時間定格電圧 プル重畳)
(リ
印加後、
下記項目
を満足する と
After applying rated voltage with rated ripple current for 3000 hours at 105℃, the capacitors shall meet the following requirements.
静 電 容 量 変 化 率
Capacitance Change
損 失 角 の 正 接
Dissipation Factor
Leakage Current
初期値の±15%以内
Within ±15% of the initial value.
規格値の175%以下
Not more than 175% of the specified value.
規格値以下
Not more than the specified value.
Endurance
105℃中で500時間無負荷放½
した後、 C 5101-4 4.1項の電圧処理を行い下記を満足する と
JIS
After storage for 500 hours with no voltage applied at 105℃, the capacitors shall be subjected to the voltage treatment in
JIS C 5101-4 item 4.1 and shall be meet the following requirements.
静 電 容 量 変 化 率
Capacitance Change
損 失 角 の 正 接
Dissipation Factor
Leakage Current
初期値の±15%以内
Within ±15% of the initial value.
規格値の150%以下
Not more than 150% of the specified value.
規格値以下
Not more than the specified value.
高 温 無 負 荷 特 性
Shelf Life
◆リ
プル電流補正係数/MULTIPLIER FOR RIPPLE CURRENT
 周波数係数 Frequency Coefficient
60 50) 120
周波数
(Hz)
Frequency
10∼50WV 0.80 1.00
係 数 63∼100WV 0.80 1.00
Coefficient
160∼400WV 0.80 1.00
400
1.03
1.05
1.10
1k 10k≦
1.05 1.08
1.07 1.10
1.13 1.18
M
静電容量許容差
Capacitance Tolerance
◆呼称方法/PART NUMBER
□□□
定格電圧
Rated Voltage
LSW
シ ーズ名
Series
□□□□□
定格静電容量
Rated Capacitance
□□□
副記号
Option
□□
バン
ド記号
Clamp Code
D×L
ケースサイズ
Case Size
◆コンデンサ寸法図/Dimensions in mm (not to scale)
〈I type〉
Plate
Mounting
Clamp
Case
Sleeve
Screw
Terminal Bolt
W2±2
Clamp
Bolt
W3
W4
〈Y type〉
Vent
Plate
W1±2
Mounting
Clamp
Sleeve
Bolt
Case Screw
Terminal
Clamp
Bolt
W3
Vent
W4
W2±2
W1±2
D±2
D±2
L±3
W5
M5 P=0.8Bolt
L±3
M5 P=0.8Bolt
Y type
F±1
F±1
I type
W5
φD
36
51
64
77
90
51
64
77
90
W1
24.0
34.0
40.0
47.0
54.0
32.5
38.0
44.5
50.8
W2
30.0
40.0
45.0
53.0
60.0
37.5
43.0
49.0
56.0
W3
3.5
3.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
W4
7.0
6.0
7.0
6.0
6.0
6.0
8.0
7.0
8.0
W5
10
12
12
12
14
12
14
14
16
(mm)
F
12.7
21.8
28.2
31.4
31.4
21.8
28.2
31.4
31.4
