ZCM204FKE07-R82AA

Description
Fixed Resistor, Metal Film, 0.25W, 0.82ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1406, MELF
File Size757KB,5 Pages
ManufacturerVitrohm Portuguesa LDA
Environmental Compliance
Download Datasheet Parametric View All

ZCM204FKE07-R82AA Overview

Fixed Resistor, Metal Film, 0.25W, 0.82ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1406, MELF

ZCM204FKE07-R82AA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8341779809
package instructionMELF
Reach Compliance Codecompliant
Country Of OriginGermany
ECCN codeEAR99
YTEOL6.91
Other featuresANTI-SULFUR, PRECISION, RATED AC VOLTAGE (V): 200
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTR, BLISTER, 7 INCH
Rated power dissipation(P)0.25 W
Rated temperature70 °C
GuidelineAEC-Q200
resistance0.82 Ω
Resistor typeFIXED RESISTOR
size code1406
surface mountYES
technologyMETAL FILM
Temperature Coefficient50 ppm/°C
Terminal surfaceTin (Sn)
Terminal shapeWRAPAROUND
Tolerance1%
Operating Voltage200 V

ZCM204FKE07-R82AA Preview

AEC - Q200
Qualified

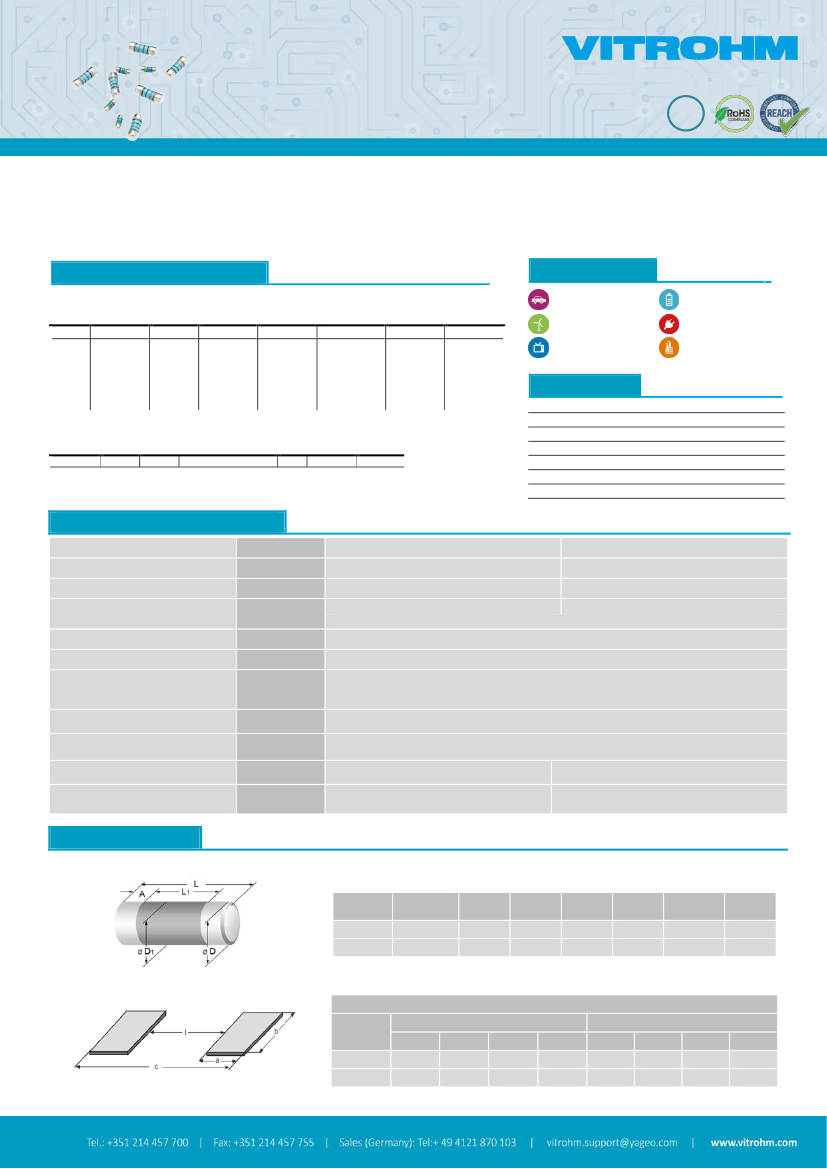

ZCM Series Datasheet
SMD Precision Metal Film Resistors | MELF Style
ORDERING CODE-Example
New SAP Part Nr.:
APPLICATIONS
Automotive
Charger
Power Supply
Industrial
ZCM
Serie
207
Power rating
204 = 0,4W
207 = 1,0W
F
Tol.
B
= ±0,1%
C
= ±0,25%
D
= ±0,5%
F
= ±1%
G
= ±2%
J
= ±5%
-
= Jumper
K
Pack-Code
K
= Blister
tape reel
E
TCR
C
= ±15ppm
D
= ±25ppm
E
= ±50ppm
F
= ±100ppm
-
= Jumper
07-
Forming type
07-
= 07 inch
(Reel diameter)
or
13-
= 13 inch
(Reel diameter)
1K
R Value
0R
= Jumper
AA
Special
AA
= Standard
Alternative Energy
Home Appliances
FEATURES
Precision MELF resistor
Advanced MELF technology
Excellent stability in different environmental conditions
Best in class pulse load capability
AEC – Q200 Qualified
Intrinsic sulfur resistance
RoHs & REACH Compliant
Historical VTM Part Nr.:
ZC
Type
0207
Size
F
Tol.
K
K = Blister tape reel
E
TC
07
Reel diam.
1K
R Value
ELECTRICAL SPECIFICATIONS
Type
Historical Part Number
Nominal Power Rating
Resistance Range
E-Series
Tolerances
Temperature Coefficient
IEC60115-1 clause 4.2 ; 4.8
(+20 / -55[°C] and (+20 / +125[°C])
ZCM204
SMD
ZCM207
ZC0207
ZC0204
P
70
[W]
[Ω]
±[%]
±[10
-6*
K
-1
]
[ºC]
[ºC]
[AC
or
DC]
RMS
[V]
RMS
0,4
0R22 … 10M
(Other values upon request)
1,0
0R16 … 10M
E24 / E96 / E192
B = 0,1% , C = 0,25% , D = 0,5% , F = 1% , G = 2% , J = 5%
Depends on the value, please check the table below
-55 … +155
155
200
300
350
500
Working Temperature Range
Permissible film temperature
(
ϑ
F max.)
Max. Working Voltage
Dielectric Withstanding Voltage
IEC115-1 clause 4.7 (1[min])
DIMENSIONS [mm]
Type
ZCM204
ZCM207
ZC0207
Recommended solder pads dimensions
Type
ZCM204
ZCM207
Wave soldering
Reflow soldering
I
1,5
2,4
a
1,5
2,3
b
1,8
2,6
c
4,5
7,0
I
1,7
2,6
a
1,2
2,0
b
1,6
24
c
4,1
6,6
File Nr. 3900.18-450.113.17 |
Revision: 201802
Historical
P/N:
ZC0204
L
Ø
D
L
1
Ø
D
1
A
0,80
±0,10
1,25
±0,2
MASS
(mg)
3,6
+0 /-0,2
1,4
+0 /-0,1
1,8
min.
5,8
+0 /-0,3
2,2
±0,2
2,6
min.
D
+0 /-0,15
D
+0 /-0,2
22
77
1
1
ZCM Series Datasheet
PERFORMANCE DATE
Type
Historical Part Number
Climatic Category
Short Time Overload
ZCM204
ZC0204
55/155/56
0,03 (≤1M) ; 0,1 (>1M)
0,05 (≤1M) ; 0,1 (>1M)
0,15
0,15
0,15
0,3
≤ 0,1
0.05 (10R≤1M)
0.1 (10R≤1M)
0.15 (<10R) ; 0.1 (10R≤1M) ; 0.25 (>1M)
0.3 (<10R) ; 0.2 (10R≤1M) ; 0.5 (>1M)
0.25
0.5
0.15 (<10R) ; 0.1 (10R≤1M) ; 0.25 (>1M)
0.3 (<10R) ; 0.2 (10R≤1M) ; 0.5 (>1M)
0,15 (≤ 1M) ; 0,25 (>1M)
0.05 (10R≤1M)
0.1 (10R≤1M)
0.15
(≤1M) ; 0.5 (>1M)
0.3
(≤1M) ;
1
(>1M)
0,25
(≤1M) ; 0,5 (>1M)
0,5
(≤1M) ; 1 (>1M)
0,15
(≤1M) ; 0,5 (>1M)
0,3
(≤1M) ; 1 (>1M)
0,25 (≤ 1M) ; 1 (>1M)
ZCM207
ZC0207
0,03 (≤1M) ; 0,15 (>1M)
0,05
(≤1M) ; 0,15 (>1M)
0,25
0,5
0,15
0,3
Standard
operation
IEC60115-1 clause 4.13
Power
(U=2,5*
, ≤2*
U
max,
5
[s])
operation
Standard
Single pulse high voltage overload
operation
IEC60115-1 clause 4.27
Power
(U=10*
,
Severity 4, 10 pulses 10[µs]/700[µs]
operation
±[%]
±[%]
±[%]
[10 h ]
-9
-1
Periodic electric overload
IEC60115-1 clause 4.39
(U=15*
,
0.1[s]on, 2.5[s]off,1000 cycles
Failure Rate
(Total,
ϑ0 ,
max, 60[%] cont. lev.)
Standard
operation
Power
operation
Endurance at 70ºC,
(U=
Precision
operation
Standard
operation
Power
operation
±[%]
±[%]
±[%]
±[%]
IEC60115-1 clause 4.25.1
U
max,
, 1,5[h]ON ; 0,5[h]OFF)
Endurance at upper Category Temp.
IEC60115-1 clause 4.25.3
( 1000[h]
1000h
8000h
1000h
8000h
1000h
8000h
125ºC
155ºC
Damp Heat, Steady State
IEC60115-1 clause 4.24
(40 [°C], 93 [% r.h.], 56[d])
±2
±3
±[%]
±[%]
±[%]
-55~125ºC
-55~155ºC
Damp Heat, Steady State, Accelerated
IEC60115-1 clause 4.37
(85 [°C], 85 [%RH], U = 0.3*
±2
±5
0,25 (≤ 1M) ; 2 (>1M)
0,15 (≤ 1M) ; 0,25 (>1M)
0,5
0,05 (≤ 1M) ; 0,1 (>1M)
0,1 (≤ 10R) ; 0,05 (>10R)
0,5 [2 kV]
No flash over or breakdown
No burning after 30[s]
0,5 (≤ 1M) ; 2 (>1M)
0,25
0,5
0,05
0,1 (≤ 10R) ; 0,05 (>10R)
0,5 [4 kV]
)
Temperature Cycling
( 30[min] each , 1000 cycles)
IEC60068-2-14 ; IEC60115-1 clause 4.19
Vibration
IEC60068-2-6 ; IEC60115-1 clause 4.22
(10;2000[Hz],
≤1,5[mm]
, or
≤200[m/s
] 7,5[h])
2
±[%]
±[%]
±[%]
Resistance to Soldering Heat
IEC60115-1 clause 4.18
±5
±1
(260 [°C], 10 [s])Solder bath method
Electrostatic Discharge
Voltage proof
U
RMS
=U
INS
, 60 [s]
IEC60115-1 clause 4.38 ; IEC61340-3-1
( 3 positives + 3 negatives discharges)
IEC60115-1 clause 4.7
Flammability
Solderability
(235 [ºC] 2
±3
±0,2
IEC60115-1 clause 4.35, IEC60695-11-5
Needle flame test, 10[s]
IEC60068-2-20 ; IEC60115-1 clause 4.17
[s],SnAg
3
Cu
0.5
or SnAg
3.5
)
≥ 95% covered, no visible damage
Component Resistance to Solvents
(50[ºC] method 2)
IEC60068-2-45 ; IEC60115-1 clause 4.29
No visible damage
File Nr. 3900.18-450.113.17 |
Revision: 201802
Resistance to solvents of Marking
(50[ºC] method 1)
IEC60068-2-45 ; IEC60115-1 clause 4.30
Marking visible , no visible damage
Color code
Marking
IEC60062
NOTES: MARKING [COLOR CODE]:
ZCM204
Color code marking is applied according to IEC 60062 in four bands (E24 series) for 5 % tolerance, or in five bands (E96 or E192 series). Each color band appears as a single solid
line, voids are permissible if at least
2/3
of the band is visible from each radial angle of view. The last color band for tolerance is approximately 50 % wider than the other bands.
solid line, voids are permissible if at least
2/
of the band is visible from each radial angle of view. The last color band represents the TCR for resistors with TCR
≤50
ppm/K and nominal tolerance
≤1
%.
3
ZCM207
Color code marking is applied according to IEC 60062 in four (E24 series) or six bands (E96 series). Each color band appears as a single
Zero ohm jumpers
are marked with one centered black band.
2
1
ZCM Series Datasheet
TEMPERATURE COEFFICIENT
ZCM204
ZCM207
Resistance range
Tolerance
TCR
E-Series
0R16 … 0R91
± 5%
0R22 … 0R91
± 100 ppm/K
E24
0R22 … 0R91
± 2%
0R82… 10M
1R… 10M
± 1%
E24 / E96
± 50 ppm/K
10R… 1M65
1R… 2M21
± 0,5%
E24 / E192
10R… 1M65
43R… 1M
± 0,5%
22R… 1M65
43R… 1M
± 0,25%
± 25 ppm/K
E24 / E192
22R… 1M65
43R… 1M
± 0,1%
Notes :
10R… 221K
± 0,5%
ZCM204 - The color of the body coating is light green for
100R… 511K
for a temperature coefficient of ±50 ppm/K or ±100 ppm/K, pink for ±25 ppm/K, or violet for ±15 ppm/K.
jumpers and
ZCM207 - TCR ±10 ppm/K and
221K
22R…
±5 ppm/K in resistance
100R… 511K
100kΩ on request.
0,25%
range 100Ω to
±
± 15 ppm/K
E24 / E192
Zero ohm jumper - Are marked with one centered black band.
511K
43R… 221K
100R…
± 0,1%
Jumper
I
max
= 3A
Jumper
I
max
= 5A
≤ 10 mΩ
NOTES: RESISTOR BODY COLOR CODE:
The body coating color is light green for jumpers and for a temperature coefficient of ±50 or 100 [ppm], pink for ±25[ppm] and violet for ±15[ppm]
MAXIMUM RESISTANCE CHANGE AT RATED DISSIPATION
OPERATION MODE
Rated Power dissipation P
70
[W]
Operating temp. range [ºC]
Permissible film temperature
ϑF
Max [ºC]
Resistance range
1000h
Max. Resistance drift [%]
8000h
[ΔR/R]
225 000h
PRECISION
0,07
-10 to 85
85
10R – 1M
≤0,05
≤0,1
≤0,25
ZCM204
STANDARD
0,25
-55 to 125
125
R22 – 1M
≤0,15
≤0,3
≤0,75
POWER
0,4
-55 to 155
155
R22 – 10M
≤0,25
≤0,5
-
PRECISION
0,125
-10 to 85
85
100R – 511K
≤0,05
≤0,1
≤0,25
ZCM207
STANDARD
0,4
-55 to 125
125
1R0 – 1M
≤0,15
≤0,3
≤1,0
POWER
1,0
-55 to 155
155
1R0 – 1M
≤0,25
≤0,5
-
A suitable low thermal resistance of the circuit board assembly must be safeguarded in order to maintain the film temperature of the resistors within the specified
limits.

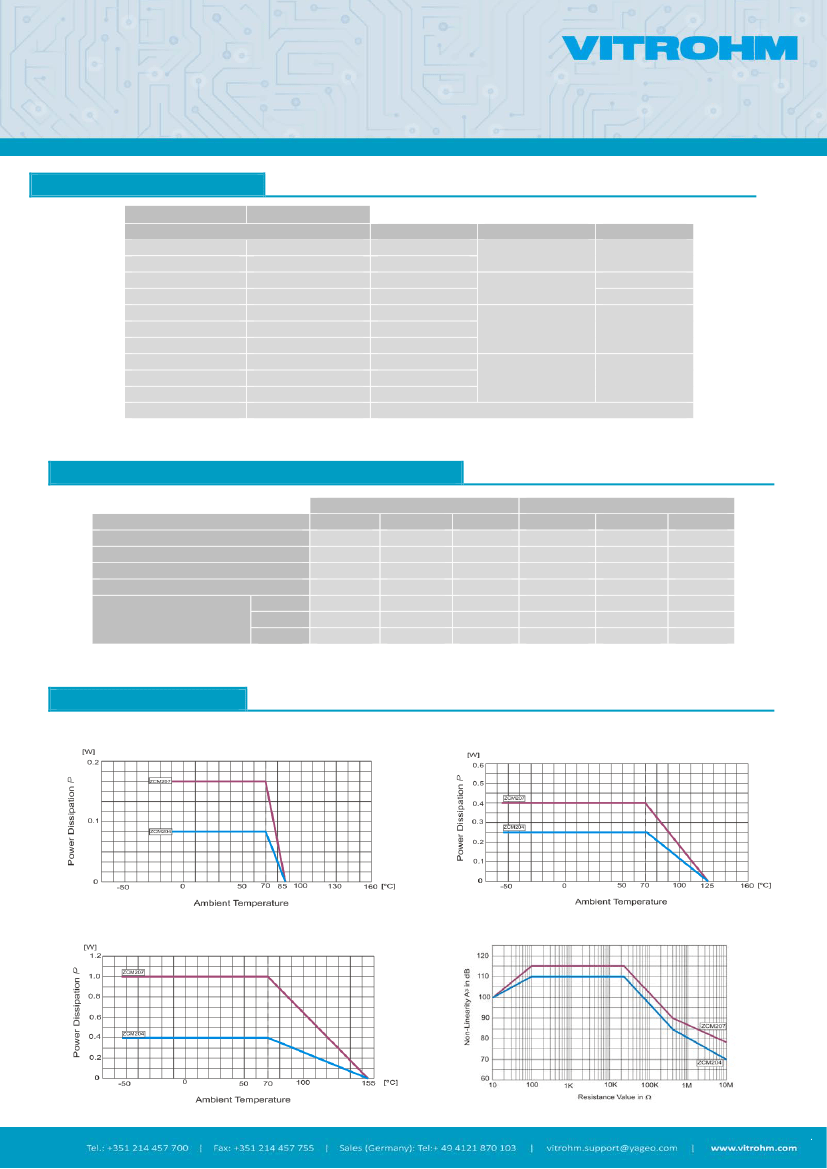

PERFORMANCE GRAPH’s
Derating – Precision Operation
Derating – Standard Operation
Derating – Power Operation
Non- Linearity
File Nr. 3900.18-450.113.17 |
Revision: 201802
3
1
ZCM Series Datasheet

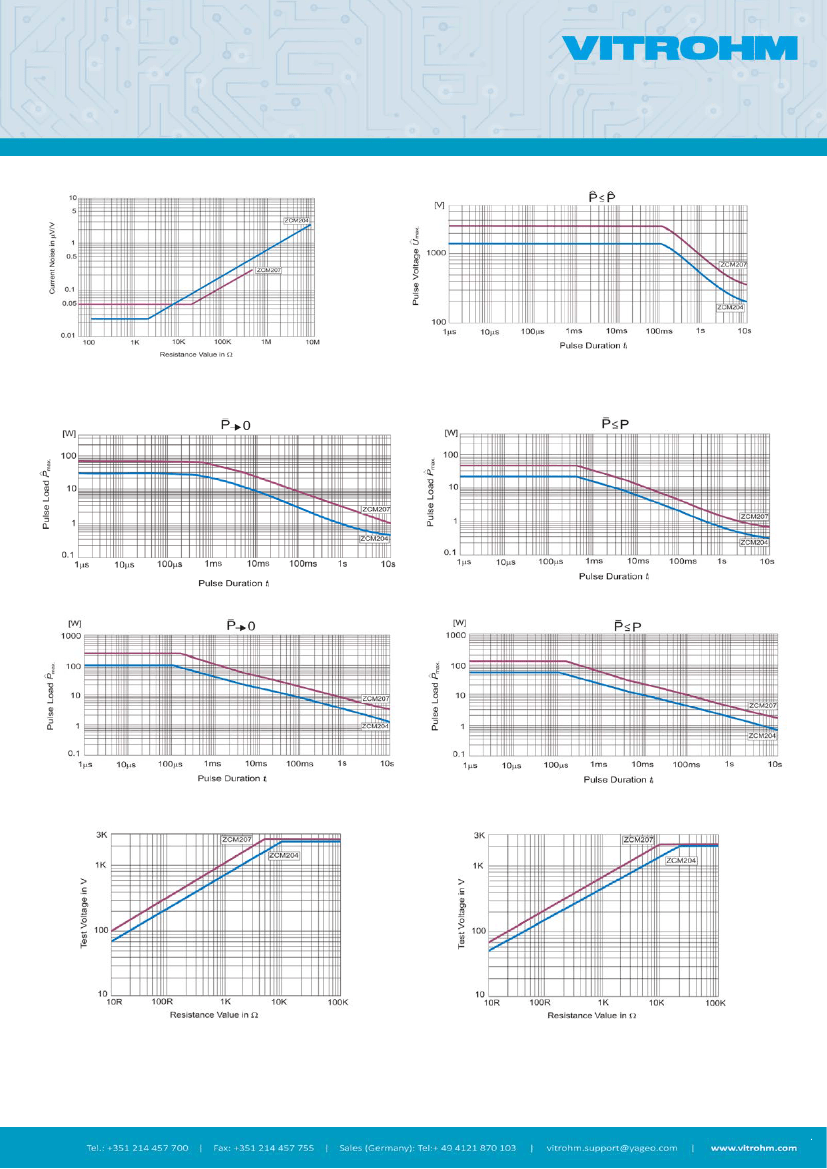

Current Noise
Pulse Voltage
Single Pulse for
R
<
10Ω
Continuous Pulse for
R
<
10Ω
Single Pulse for
R
≥ 10Ω
Continuous Pulse for
R
≥ 10Ω
Single Pulse (1.2/50 [µs])
Single Pulse (10/700 [µs])
File Nr. 3900.18-450.113.17 |
Revision: 201802
4
1
ZCM Series Datasheet

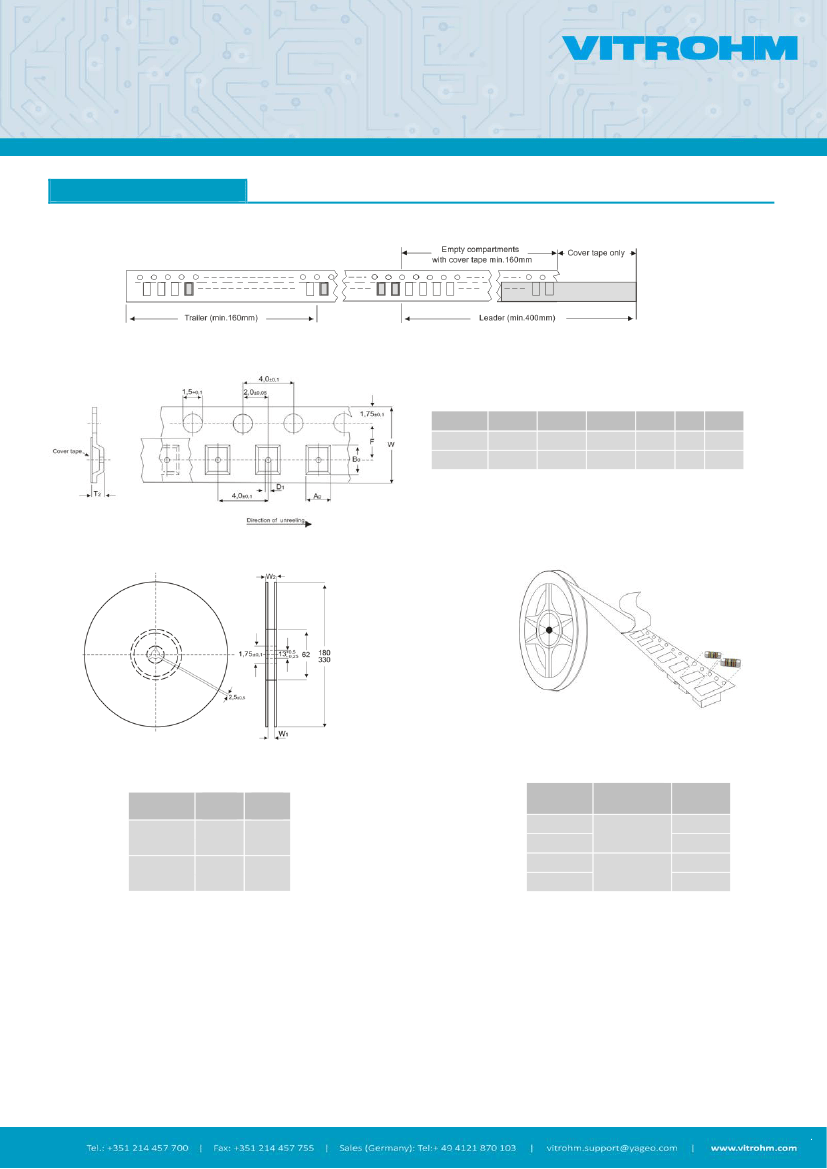

PACKAGING - Blister tape
The type ZCM is packed in antistatic blister tape according to IEC60286-3, type 2a, packing details described below,
Type
ZCM204
ZCM207
A
0
1,55
±0,1
2,40
±0,1
B
0
3,7
±0,1
6,0
±0,1
F
3,5
±0,05
W
8,0.
±0,3
D
1
1,0
T
2
≤ 1,8
≤ 2,7
5,5
±0,05
12,0.
±0,3
1,5
Type
ZCM204
ZCM207
W1
[±1,5]
W2
[max]
Type
ZCM204
ZCM207
ZCM204
ZCM207
Packaging
[dimensions]
07(inch)
Blister tape
13(inch)
Blister tape
Quantity
[pcs]
3000
1500
10000
7500
8,4
12,4
14,4
18,4
File Nr. 3900.18-450.113.17 |
Revision: 201802
5
1
The on-site handling time for digital TV conversion has been changed to one day
[i=s]This post was last edited by jameswangsynnex on 2015-3-3 19:59[/i]   Nanjing Daily reports (reporter Wei Ming, correspondent Wang Wenxi, Zhan Wei) "At most, we completed the overall digital TV co...
fighting Mobile and portable
【5】Bluetooth Balance Car 2nd Generation Launch Post
[i=s]This post was last edited by lb8820265 on 2016-3-16 00:20[/i] [align=left][size=3] After being quiet for so long, I feel that I am not very satisfied with the previous generation of small cars. T...
lb8820265 DIY/Open Source Hardware
OB3330XCP 60W LED driver power supply PCB layout
...
pengdaiyun Power technology
Why can't I download the program using the USB emulator on the MSP430F5438 minimum system I use?
What is going on? I have tried it in WinXP and it is the same. Please help!!! Below is a screenshot of the pop-up window when clicking the download button:...
流星123 Microcontroller MCU
“Typical Value” – What Does It Really Mean in a Data Sheet Specification?
Designers sometimes find op amp data sheet specifications confusing because not all performance characteristics have minimum or maximum specifications. Sometimes you have to use the "typical value" in...
maylove Analogue and Mixed Signal
Requesting TCP/IP software package for ZLG
Requesting TCP/IP software package for ZLG...
0212009623 Microcontroller MCU

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1662  301  1902  71  77  34  7  39  2  47
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
