ASFLMB-25.000MHZ-LC-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> ASFLMB-25.000MHZ-LC-T

Preview

ASFLMB-25.000MHZ-LC-T: Descriptionstandard clock oscillators 25.000mhz 50ppm -40+85c; CategoryPassive components oscillator; File Size88KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASFLMB-25.000MHZ-LC-T Overview

standard clock oscillators 25.000mhz 50ppm -40+85c

ASFLMB-25.000MHZ-LC-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Reach Compliance Code	compliant
Other features	TRI-STATE; STANDBY; TAPE AND REEL; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	150 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.12
physical size	5.0mm x 3.2mm x 0.85mm
power supply	1.8/3.3 V
Certification status	Not Qualified
longest rise time	2 ns
Maximum slew rate	16 mA
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
technology	CMOS
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

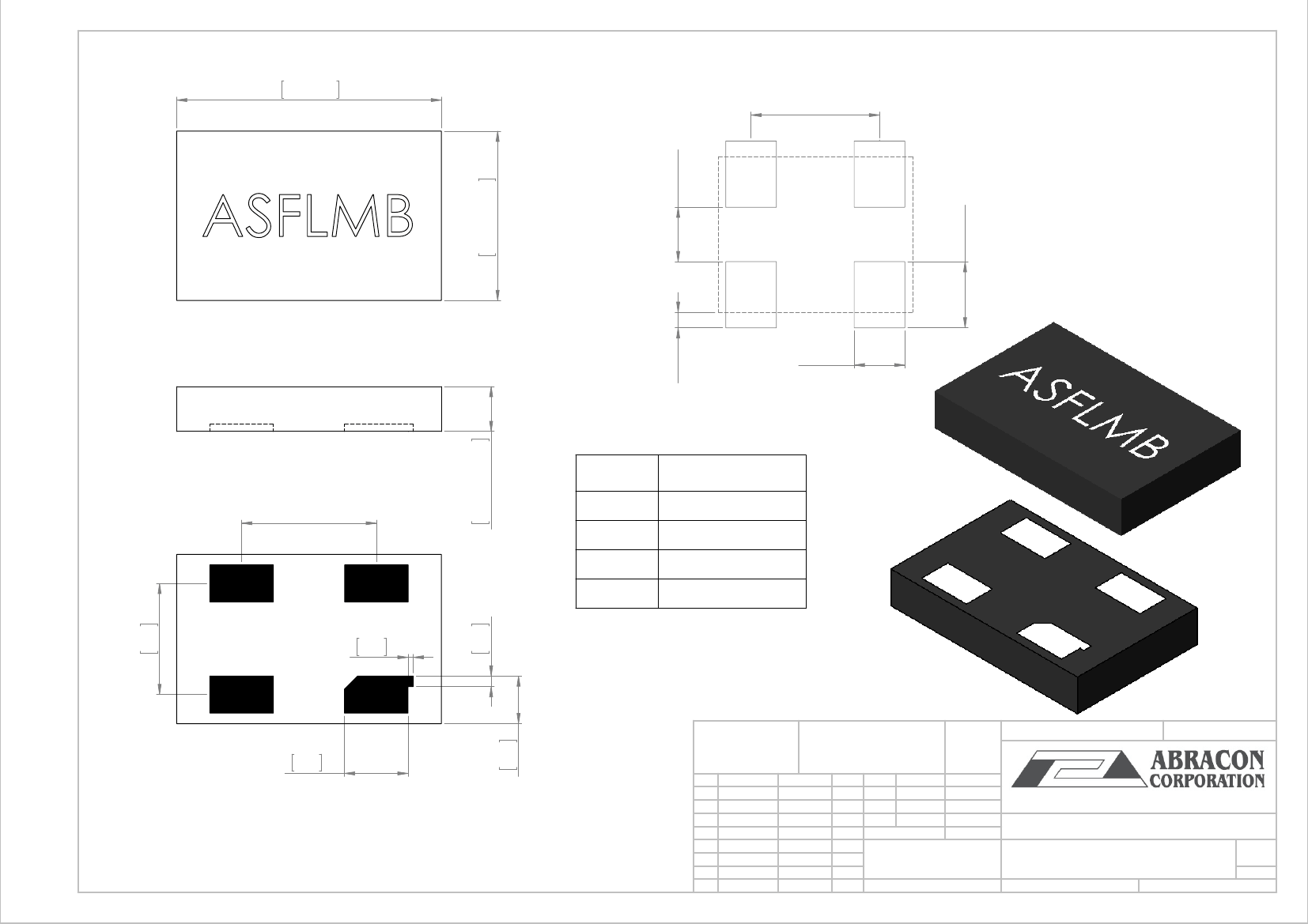

0.197 ±0.004

5 ±0.10

#4

#3

0.047

[1.2]

Recommended Land Pattern

0.100

[2.54]

0.126 ±0.004

3.20 ±0.10

#1

#2

0.004

[1.0]

0.047

[1.2]

0.033 ±0.00

0.85 ±0.050

No

1

2

3

4

Pin Terminal

Standby#

0.100

[2.54]

#3

#4

GND

Output

VDD

0.004

0.1

0.083

2.1

0.008

0.2

Note:Recommend usingan approximately

0.01uFbypass capacitorbetweenPIN 2 and 4.

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

MATERIAL:

DWG NO.

SAAZVAT

XXXXXX

0.035

0.9

#2

0.047

1.2

#1

FINISH:

0.043

[1.1]

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

-

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

Oscillator

ASFLMB

SHEET 1 OF 1

A3

WEIGHT:

SCALE:17:1
