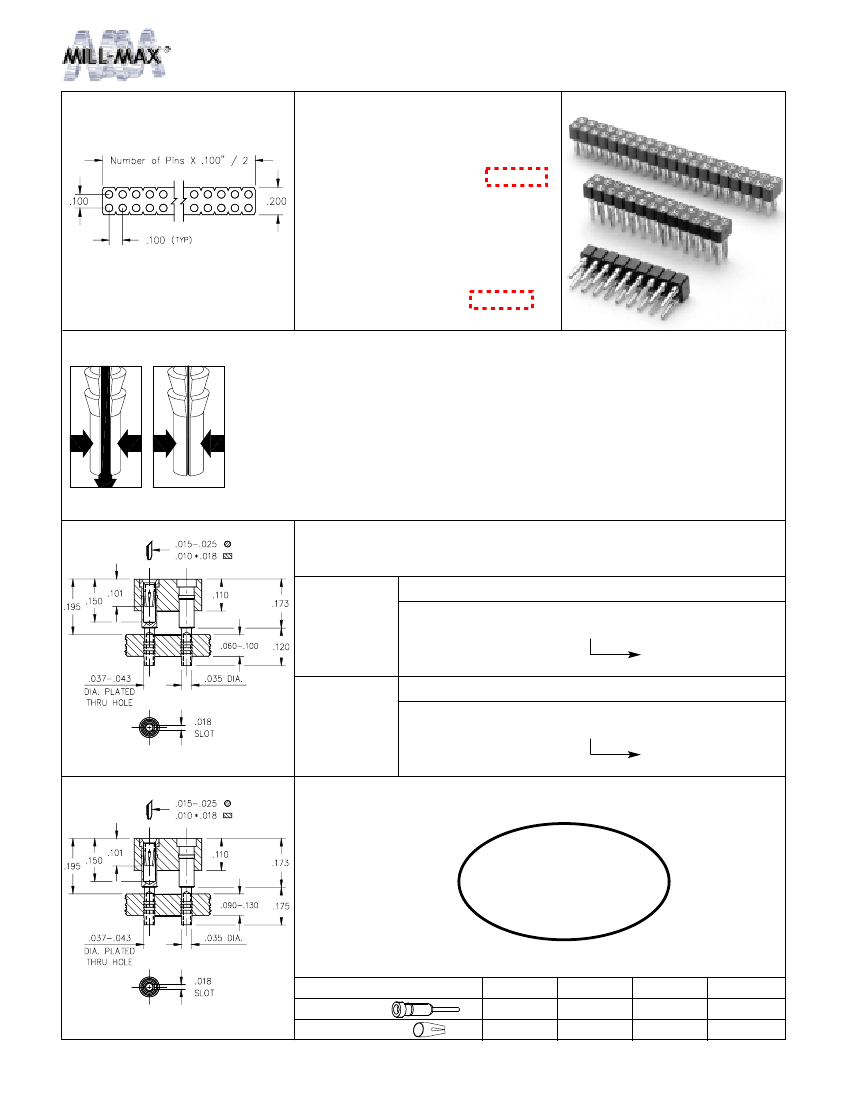

SINGLE-IN-LINE SOCKETS
Compliant Tail
Double Row
•
Compliant tail solderless
press-fit: M-M# 4612 or 4613 pins.
Use series 446...012 for .060-.120”
thick boards, and series 446...013
for .090-.130” boards. See page 131
for details.
•
Compliant tail receptacles can be
inserted and removed without
degradation of the plated-thru-hole.
•
Hi-Rel, 4-finger #30 BeCu contact
is rated at 3 amps. See page 208 for
details.
APPLICATION OF COMPLIANT TAIL PINS
Series 446
Mill-Max’s patented* compliant tail features precision machined pins that are
hollow and slotted to conform to a .040” ± .003” diameter PTH. As the pin is
inserted, the slot compresses to fit the PTH, thus avoiding damage (see illustration
at left). The pin’s tail has fine serrations that form a perfect “gas tight” connection
that doesn’t require soldering. And since the pin doesn’t damage the hole,
compliant tail sockets and connectors can be easily replaced.
*Patent No. 4,799,904.
Ordering Information
Series 446...012
Fig. 1
446-XX-2_ _-41-012
Specify # of pins
Series 446...013
02-64
Fig. 2
Fig. 1
446-XX-2_ _-41-013
Specify # of pins
02-64
XX= Plating Code
See Below
SPECIFY PLATING CODE XX=
13
10µ” Au
30µ” Au
93
30µ” Au
99
200µ” Sn/Pb
Sleeve (Pin)
200µ”Sn/Pb 200µ” Sn/Pb
Fig. 2
Contact (Clip)
Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
55
