TC74AC521P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> TC74AC521P

TC74AC521P: Description8-bit equality comparator; Categorylogic logic; File Size253KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TC74AC521P Overview

8-bit equality comparator

TC74AC521P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-PDIP-T20
length	24.6 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	IDENTITY COMPARATOR
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

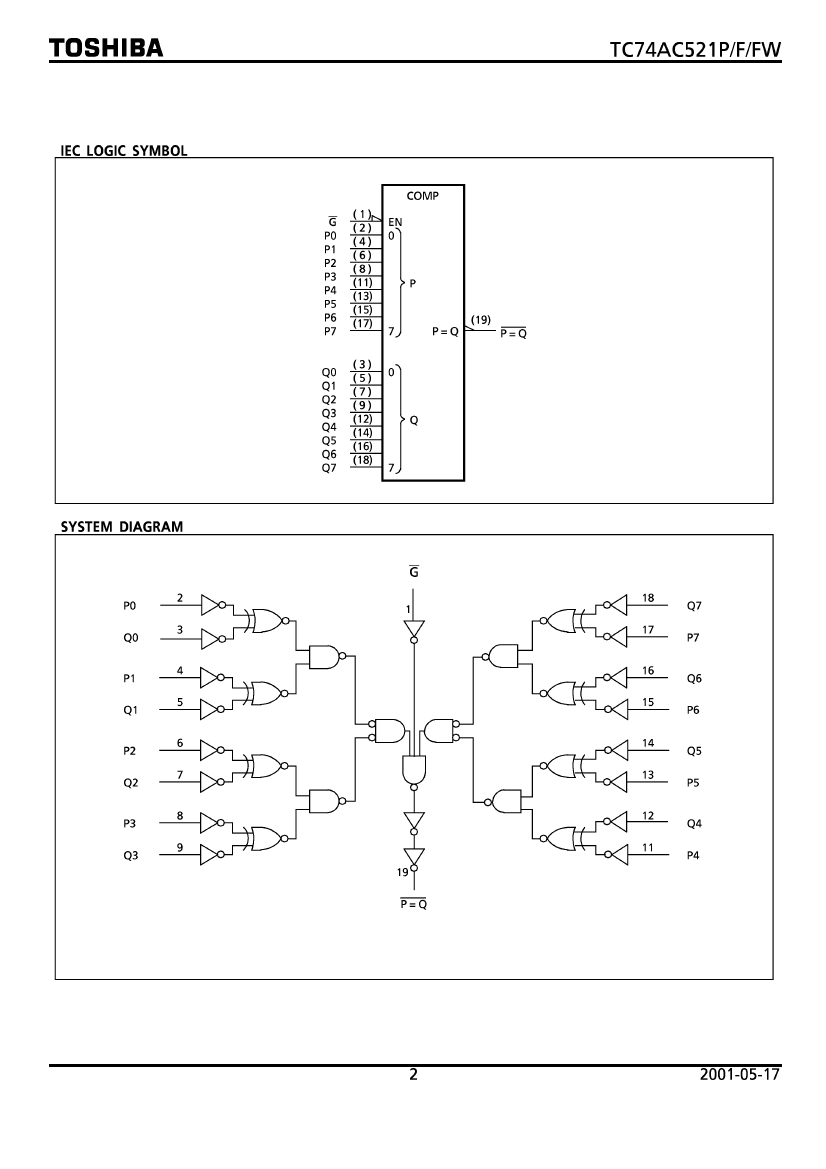

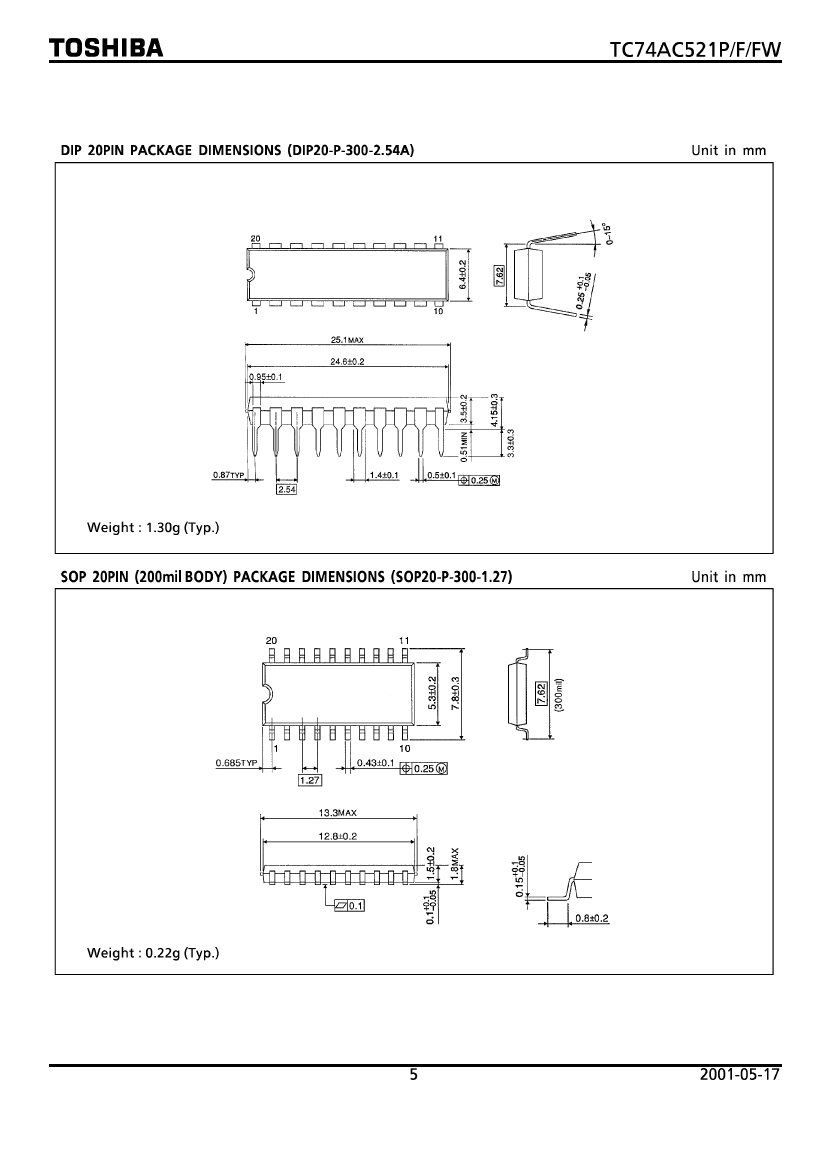

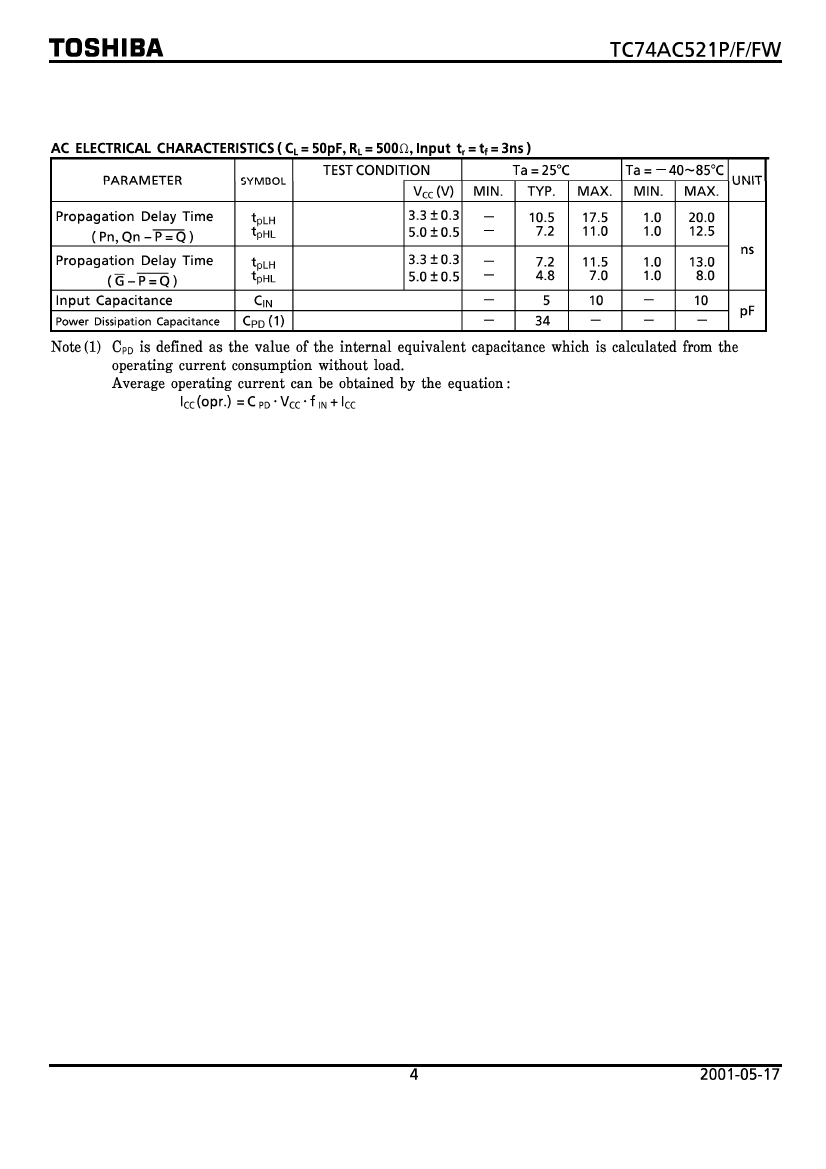

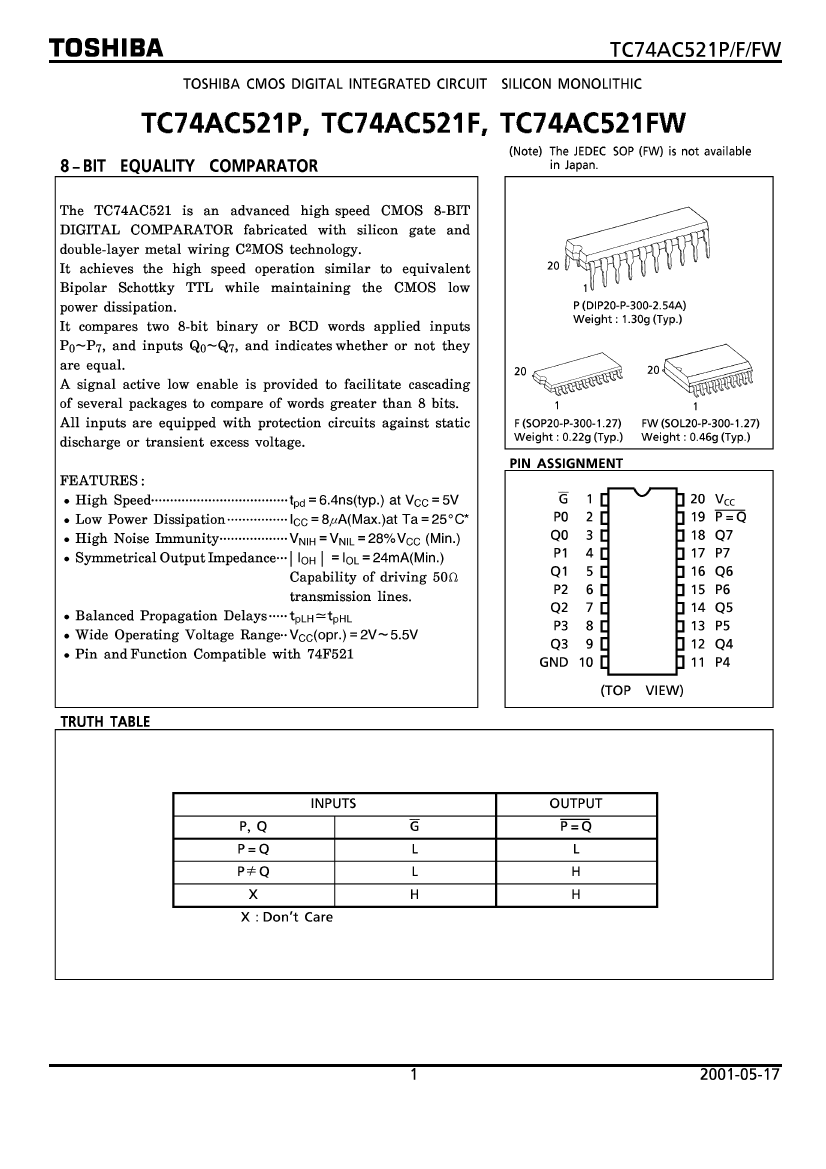

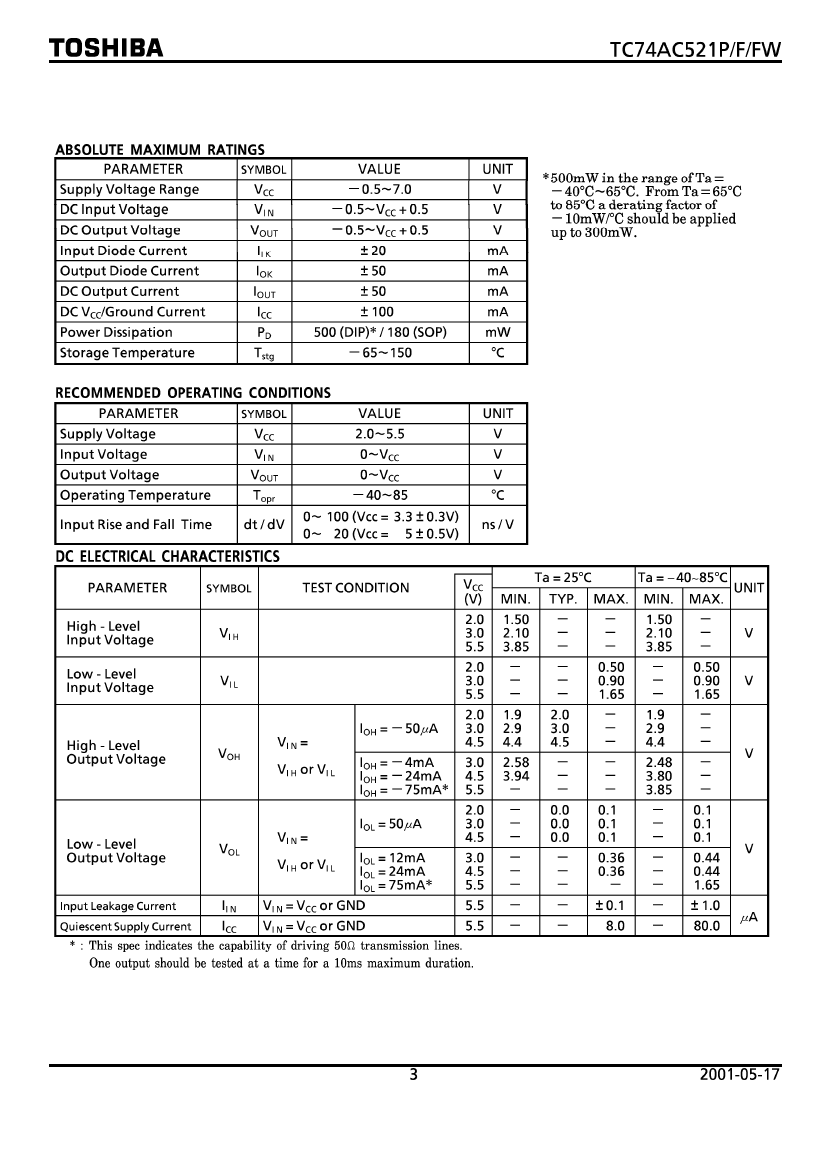

Preview

Download Datasheet

View All

TC74AC521P Related Products

	TC74AC521P	TC74AC521F	TC74AC521FW
Description	8-bit equality comparator	8-bit equality comparator	8-bit equality comparator
Is it Rohs certified?	conform to	incompatible	conform to
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIP	SOIC	SOIC
package instruction	DIP, DIP20,.3	0.300 INCH, 1.27 MM PITCH, PLASTIC, SOP-20	0.300 INCH, 1.27 MM PITCH, PLASTIC, SOL-20
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
series	AC	AC	AC
JESD-30 code	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20
length	24.6 mm	12.8 mm	12.8 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	IDENTITY COMPARATOR	IDENTITY COMPARATOR	IDENTITY COMPARATOR
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	20 ns	20 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.45 mm	1.8 mm	2.7 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	5.3 mm	7.5 mm
Encapsulate equivalent code	DIP20,.3	SOP20,.3	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
power supply	3.3/5 V	3.3/5 V	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
Is it lead-free?	-	Lead free	Lead free
JESD-609 code	-	e0	e2
Terminal surface	-	Tin/Lead (Sn/Pb)	TIN COPPER/TIN SILVER
Base Number Matches	-	1	1
