HDBR-1-3-26-S-X1 datasheet, PDF

HDBR-1-3-26-S-X1: DescriptionD Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug; File Size90KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

HDBR-1-3-26-S-X1 Overview

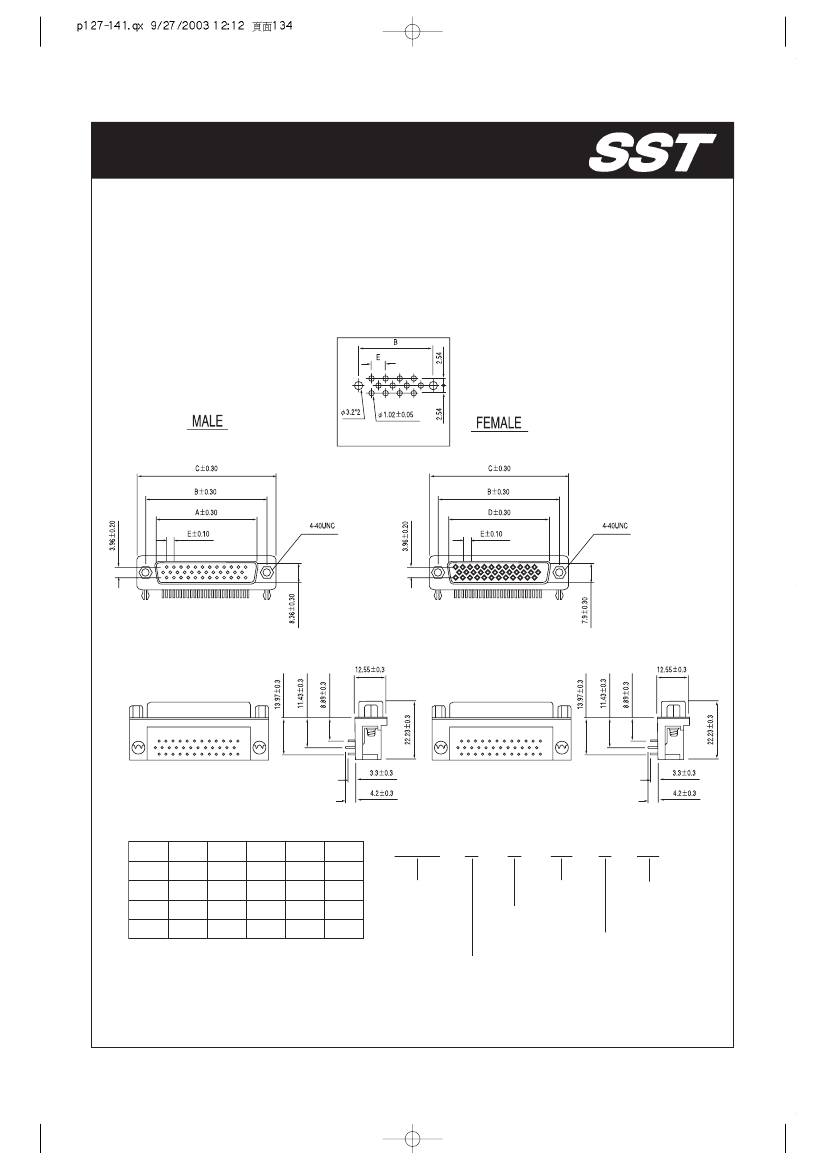

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug

Parameter Name	Attribute value
Objectid	1166537079
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	LOCKING
Installation option 2	THREADED RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Rated current (signal)	5 A
Guideline	UL
Terminal length	0.13 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26

HDBR CONNECTOR SYSTEM

Mounting Option (R/A type)

CURRENT RATING : 5A

WITHSTANDING VOLTAGE : 1000VAC(1 MIN)

INSULATION RESISTANCE : 1000 MEGOHMS MIN.

CONTACT RESISTANCE : 30 MILLIOHMS MAX

OPERATION TEMPERATURE : -40ºC TO+85ºC

CONTACT: BRASS, SELECTIVE GOLD OR

ALL GOLD

INSULATOR. PBT & 30% G.F.

SHELL: STELL, TIN PLATED

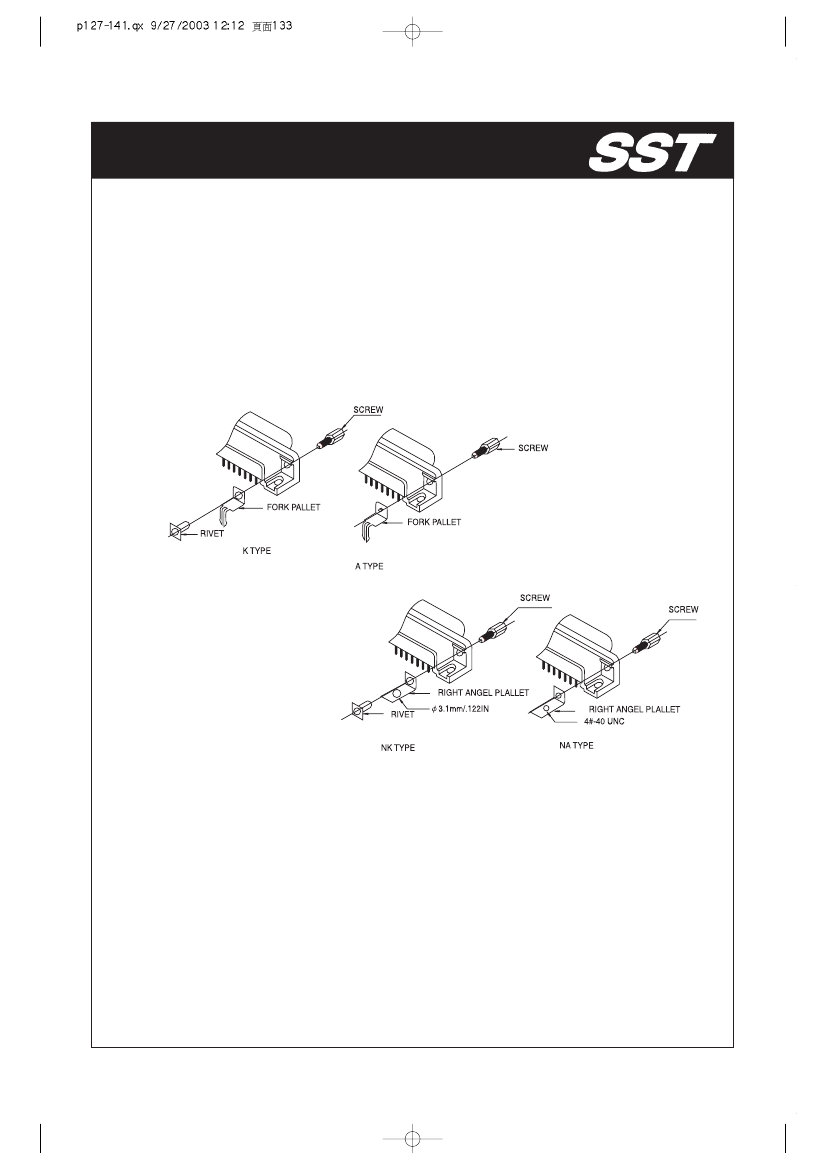

AK : A TYPE, WITH JACK SCREW & BOARD LOCKS

KK : K TYPE, WITH 4-40 INSERT & BOARD LOCKS

NA : NA TYPE, WITH JACK SCREW & GROUND STRAPS

NK : NK TYPE, WITH 4-40 INSERT & GROUND STRAPS
