TC9447F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> TC9447F

TC9447F: DescriptionSingle-Chip Audio Digital Signal Processor; CategoryOther integrated circuit (IC) Consumption circuit; File Size624KB，44 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TC9447F Overview

Single-Chip Audio Digital Signal Processor

TC9447F Parametric

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	QFP, QFP100,.7X.9
Contacts	100
Reach Compliance Code	unknow
Other features	WHEN FREQUENCY OF OPERATION IS 340 STEP MODE OPERATING TEMPERATURE IS -40 TO 85 CELSIUS
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
Number of functions	1
Number of terminals	100
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.7X.9
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.05 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

TC9447F

TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic

TC9447F

Single-Chip Audio Digital Signal Processor

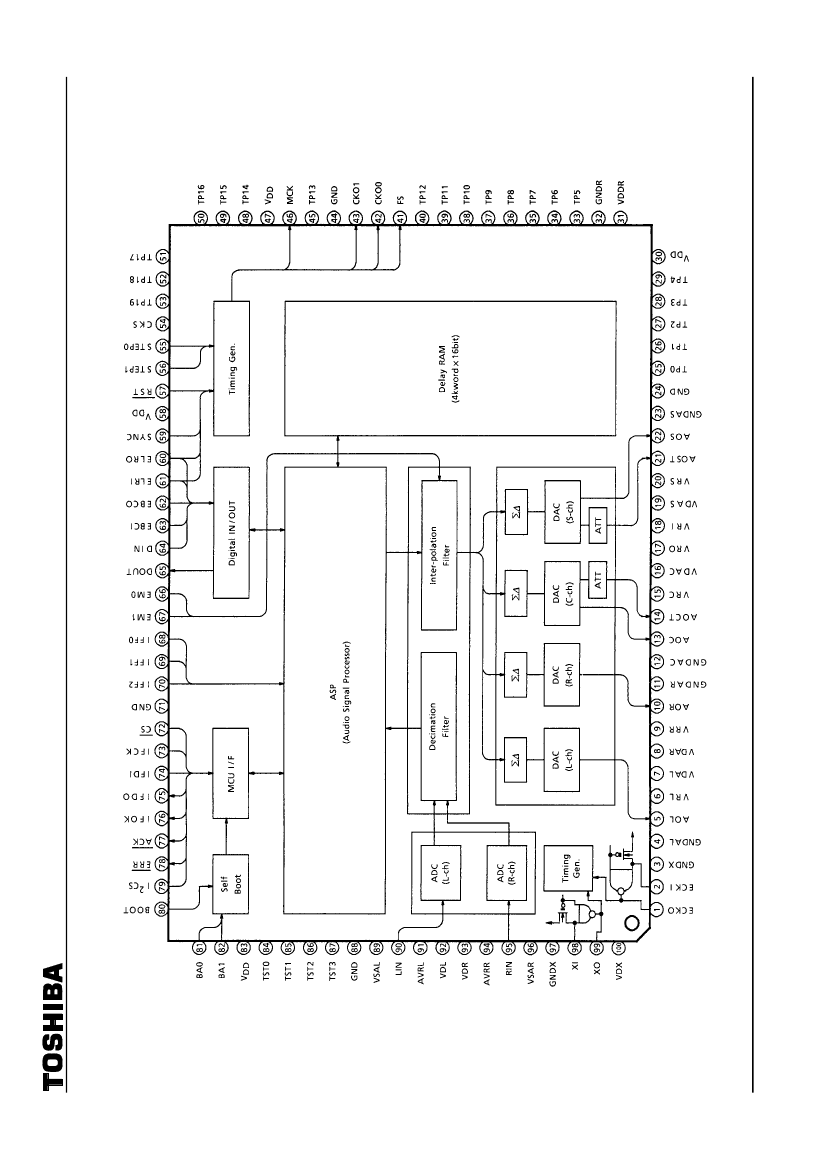

The TC9447F is a single-chip audio digital signal processor

incorporating an AD/DA converter. The built-in program memory

(ROM) can contain a range of application programs for concert

hall acoustic field simulation, for digital filters such as equalizers,

and for dynamic range control. In addition, the device includes

64kb of data delay RAM, making external RAM unnecessary.

Features

Incorporates a 1-bit

Σ∆-type

AD converter (two channels).

THD:

−82dB,

S/N ratio: 95dB (typ.)

Incorporates a 1-bit

Σ∆-type

DA converter (four channels).

THD:

−85dB,

S/N ratio: 100dB (typ.)

A ±10-dB attenuator is built into the DA converter output block (two channels only)

Each port has a digital input/output (three lead-type)

A built-in self-boot function automatically sets the coefficients and register values at initialization.

Boot ROM

Data bus

Multiplier/adder

Accumulator

Program ROM

Coefficient RAM

Coefficient ROM

Offset RAM

Data RAM

Operation speed

: 1024 words × 18 bits

: 24 bits

: 24 bits × 16 bits + 43 bits

→

43 bits

: 43 bits (sign extension: 4 bits)

: 1024 words × 32 bits

: 320 words × 16 bits

: 256 words × 16 bits

: 64 words × 16 bits

: 256 words × 24 bits

: 44ns (510-step (approx) operation per cycle at fs = 44.1 kHz)

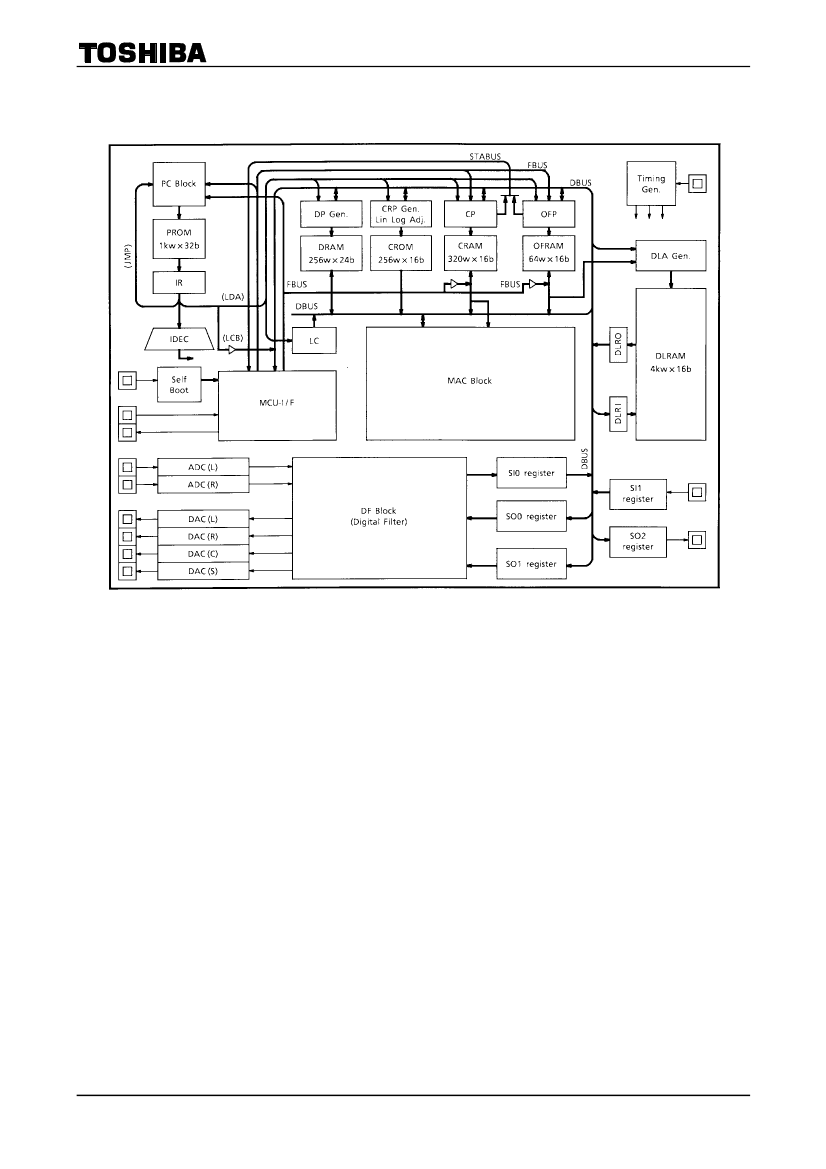

The DSP block specifications are as follows:

Weight: 1.57g (typ.)

Interface buffer RAM : 32 words × 16 bits

Incorporates data delay RAM.

Delay RAM

: 4096 words × 16 bits (64 kbits)

The microcontroller interface can be selected between Standard Transmission mode and I

C bus mode.

CMOS silicon structure supports high speed.

The package is a 100-pin flat package.

2002-02-05
