HC*: Fixed receptacle, nut fixing, watertight or vacuum-tight (watertight when mated, back
panel mounting)
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
P : Watertight
14.20 g
Performance
Configuration
Insulator
Rated Current
0B.309 : 9 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
2 Amps
Specifications
Contact Type: Print (straight)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Max. Matings: 3000
Contact Dia.: 0.5 mm (0.02in)
R (max): 8.7 mOhm
Vtest (contact-shell): 500 V (AC), 710 V (DC)
Vtest (contact-contact): 600 V (AC), 850 V (DC)
Others
Endurance (Shell): 5000
Temp (min / max): -20°C / +100°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 20/80/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
Pressure: 60 bars
IP Rating: 68

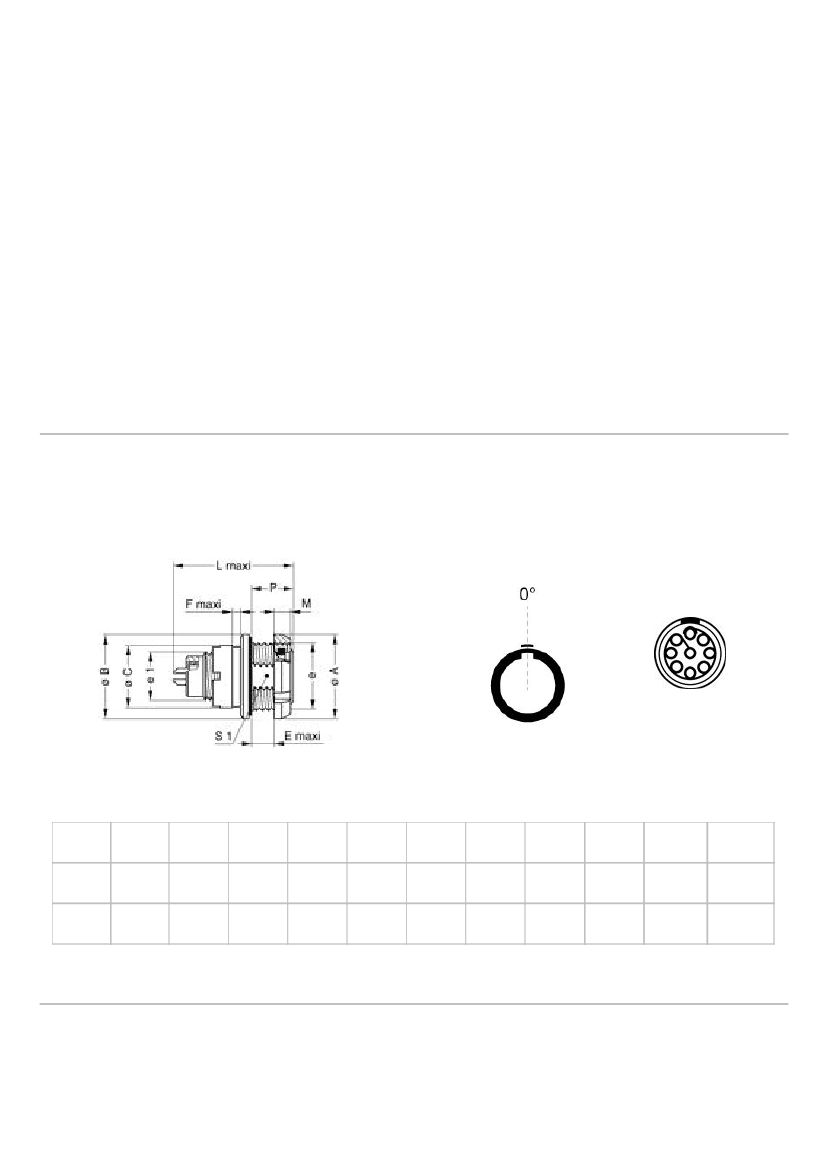

DRAWINGS
Draws
Dimensions
A
mm.
in.
18
0,71
B
18
0,71
C
12
0,47
E
3.9
0,15
F
1
0,04
L
23.7
0,93
M
3.5
0,14
P
7.5
0,30
S1
12.5
0,49
e
M9x0.6
e
M14x1.0
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
None
Cables
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
