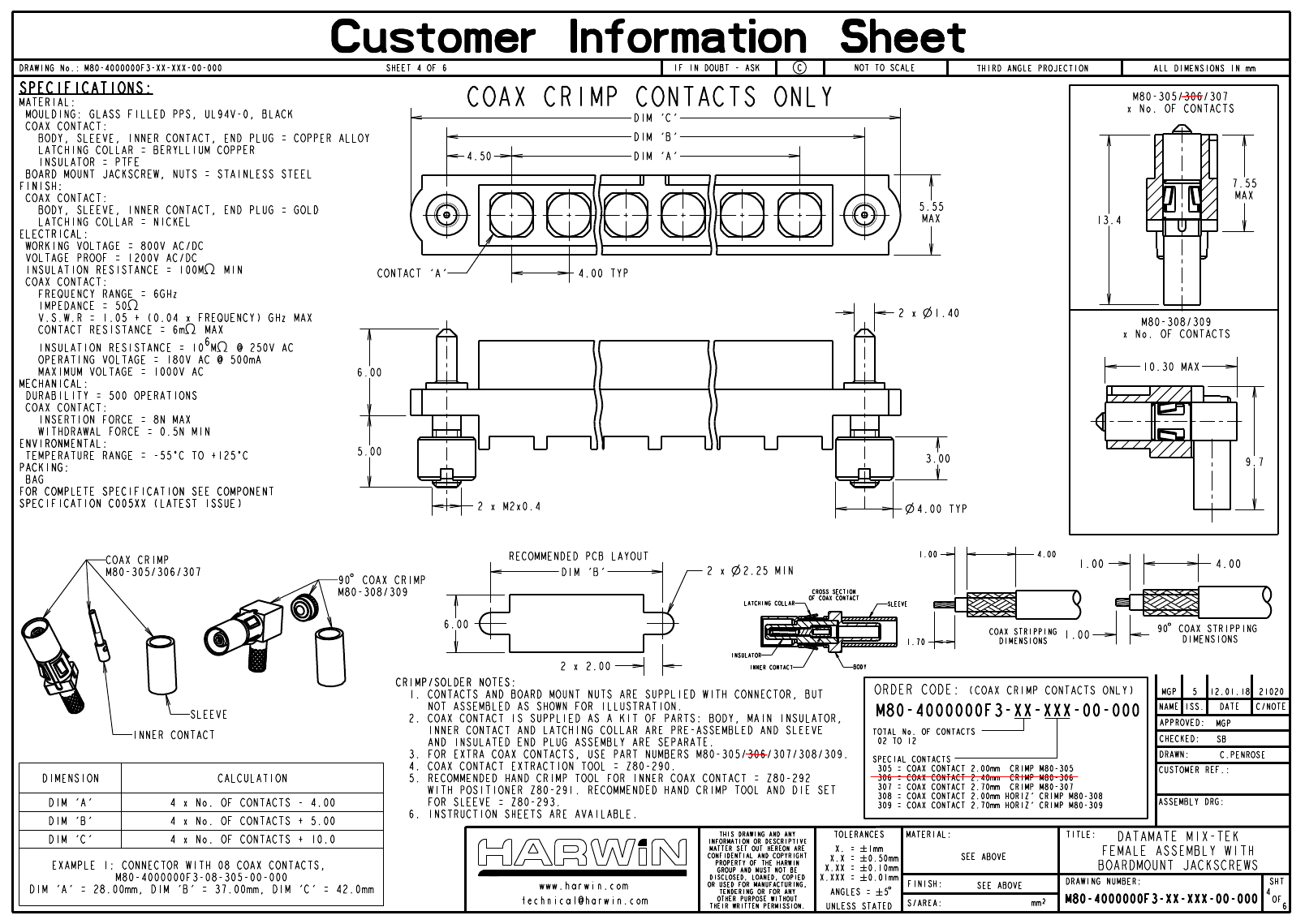

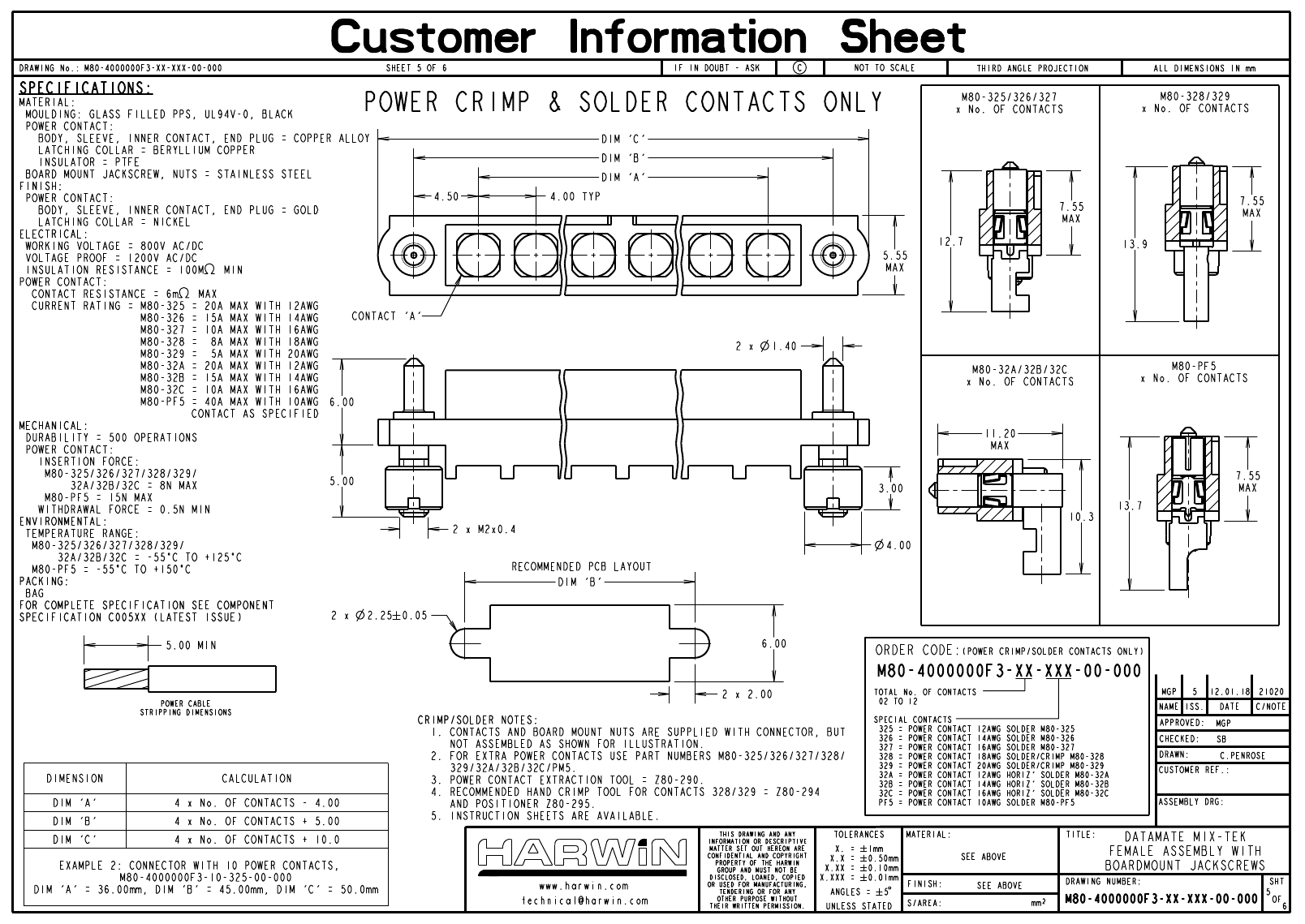

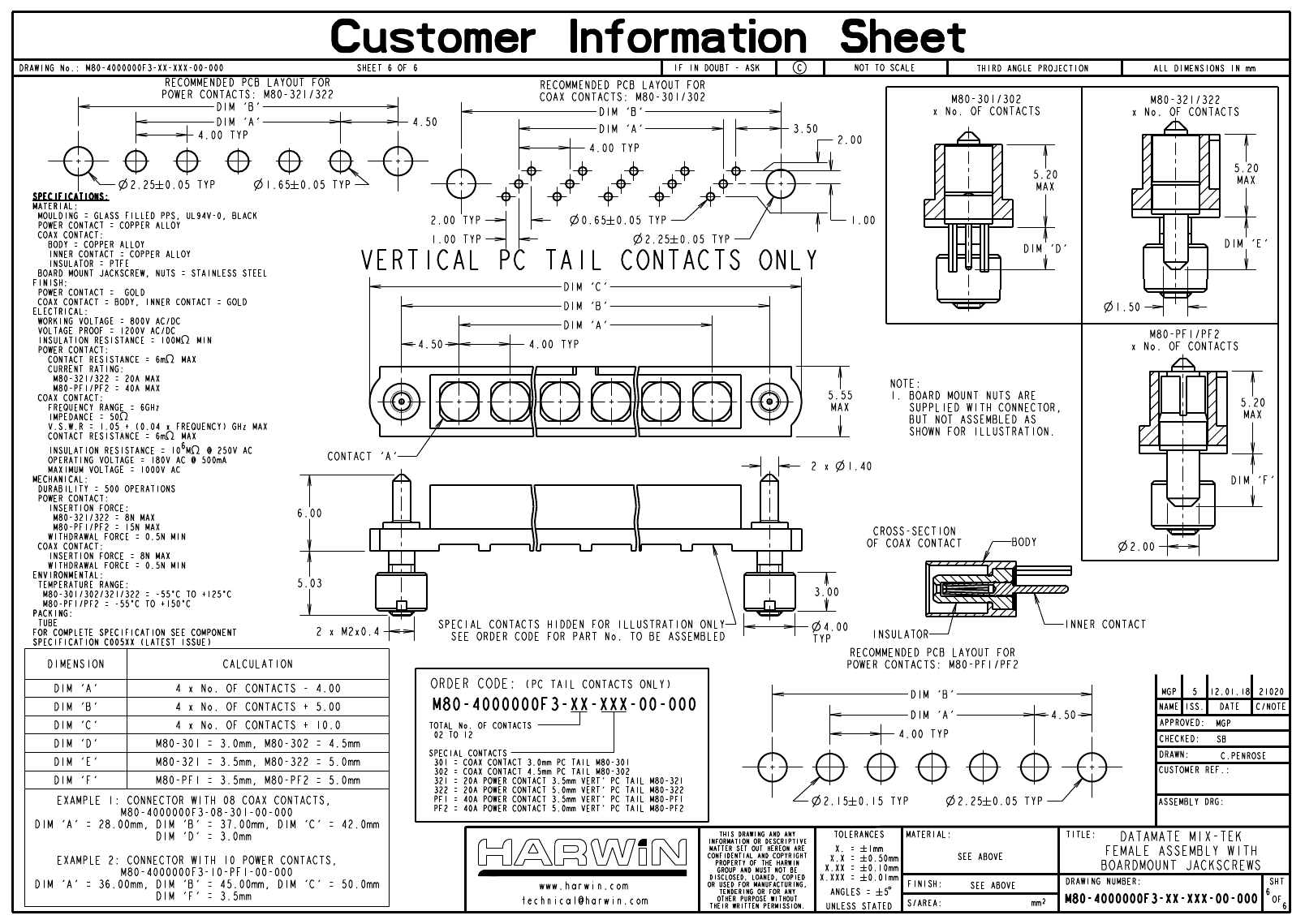

Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug,
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Harwin |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | PANEL MOUNTABLE |
| body width | 0.219 inch |
| subject depth | 0.297 inch |
| body length | 1.654 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S0C8 |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 6 mΩ |
| Contact style | COAX |
| DIN compliance | NO |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 8.0064 N |
| Insulation resistance | 1000000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Number of connectors | ONE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Guideline | UL |
| reliability | COMMERCIAL |
| Termination type | CRIMP |
| Total number of contacts | 8 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .199882 N |
| Base Number Matches | 1 |
| M80-4000000F3-08-306-00-000 | M80-4000000F3-11-306-00-000 | M80-4000000F3-03-306-00-000 | M80-4000000F3-04-306-00-000 | M80-4000000F3-05-306-00-000 | M80-4000000F3-12-306-00-000 | M80-4000000F3-06-306-00-000 | M80-4000000F3-10-306-00-000 | M80-4000000F3-02-306-00-000 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, | Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, | Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, | Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, | Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, | Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, | Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, | Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, | Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug, |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compli | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | PANEL MOUNTABLE | PANEL MOUNTABLE | PANEL MOUNTABLE | PANEL MOUNTABLE | PANEL MOUNTABLE | PANEL MOUNTABLE | PANEL MOUNTABLE | PANEL MOUNTABLE | PANEL MOUNTABLE |
| body width | 0.219 inch | 0.219 inch | 0.219 inch | 0.219 inch | 0.219 inch | 0.219 inch | 0.219 inch | 0.219 inch | 0.219 inch |
| subject depth | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch |
| body length | 1.654 inch | 2.126 inch | 0.866 inch | 1.024 inch | 1.181 inch | 2.283 inch | 1.339 inch | 1.969 inch | 0.709 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact arrangement | S0C8 | S0C11 | S0C3 | S0C4 | S0C5 | S0C12 | S0C6 | S0C10 | S0C2 |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact resistance | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ |
| Contact style | COAX | COAX | COAX | COAX | COAX | COAX | COAX | COAX | COAX |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 8.0064 N | 8.0064 N | 8.0064 N | 8.0064 N | 8.0064 N | 8.0064 N | 8.0064 N | 8.0064 N | 8.0064 N |
| Insulation resistance | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 8 | 11 | 3 | 4 | 5 | 12 | 6 | 10 | 2 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .199882 N | .199882 N | .199882 N | .199882 N | .199882 N | .199882 N | .199882 N | .199882 N | .199882 N |
| Maker | Harwin | - | Harwin | Harwin | Harwin | Harwin | Harwin | - | Harwin |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
