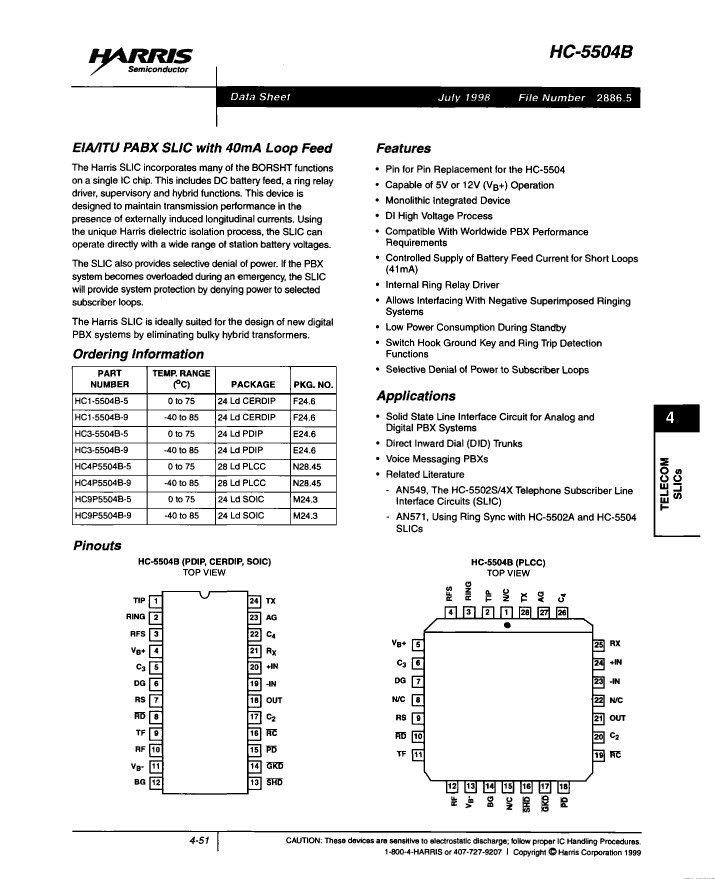

SLIC, 2-4 Conversion, Bipolar, PDSO24,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Harris |
| package instruction | SOP, SOP24,.4 |
| Reach Compliance Code | unknown |
| battery fed | CONSTANT CURRENT |
| Battery powered | -48 V |
| mix | 2-4 CONVERSION |
| JESD-30 code | R-PDSO-G24 |
| JESD-609 code | e0 |
| Negative supply voltage rating | -48 V |
| maximum noise | 5 dBrnC |
| Number of functions | 1 |
| Number of terminals | 24 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PSRR-Min | 15 dB |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP24,.4 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 5/12 V |
| Certification status | Not Qualified |
| Maximum slew rate | 41 mA |
| Nominal supply voltage | 12 V |
| surface mount | YES |
| technology | BIPOLAR |
| Telecom integrated circuit types | SLIC |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| HC9P5504B-9 | HC3-5504B-5 | HC4P5504B-5 | HC4P5504B-9 | HC9P5504B-5 | HC3-5504B-9 | HC1-5504B-5 | HC1-5504B-9 | |
|---|---|---|---|---|---|---|---|---|
| Description | SLIC, 2-4 Conversion, Bipolar, PDSO24, | SLIC, 2-4 Conversion, Bipolar, PDIP24, | SLIC, 2-4 Conversion, Bipolar, PQCC28, | SLIC, 2-4 Conversion, Bipolar, PQCC28, | SLIC, 2-4 Conversion, Bipolar, PDSO24, | SLIC, 2-4 Conversion, Bipolar, PDIP24, | SLIC, 2-4 Conversion, Bipolar, CDIP24, | SLIC, 2-4 Conversion, Bipolar, CDIP24, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Harris | Harris | Harris | Harris | Harris | Harris | Harris | Harris |
| package instruction | SOP, SOP24,.4 | DIP, DIP24,.6 | QCCJ, LDCC28,.5SQ | QCCJ, LDCC28,.5SQ | SOP, SOP24,.4 | DIP, DIP24,.6 | DIP, DIP24,.6 | DIP, DIP24,.6 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| battery fed | CONSTANT CURRENT | CONSTANT CURRENT | CONSTANT CURRENT | CONSTANT CURRENT | CONSTANT CURRENT | CONSTANT CURRENT | CONSTANT CURRENT | CONSTANT CURRENT |
| Battery powered | -48 V | -48 V | -48 V | -48 V | -48 V | -48 V | -48 V | -48 V |
| mix | 2-4 CONVERSION | 2-4 CONVERSION | 2-4 CONVERSION | 2-4 CONVERSION | 2-4 CONVERSION | 2-4 CONVERSION | 2-4 CONVERSION | 2-4 CONVERSION |
| JESD-30 code | R-PDSO-G24 | R-PDIP-T24 | S-PQCC-J28 | S-PQCC-J28 | R-PDSO-G24 | R-PDIP-T24 | R-GDIP-T24 | R-GDIP-T24 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Negative supply voltage rating | -48 V | -48 V | -48 V | -48 V | -48 V | -48 V | -48 V | -48 V |
| maximum noise | 5 dBrnC | 5 dBrnC | 5 dBrnC | 5 dBrnC | 5 dBrnC | 5 dBrnC | 5 dBrnC | 5 dBrnC |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 24 | 24 | 28 | 28 | 24 | 24 | 24 | 24 |
| Maximum operating temperature | 85 °C | 75 °C | 75 °C | 85 °C | 75 °C | 85 °C | 75 °C | 85 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | SOP | DIP | QCCJ | QCCJ | SOP | DIP | DIP | DIP |
| Encapsulate equivalent code | SOP24,.4 | DIP24,.6 | LDCC28,.5SQ | LDCC28,.5SQ | SOP24,.4 | DIP24,.6 | DIP24,.6 | DIP24,.6 |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | CHIP CARRIER | CHIP CARRIER | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE |
| power supply | 5/12 V | 5/12 V | 5/12 V | 5/12 V | 5/12 V | 5/12 V | 5/12 V | 5/12 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 41 mA | 41 mA | 41 mA | 41 mA | 41 mA | 41 mA | 41 mA | 41 mA |
| Nominal supply voltage | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V |
| surface mount | YES | NO | YES | YES | YES | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Telecom integrated circuit types | SLIC | SLIC | SLIC | SLIC | SLIC | SLIC | SLIC | SLIC |
| Temperature level | INDUSTRIAL | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | INDUSTRIAL | COMMERCIAL EXTENDED | INDUSTRIAL | COMMERCIAL EXTENDED | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | THROUGH-HOLE | J BEND | J BEND | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | QUAD | QUAD | DUAL | DUAL | DUAL | DUAL |
| PSRR-Min | 15 dB | 15 dB | 15 dB | 15 dB | 15 dB | 15 dB | 15 dB | - |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - | - |
